Name: R1 Single Board Computer Rockchip RK3588S Development Board 8K Display Onboard N
Brand: Prime Living
SKU: H-168112079301
Price: 457.99 CAD
Availability: InStock

Product Description

R1 Single Board Computer Rockchip RK3588S Development Board 8K Display Onboard NFC Support Android 13/ Debian / Ubuntu

NFC communication with mobile phones and does not support external reading and writing of tags.

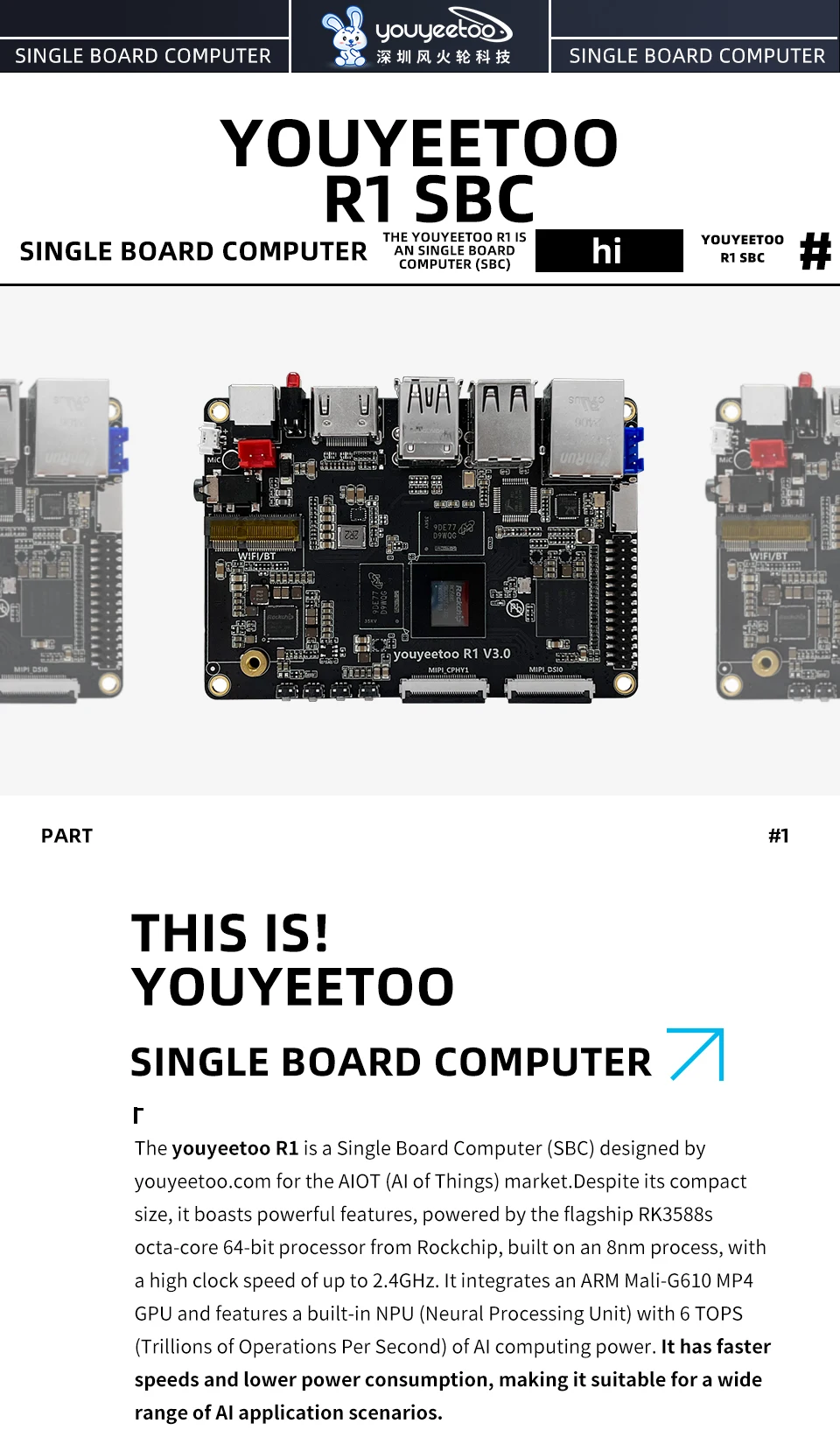

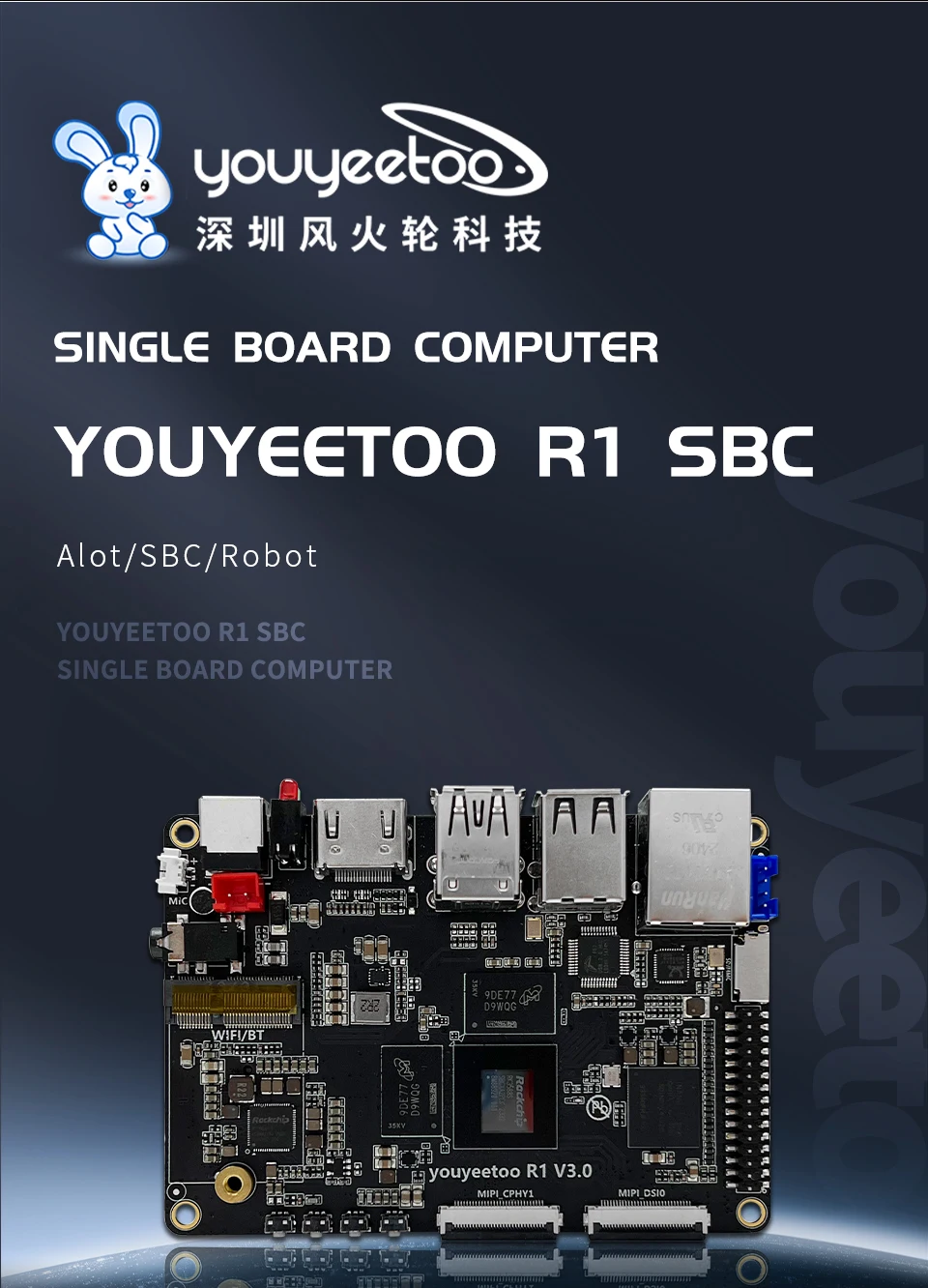

The youyeetoo R1 is an Single Board Computer (SBC) designed by youyeetoo.com for the AIOT (AI of Things) market.

Despite its compact size, it boasts powerful features, powered by the flagship RK3588s octa-core 64-bit processor from Rockchip, built on an 8nm process, with a high clock speed of up to 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU and features a built-in NPU (Neural Processing Unit) with 6 TOPS (Trillions of Operations Per Second) of AI computing power. It has faster speeds and lower power consumption, making it suitable for a wide range of AI application scenarios.

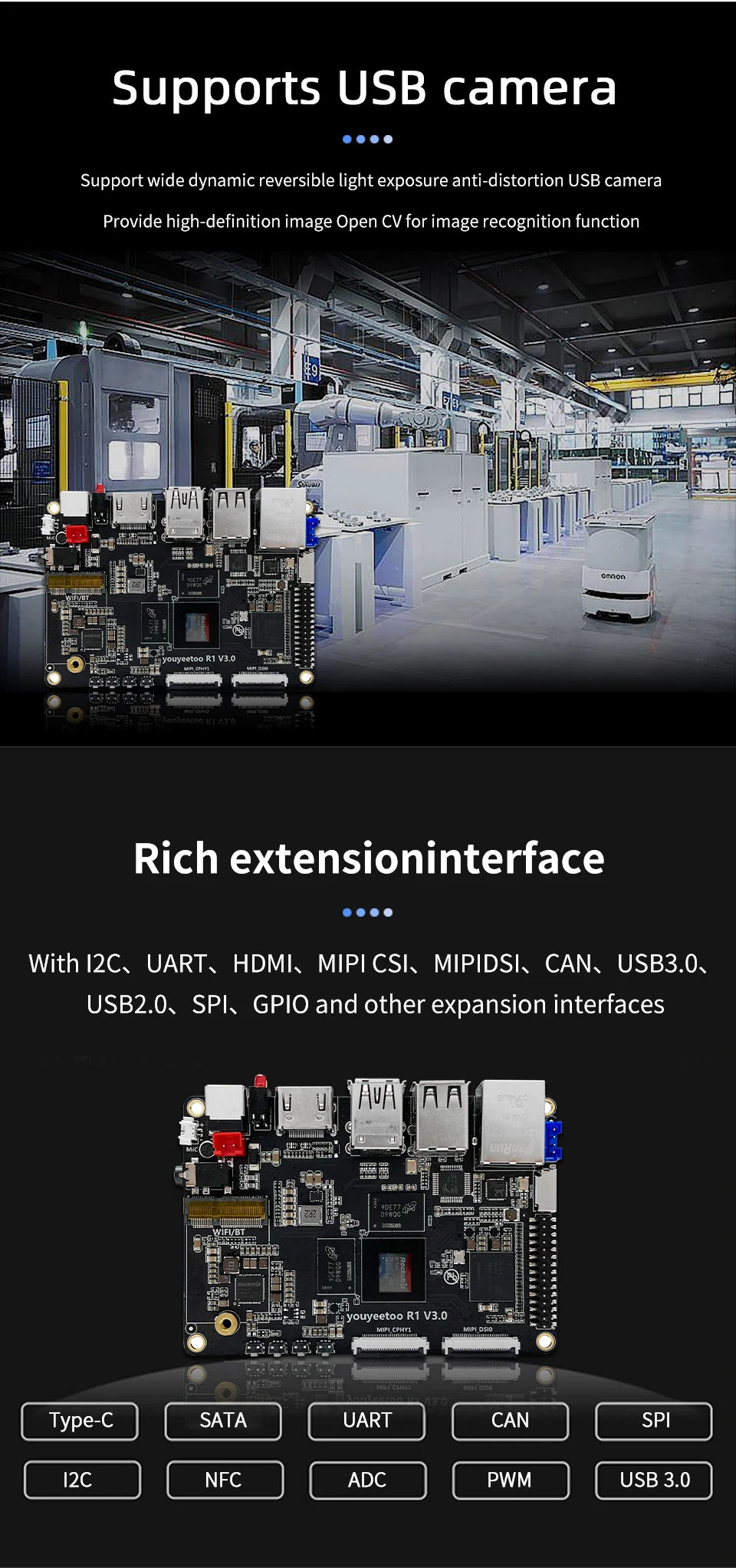

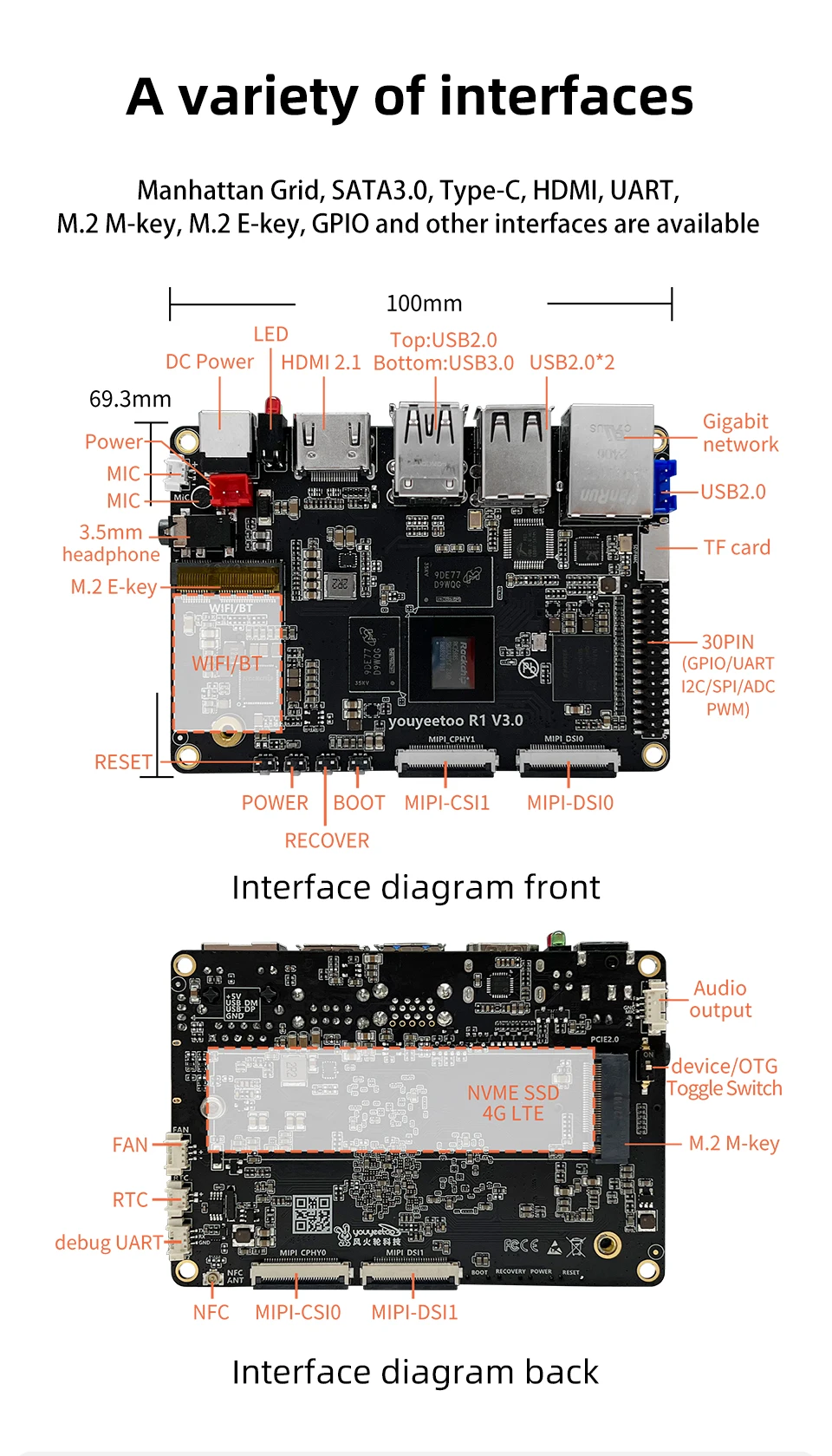

Although the R1 SBC is only the size of a card (100 * 69.3mm), but it has a rich interfaces, including Gigabit Ethernet, HDMI output (supports 8K), Type-C, M.2 PCIe2.0, dual MIPI cameras and screens, 3 * USB2.0, 1 * USB3.0, 4 * UART serial port, 2 * I2C, GPIO * 7, SPI * 1, ADC * 2, CAN * 1 and other common interfaces for the AIOT(Internet of Things),it support multiple operating systems and can be applied to Edge computing, artificial intelligence, advertising machines, smart homes and other AIoT fields.

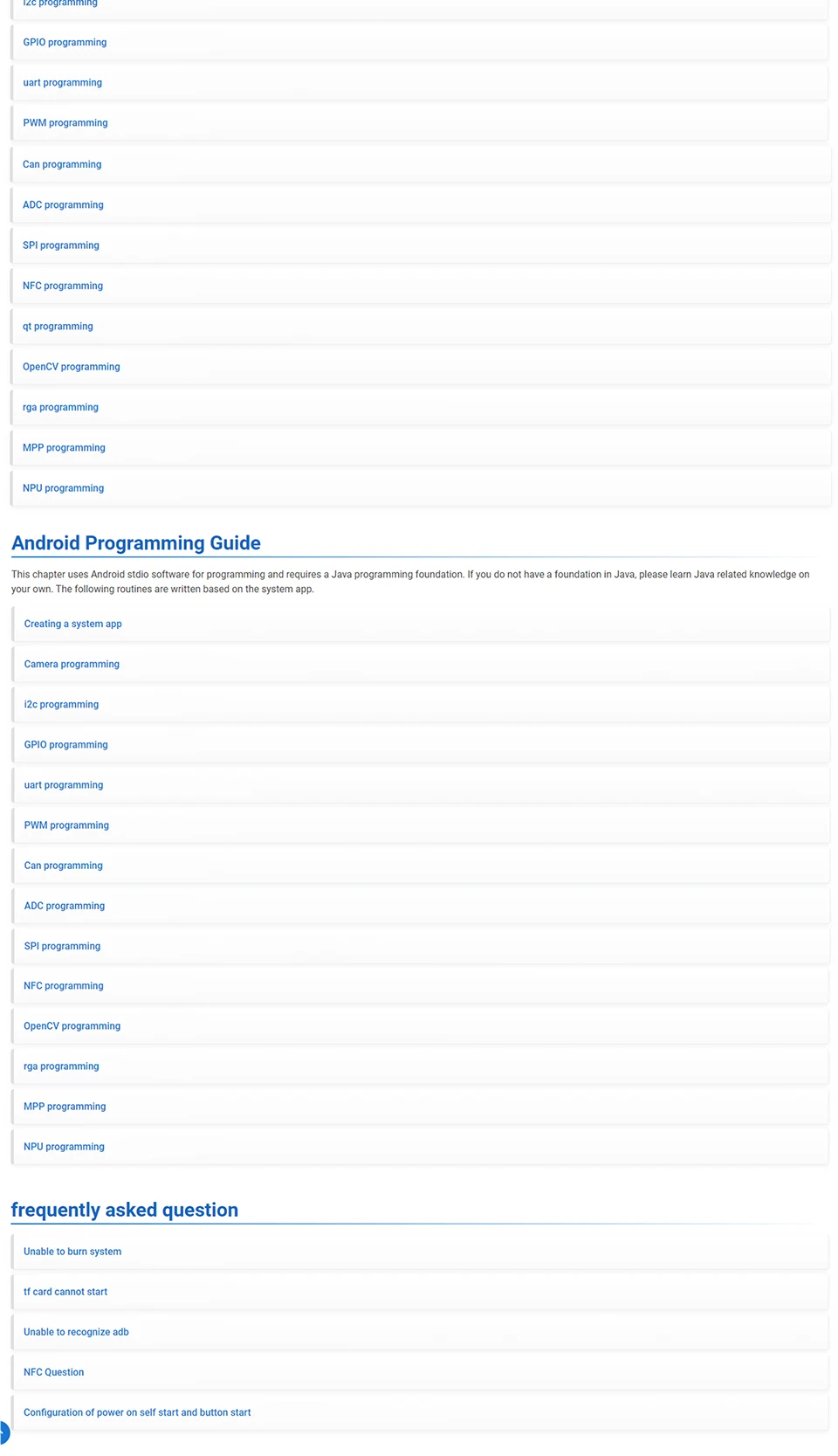

The most distinctive feature is that the R1 SBC is also equipped with an NFC(near-field communication) chip. You can use a mobile phone (android/IOS) to touch the motherboard to transfer data to each other, the youyeetoo team provides application example tutorials.

Specification

Item	descriptions

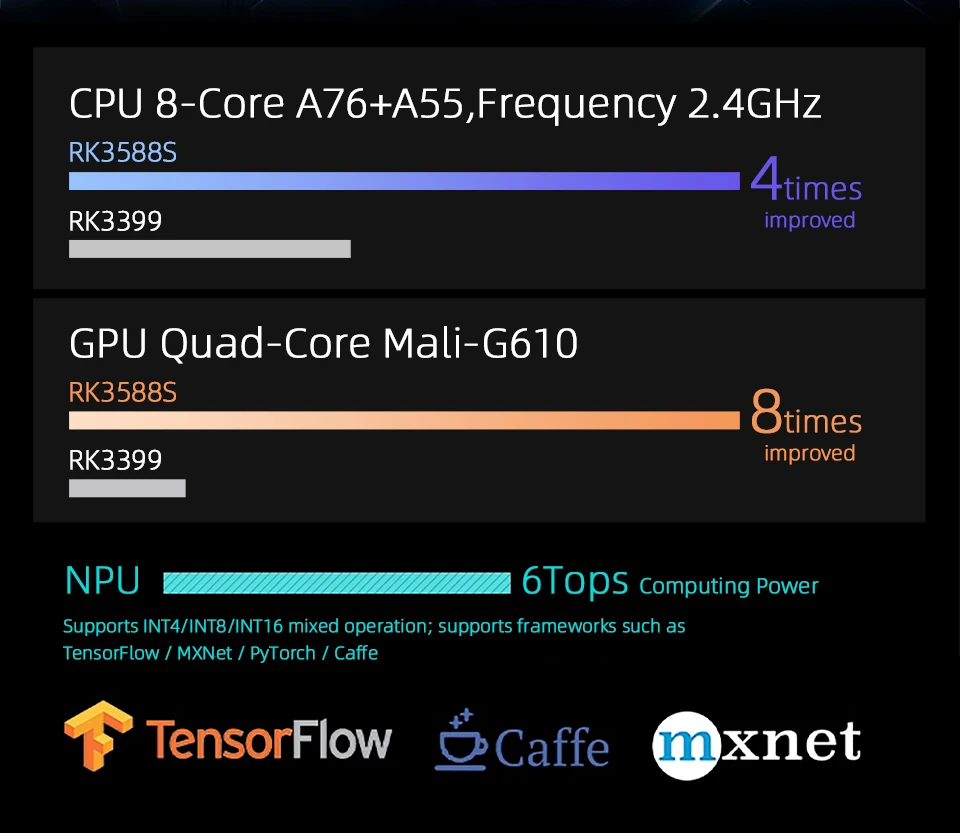

CPU	Rockchip RK3588S (8nm LP process)，8-core 64-bit，4xCortex-A76 and 4xCortex-A55，Up to 2.4GHz frequency
GPU	ARM Mali-G610 MP4 “Odin” GPU ● Compatible with OpenGL ES 1.1/2.0/3.1/3.2 ● OpenCL 1.1,1.2,2.0 ● Vulkan 1.1，1.2 450 GFLOPS ● 3D and 2D graphics engine
NPU	Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation (TensorFlow/MXNet/PyTorch/Caffe RKNN support )
RAM	LPDDR4 4GB/8GB/16GB/32GB (option)

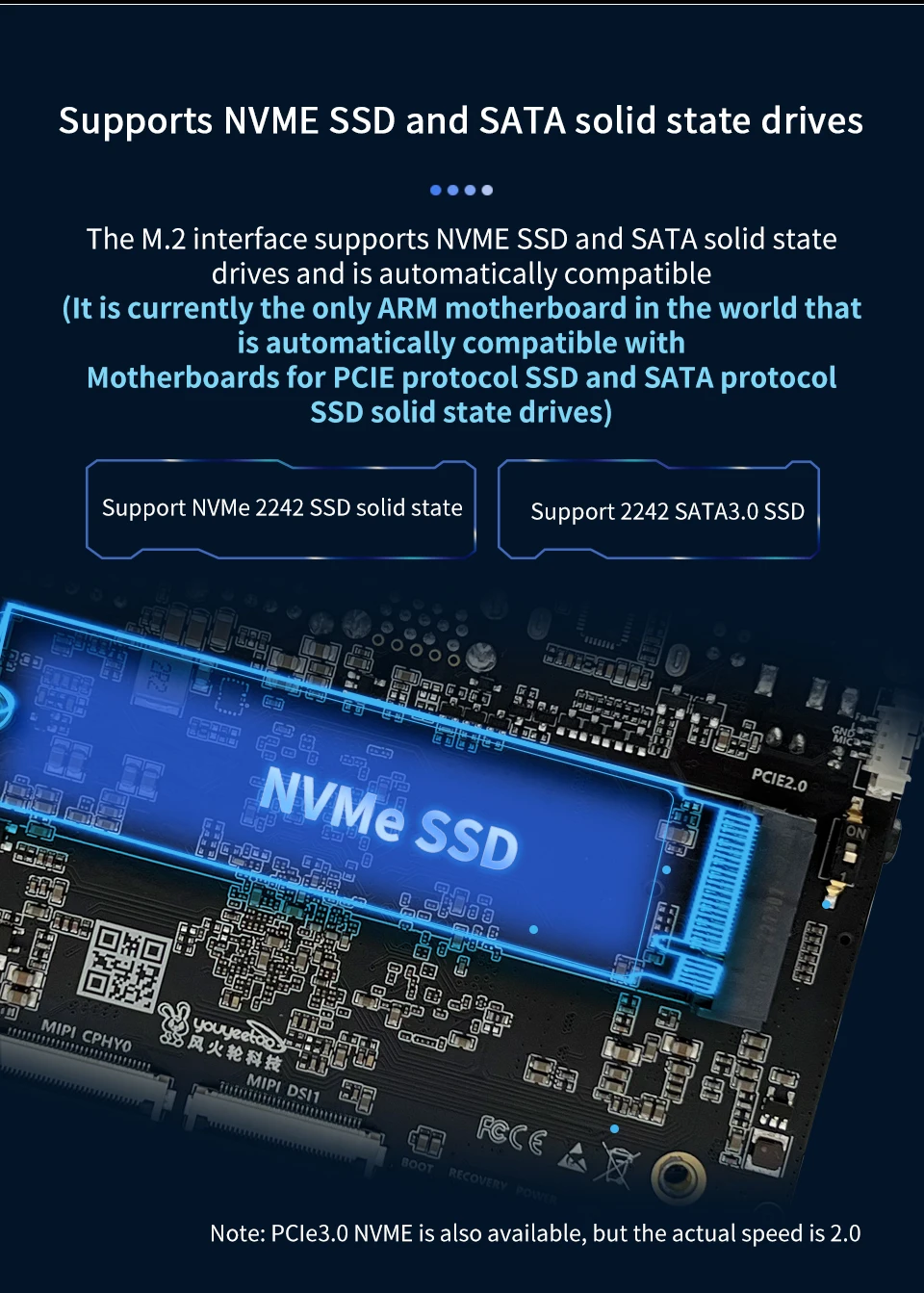

Storage	● eMMC: 32G/64G/128G/256GB (option) ● M.2 slot(BOTTOM) M-Key ： @NVMe SSD(PCIe) 2242（ps:The speed is PCIe 2.0） @SATA3.0 SSD m.2 2242 ● MicroSD (TF) Card Slot

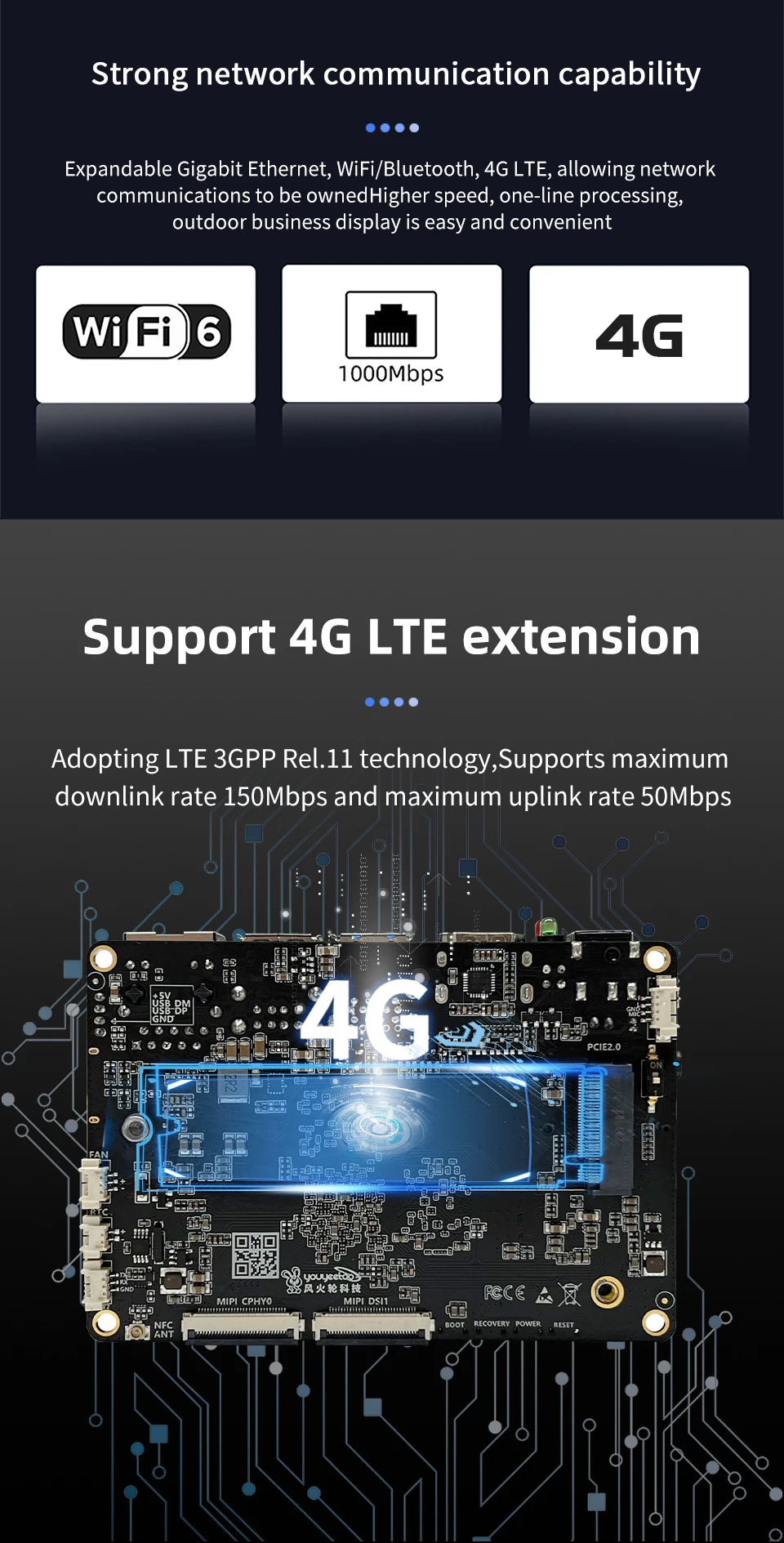

Network	● Ethernet：RJ45 10/100/1000Mbps Ethernet ● Wireless: M.2(E-Key) Socket Expansion Slot 1. Wi-Fi5+BT5.0 module(RTL8822CE) default driver 2. WI-FI6+BT5.2 dual-band WiFi+BT module ●4G LTE： M.2(M-Key)Socket Expansion Slot (default driver for EC20/EC25 4G LTE Data) (Need a 4G adapter board)

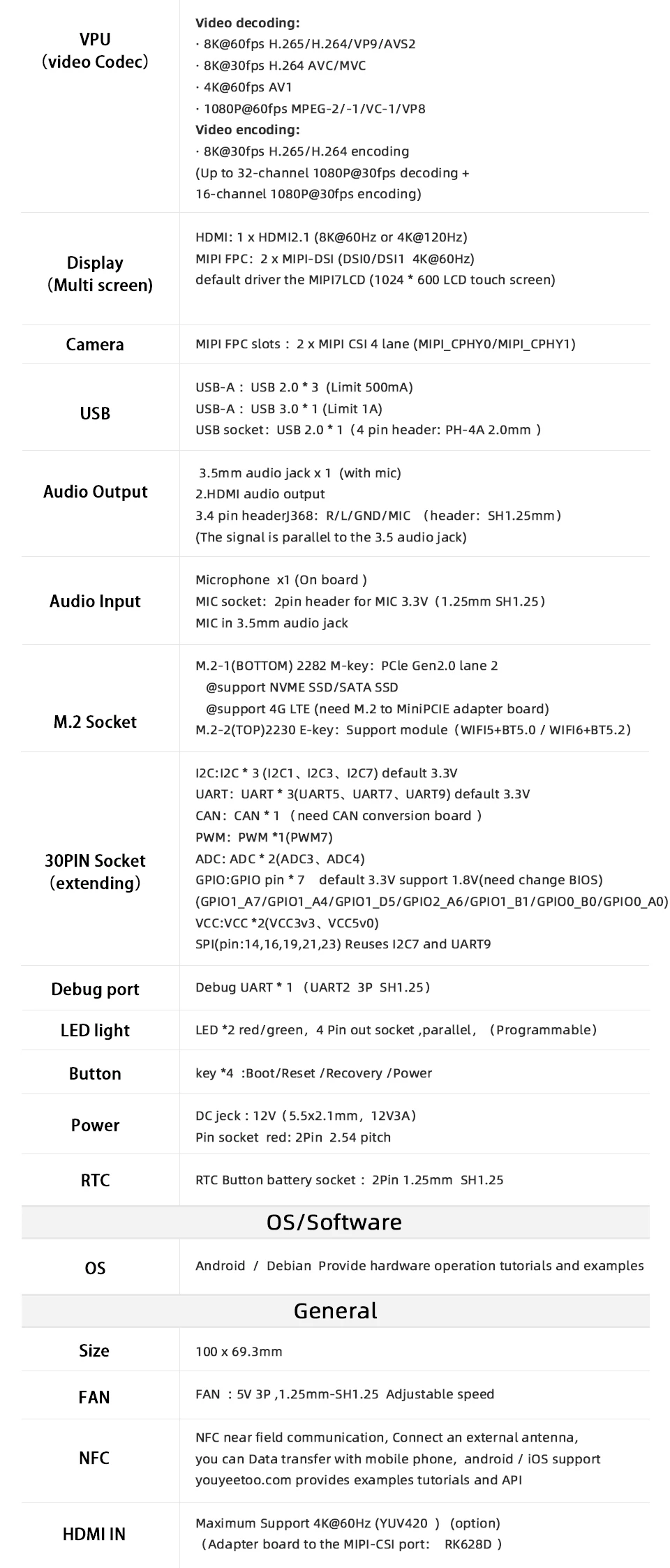

VPU （video Codec）	Video decoding: ● 8K@60fps H.265/H.264/VP9/AVS2 ● 8K@30fps H.264 AVC/MVC ● 4K@60fps AV1 ● 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: ● 8K@30fps H.265 / H.264 encoding (Up to 32-channel 1080P@30fps decoding + 16-channel 1080P@30fps encoding)

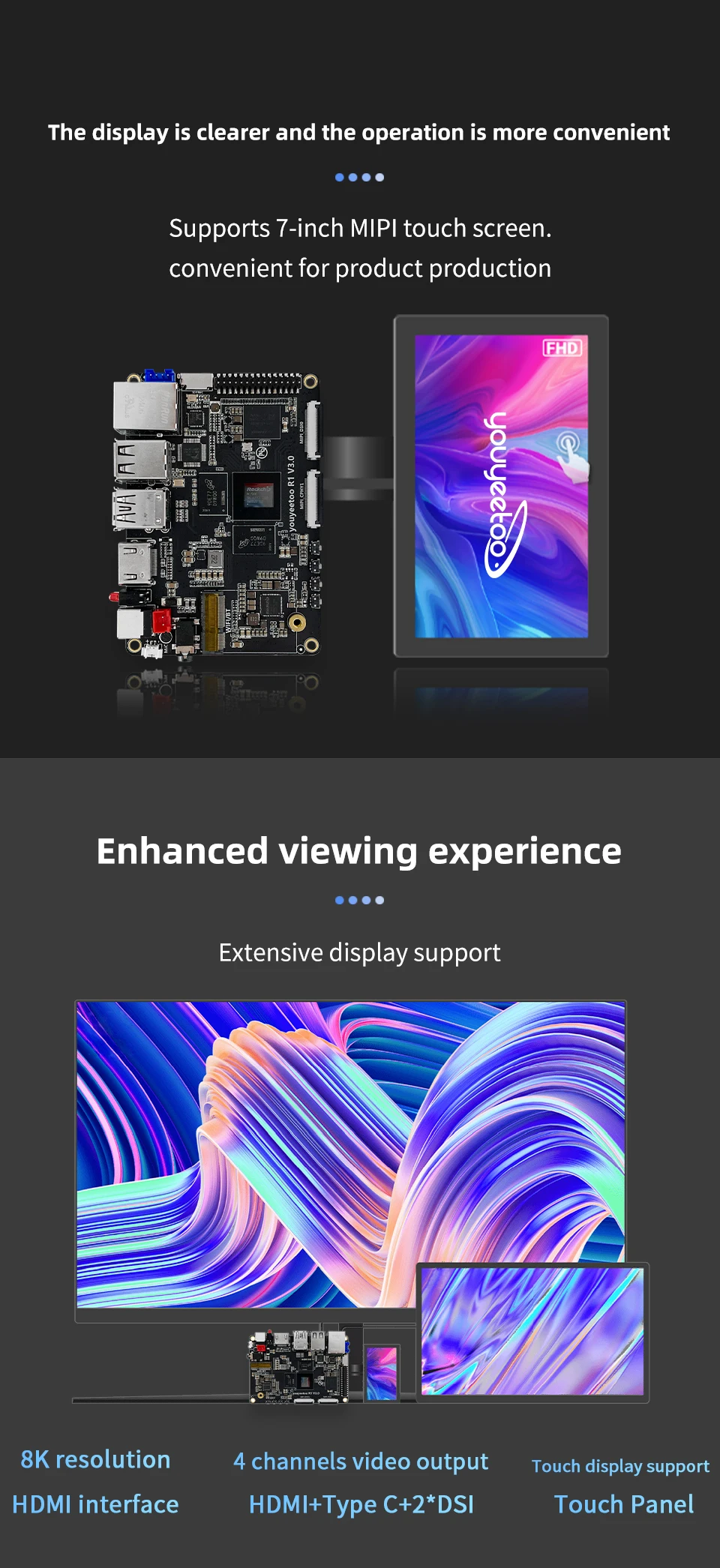

Display （Multi screen)	● HDMI: 1 x HDMI2.1 (8K@60Hz or 4K@120Hz) ● MIPI FPC：2 x MIPI-DSI (DSI0/DSI1 4K@60Hz) default driver the MIPI7LCD (1024 * 600 LCD touch screen) ● DP: 1 x Type C for DP1.4 (8K@30Hz)
Camera	MIPI FPC slots ：2 x MIPI CSI 4 lane (MIPI_CPHY0/MIPI_CPHY1)
USB	● USB-A ：USB 2.0 * 2 (Limit 500mA) ● USB-A ：USB 3.0 * 1 (Limit 1A) ● USB-C : TypeC * 1（USB3.1 OTG / DP1.4）（Limit 2A） ● USB socket：USB 2.0 * 1（4 pin header: PH-4A 2.0mm ）
Audio Output	1. 3.5mm audio jack x 1 (with mic) 2. HDMI audio output 3. 4 pin headerJ368：R/L/GND/MIC （header：SH1.25mm） (The signal is parallel to the 3.5 audio jack)
Audio Input	1. 1.Microphone x1 (On board ) 2. MIC socket：2pin header for MIC 3.3V（1.25mm SH1.25） 3. 3.MIC in 3.5mm audio jack
M.2 Socket	●M.2-1(BOTTOM) 2242 M-key：PCle Gen2.0 lane 2 @support NVME SSD/SATA SSD @support 4G LTE (need M.2 to MiniPCIE adapter board) ● M.2-2(TOP)2230 E-key：Support module（WIFI5+BT5.0 / WIFI6+BT5.2）

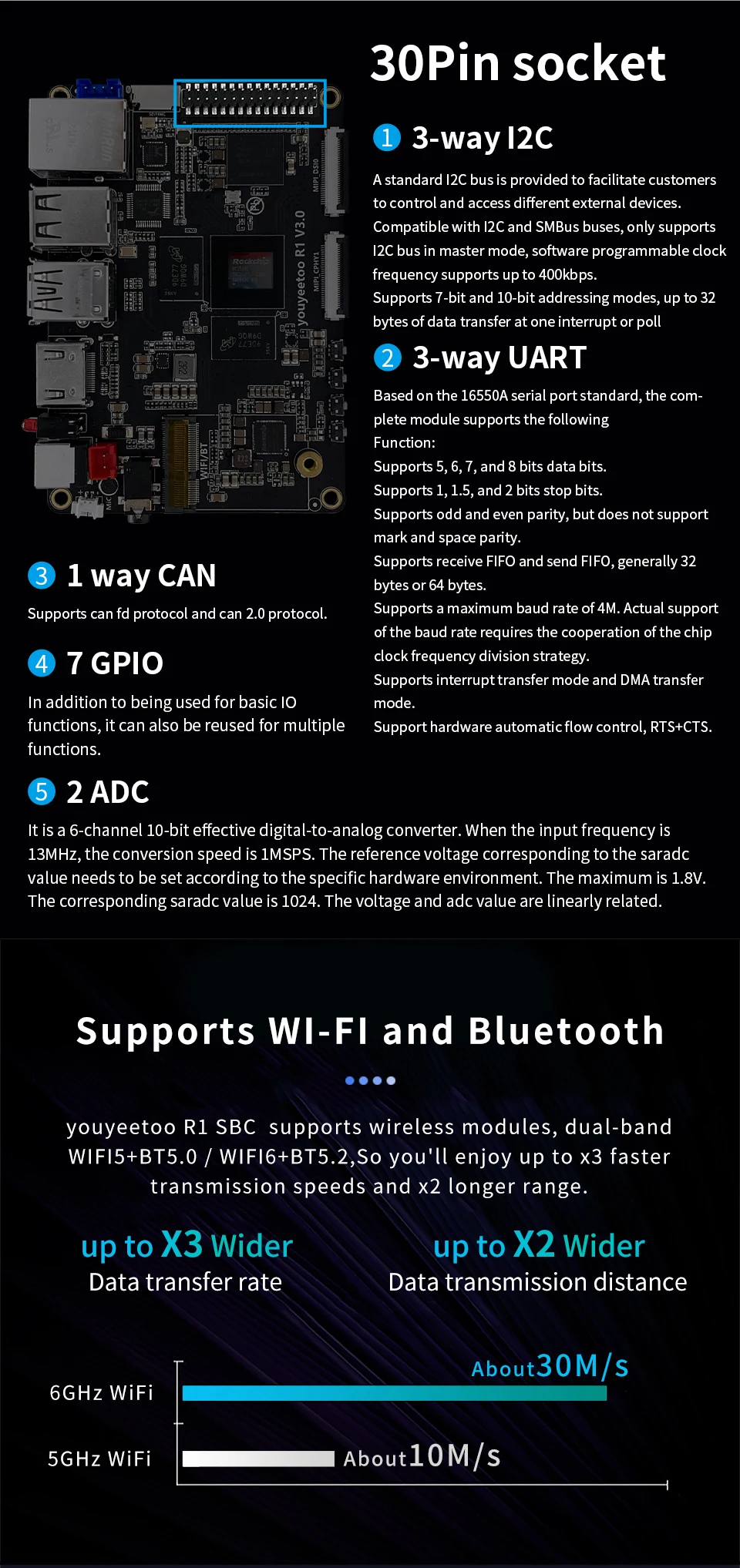

30PIN Socket （extending） header：PH2.0mm	●I2C:I2C * 3 (I2C1、I2C3、I2C7) default 3.3V ●UART：UART * 3(UART5、UART7、UART9) default 3.3V ●CAN：CAN * 1 （need CAN conversion board ） ●PWM：PWM * 1(PWM7) ●ADC: ADC * 2(ADC3、ADC4) ● GPIO:GPIO pin * 7 default 3.3V support 1.8V(need change BIOS) (GPIO1_A7/GPIO1_A4/GPIO1_D5/GPIO2_A6/GPIO1_B1/GPIO0_B0/GPIO0_A0) ●VCC:VCC * 2(VCC3v3、VCC5v) ●SPI(pin:14,16,19,21,23) Reuses I2C7 and UART9
Debug port	Debug UART * 1 （UART2 3P SH1.25）
LED light	LED * 2 red/green，4 Pin out socket ,parallel，（Programmable）
Button	key * 4 :Boot/Reset /Recovery /Power
Power	● DC jeck : 12V（5.5x2.1mm，12V3A） ● Pin socket red: 2Pin 2.54 pitch
RTC	RTC Button battery socket ：2Pin 1.25mm SH1.25

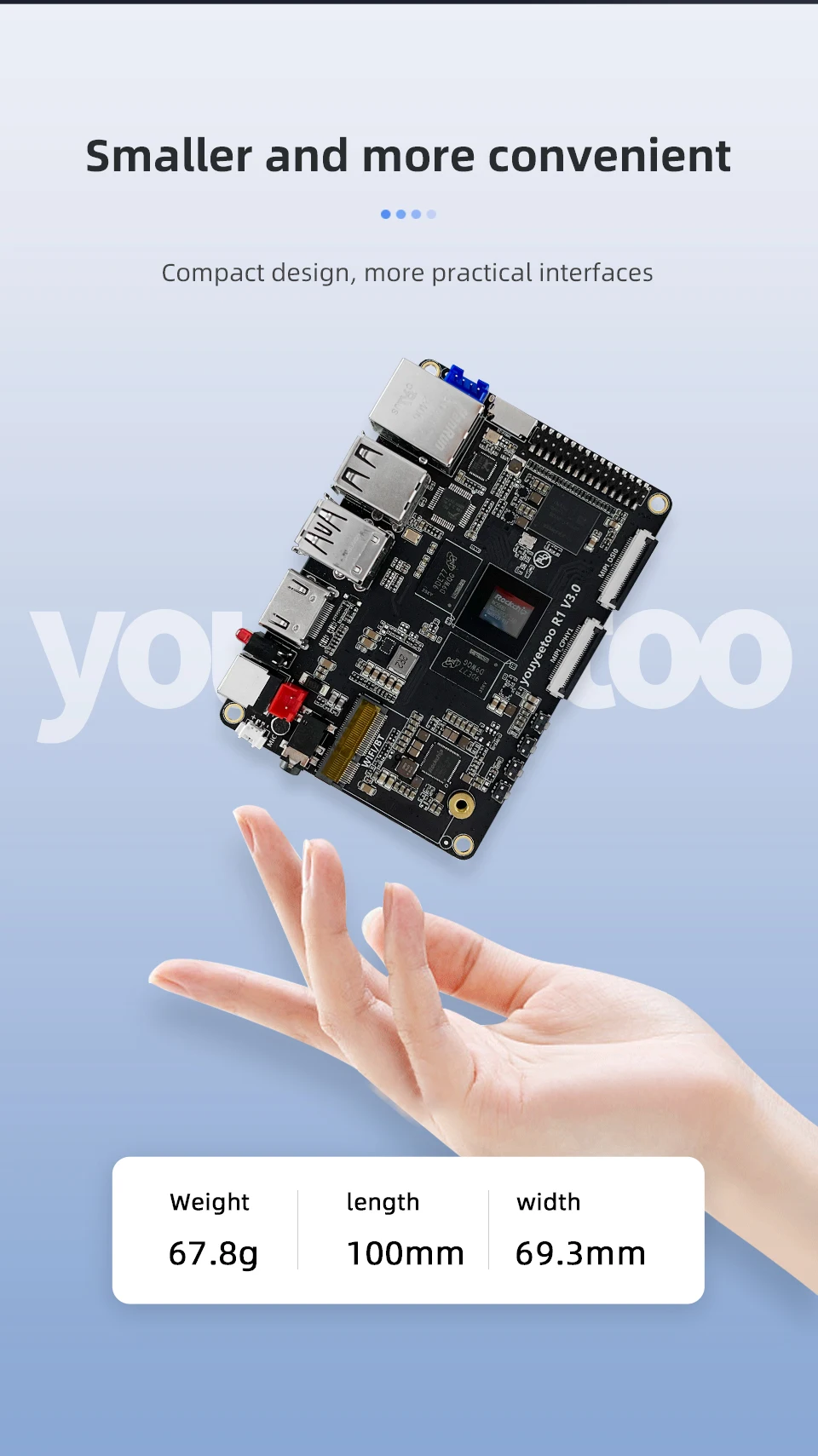

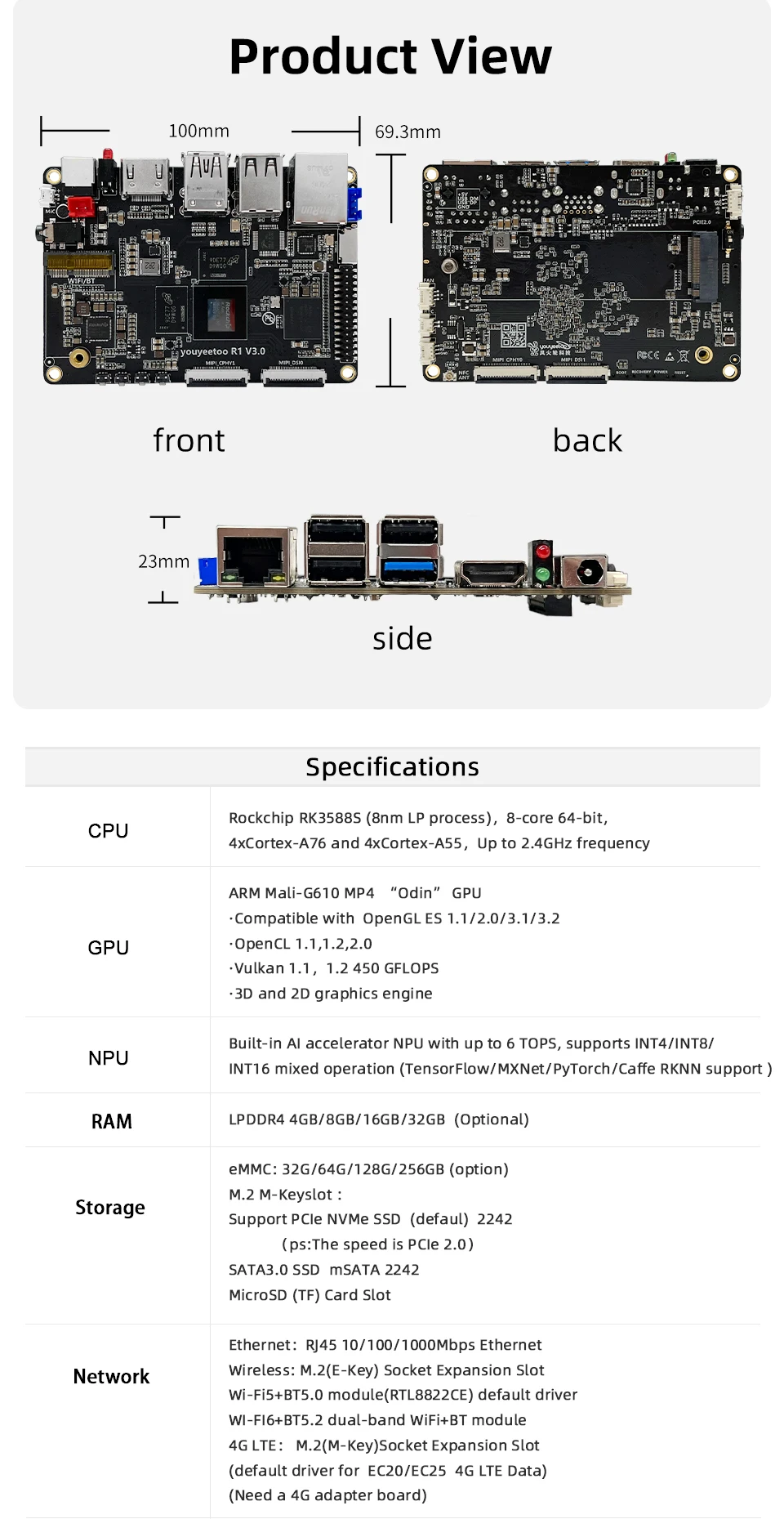

Size	100 x 69.3mm

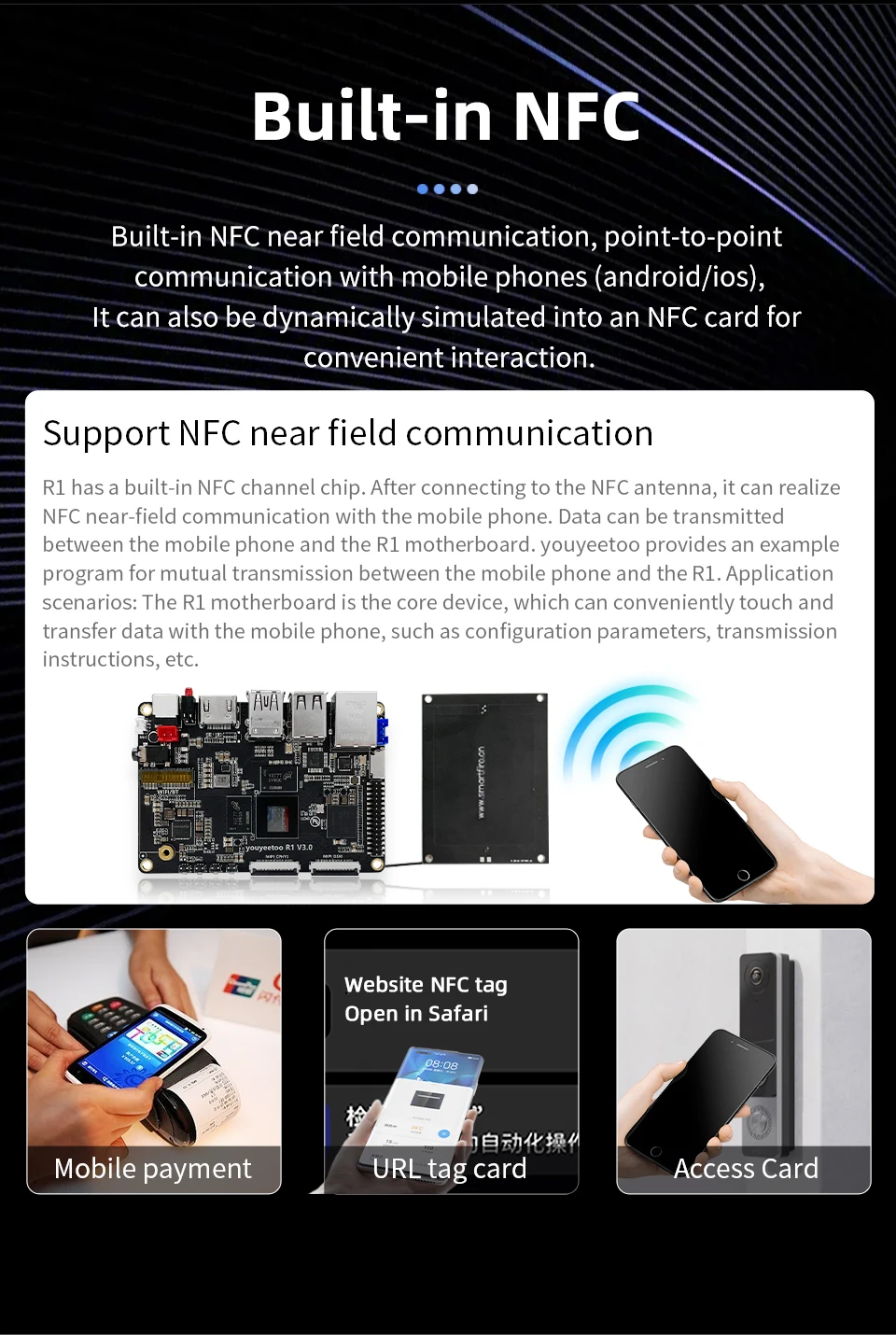

NFC	NFC near field communication, Connect an external antenna, you can Data transfer with mobile phone, android/iOS support youyeetoo.com provides examples tutorials and API
HDMI IN	Maximum Support 4K@60Hz (YUV420 ) (option) （Adapter board to the MIPI-CSI port： RK628D ）
OS Support	● Android 13(kernel 5.10) ● Debian 11(kernel 5.10) ● Ubuntu 22.04(kernel 5.10) ● Linux Buildroot(kernel 5.10)
