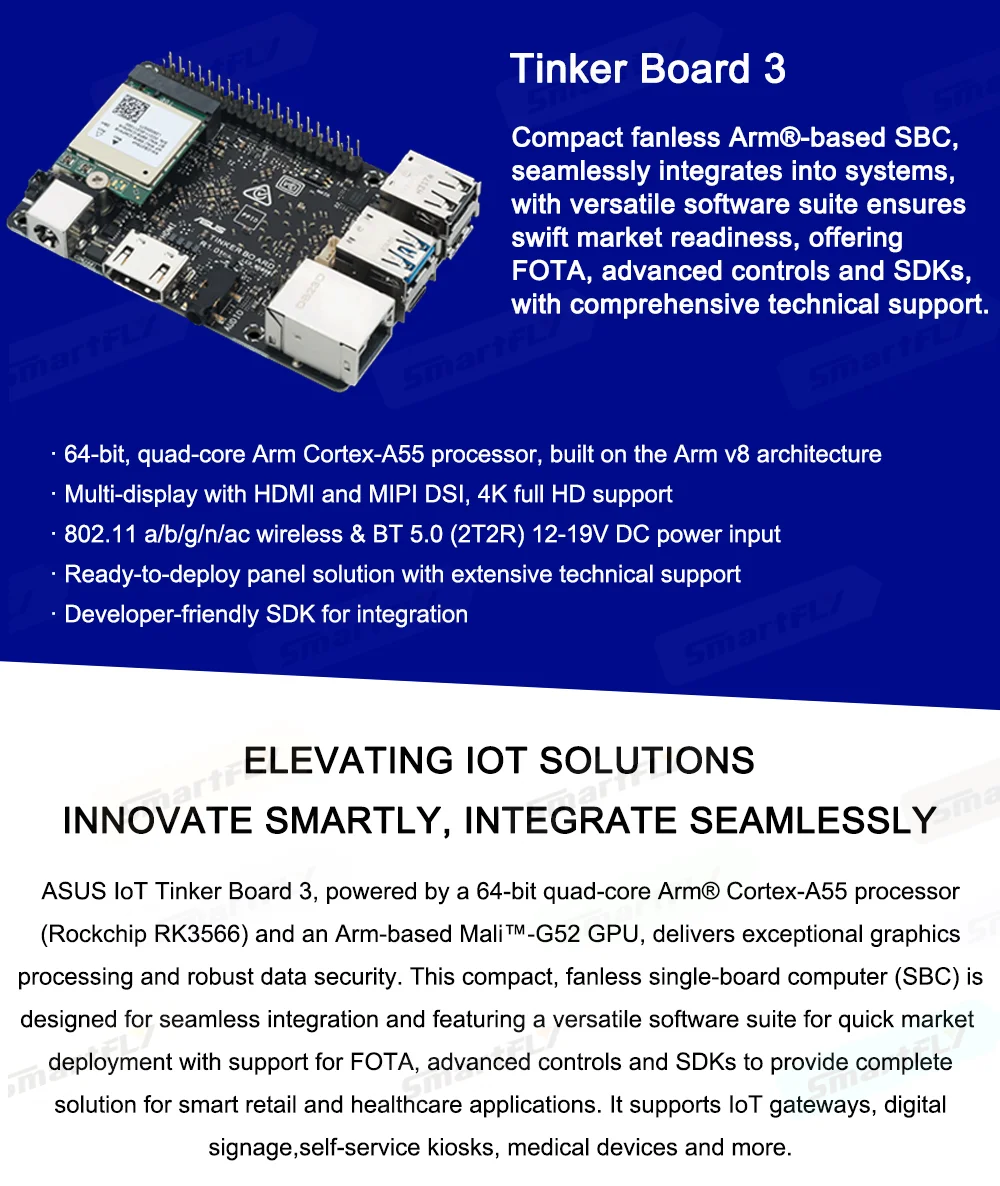

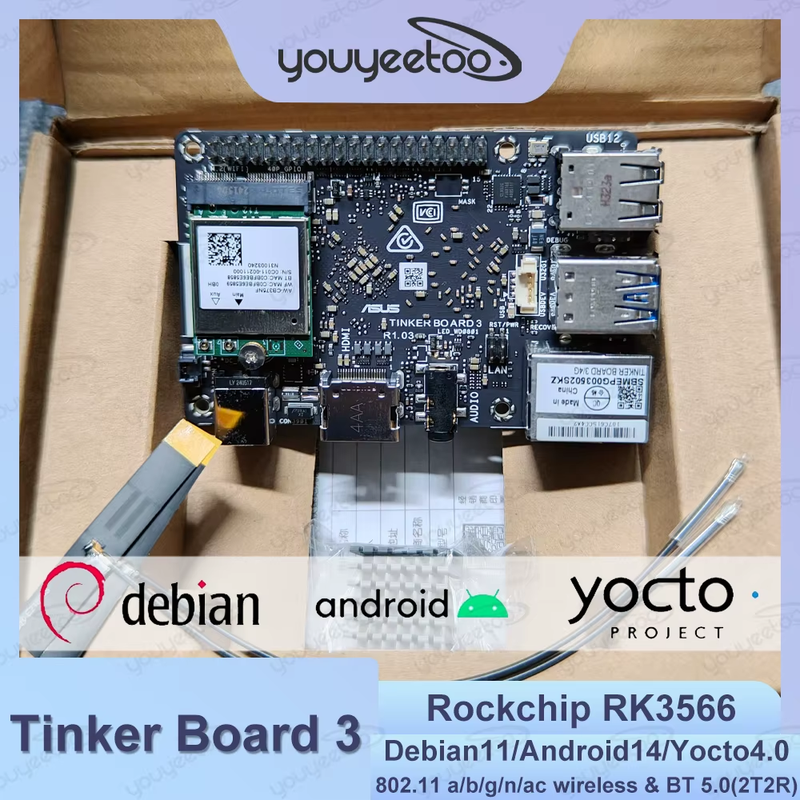

ASUS Tinker Board 3 SBC Quad-core Arm Motherboard 4GB LPDDR4X MIPI-DSI Rockchip

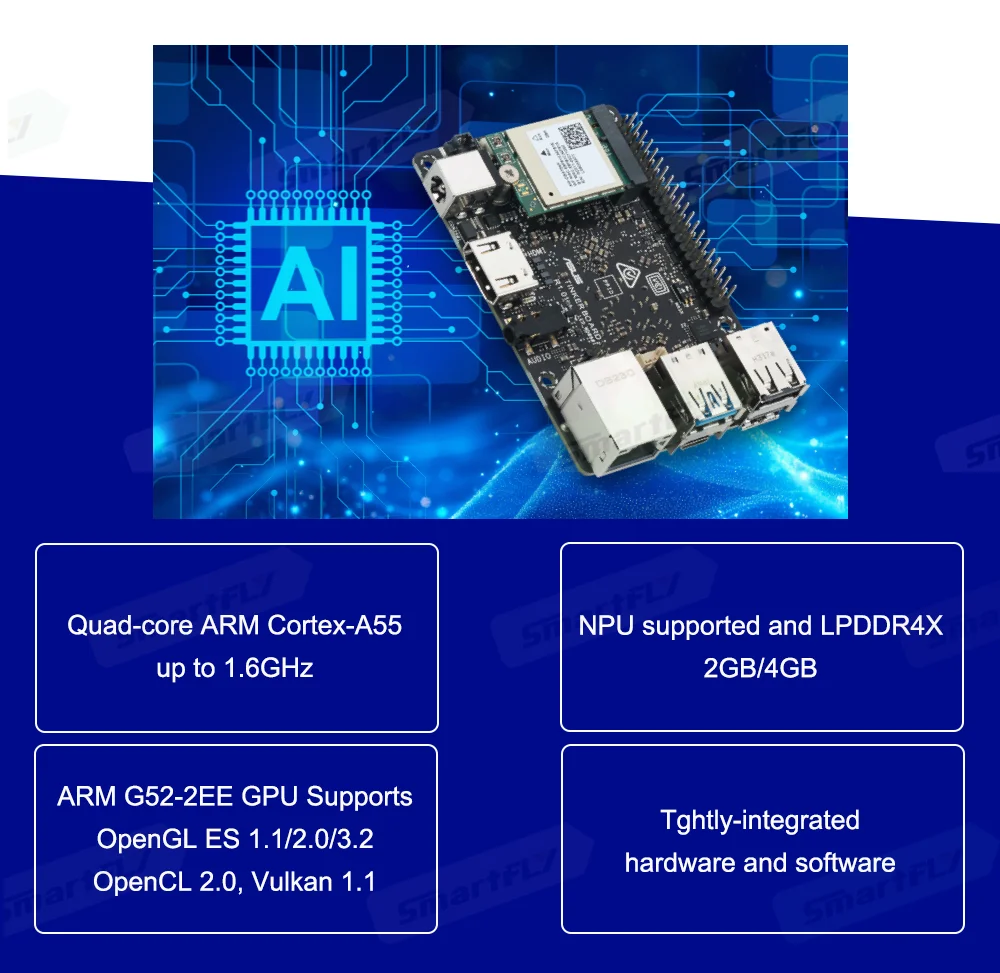

Soc

Rockchip RK3566

CPU

Quad-core Arm® Cortex®-A55

GPU

Arm Mali™-G52

NPU

RockchipNPU

Display

1 x HDMI, supports up to 4096 x 2160 @ 60 Hz
1 x MIPI DSI, Supports four lanes up to 6 Gbps,

1920 x1080 @ 60 Hz (22 pin)

Memory Size

Dual-channelLPDDR4X 2GB / 4GB

Storage

Micro SD (TF) card slot (push/pull)

M.2 E key 2230

1 x for WiFi 5/6 & BT module (PCIe 2.0 x1, USB 2.0)

Audio

1 x 3.5 phone jack (with mic)
1 x HDMI audio

USB

1 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A ports
2 x USB 2.0 Micro B, device only
1 x USB 2.0 4-pin header

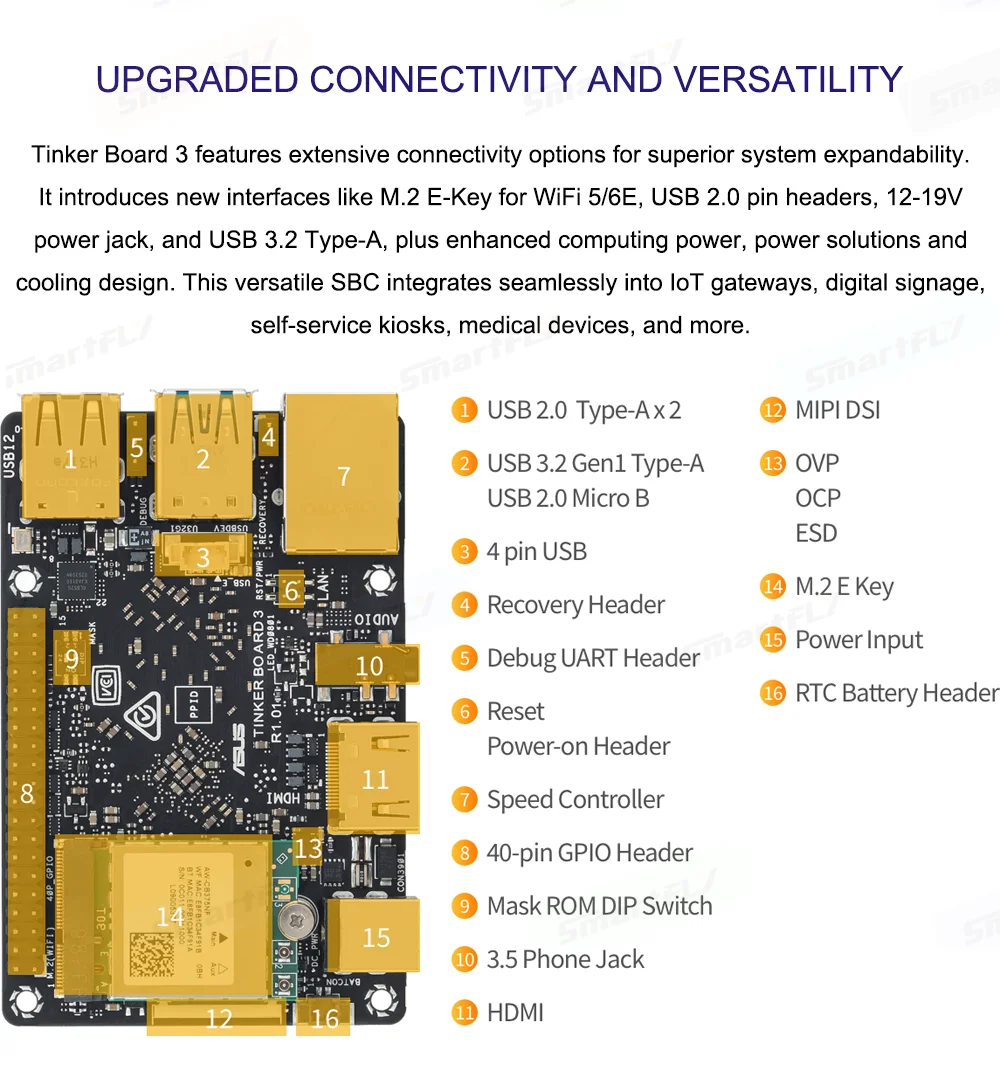

Internal Headers

1 x 40-pin GPIO headers includes:
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S(master/slave)
- up to 1 x S/PDIF TX
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin recovery header
1 x 2-pin power-on & reset header
1 x 3-pin debug UART header
1 x 2-pin DC fan header
1 x 2-pin RTC battery header
1 x MaskromDIP switch

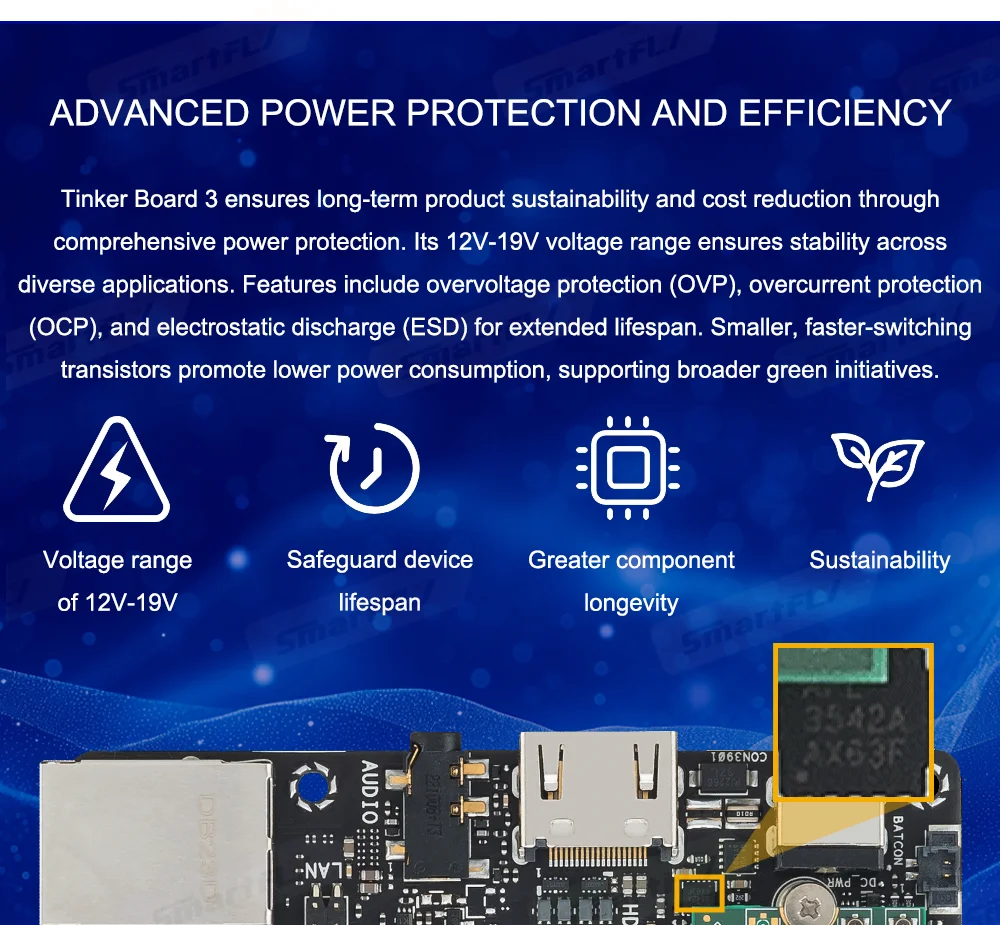

Power Connector

12-19V

1 x DC barrel power input jack (5.5/2.5 mm)

OS Support

Debian / Android / Yocto

Dimension

3.37 inch x 2.125 inch (85 × 56 mm)

Operation

temperature

0℃ ~ 60℃

Non-operation

temperature

-40℃ ~ 85℃

Non-operation

humidity

10% ~ 85% (non-condensing)

Note

*Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)
