Product Description

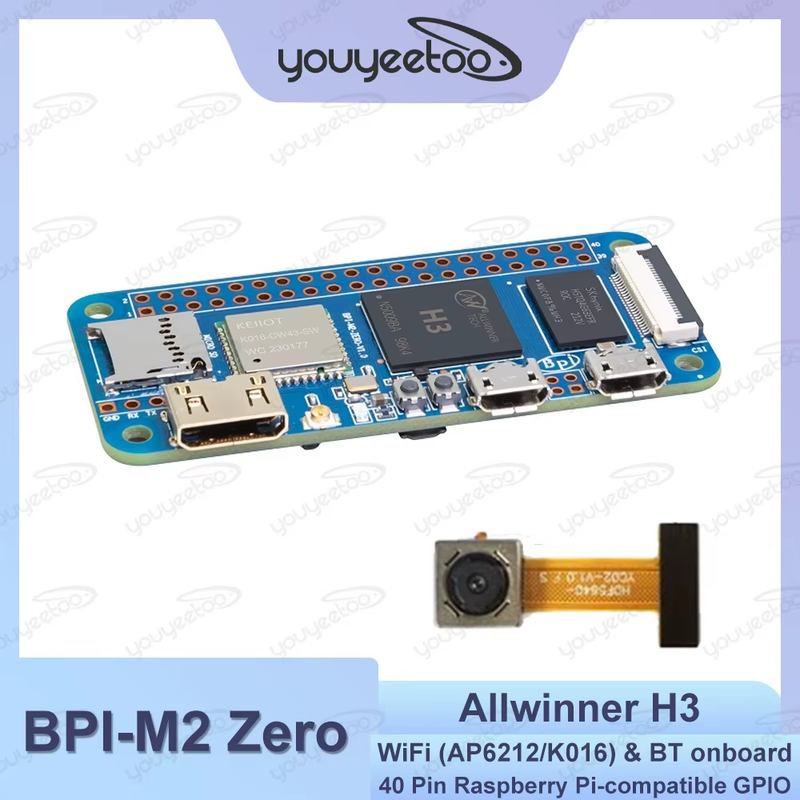

Banana Pi BPI-M2 Zero Alliwnner H3 Cortex-A7 WIFI & BT Same Size As Raspberry Pi Zero 2W And Orange Pi Single Board Computer
Banana Pi BPI-M2 Zero Alliwnner H3 Cortex-A7 WIFI & BT Same Size As Raspberry Pi Zero 2W And Orange Pi Single Board ComputerBPI-M2 Zero Introduction

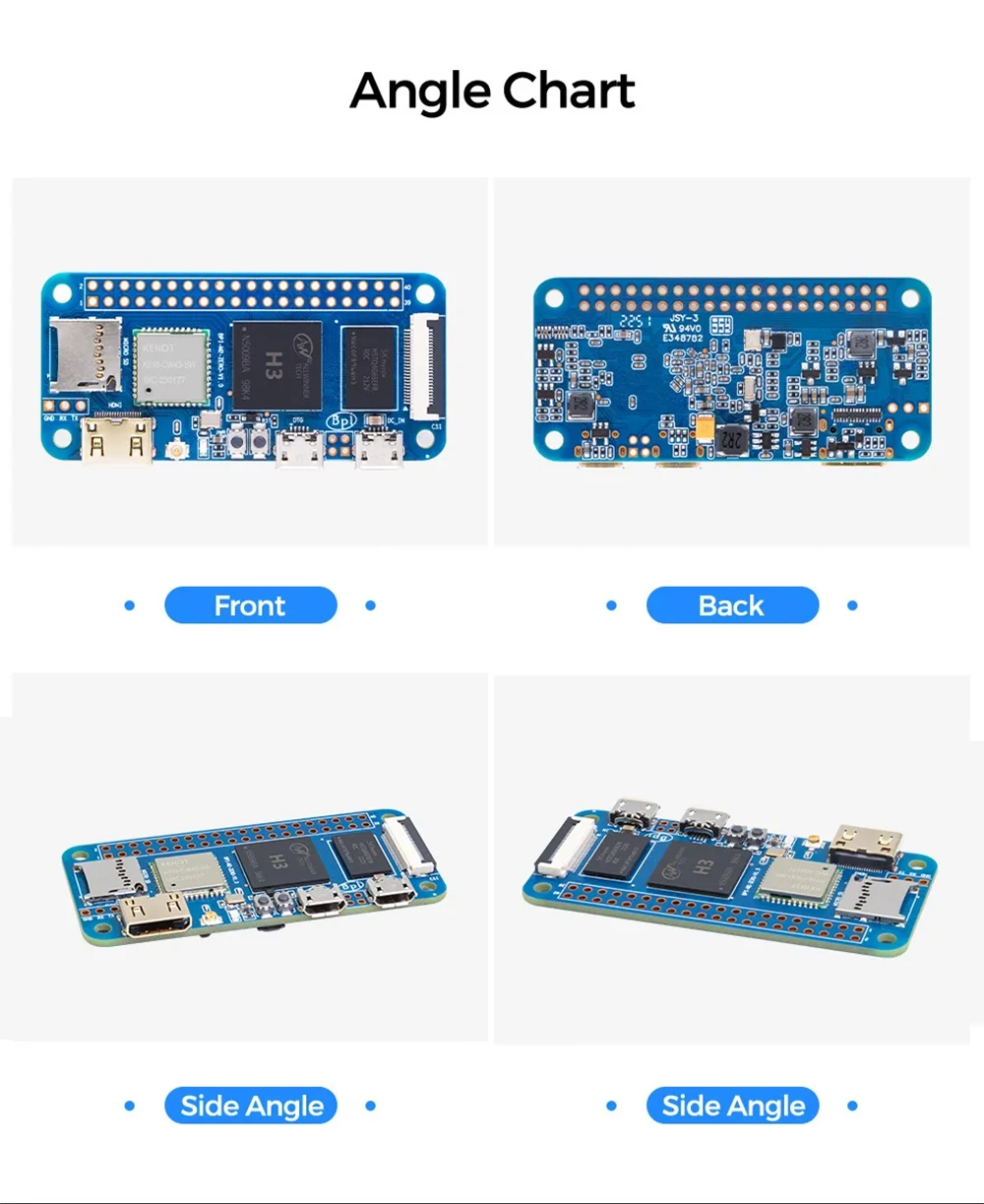

The Banana Pi M2 Zero is an ultra compact single board computer which measures only 65mm*30mm. Its external interfaces are the same as the Raspberry Pi Zero W, and it will fit almost all cases and accessories for the Zero W. It uses the quad-core Cortex A7 Allwinner H3/H2+processor, with 512MB RAM. It’s ideal for light-weight systems and space-limited applications. Like other members of the Banana Pi family, it supports both Linux and Android operating systems.
As Allwinner H2+ chip is EOL, so BPI-M2 Zero will use H3 chip defaults. but image for H2+ also support H3, so all image is same. support H2+ and H3 chip.

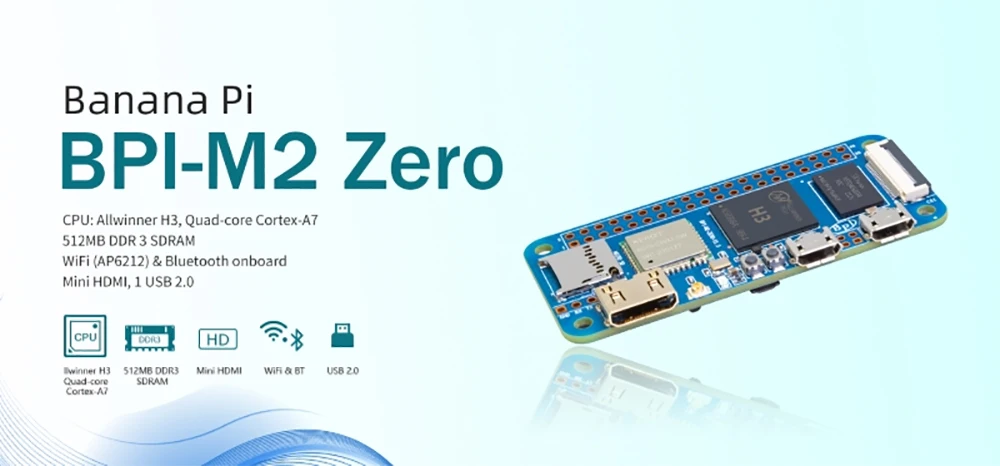

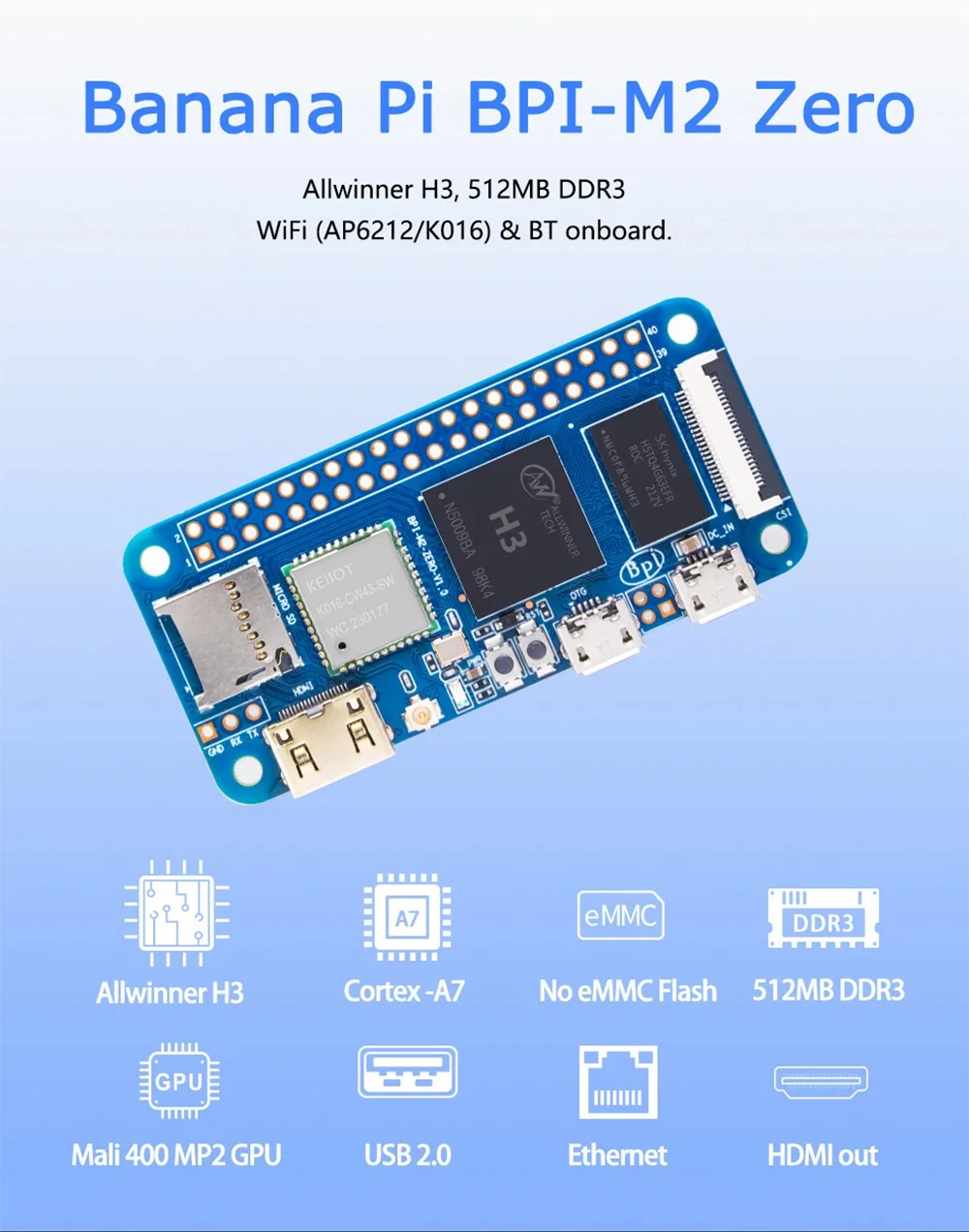

Key Features
CPU: Allwinner H3/H2+, Quad-core Cortex-A7.
512MB DDR 3 SDRAM.
WiFi (AP6212/K016) & BT onboard.
Mini HDMI.
40 Pin Raspberry Pi-compatible GPIO, including UART, SPI, I2C, etc.

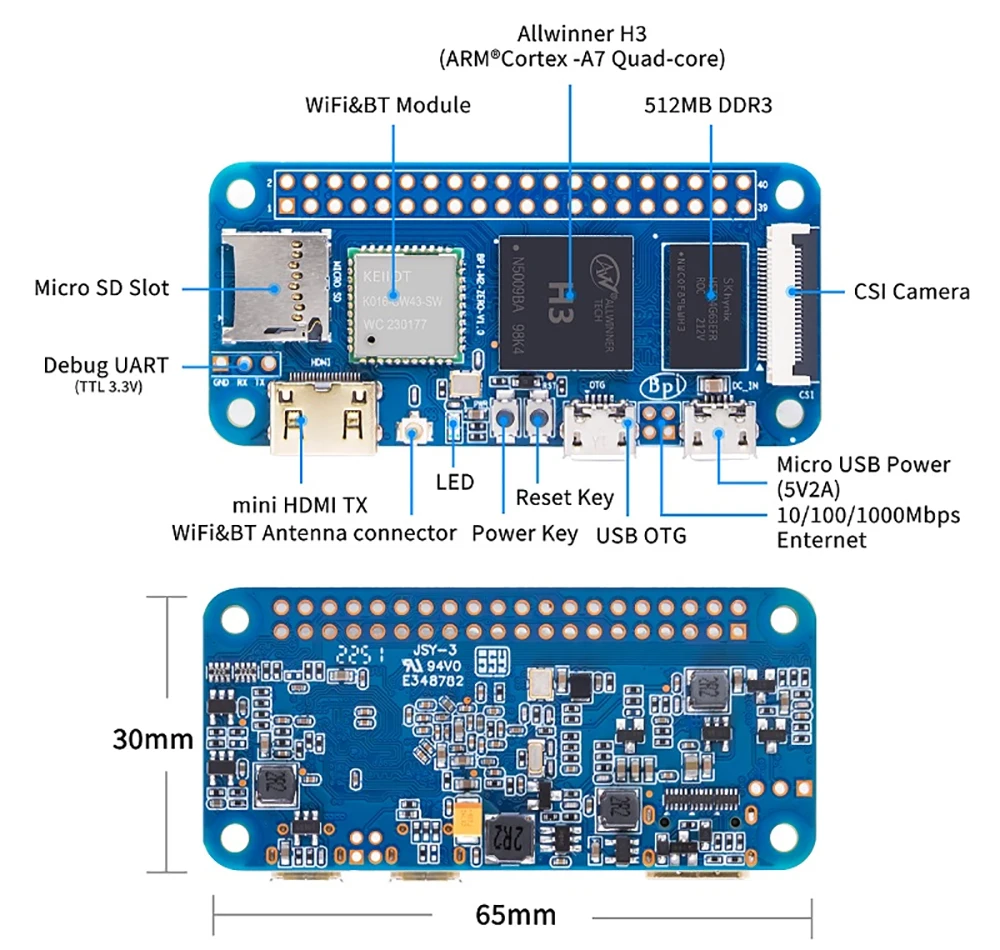

Hardware Interface
Hardware Spec
HardWare Specification of Banana Pi M2 Zero | |
CPU | Allwinner H3/H2+ Quad-core Cortex-A7 H265/HEVC 1080P |
GPU | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 |
Memory \(SDRAM\) | 512M DDR3(shared with GPU) |
Onboard Storage | TF card \(Max. 64GB\) |
Onboard Network | NOPE (but can extension with PIN define) |
PoE power | NOPE |
Onboard flash | NOPE |
Onboard WIFI | K016/SDIO AP6212（option AP6181、AP6335） |
Video decoding | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 |
Video input | A CSI input connector Camera |
Video Outputs | mini HDMI 1.4,1080P@30fps, DHCP |
Audio Output | Mini HDMI |
Power Source | Micro USB with 5V/2A |
USB 2.0 Ports | one USB 2.0 OTG |
Buttons | Power Button, Reset Button |
Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi 3 |
uart GPIO\(1x3\) pin | UART, ground |
LED | Power led & Status led |
IR | N/A |
Supported OS | android linux |
Product size | 65mm × 30mm |
Weight | 15g |
