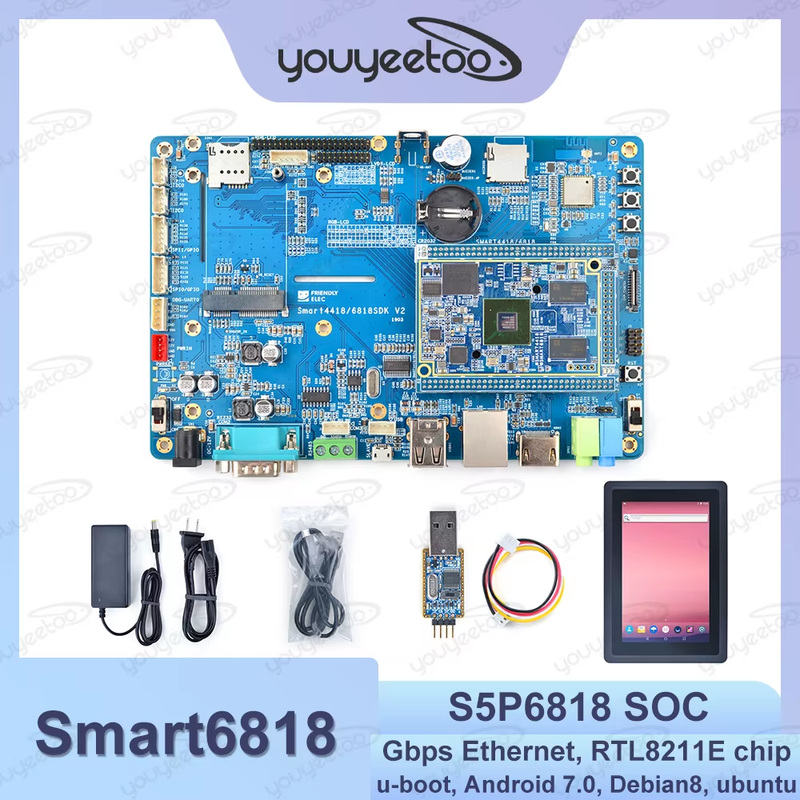

Smart6818 Dev Kit 2.0 Octa-Core Cortex A53 CPU Board S5P6818 SOC 1GB DDR3 RAM Gb

Product Description

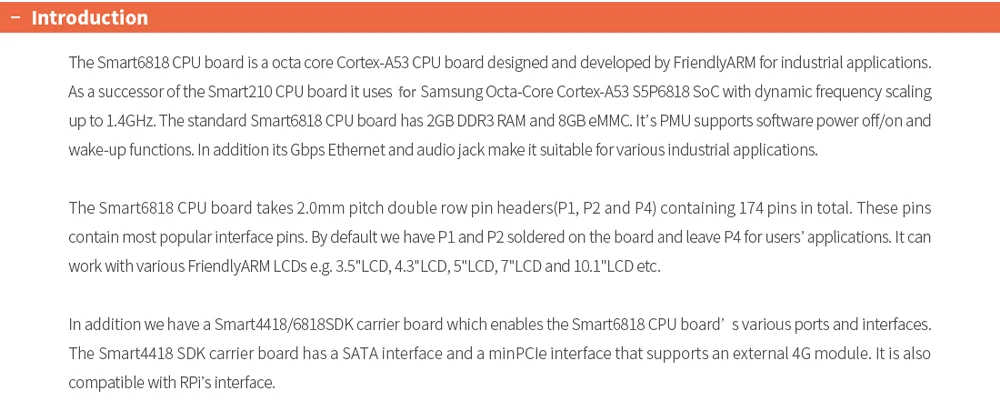

Introduction

• The Smart6818 CPU board is a Octa-Core Cortex-A53 CPU board designed and developed by FriendlyELEC for industrial applications. As a successor of the Smart210 CPU board it uses the Octa-Core Cortex-A53 S5P6818 SoC with dynamic frequency scaling up to 1.4GHz. The standard Smart6818 CPU board has 1GB DDR3 RAM and 8GB eMMC. It support software power-off, and RTC alarm power-on functions. In addition its Gbps Ethernet and audio jack make it suitable for various industrial applications.

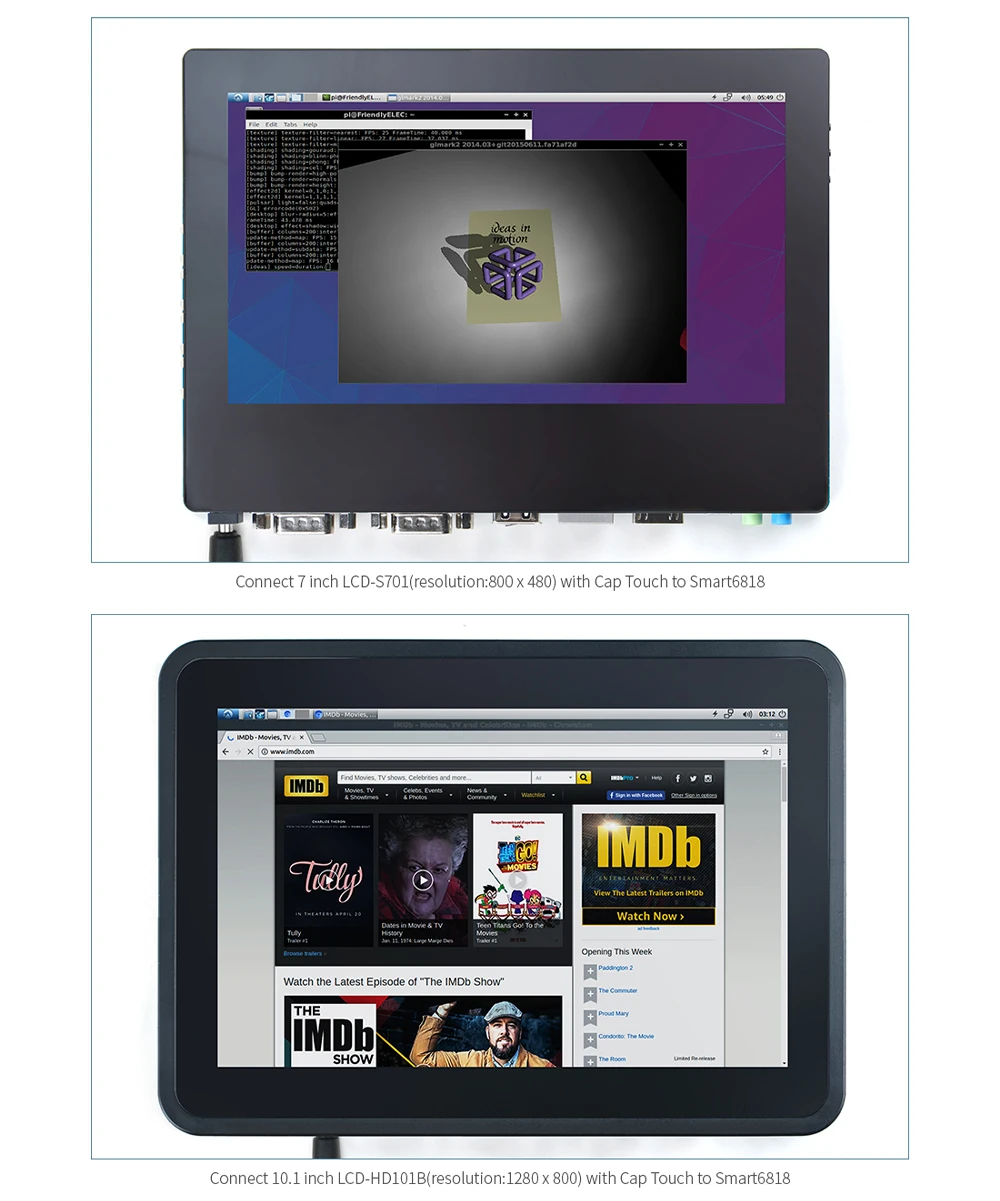

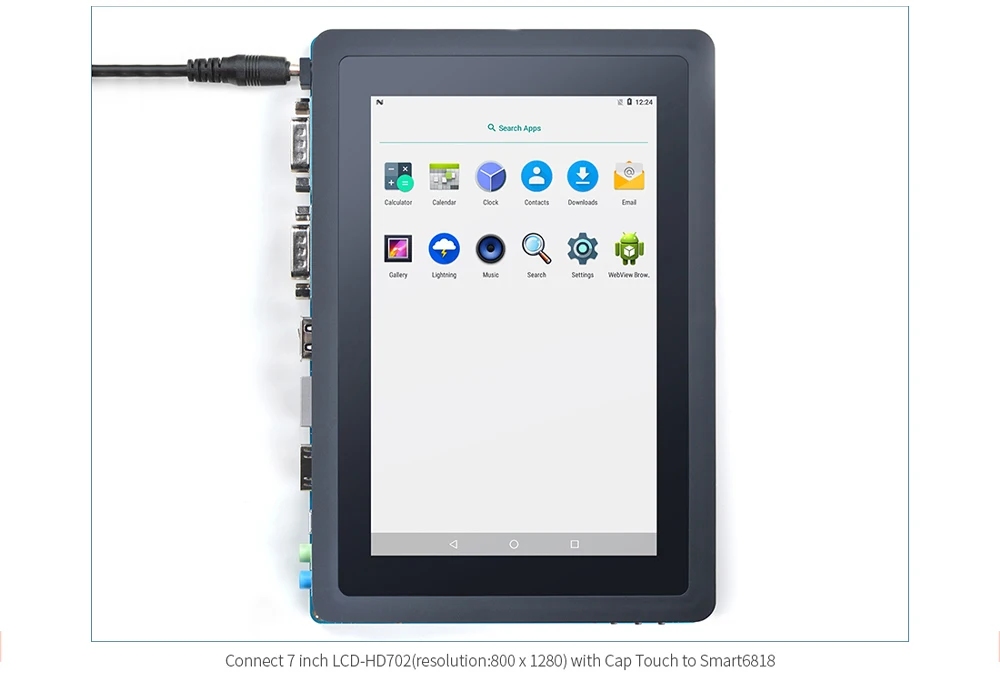

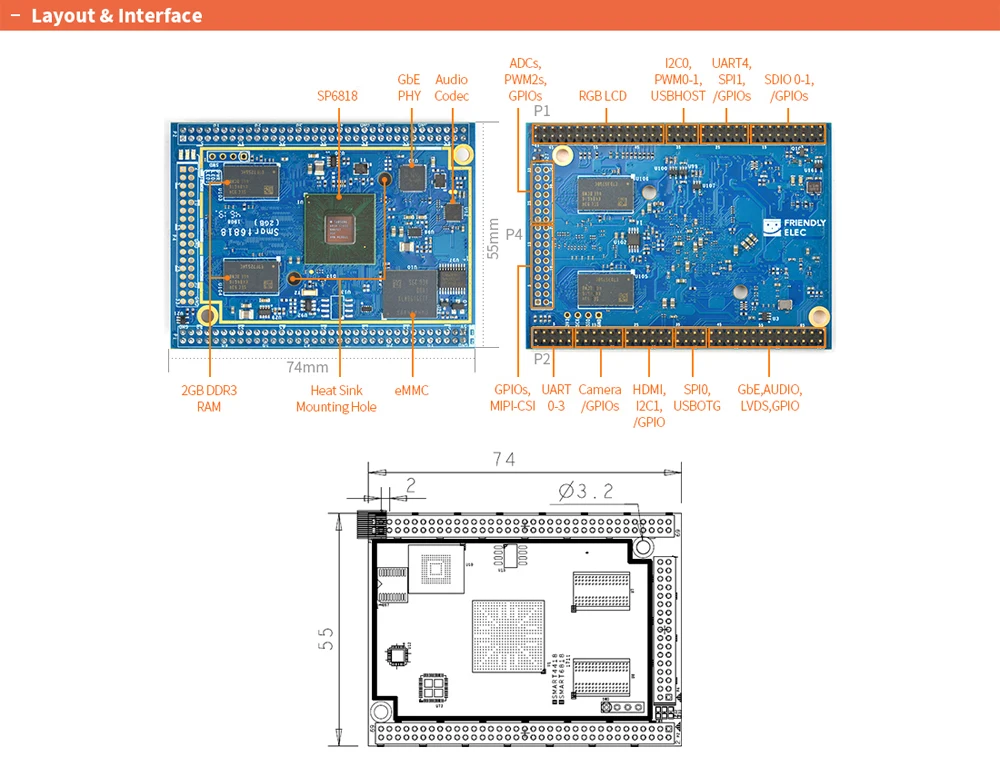

• The Smart6818 CPU board has 2.0mm pitch double row pin headers(P1, P2 and P4) containing 174 pins in total. These pins contain most popular interface pins. By default we have P1 and P2 soldered on the board and leave P4 for users' applications. It works with various FriendlyELEC LCDs e.g. 3.5"LCD, 4.3"LCD, 5"LCD, 7"LCD and 10.1"LCD.

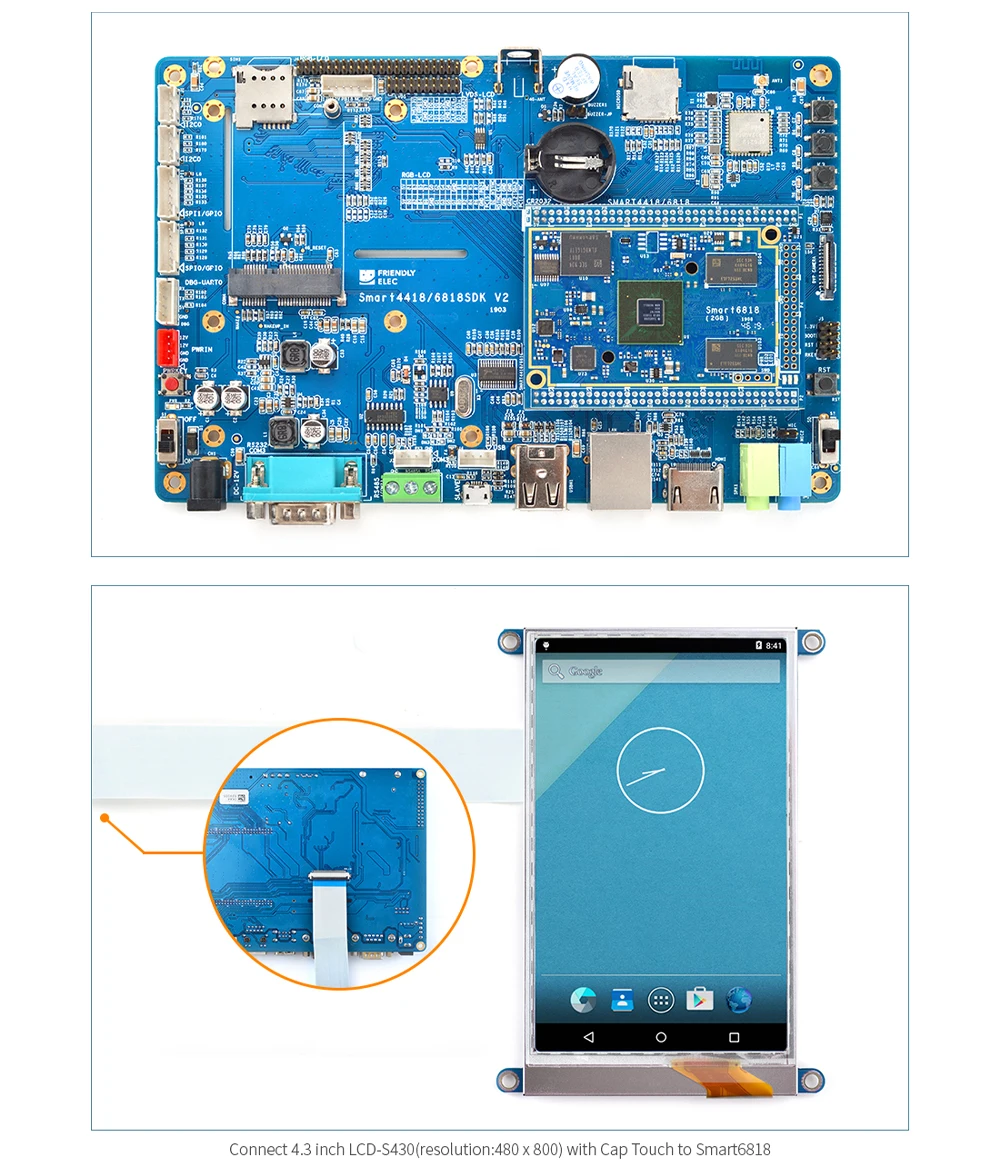

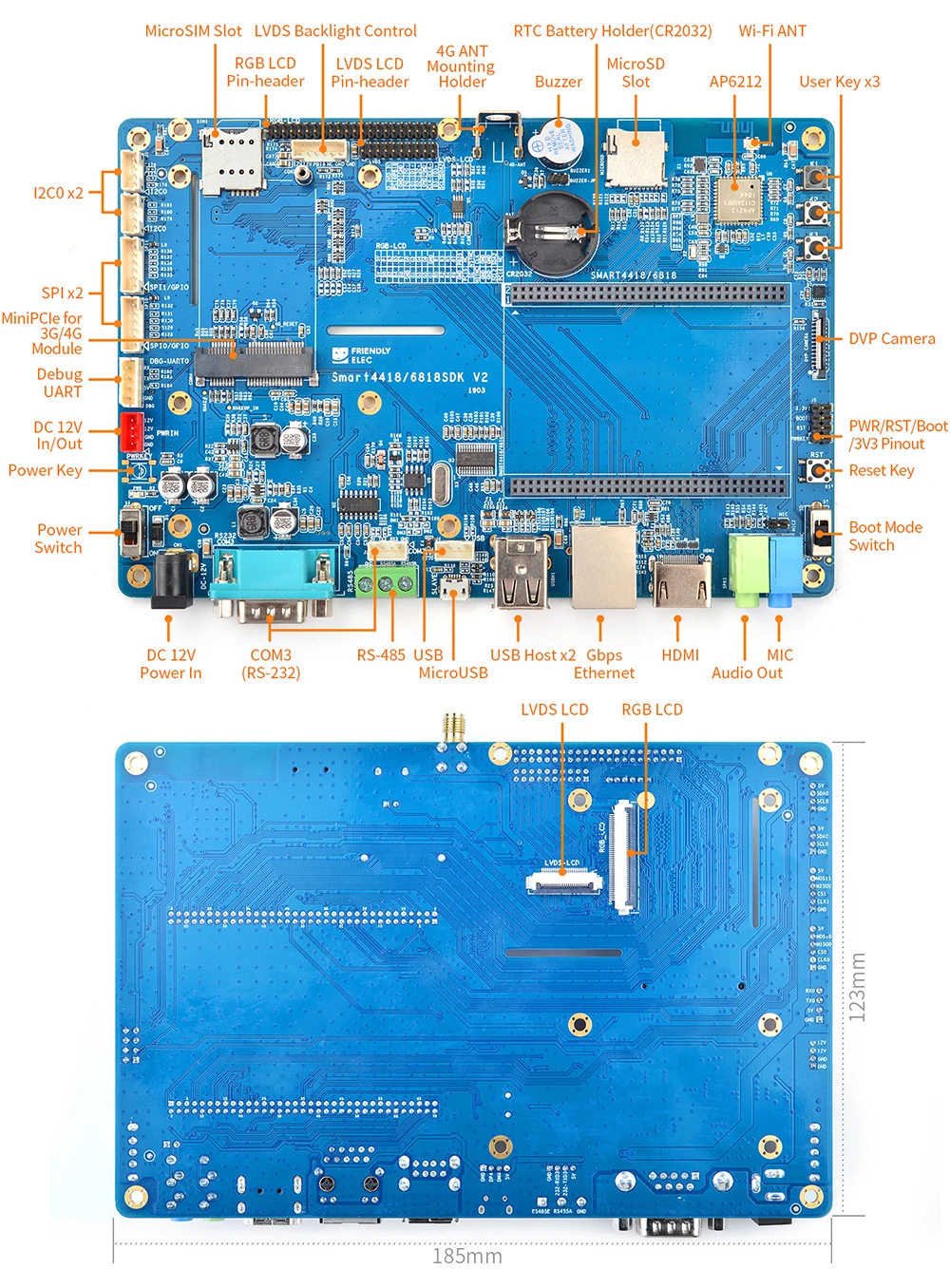

• In addition we have a Smart4418/6818SDK carrier board which enables the Smart6818 CPU board's Gbps Ethernet.In addition, Smart6818 is pin to pin compatible to the Smart4418 CPU board.

• For more details about the Smart4418/6818 SDK carrier board V1606 refer to Smart4418/6818SDK 1606.

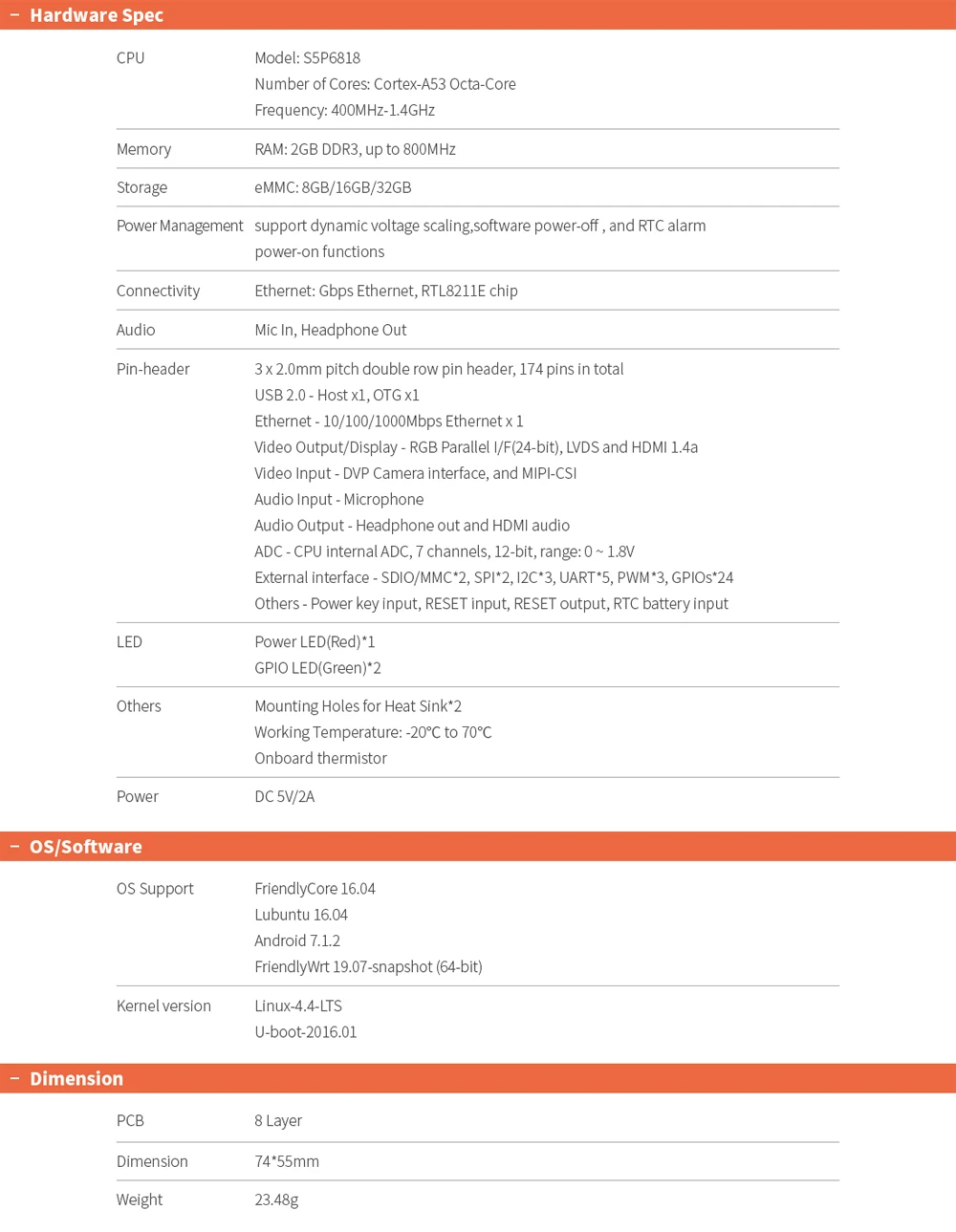

Features

• SoC: S5P6818 Octa-Core Cortex-A53, 400M Hz - 1.4G Hz

• PMU Power Management: Implemented by an MCU, support software power-off, and RTC alarm power-on functions

• DDR3 RAM: 1GB 32bit DDR3 RAM

• Ethernet: Gbps Ethernet(RTL8211E) with unique MAC

• eMMC: 8GB

• Audio: 1 x audio codec chip, 1 x onboard Microphone and 1 x audio jack

• LED: 1 x Power LED, 2 x GPIO LED

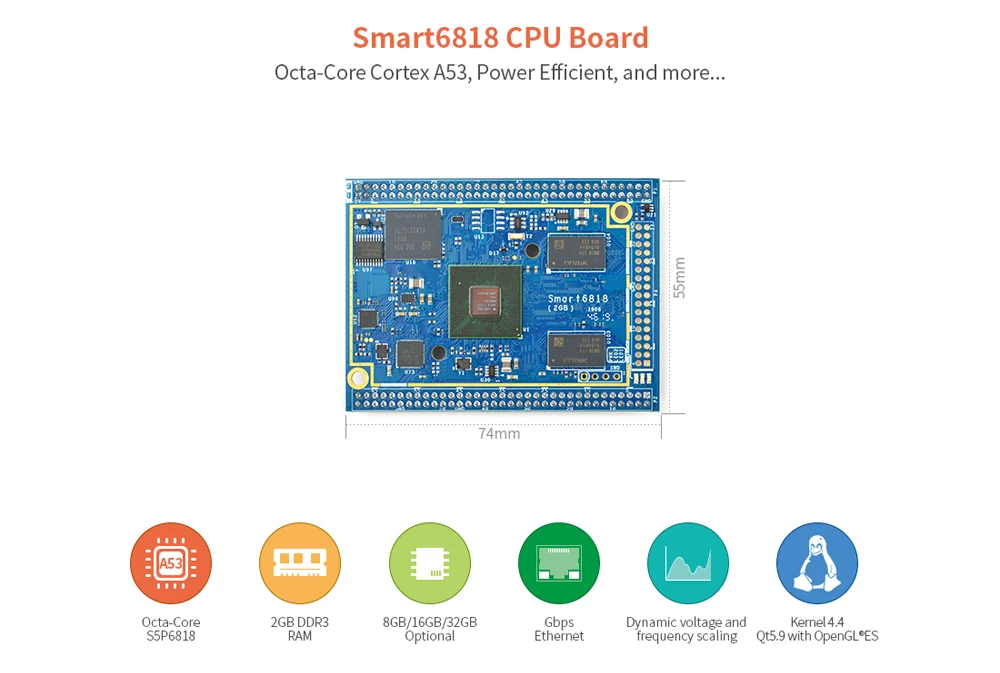

• PCB Dimension: 74 x 55 mm, 8-Layer

• Power: DC 5V, up to 2A

• Temperature measuring range: -40℃ to 80℃

• OS/Software: u-boot, Android 7.0, Debian8, ubuntu-core

• 3 x 2.0mm pitch double row pin header, 174 pins in total:

• USB 2.0 - Host x1, OTG x1

• Video output/Display - RGB Parallel I/F (24-bit), LVDS and HDMI 1.4a

• Video input - DVP Camera interface, ITU-R BT 601/656 8-bit and MIPI-CSI

• Audio input - Microphone

• Audio output - Audio jack (with headset detection) and HDMI audio

• Ethernet - 10/100/1000Mbps Ethernet x 1

• ADC - CPU internal ADC, 7 channels, 12-bit, range: 0 ~ 1.8V

• External interface - SDIO/MMC x2, SPI x2, I2C x3, UART x5, PWM x3, GPIOs x24

• Others - Power key input, RESET input, RESET output, RTC battery input
