HDMI to MIPI-CSI RK628D Driver Board 4K Input Video Signal Adapter Boards Develo

Product Description

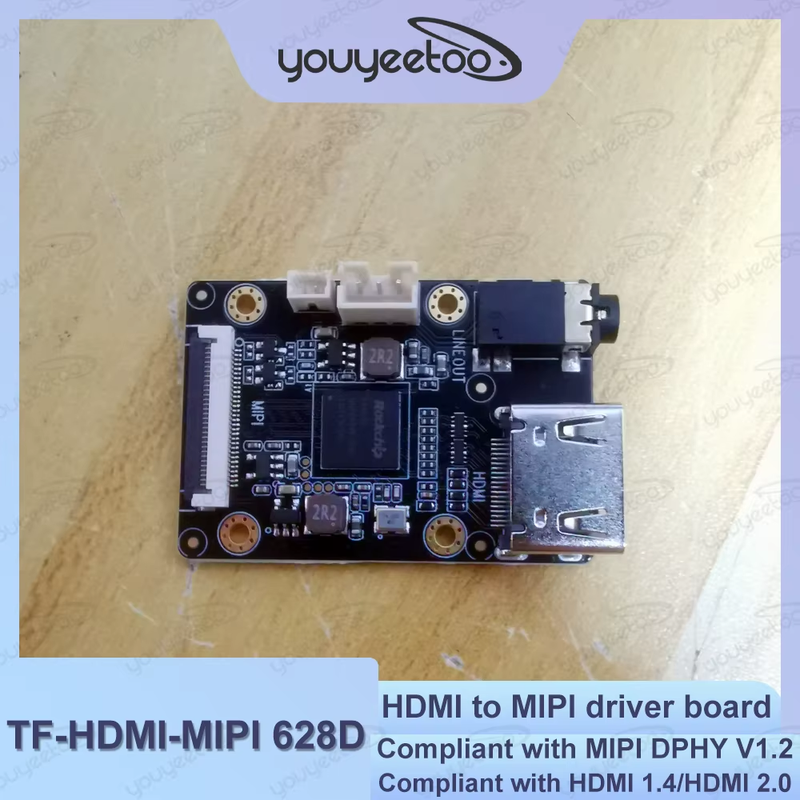

HDMI TO MIPI CSI Driver Board

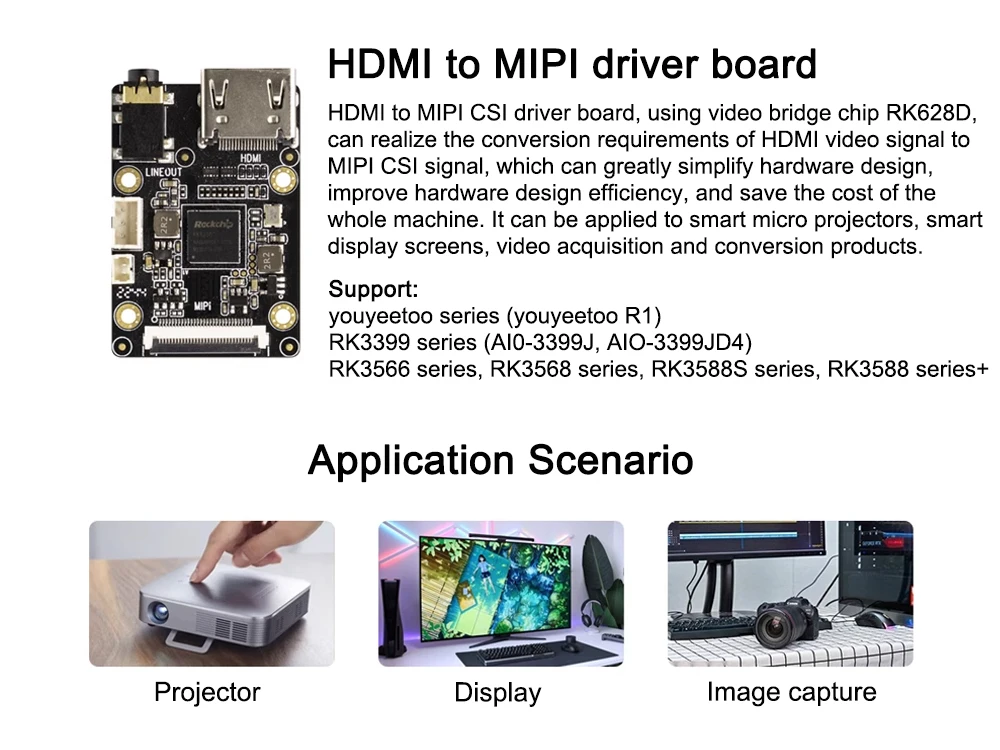

HDMI TO MIPI CSI driver board adopts video bridge chip RK628D, which can realize the conversion requirements of HDMI video signal to MIPI CSI signal, greatly simplify hardware design, improve hardware design efficiency, and save the cost of the whole machine. It can be applied to smart micro projectors, smart displays, and video acquisition and conversion products.

Supported series:

youyeetoo series (youyeetoo R1)

RK3566 series, RK3568 series, RK3588S series, RK3588 series

Currently RK628D only supports 3 resolutions of RGB-8BIT/YUV422-SBIT: 4K30/1080P60/720P60, and other formats and resolutions are not well supported.

Specifications

• Size: 43.5mm * 30mm

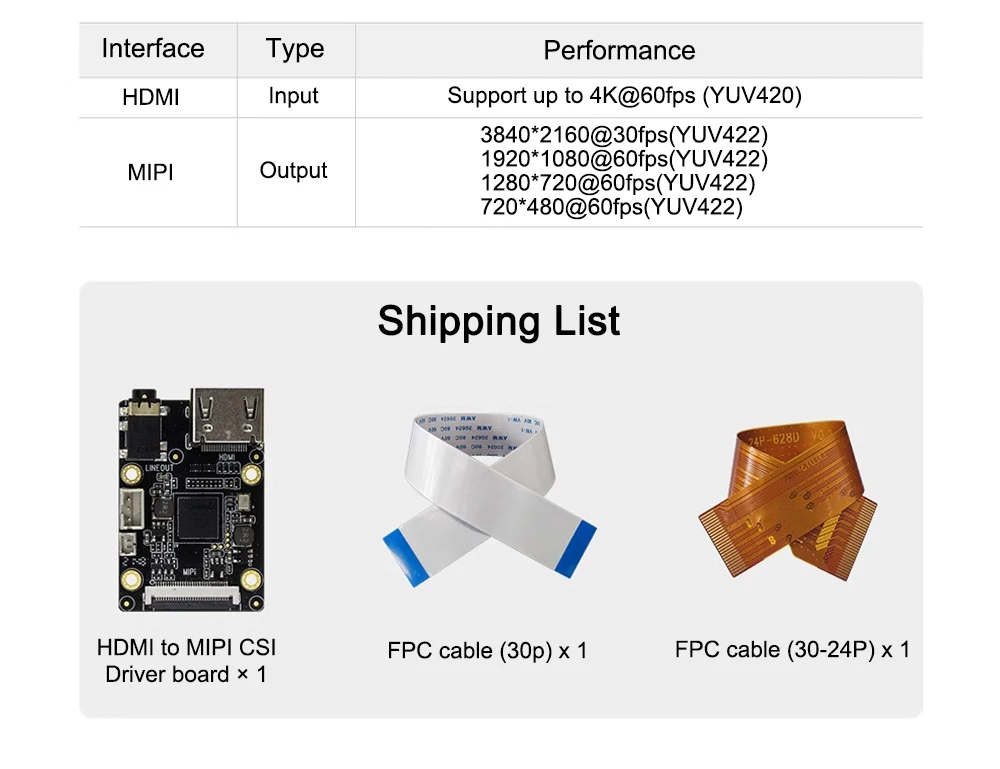

• HDMI RX interface:

1. Compatible with HDMI 1.4/HDMI 2.0

2. Support 8/10bit video format

3. Support RGB888/YUV420

4. Maximum supported resolution 4K@60fps (YUV420)

• MIPI CSI interface:

1. Compatible with MIPI DPHY V1.2

2. Support YUV422

3. Main resolution support: 3840x2160@30fps, 1920x1080@60fps, 1280x720@60fps, 720x480@60fps

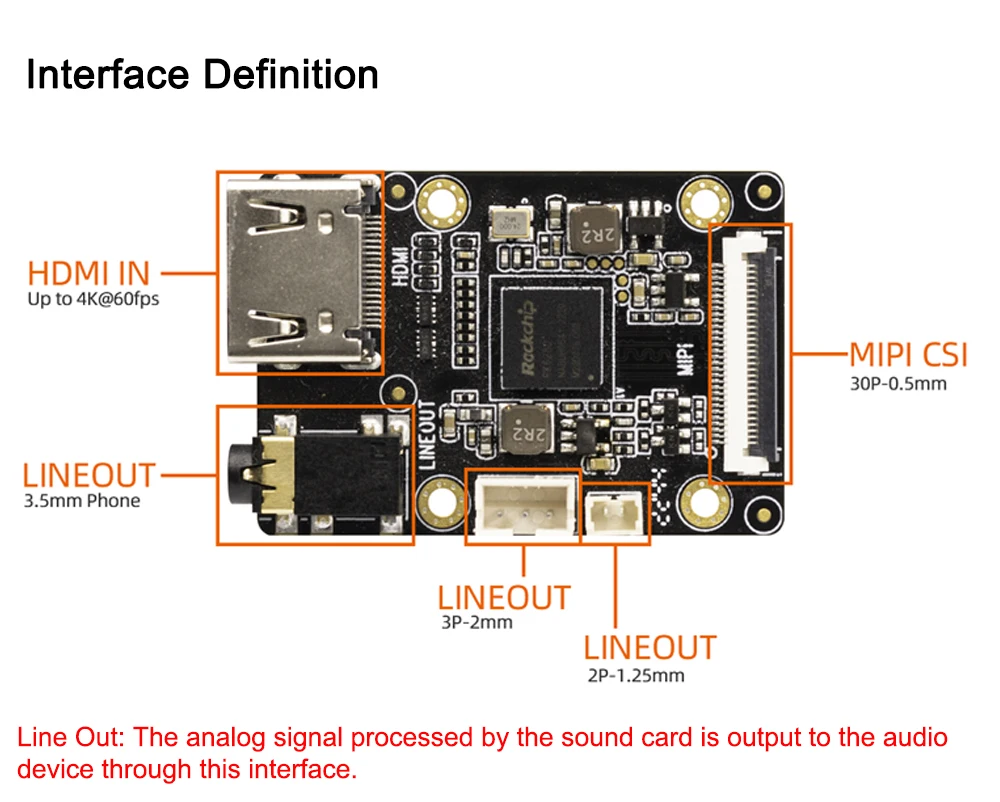

• LINEOUT interface:

1. Same-channel audio output: 3.5mm headphone jack * 1, 3P-2mm * 1, 2P-1.25mm * 1
