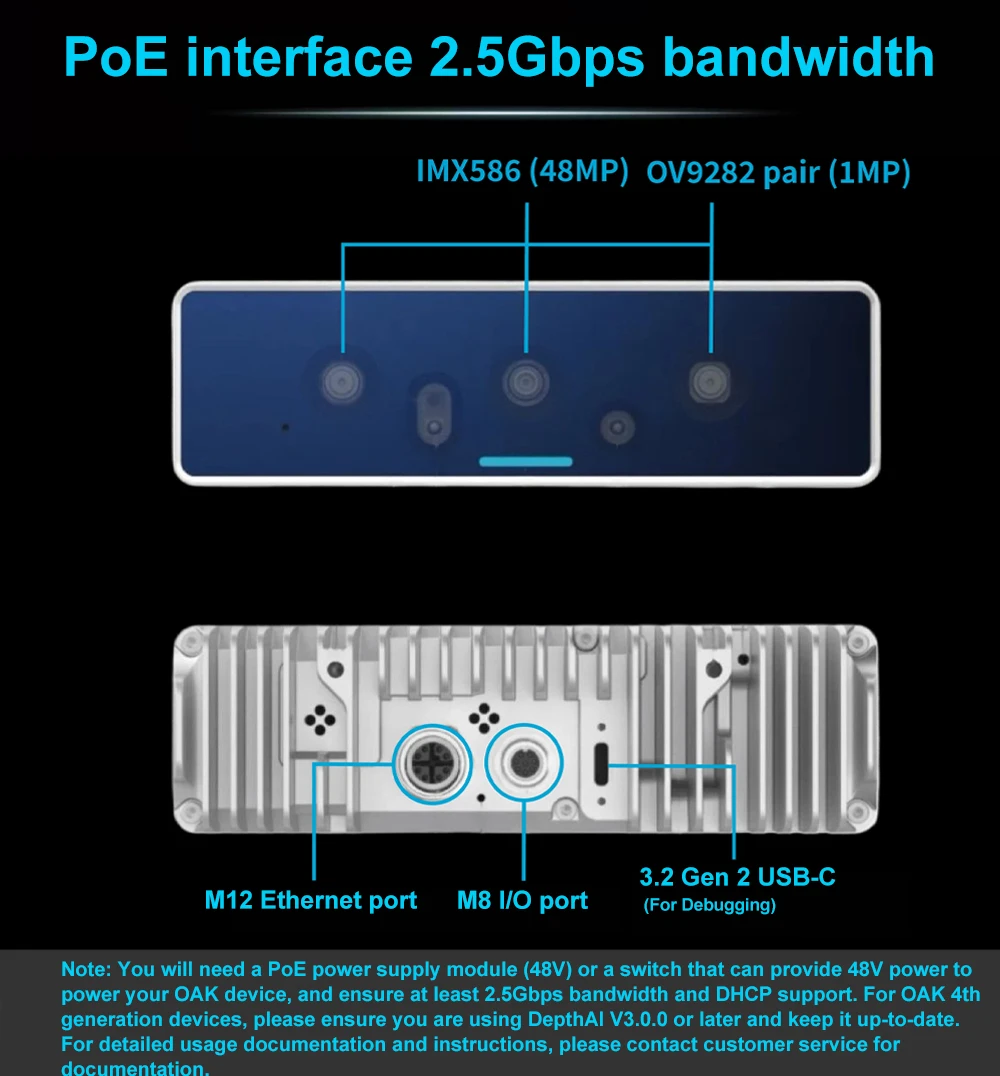

OAK 4D Pro Structured Light Binocular Depth Camera PoE Power 48MP RGB 2.5Gbps Ba

Product Description

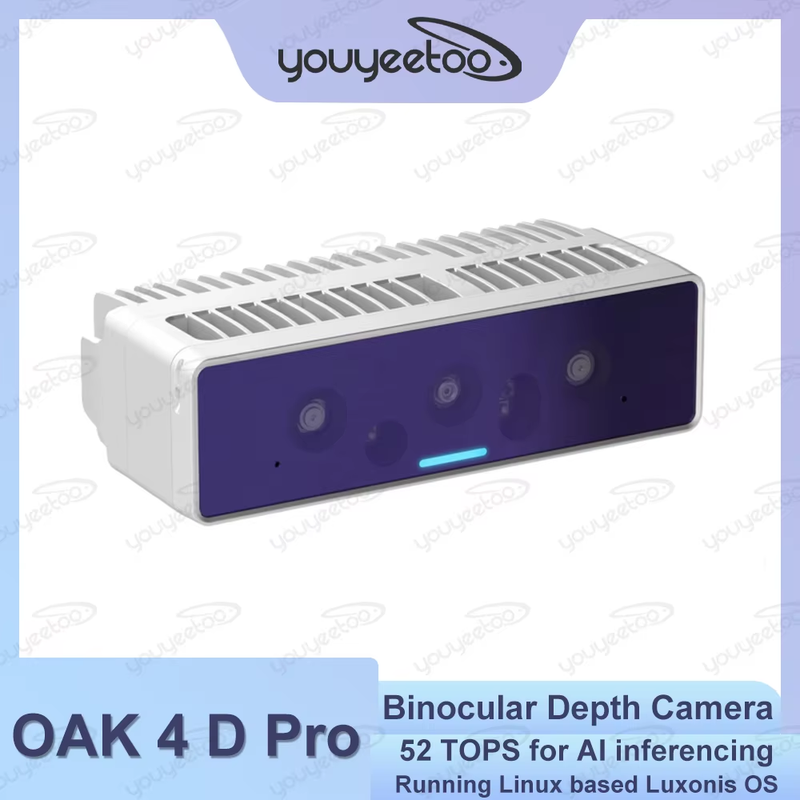

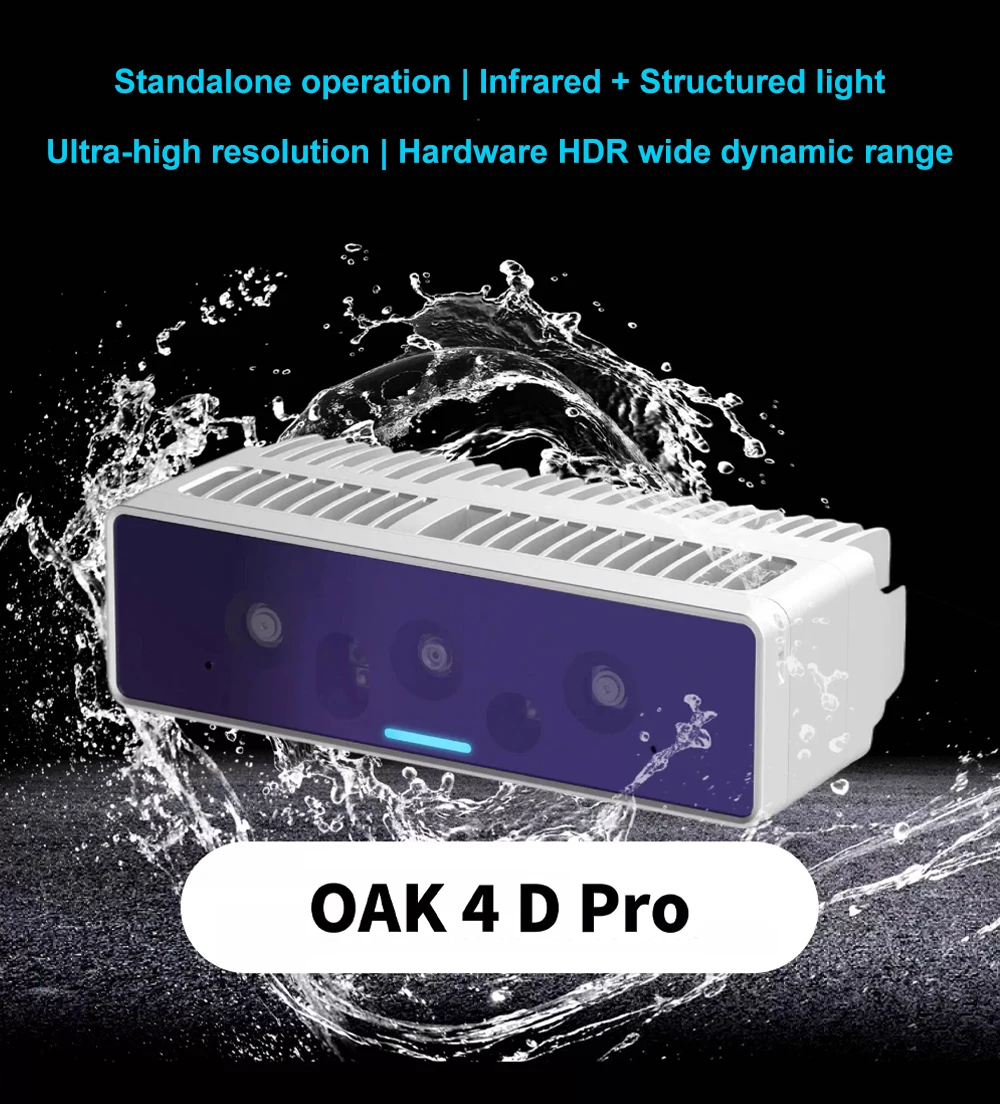

OAK 4 D Pro is the ultimate edge inference, stereo vision camera. This standalone device is perfect for robotic vision and automated systems, combining stereo depth camera and high-resolution color camera with on-device Neural Network inferencing and Computer Vision capabilities.

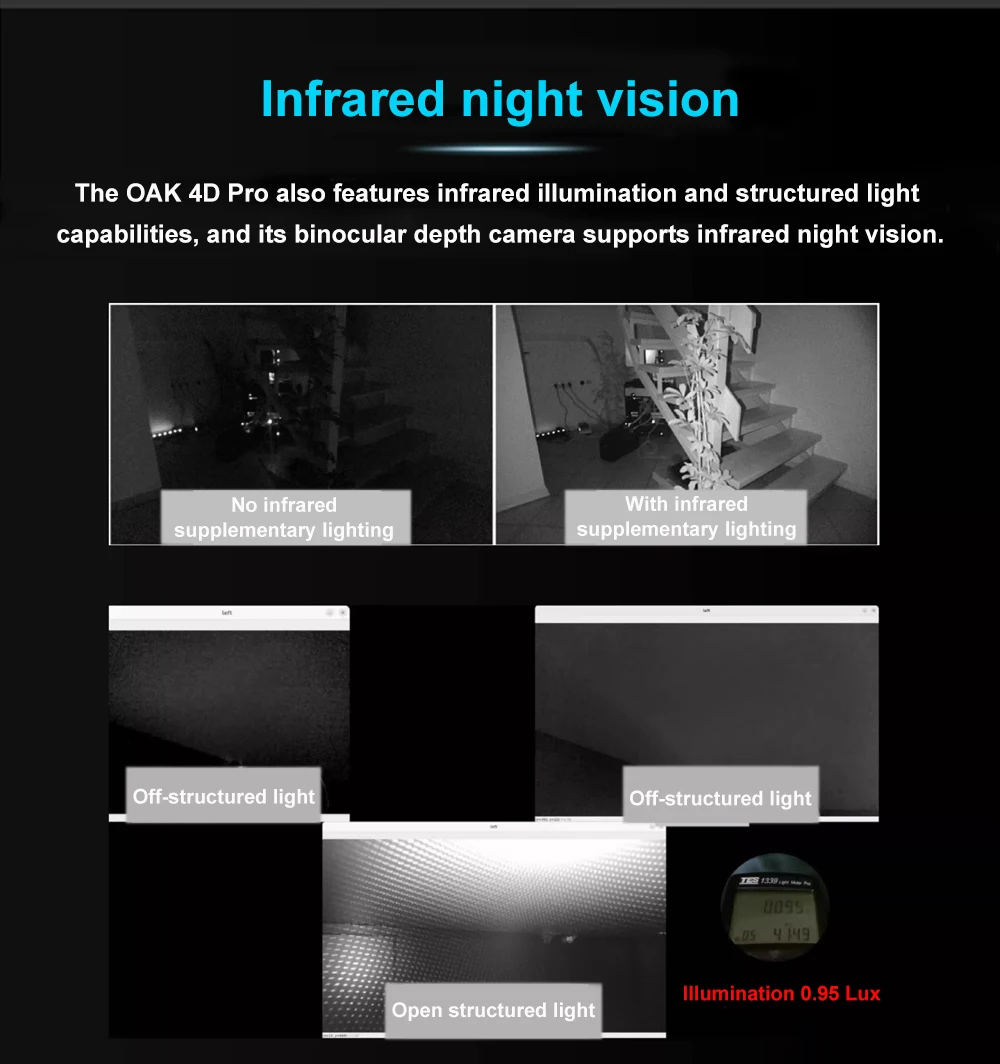

Pro version is advised for application that require high-quality and reliable stereo depth perception in any kind of environment, including low-light, and texture-less scenes.

RVC4 on-board features:

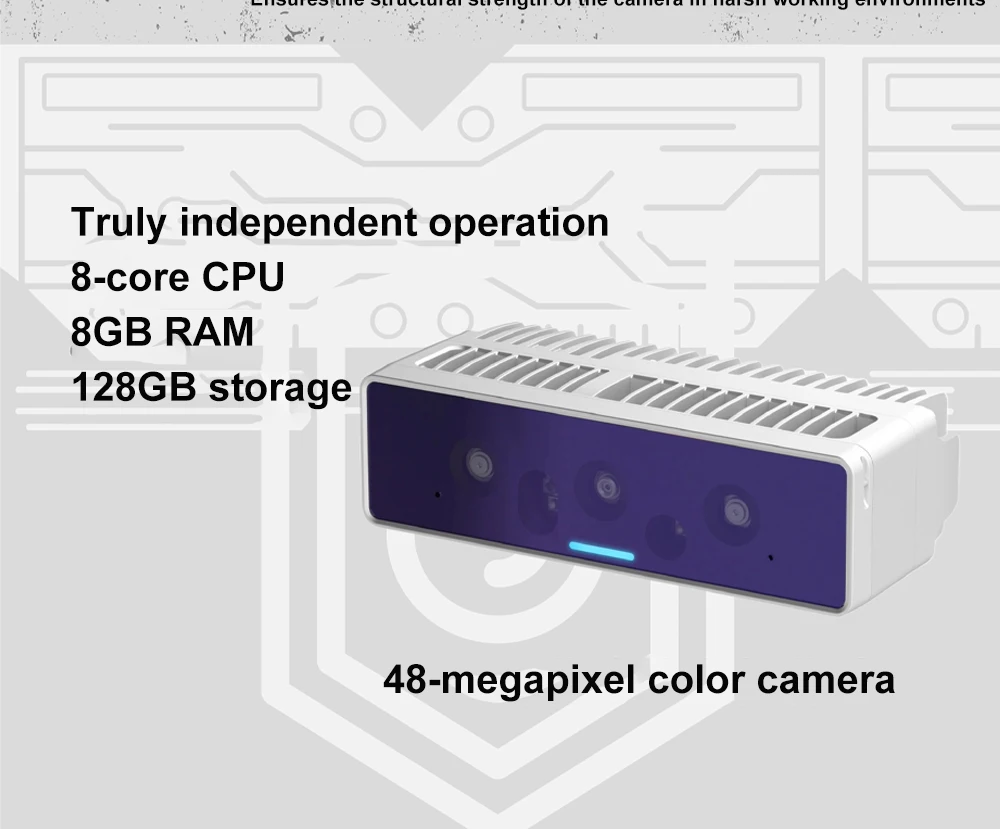

6-core ARM CPU (QC 8-series), 8GB RAM, 128GB of storage

Operated by Luxonis OS, based on Linux kernel 5.15

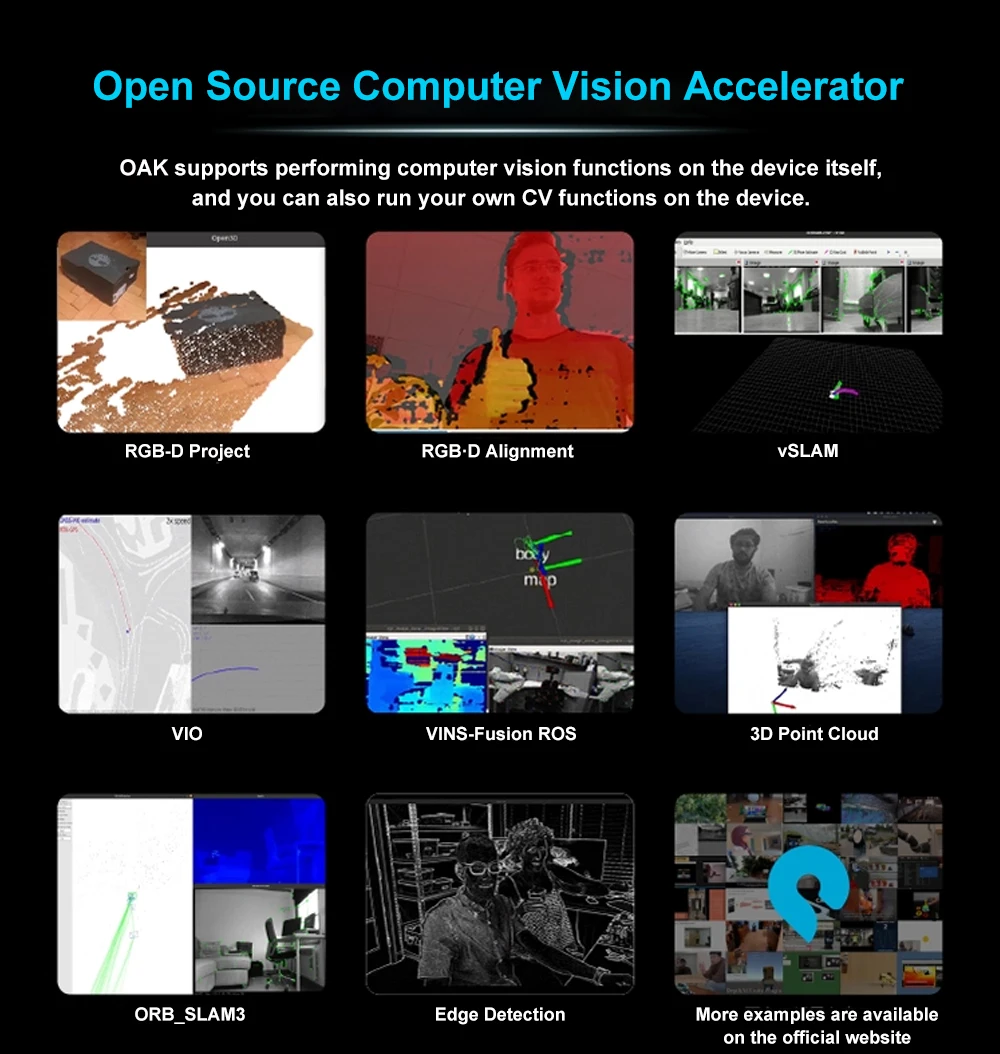

Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions

AI:

DSP: 48 TOPS (INT8) / 12 TOPS (FP16)

GPU: 4 TOPS (FP16)

Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability

Object tracking: 2D and 3D tracking with ObjectTracker node

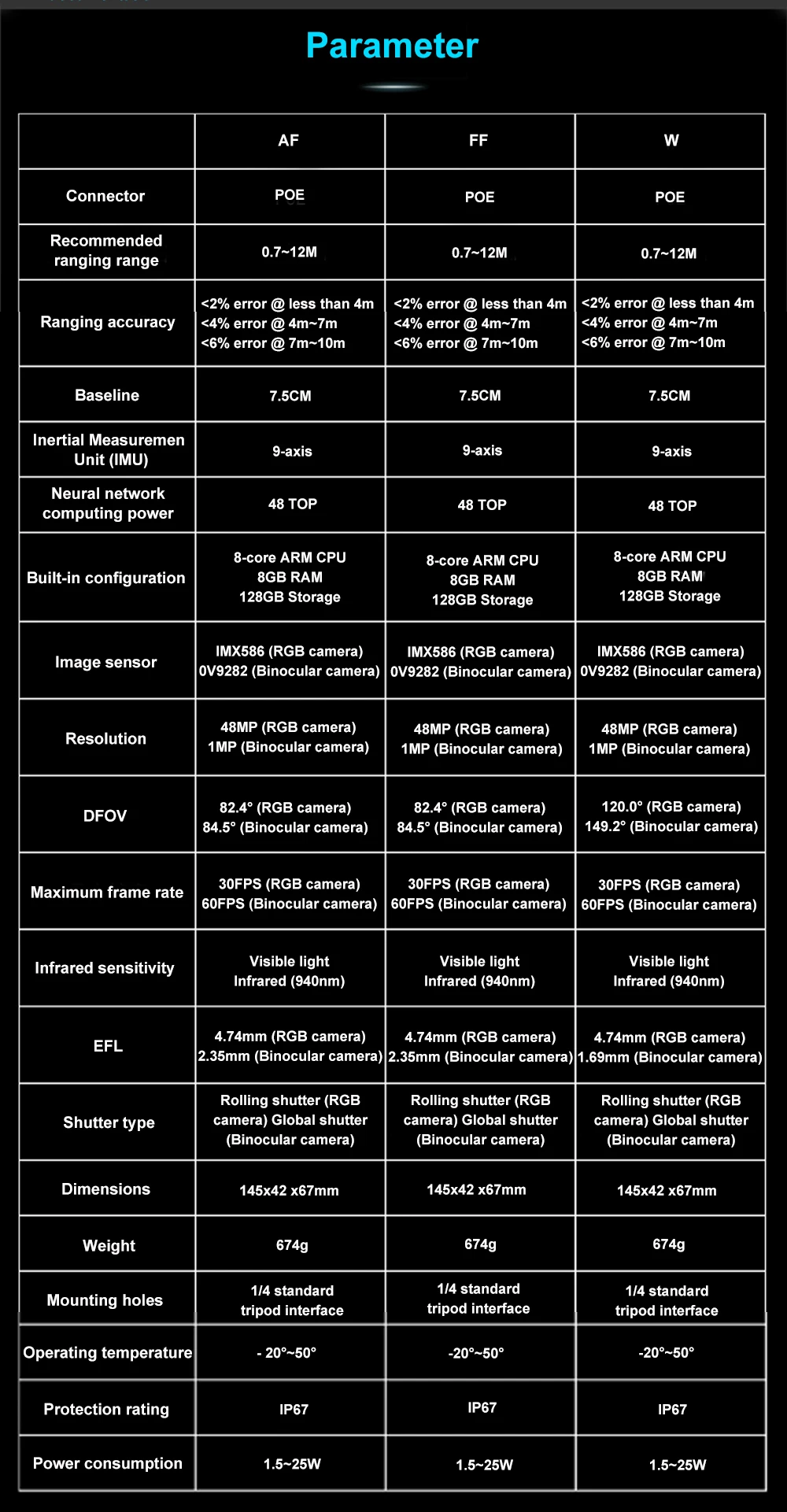

Specifications:

Base line: 75 mm

Ideal depth range: 70 cm - 12 m.

Power consumption: up to 25W

Housing:

Industrial grade aluminum with Front Gorilla Glass

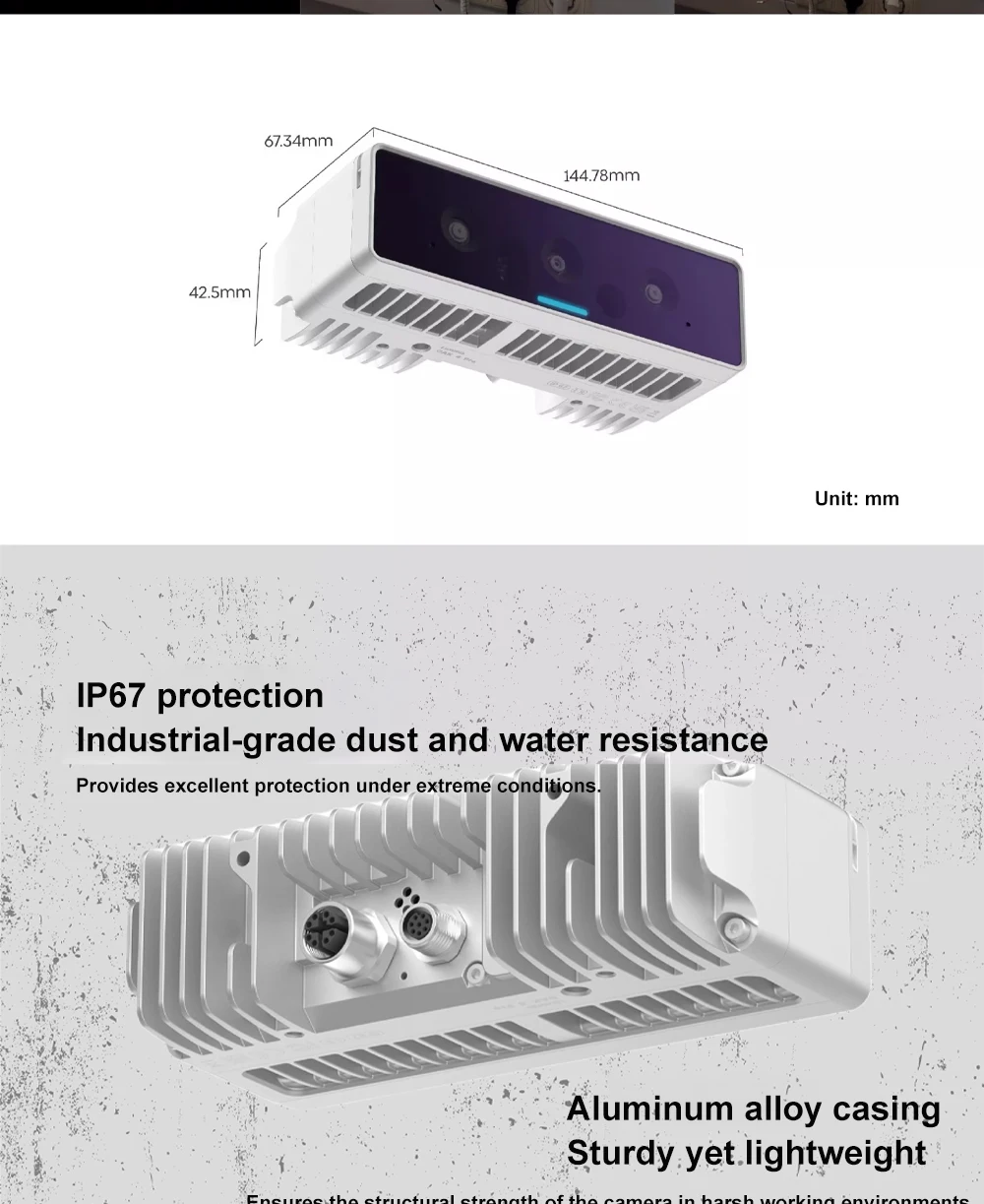

Water resistance enclosure with IP67 rating

Mounts:

1/4" tripod mount

75mm M4 Vesa mount on back and bottom cover

Dimensions: 143.5 x 42.5 x 67.3 mm

Weight: 674g
