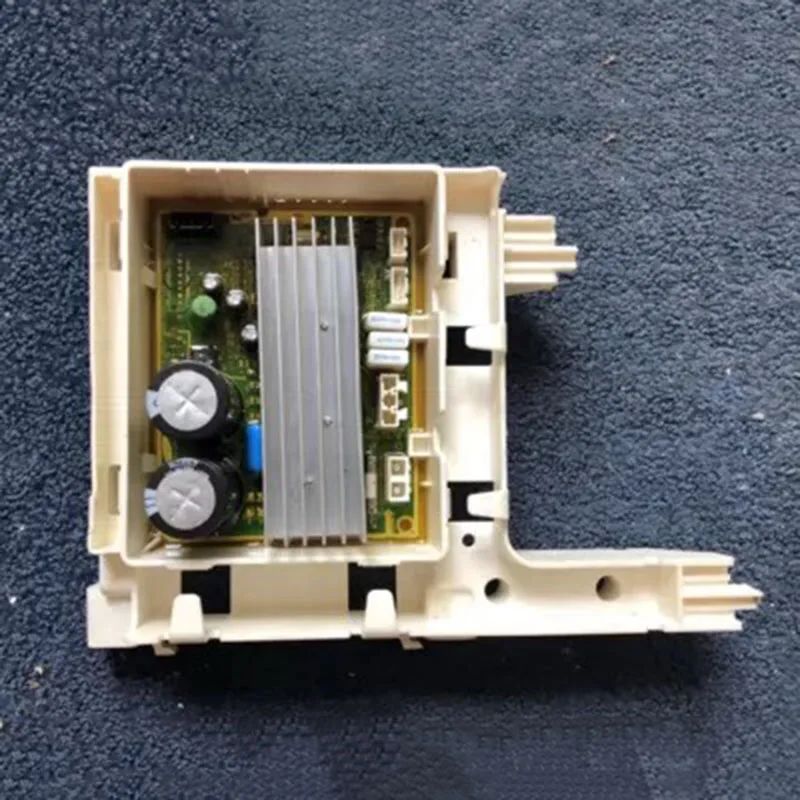

WD806U2GASD Drum Washing Machine Accessories DC92-01531A Computer Board Frequency Converter Board Replacement Secondary Board
Please confirm the washing machine failure before purchasing
How to determine the fault of the washing machine
1. Common faults in water
1. Question: What is the fault of not being able to wash clothes after starting up?
Answer: The reason why the water level switch is broken or the water level switch leather pipe leaks. Solution: Replace the water level switch and seal both ends of the leather tube with glue. If it still cannot be solved, replace the computer board.
2. Question: What is the fault if the power is turned on and the water is inlet without pressing it?
Answer: The water inlet valve is broken, causing the computer board to burn out. Solution: The water inlet valve and the computer board need to be replaced at the same time to solve the problem. If the computer board is replaced separately, it will still burn out.
2. Common laundry failures
1. Question: 1) Turn if the machine is not started; 2) After the water is in, what is the fault if the clothes are turned or cannot turn?
Answer: If the computer board is burned out, the motor is partially short-circuited or burned out, and the capacitor is broken. Solution: Measure the motor resistance value (normal resistance value two secondary windings
Add = main winding), the motor resistance value is normal, and the capacitor can be replaced with the computer board normally. If the motor resistance value is not equal, the computer board and the motor are required.
2. Question: The water inlet is normal. What is the fault when the laundry procedure will drain?
Answer: This fault should be the hand rub function washing machine. The drain traction is all three-wire, which is the problem that the distance between the drain traction and the drain valve plug is too short. Solution: Adjust the clutch handle screws to make the distance longer, or change a single stroke (to the left and right of the traction device
Connect the lines on both sides together, and cut off the hand-soft function line connecting the computer board to solve the problem. No need to replace the computer board
3. Question: If you can't get water in when you start, what is the fault of washing clothes directly?
Answer: If the water level switch is faulty, replace the water level switch to solve the problem. If it cannot be solved, replace the computer board.
4. Question: After the water inflow, what is the fault of calling the alarm while washing clothes?
Answer: Generally, the barrel balance failure, among which the LG Panasonic washing machine has reed tube protection, the cover magnet should be that the reed tube cannot be absorbed and the reed tube cannot be malfunctioned. Solution: just adjust the barrel balance. If the reed tube problem is installed, install the magnet on the cover to solve the problem.
5. Question: What is the fault of the process of washing clothes and not being able to reach the drainage and dehydration?
Answer: The barrel balance failure is generally a problem that the clothes are on the side of the barrel. Solution: Short-circuit the computer board bucket balance socket (short-circuitMethod: Find the corresponding socket of the computer board, plug the plug on the computer board, peel off the wire from the computer board, and twist it directly together).
