Product Description
Banana Pi BPI-P2 Zero SBC Allwinner H3 8G eMMC Integrated Circuits Open Platform Device Single Board Computer Support PoE Module
Banana Pi BPI-P2 Zero SBC Allwinner H3 8G eMMC Integrated Circuits Open Platform Device Single Board Computer Support PoE ModuleIntroduction

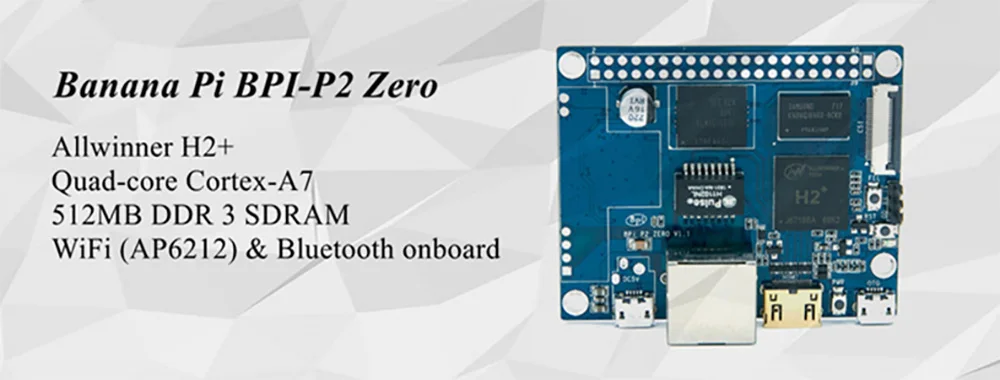

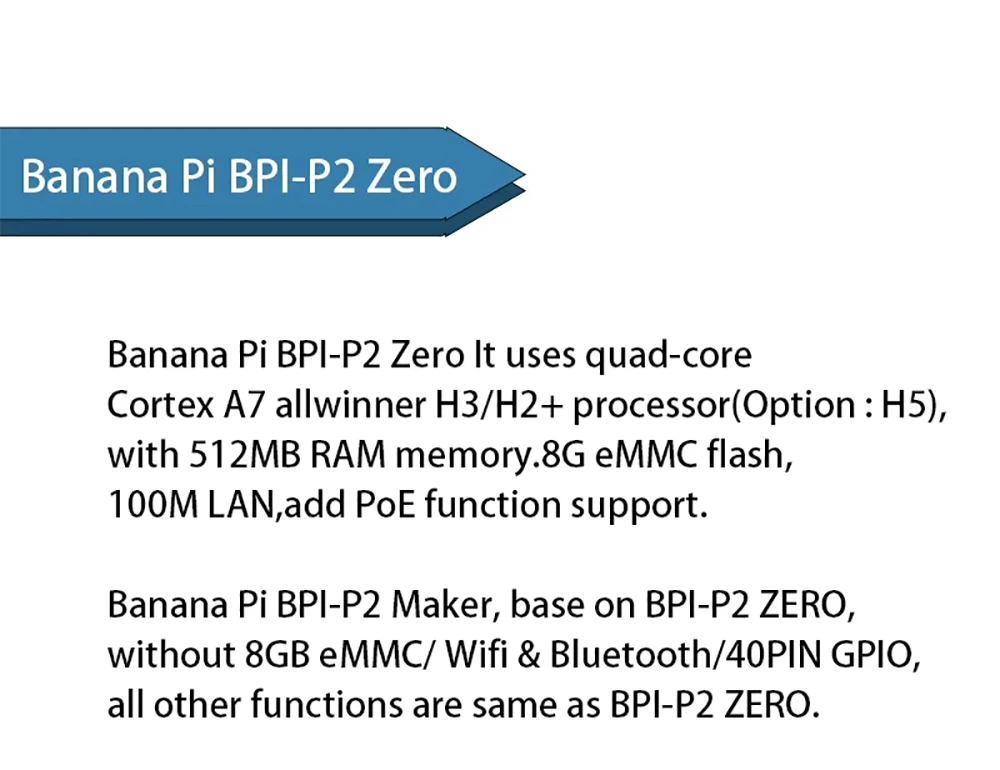

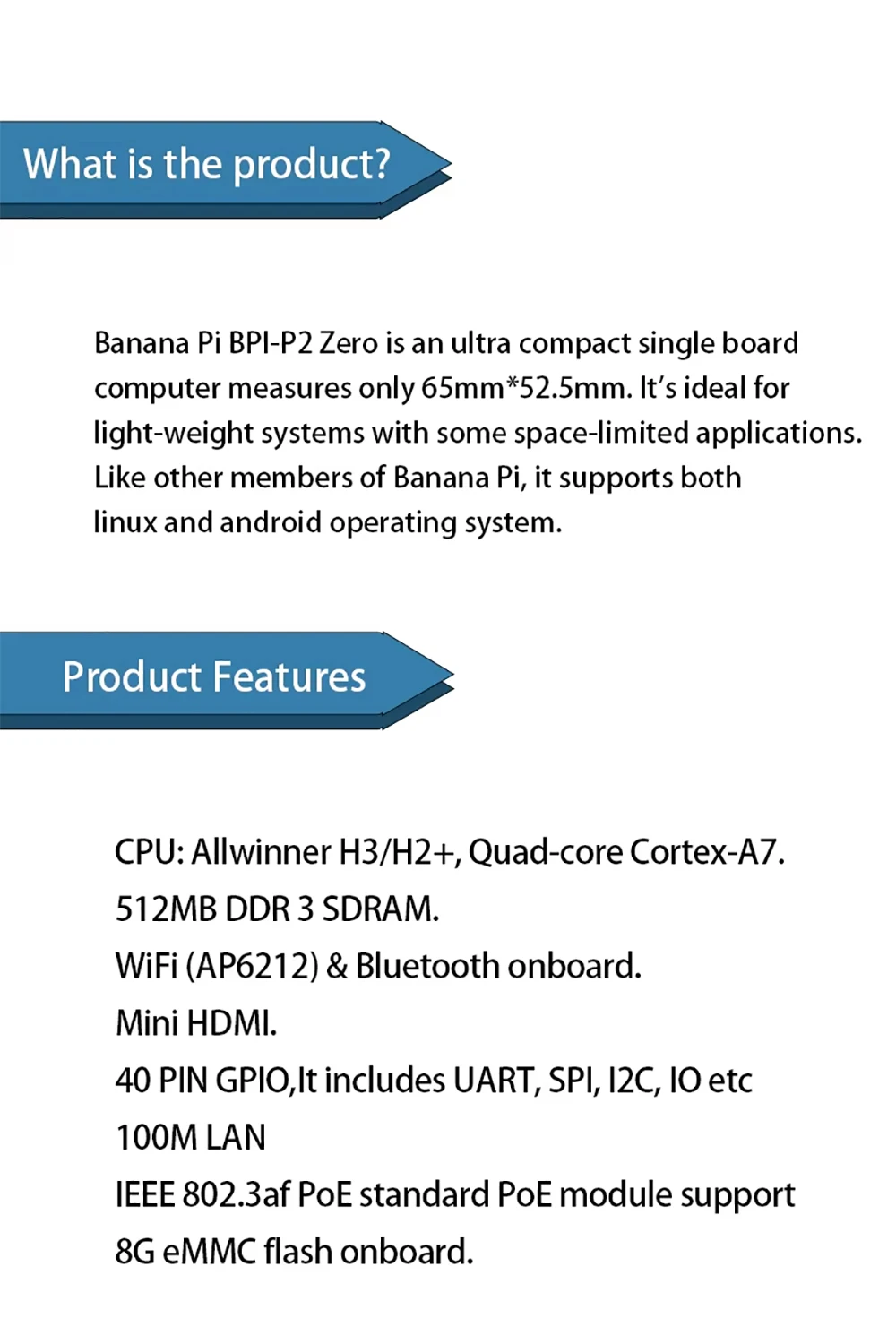

Banana Pi BPI-P2 Zero is an ultra compact single board computer measures only 65mm*52.5mm. It uses quad-core Cortex A7 allwinner H3/H2+ processor(Option : H5), with 512MB RAM memory.8G eMMC flash,100M LAN,add PoE function support , It's ideal for light-weight systems with some space-limited applications. Like other members of Banana Pi, it supports both linux and android operating system.
Banana Pi BPI-P2 Maker, base on BPI-P2 ZERO, without 8GB eMMC/ Wifi & Bluetooth/40PIN GPIO, all other functions are same as BPI-P2 ZERO.

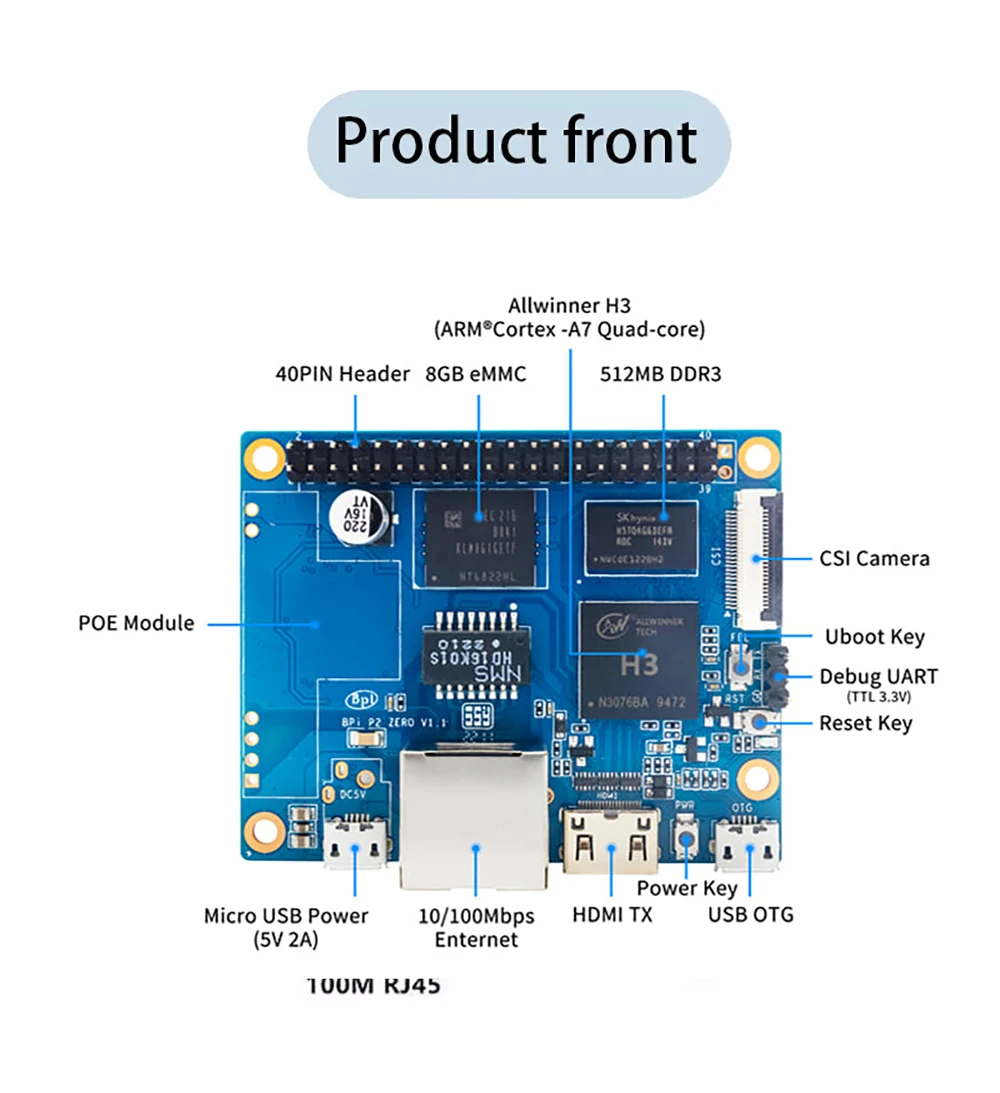

Key Features
CPU: Allwinner H3/H2+, Quad-core Cortex-A7.
512MB DDR 3 SDRAM.
WiFi (AP6212) & Bluetooth onboard.
Mini HDMI.
40 PIN GPIO,It includes UART, SPI, I2C, IO etc
100M LAN
IEEE 802.3af PoE standard PoE module support
8G eMMC flash onboard

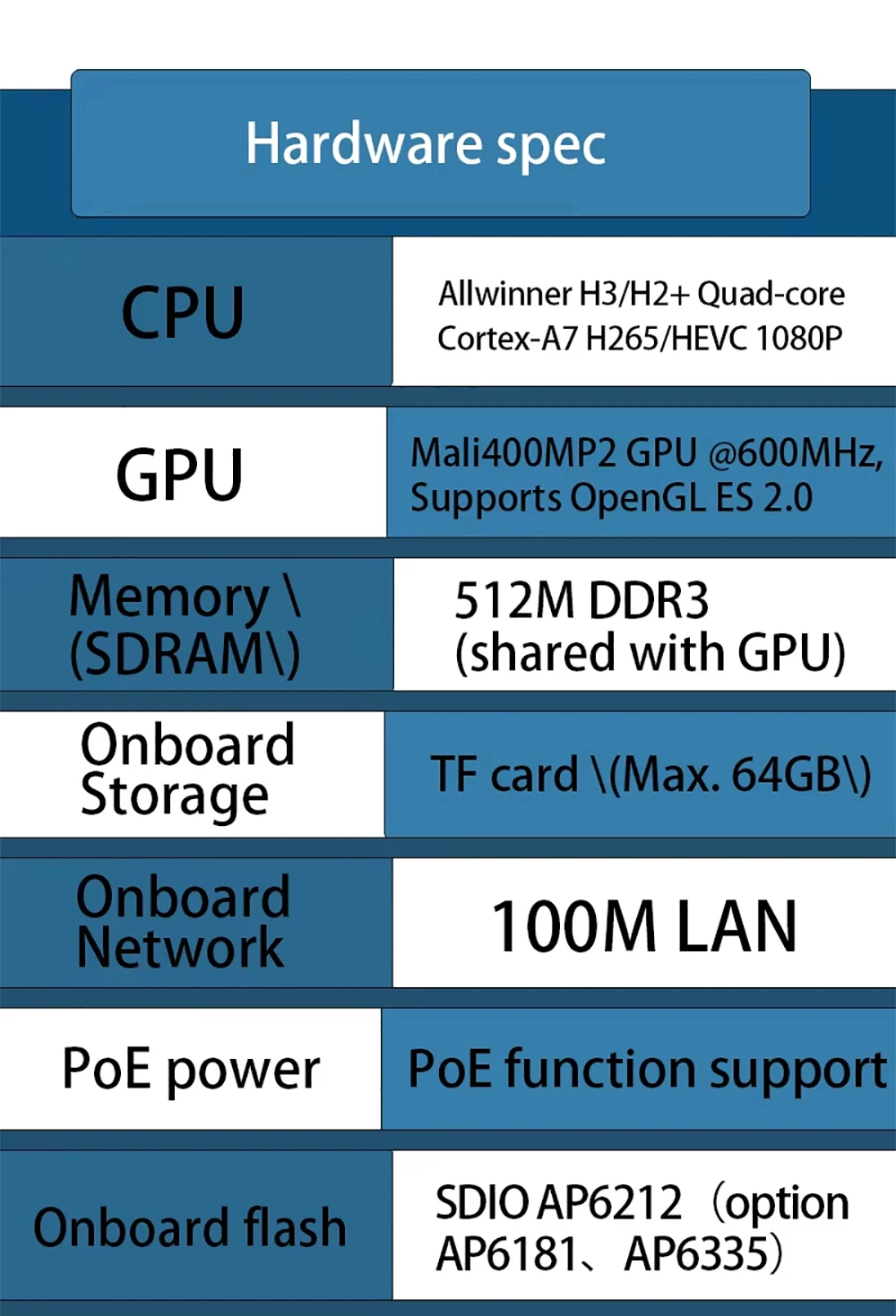

Hardware spec
HardWare Specification of Banana pi BPI-P2 Zero VS BPI-M2 zero VS Raspberry Pi Zero W | |||
Module | Banana Pi BPI-P2 Zero | Banana Pi BPI-M2 Zero | Raspberry Pi Zero W |
CPU | Allwinner H3/H2+ Quad-core Cortex-A7 H265/HEVC 1080P | Allwinner H3/H2+ Quad-core Cortex-A7 H265/HEVC 1080P | Broadcom BCM2835 32 Bit 1 GHz ARM1176JZF-S single-core |
GPU | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 | Mali400MP2 GPU @600MHz,Supports OpenGL ES 2.0 | VideoCore IV |
Memory \(SDRAM\) | 512M DDR3(shared with GPU) | 512M DDR3(shared with GPU) | 512 MB DDR2 |
Onboard Storage | TF card \(Max. 64GB\) | TF card \(Max. 64GB\) | TF card \(Max. 64GB\) |
Onboard Network | 100M LAN | NOPE (but can extension with PIN define) | NOPE |
PoE power | PoE function support | NOPE | NOPE |
Onboard flash | 8G eMMC | NOPE | NOPE |
Onboard WIFI | SDIO AP6212（option AP6181、AP6335） | SDIO AP6212（option AP6181、AP6335） | 802.11n wireless, Bluetooth 4.1 |

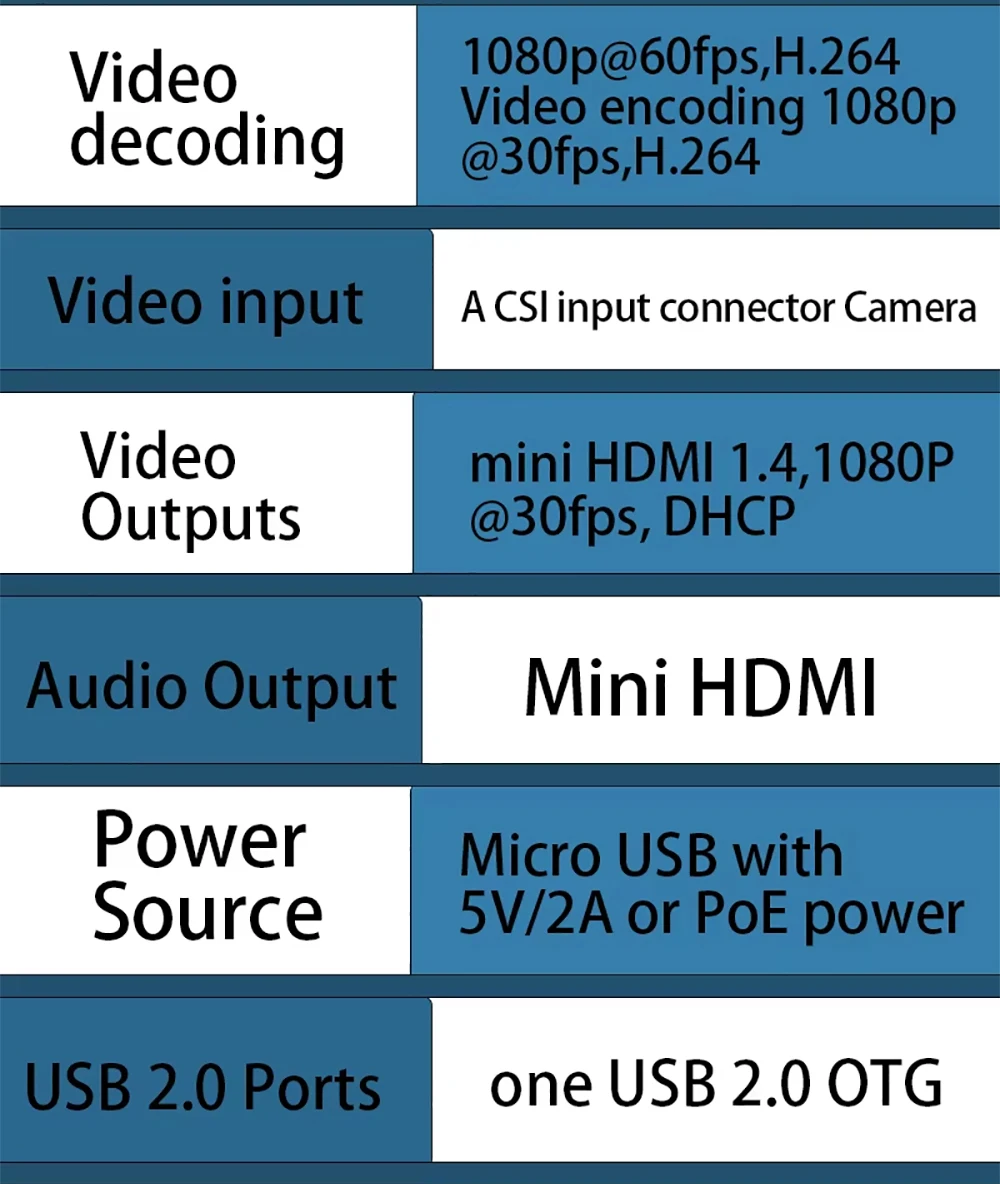

Video decoding | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 | 1080p@60fps,H.264 Video encoding 1080p@30fps,H.264 | 1080p30 H.264/MPEG-4 AVC high-profile decoder and encoder |
Video input | A CSI input connector Camera | A CSI input connector Camera | CSI camera connector |
Video Outputs | mini HDMI 1.4,1080P@30fps, DHCP | mini HDMI 1.4,1080P@30fps, DHCP | Mini HDMI and USB On-The-Go ports |
Audio Output | Mini HDMI | Mini HDMI | Mini HDMI |
Power Source | Micro USB with 5V/2A or PoE power | Micro USB with 5V/2A | 5V/2A |
USB 2.0 Ports | one USB 2.0 OTG | one USB 2.0 OTG | one USB 2.0 OTG |

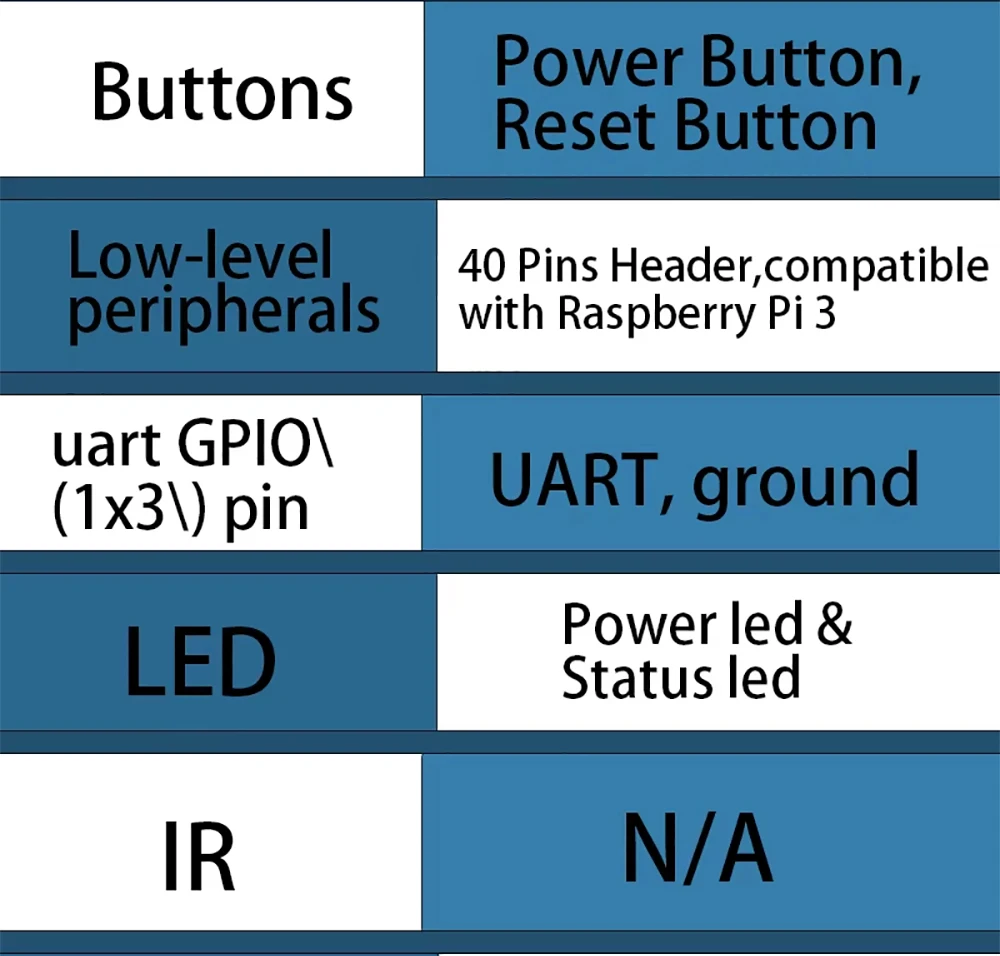

Buttons | Power Button, Reset Button | Power Button, Reset Button | Composite video and reset headers |
Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi 3 | 40 Pins Header,compatible with Raspberry Pi 3 | 40 PIN |
uart GPIO\(1x3\) pin | UART, ground | UART, ground | UART |
LED | Power led & Status led | Power led & Status led | Power Status LED |
IR | N/A | N/A | N/A |

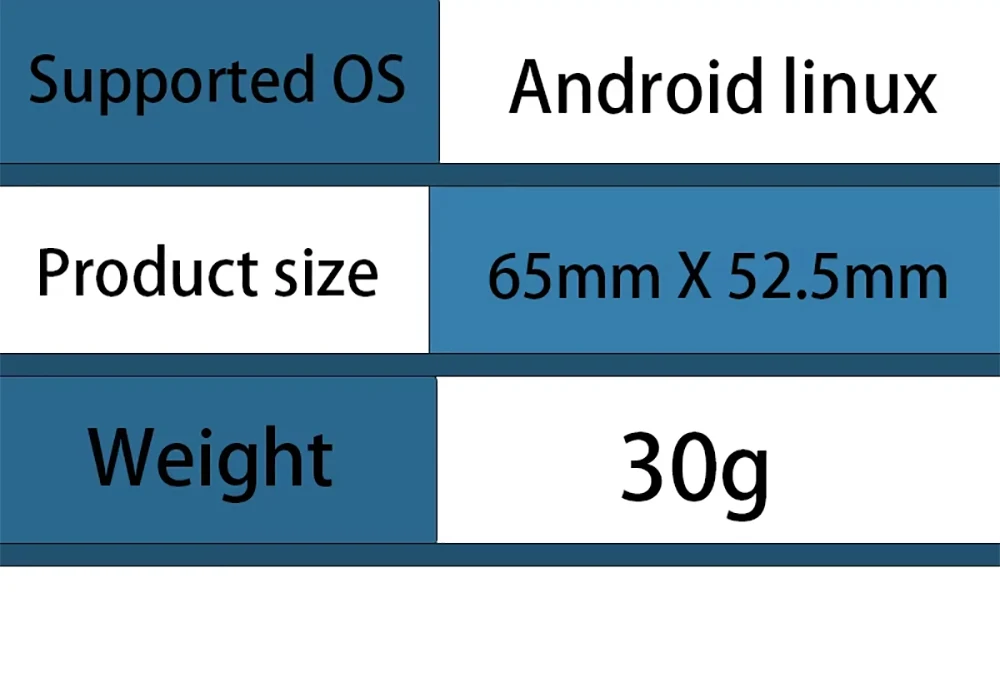

Supported OS | android linux | android linx | Linux |

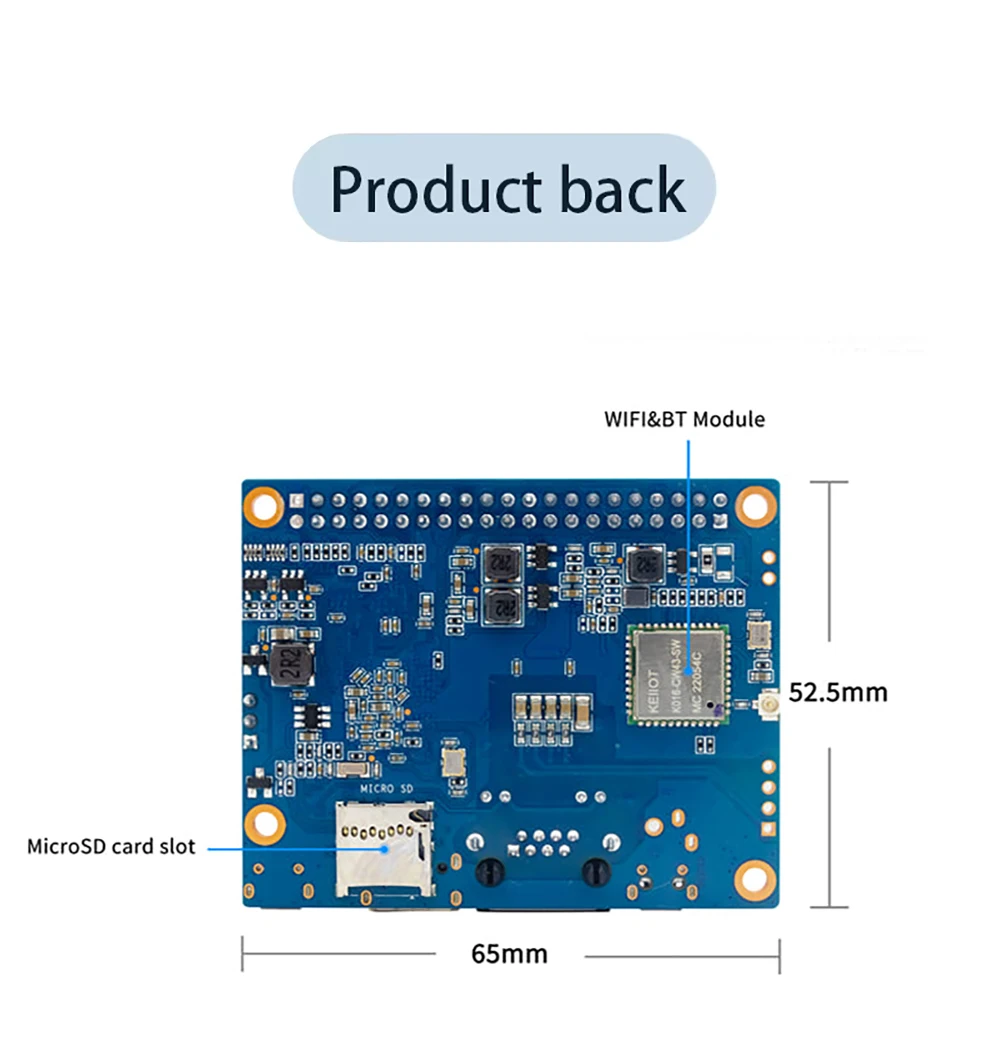

Product size | 65mm X 52.5mm | 65mm × 30mm | 65mm x 30mm |
Weight | 30g | 15g | 9g |
