Product Description

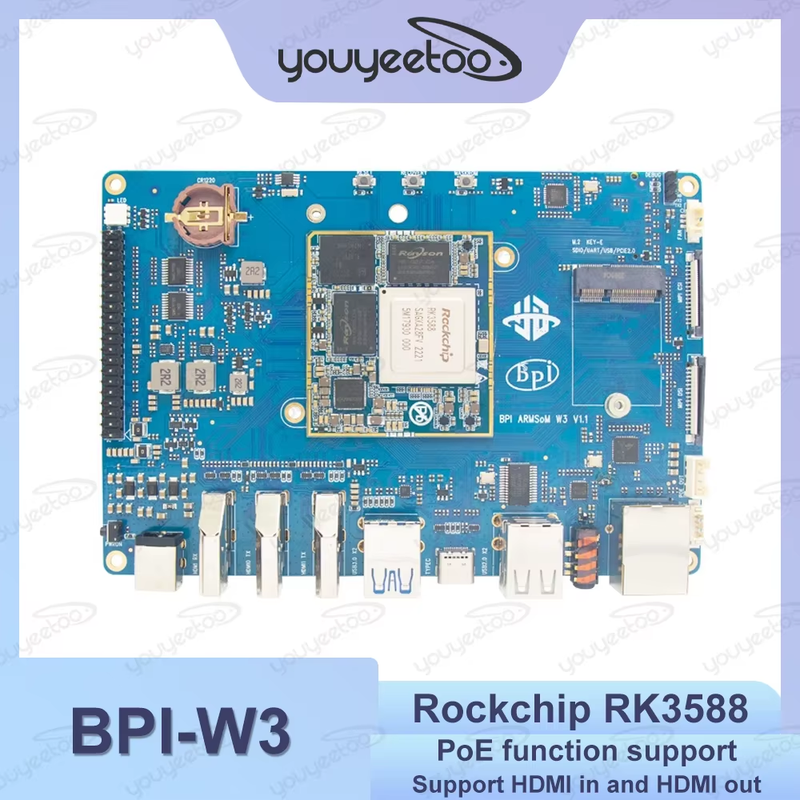

Banana Pi BPI-W3 Single Board Computer Rockchip RK3588 Quad ARM 2.5Gbps Ethernet Smart Router Board 8G RAM Support PoE function
Banana Pi BPI-W3 Single Board Computer Rockchip RK3588 Quad ARM 2.5Gbps Ethernet Smart Router Board 8G RAM Support PoE functionBPI-W3 Introduction
Banana Pi BPI-W3 single board computer is designed and developed by bananapi team for professional and enterprise users, powered by Rockchip RK3588 SoC quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor with dynamic frequency scaling up to 2.4GHz. Embedded high -performance 3D and 2D image acceleration module, AI accelerator NPU with a built -in 6 TOPS computing power.
Banana Pi BPI-W3 up to 32GB 64bit LPDDR4X ram, up to 8K@60 HDMI OUT, HDMI IN, MIPI DSI, MIPI CSI, 3.5mm jack with Mic, USB Port, 2.5GbE LAN, PCIe 3.0 x4, PCIe 2.0x2, 40-pin expansion header, RTC,POE,SD card, DC power，Type-C.
With a strong ecosystem and a wide range of extended accessories, Banana Pi can help users easily achieve delivery from ideas to prototypes to mass production, making it the ideal creative platform for makers, dreamers and hobbyists.
Key Features：
Rockchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
ARM Mali-G610 MP4,
NPU for AI : 6Tops@INT8
8G RAM and 32G eMMC flash onbord
1x 2.5Gbps Ethernet
support HDMI in and HDMI out
MIPI CSI camera and MIPI DSI display support
M.2 Key E interface and M.2 Key M PCIe interface
40 PIN GPIO
PoE function support

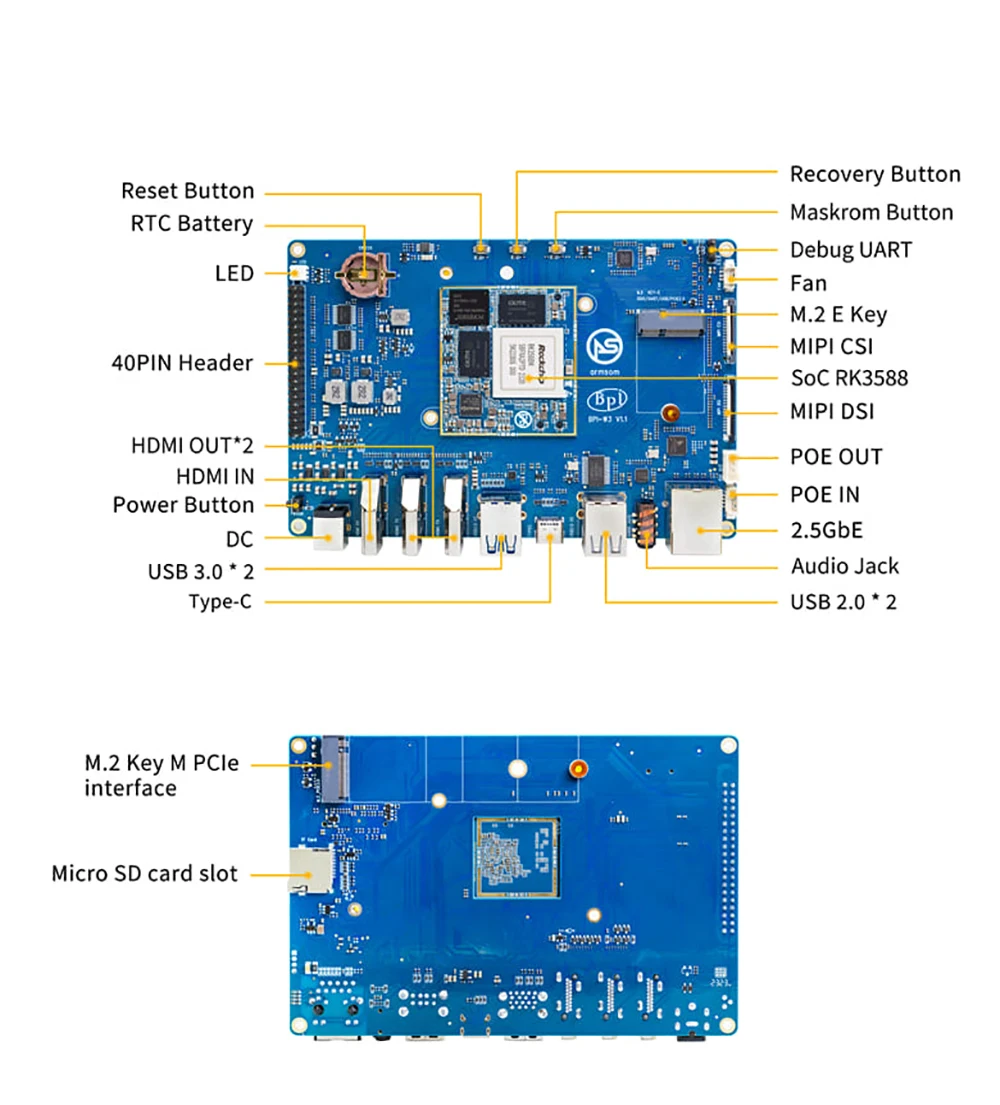

Hardware Interface
Hardware Spec
HardWare Specification of Banana Pi W3 | |
SOC | RockChip RK3588 |
CPU | Quad Core A76+ Quad Core A55 ,use 8nm , 2.4GHz |
GPU | ARM Mali-G610 MP4 GPU，Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
NPU | 6 TOPS，Support INT4/INT8/INT16 mixed operation,Support framework switching of TensorFlow/MXNet/PyTorch/Caffe |
Encode&Decode | encode：8K@60fps H.265/VP9/AVS2、8K@30fps H.264 AVC/MVC、4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8 ,decode：8K@30fps H.265 / H.264 |
Ram | 4GB/8GB/16GB（up to 32GB）64bit LPDDR4/LPDDR4x/LPDDR5，Defalut LPDDR4 8GB |
Flash | 16GB/32GB/64GB/128GB/256GB eMMC，support MicroSD card slot，Defaut :32GB |
M2 Key M | The interface supports extension SSD |
network | 2.5G network port（RLT8125BS） |
video output | 2 x HDMI2.1(just one support 8K@60fps or 4K@120fps，other support 4K@60fps),1 x MIPI-DSI(4K@60fps),1 x DP1.4(8K@30fps), |
video input | 1 x 4Lanes MIPI CSI / 2 x 2lanes MIPI CSI,1 x HDMI RX2.0 |
Voice | 2 x HDMI voice output ,1 x DP1.4 voice output,1 x headphone （es8316） |
Wireless | M2 E key interface support sdio、pcie、usb BT&wifi（AP6256，Intel AX210） |
USB | 2 x USB3.1,2 x USB2.0,1x USB-C（DP1.4(8K@30fps)/OTG/PD fast charging） |
Others | Fan、RTC、LED、debug |
Button | Power Button、Reset Button、 Recovery Button、Root Button |
GPIO | 40 x GPIO（UART、SPI、I2C、I2S、PWM、ADC、 GPIO、 5V power 、3.3V power） |
Power | DC 12V/2.5A bore diameter 2.5mm，support USB Type-C PD 2.0 ，9V/2A, 12V/2A, 15V/2A，Support 12V POE power supply |
System | Android 12.0、Ubuntu、Debian11、Buildroot、Kylin Linux |
Size | 148 mm × 100.5mm |
operating temperature | -10℃ ~ 70℃ |
storage temperature | -20℃ ~ 70℃ |

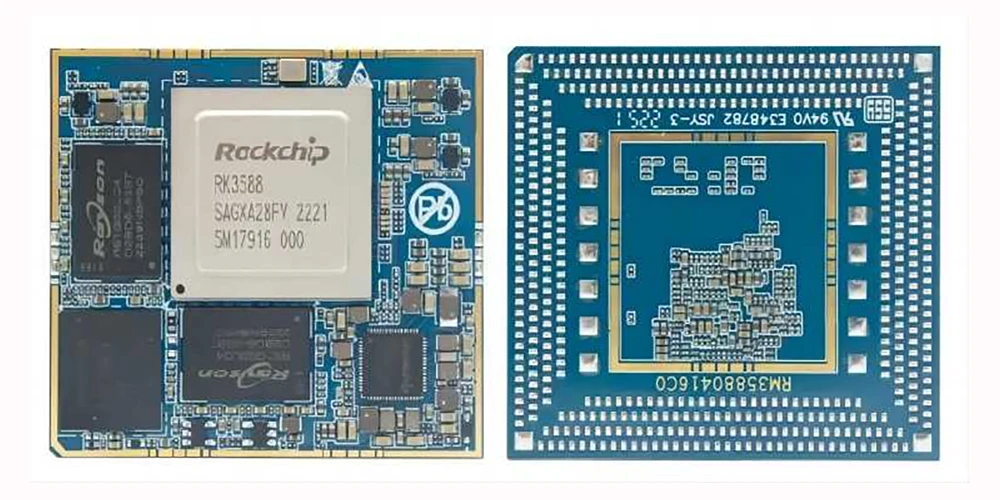

BPI-3588-LGA Core board
BPI-3588-LGA core board uses the Rockchip RK3588 flagship chip,integrating a 6Tops NPU and a high-performance quad-core Mali-G610 MP4 GPU. It adopts LGA 506pin package method, which can expand a variety of display interfaces and industrial application interfaces. With open baseboard design materials and open-source SDKs, it can be efficiently developed. It supports multiple operating systems such as Android, Ubuntu, Debian, and Buildroot. It provides robust, stable, reliable, and expandable product support for various AI application scenarios, and is widely applicable to fields such as edge computing, artificial intelligence,cloud computing, VR/AR, blockchain, smart security, intelligent industrial control, and smart home.
LGA core board Key Features
SOC: Rockchip RK3588
CPU: RK3588 quad-core Cortex-A76 @ 2.4GHz + quad-core Cortex-A55 @ 1.8GHz, 8nm process
GPU: ARM Mali-G610 MP4
NPU: Computing power up to 6 TOPS (INT8), supports INT4/INT8/INT16 mixed computing
VPU/Codec:
Hardware decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
Hardware encoding: 8K@30fps H.265 / H.264
RAM: 4GB/8GB/16GB (max 32GB) 64bit LPDDR4/LPDDR4x, default LPDDR4x 8GB
Flash: 16GB/32GB/64GB/128GB eMMC, default eMMC 32GB
Operating voltage: 4V (±5% voltage variation)
Operating temperature: 0°C ~ 70°C
Interface type: LGA package, 506 pins in total
Operating systems:
Officially supported by Rockchip: Android 12.0, Debian 11, Buildroot
Supported by the Third party : Armbian, Ubuntu 20.04, Ubuntu 22.04, Kylin OS
PCB: 12-layer PCB design
Weight: About 13.4g
Size: 45mm × 50mm × 4.5mm (top: 2.2mm + PCB: 1.2mm + bottom: 1.1mm)
Hardware Spec
BPI-3588-LGA spec | |
CPU | Quad Core Cortex-A76@2.4GHz +Quad Core Cortex-A55@1.8GHz, 8nm |
GPU | ARM Mali-G610 MP4 GPU,Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1 |
NPU | 6 TOPS@INT8,Support INT4/INT8/INT16 mixed operation Support framework switching of TensorFlow/MXNet/PyTorch/Caffe |
ISP | 48-Megapixel ISP,It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on. |
Encode&Decode | Decode：8K@60fps H.265/VP9/AVS2,8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8 |
RAM | 4GB/8GB/16GB（up to 32GB）64-bit LPDDR4/LPDDR4x, Defalut LPDDR4x 8GB |
Flash | 16GB/32GB/64GB/128GB/256GB eMMC, support MicroSD card slot, Defaut eMMC 32GB |
Operating Systems | Android 12.0, Ubuntu 20.04, Ubuntu 22.04, Debian11, Buildroot, Armbian, Kylin OS |
Power supply | 4.0V |
Interface Type | LGA 506pin |
Size | 45mm×50mm×4.5mm(top: 2.2mm+PCB: 1.2mm +bottom: 1.1mm) |
Operating temperature | 0℃ ~ 70℃ |
Storage temperature | -20℃ ~ 70℃ |
