Banana Pi BPI-CM4 Amlogic A311D Quad Core ARM Cortex-A73 4G LPDDR4 16G eMMC Mini

Product Description

BPI-CM4 Introduction

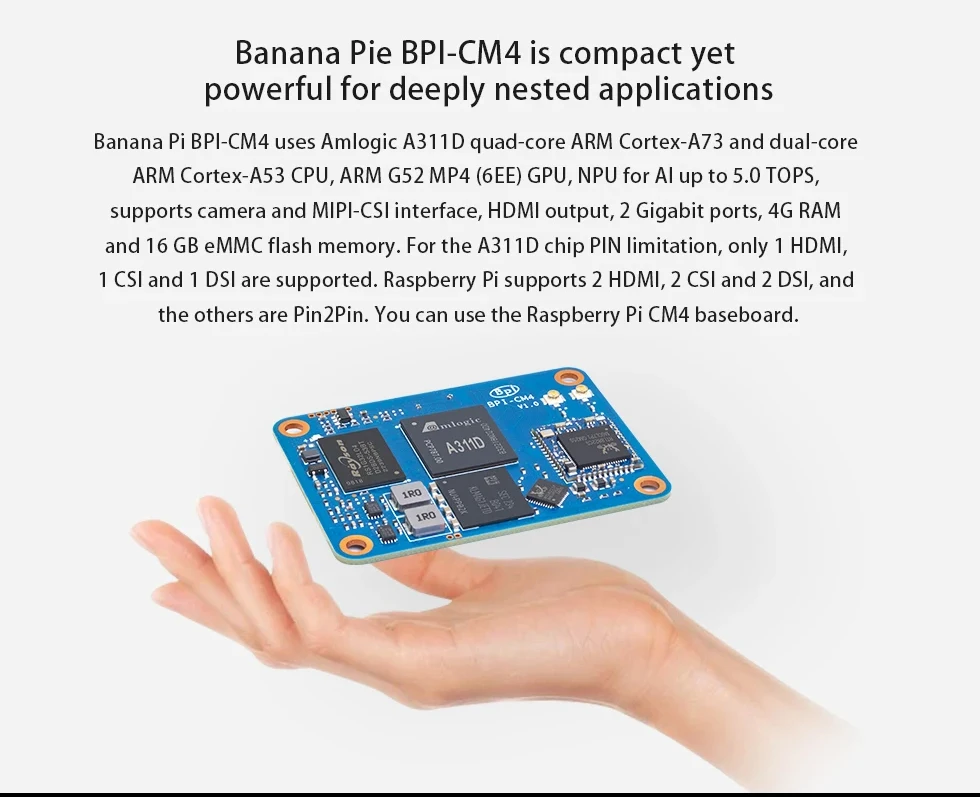

BananaPi BPI-CM4 new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support MIPI-DSI and MIPI-CSI interface ,HDMI output,1 Gigabit port ，4G RAM and 16 GB eMMC flash.

For A311D chip PIN limited ,just support 1 HDMI ,1 CSI and 1 DSI , Raspberry Pi support 2 HDMI ,2 CSI and 2 DSI , Other is Pin2Pin . you can use Raspberry Pi CM4 baseboard.

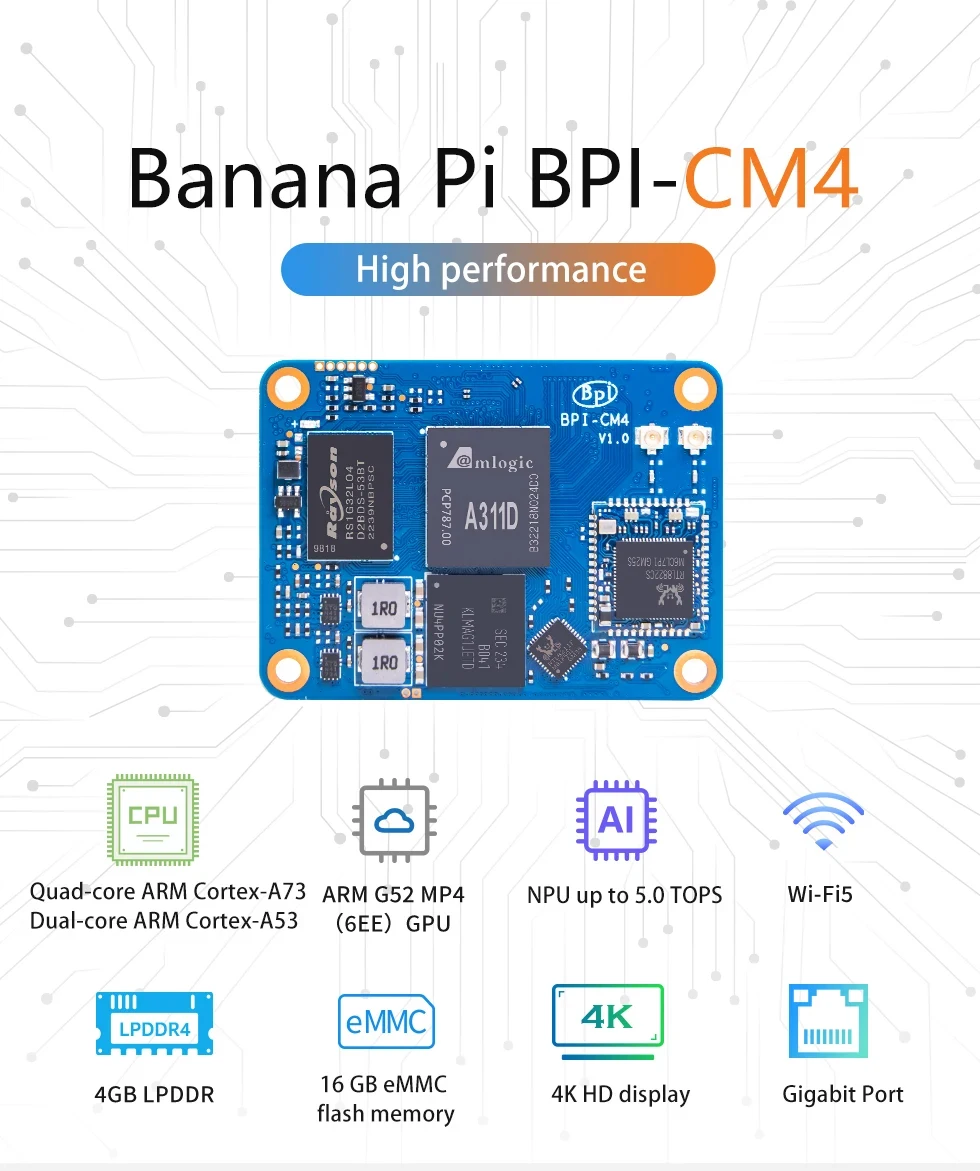

Key Features

• Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU

• NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS

• 4GB LPDDR4 RAM

• 16GB eMMC flash (Max 128G)

• Support MIPI DSI Display interface

• Support MIPI CSI Camera interface

• Minipcie

• HDMI output

• 26 PIN GPIO

• Support Android and Linux system.

• Size: 55x40mm

Hardware Interface

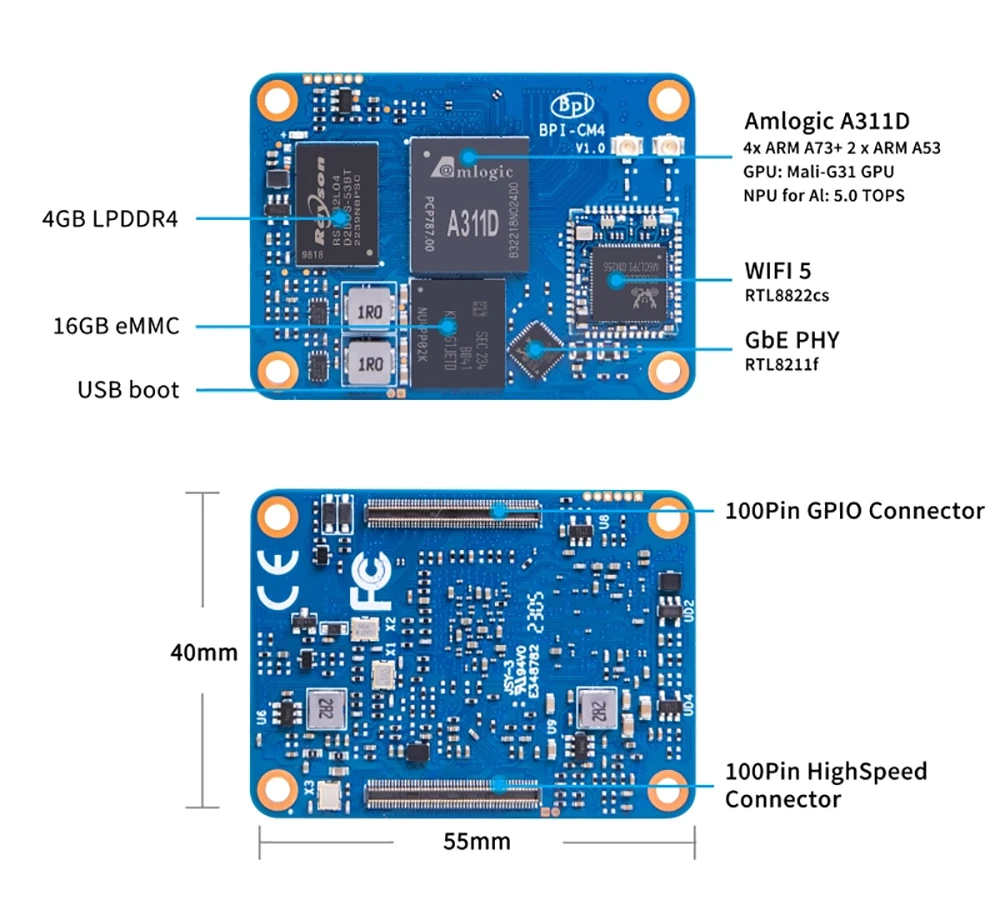

BPI-CM4 Module PIN Out define

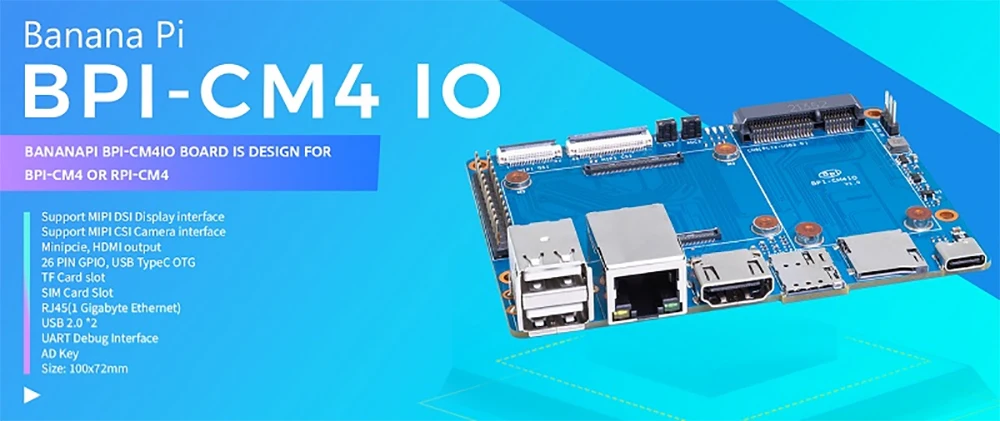

BPI-CM4IO Introduction

BananaPi BPI-CM4IO board is design for Banana Pi BPI-CM4 or RPi-CM4.

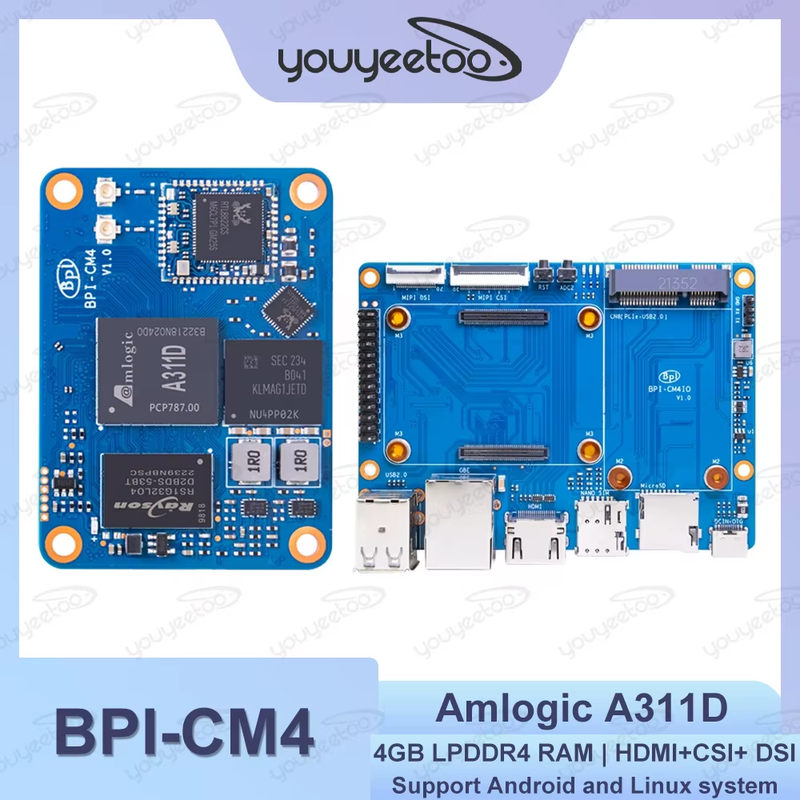

BPI-CM4 with IO board spec

• SoC – Amlogic A311D hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support, 5 TOPS NPU

• System Memory – 4GB LPDDR4

• Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot

• Video interfaces

• HDMI 2.1 output up to 4Kp60

• MIPI DSI connector for display

• MIPI CSI connector for camera

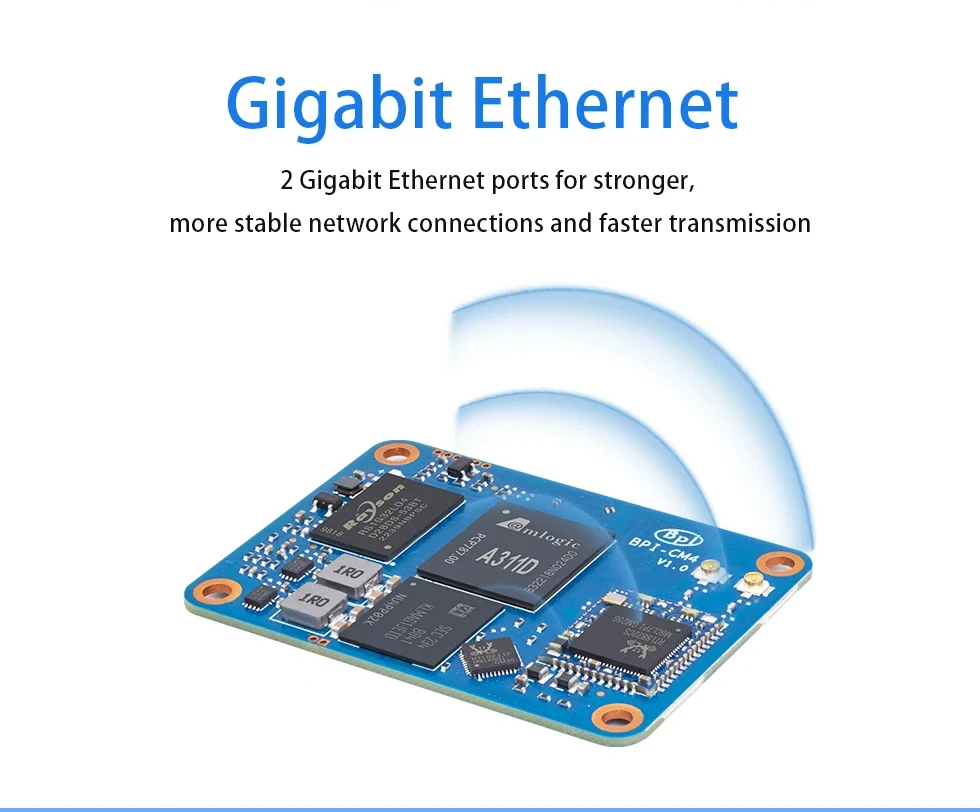

• Networking – 1x Gigabit Ethernet ports one via RTL8211F GbE transceiver

• USB – 2x USB 2.0 Type-A port, 1x USB Type-C port

• Expansion – 26-pin GPIO header

• Debugging – 3-pin header for serial console

• Misc – 2x buttons.

• Power Supply – Via USB-C port or pin header

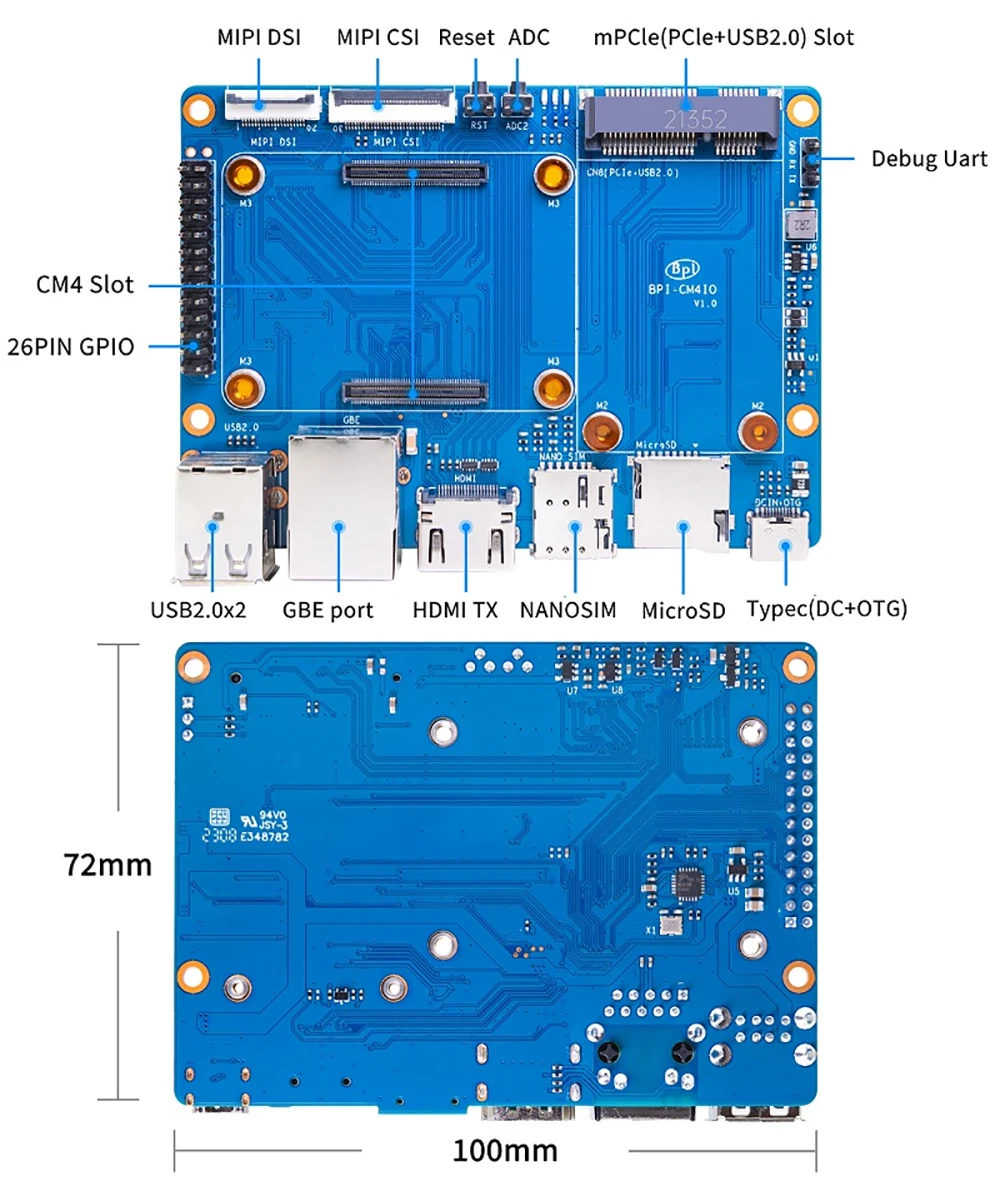

BPI-CM4 moudule base board interface
