Product Description

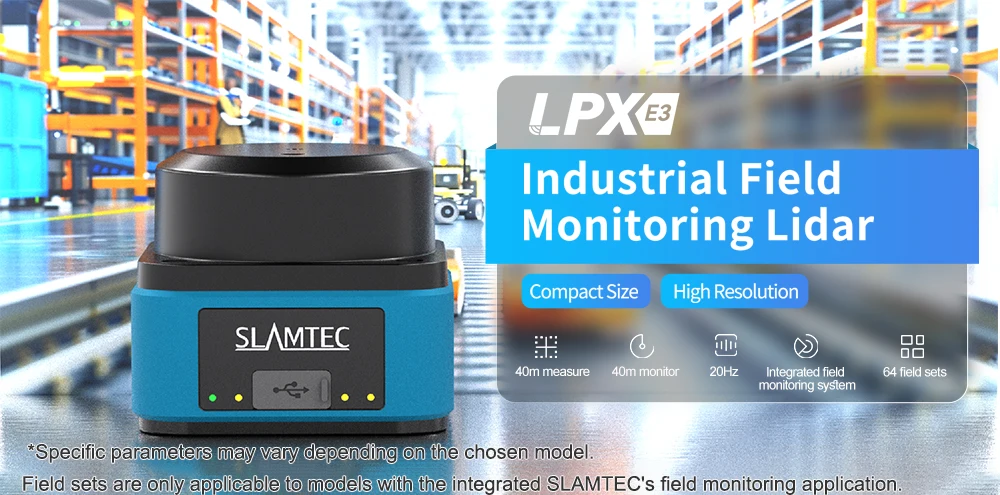

SLAMTEC RPLIDAR LPX-E3 Industrial Grade LiDAR 40M Scanning Range 360° for AGV UAV Avoidance 20Hz Frequency All-round Monitoring
SLAMTEC RPLIDAR LPX-E3 Industrial Grade LiDAR 40M Scanning Range 360° for AGV UAV Avoidance 20Hz Frequency All-round MonitoringIntroduction

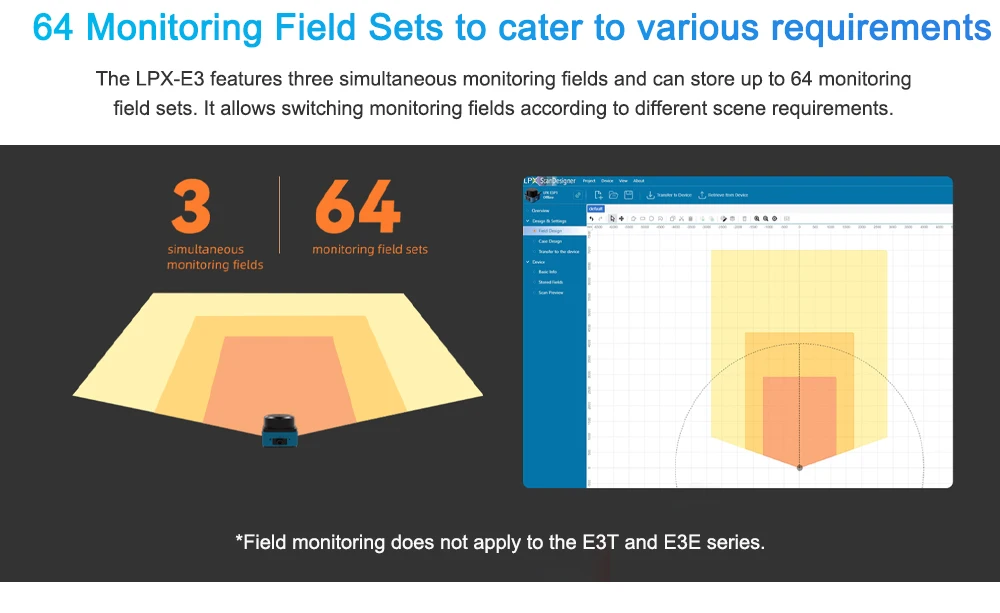

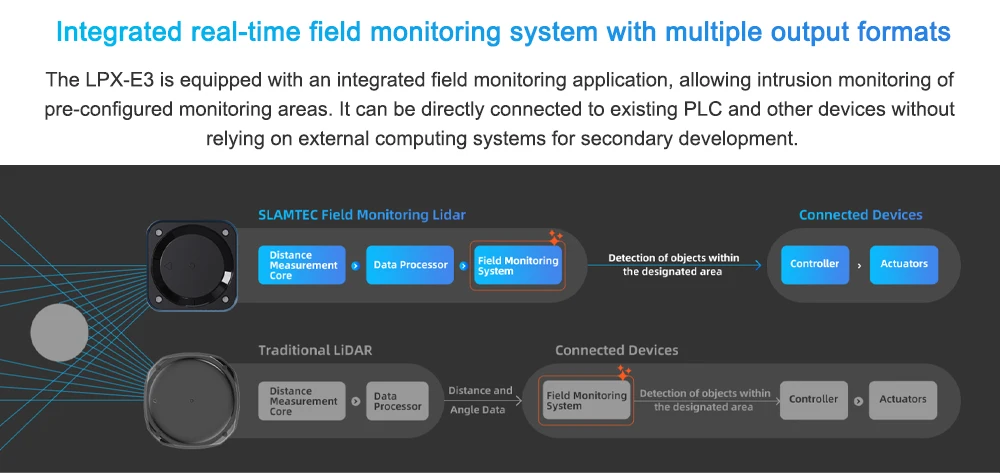

LPX-E3P is the next generation 2D Lidar Field Monitor developed by SLAMTEC with 64 configurable Field Sets, and 3 Field monitored simultaneously in each Field Set. By using wireless energy and data transmission technology, it beats the lifetime and reliability of traditional lidar.
LPX-E3P, as a 2D Lidar Field Monitor, can perform 360-degree all-round laser ranging scanning in a 2D plane with a radius of 6 meters, and generate field monitoring statuts data in the plane it is located. These fields monitoring data can be used in practical applications such as robot obstacle avoidance, assembly line piece counting, and channel passage monitoring.

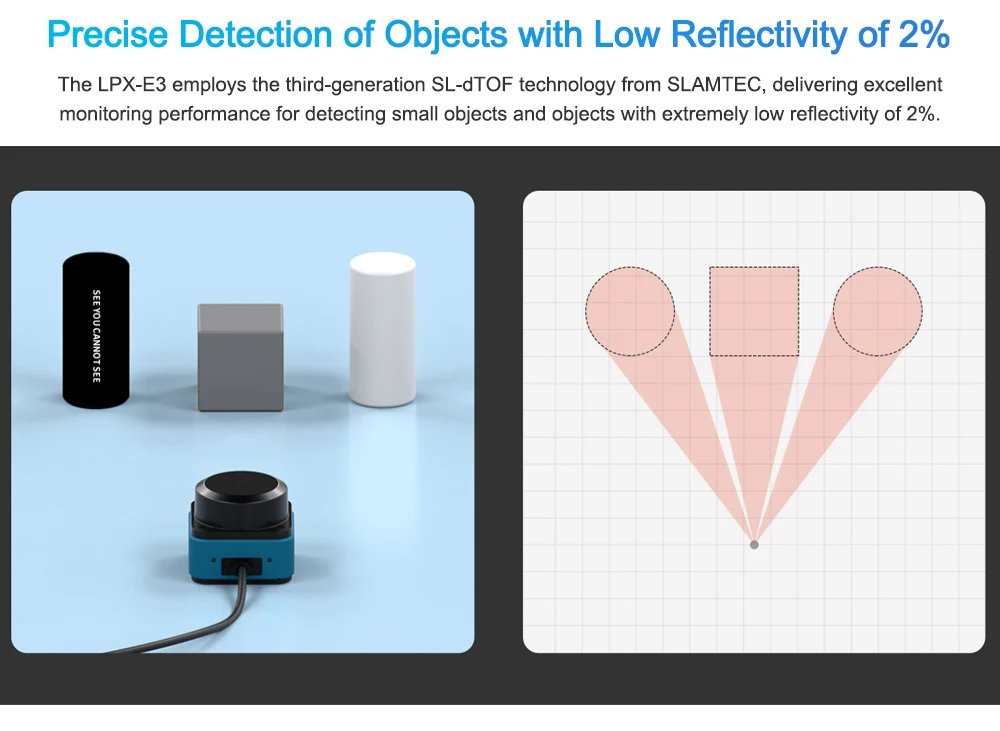

Comparing to other Field Monitors, the ranging performance of LPX-E3P is more stable when detecting distant objects, switching between black and white objects, and objects illuminated by strong light. It can achieve ideal field monitoring effects within a 6-meter ranging radius in indoor and outdoor environments, and its application scope can be expanded to more Industrial grade usage scenarios.
The scanning frequency of LPX-E3P is 20Hz (1200rpm). At the scanning frequency of 20Hz, an field monitoring angular resolution of 0.225°can be configured. The lidar internally performs high-frequency scanning at a frequency much higher than that required for monitoring resolution, and uses full-angle high-frequency scanning. Multi-sampling technology ensures object recognition accuracy at every monitoring angle.

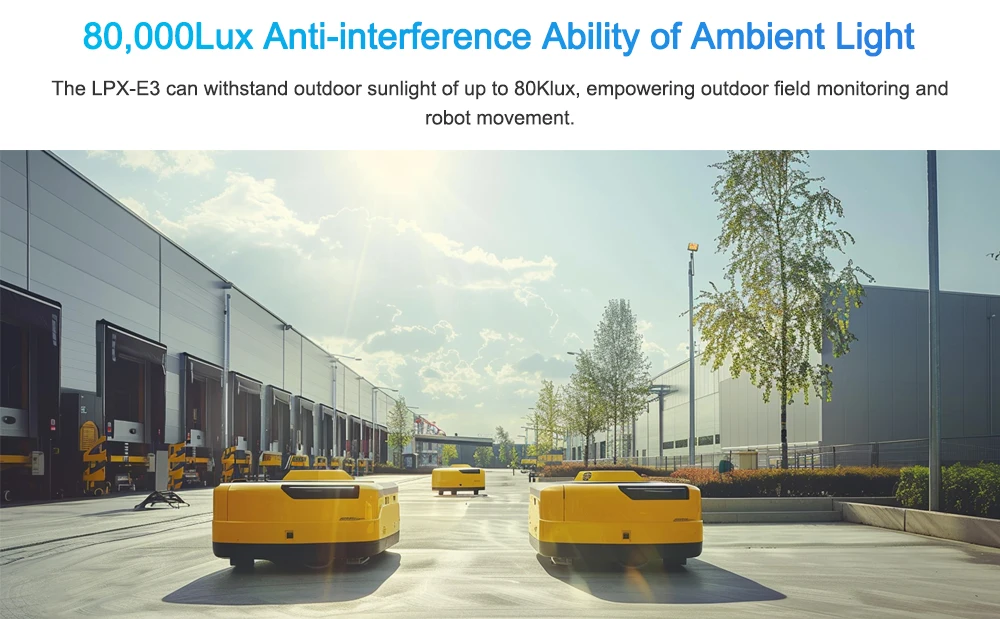

Benefited from the improved performance of SLAMTEC hardware and the optimization of the algorithm, LPX-E3P performs great in various indoor environments and outdoor environments exposed to strong direct sunlight. At the same time, each LPX-E3P has undergone strict testing before leaving the factory to ensure that the laser power emitted meets the IEC-60825 Class 1 human eye safety level.
Measurement Performance
Series | LPX-E3 Series | |
Model | E3X1 | E3X2 |
Scanning Radius | 0.05 - 25m(Recognition (≥70% Reflectivity)) 0.05 - 10m (Warning(≥10% Reflectivity)) 0.05 - 4m (Alarming(≥2% Reflectivity)) | 0.05 - 40m (Measurement(≥70% Reflectivity)) 0.05 - 40m (Recognition(≥70% Reflectivity)) 0.05 - 15m (Warning(≥10% Reflectivity)) 0.05 - 5m (Alarming(≥2% Reflectivity)) |
Blind Range | 0.05m | |
Sampling Rate | 20Hz | 10/15/20Hz |
Angular Resolution | 0.225° @ 20Hz | 0.1125° @ 10Hz 0.17° @ 15Hz 0.225° @ 20Hz(Typical) |
Field Monitoring Data Output | IO / RS485 / Ethernet | |
Number of Field Sets | 64 Field Sets @ 20Hz | 64 Field Sets @ 20Hz(Typical) |
48 Field Sets @ 15Hz | ||
32 Field Sets @ 10Hz | ||
Simultaneous Field Sets Monitoring | 1(incl. 3 fields) | |
Communication Interface | USB Type-C | |
Point Cloud Outputs | NIL | Ethernet / Serial |
Range Resolution | 10mm | |
Measurement Accuracy | ± 30mm | |
Operating Temperature | 0℃~50℃ |
