NanoPi M1 Plus Development Board Allwinner H3 SOC 4K Playback Ubuntu18 Onboard W

Product Description

Introduction

• The NanoPi M1 Plus is designed and developed by FriendlyElec for professionals, enterprise users, makers and hobbyists. It is only two thirds the size of a Raspberry Pi. FriendlyElec has made a Debian, Ubuntu-Core and Android images ready for it.

• The NanoPi M1 Plus uses the Allwinner H3 Soc. It integrates Gbps Ethernet, IR receiver, video/audio output, WiFi & Bluetooth, onboard microphone and supports DVP/Camera/HDMI and CVBS. It has a serial debug port. Its GPIO pins are compatible with those of a Raspberry Pi.

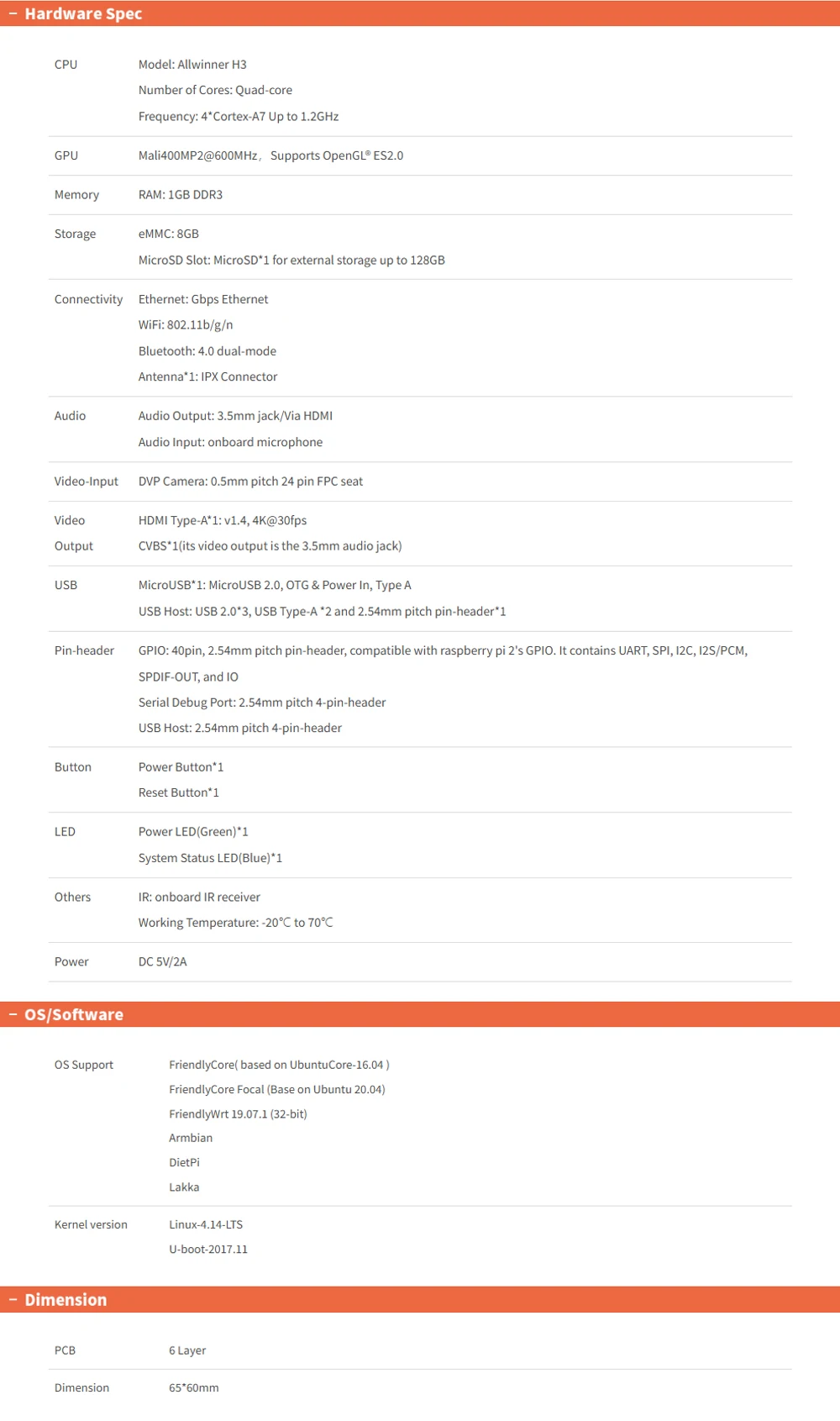

Hardware Spec

• CPU: Allwinner H3, Quad-core Cortex-A7@1.2GHz

• GPU: Mali400MP2@600MHz，Supports OpenGL ES2.0

• DDR3 RAM: 1GB

• eMMC: 8GB

• Wireless: 802.11 b/g/n

• Bluetooth: 4.0 dual mode

• Antenna Interface: Shared by WiFi and Bluetooth, IPX interface

• Connectivity: 10/100/1000M Ethernet

• Audio: 3.5mm jack/Via HDMI

• Microphone: onboard microphone

• IR: onboard IR receiver

• USB Host: USB 2.0 x 3, 2 x USB Type A and 1 x 2.54mm pitch pin-header

• MicroSD Slot: x1

• MicroUSB: power input and data transmission, OTG

• Audio Output: HDMI 1.4 1080P, CVBS

• DVP Camera Interface: 24pin, 0.5mm pitch FPC seat

• Serial Debug Port: 4Pin, 2.54mm pitch pin-header

• GPIO： 40pin, 2.54mm pitch pin-header, compatible with RasberryPi 2's GPIO. It contains UART, SPI, I2C, I2S/PCM, SPDIF-OUT and IO

• User Button: 1 x Power Button and 1 x Reset Button

• LED: 1 x Power LED and 1 x System Status LED

• PCB Dimension: 64 x 60 mm, ENIG

• Power Supply: DC 5V/2A

• Working Temperature: -30℃ to 80℃

• OS/Software: u-boot, Debian, Ubuntu-Core, eflasher, Android
