NanoPC-T4 ARM Development Board 4GB LPDDR3 RAM 16GB eMMC Rockchip RK3399 Dual-ba

Product Description

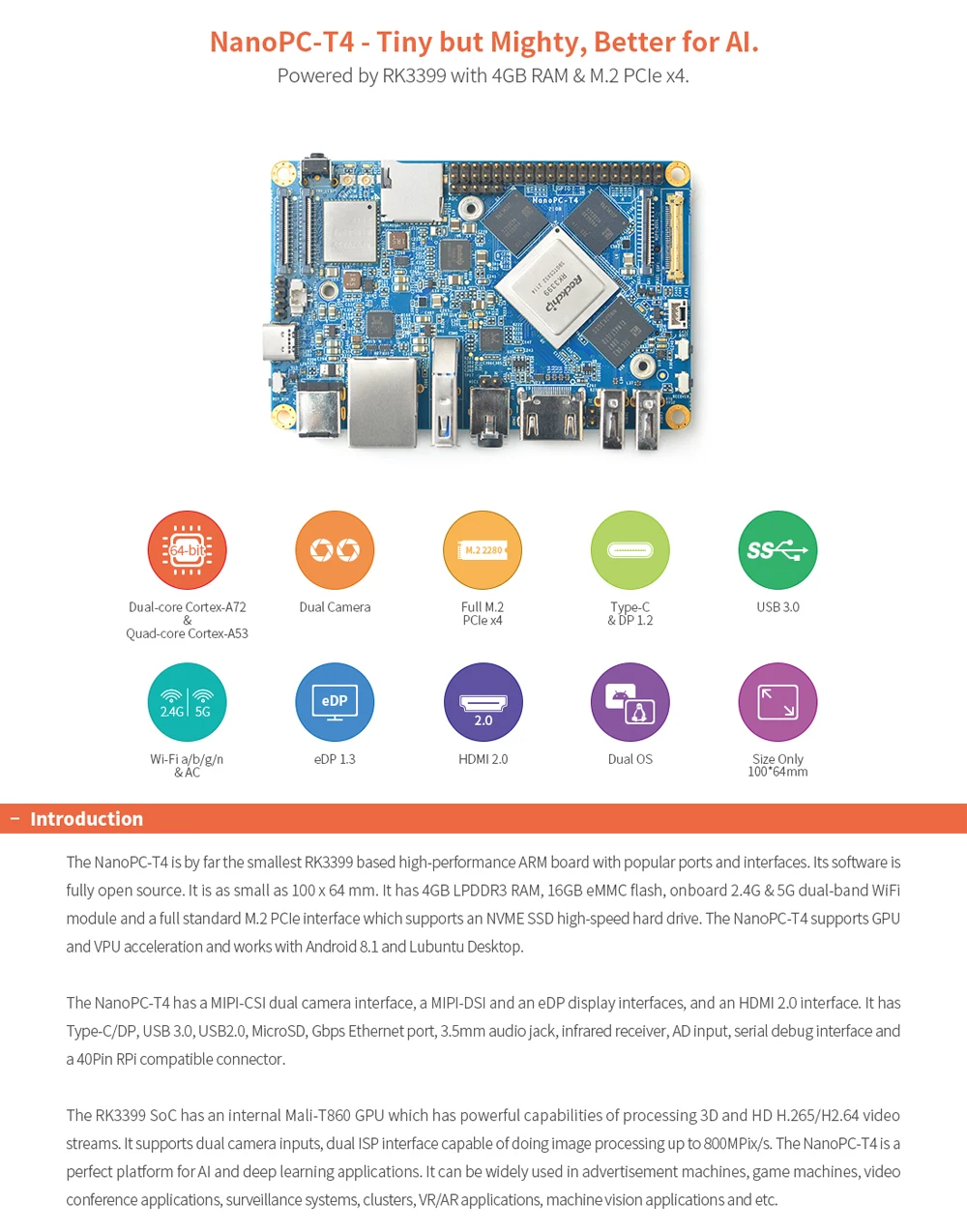

Introduction

• The NanoPC-T4 is by far the smallest RK3399 based high-performance ARM board with popular ports and interfaces. Its software is fully open source. It is as small as 100 x 64 mm. It has 4GB LPDDR3 RAM, 16GB eMMC flash, onboard 2.4G & 5G dual-band WiFi module and a full standard M.2 PCIe interface which supports an NVME SSD high-speed hard drive. The NanoPC-T4 supports GPU and VPU acceleration and works with Android 7.1 and Lubuntu Desktop.

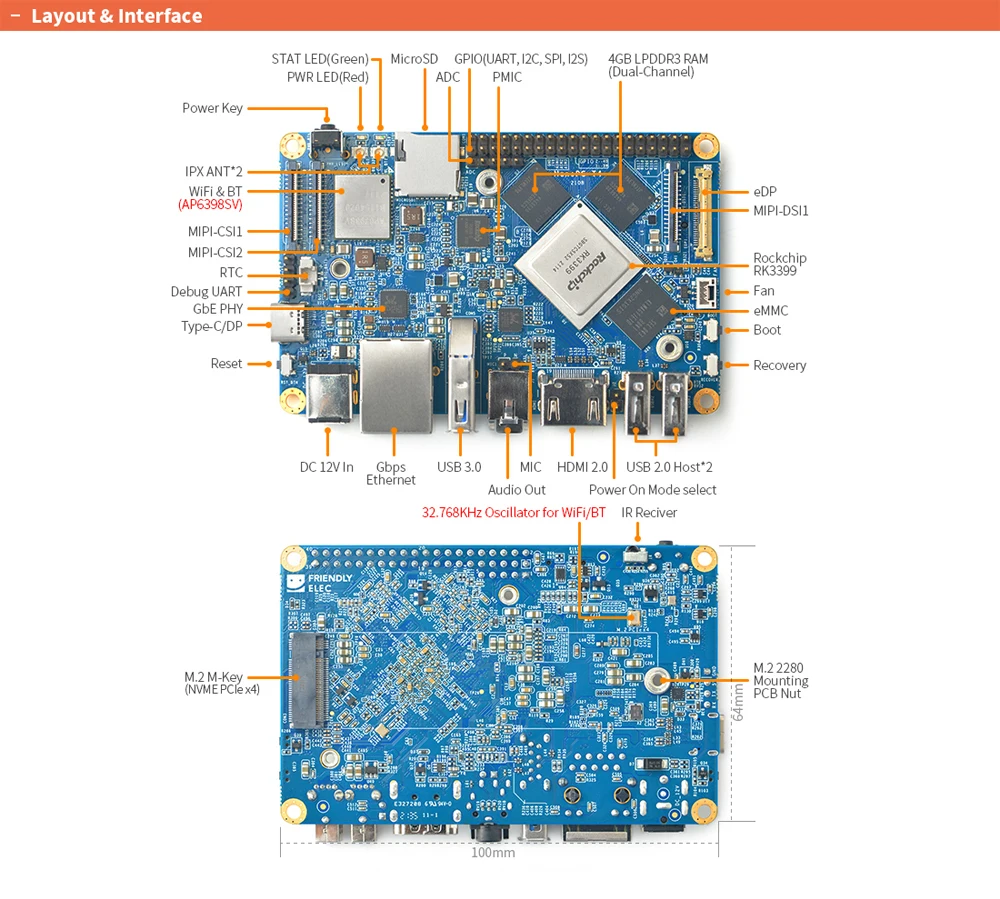

• The NanoPC-T4 has a MIPI-CSI dual camera interface, a MIPI-DSI and an eDP display interfaces, and an HDMI 2.0 interface. It has Type-C/DP, USB 3.0, USB2.0, MicroSD, Gbps Ethernet port, 3.5mm audio jack, infrared receiver, AD input, serial debug interface and a 40Pin RPi compatible connector.

• The RK3399 SoC has an internal Mali-T860 GPU which has powerful capabilities of processing 3D and HD H.265/H2.64 video streams. It supports dual camera inputs, dual ISP interface capable of doing image processing up to 13MPix/s. The NanoPC-T4 is a perfect platform for AI and deep learning applications. It can be widely used in advertisement machines, game machines, video conference applications, surveillance systems, clusters, VR/AR applications, machine vision applications and etc.

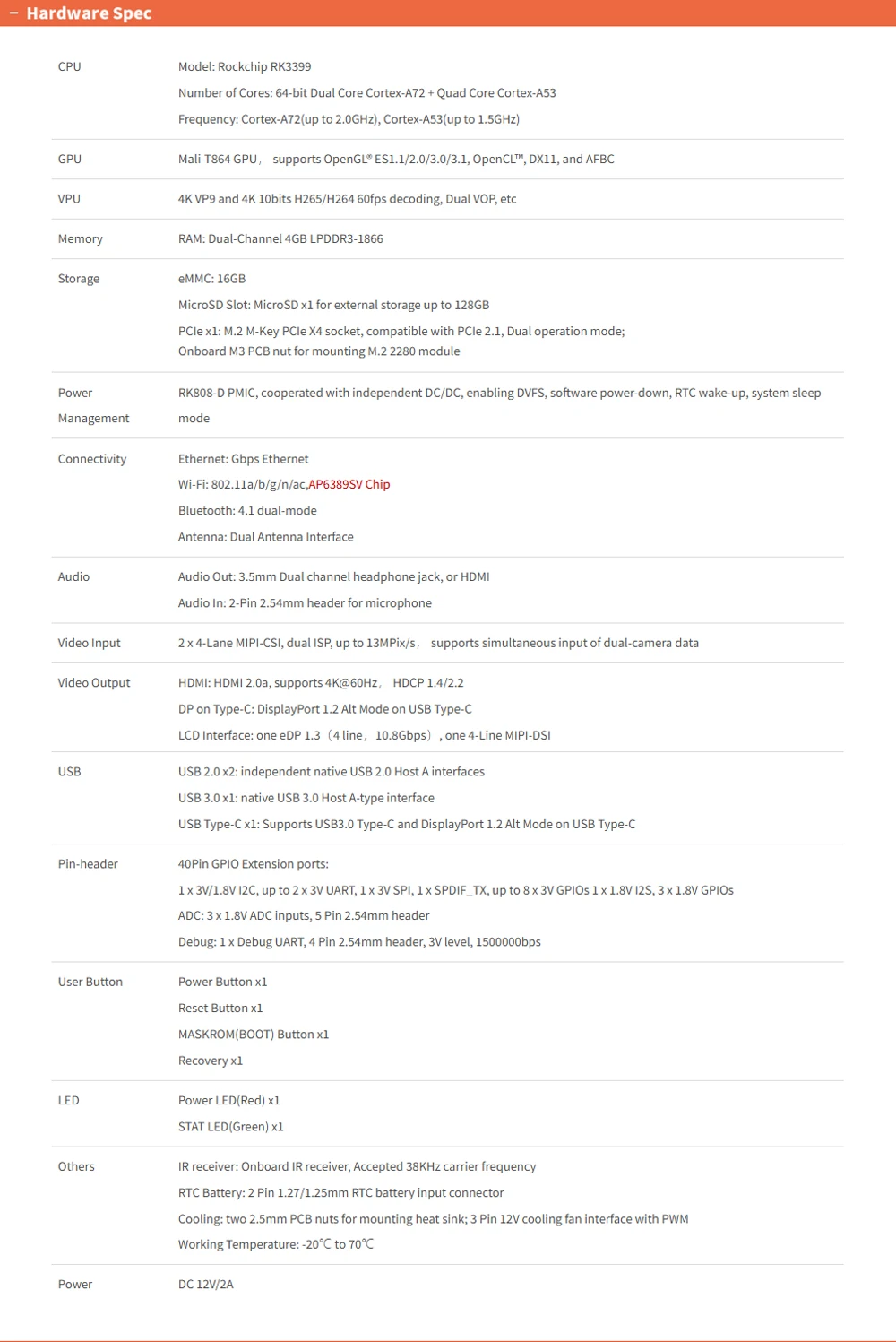

Hardware Spec

• SoC: Rockchip RK3399

• CPU: big.LITTLE，Dual-Core Cortex-A72(up to 2.0GHz) + Quad-Core Cortex-A53(up to 1.5GHz)

• GPU: Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, and AFBC

• VPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc

• PMU: RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, sofeware power-down, RTC wake-up, system sleep mode

• RAM: Dual-Channel 4GB LPDDR3-1866

• Flash: 16GB eMMC 5.1 Flash

• Ethernet: Native Gigabit Ethernet

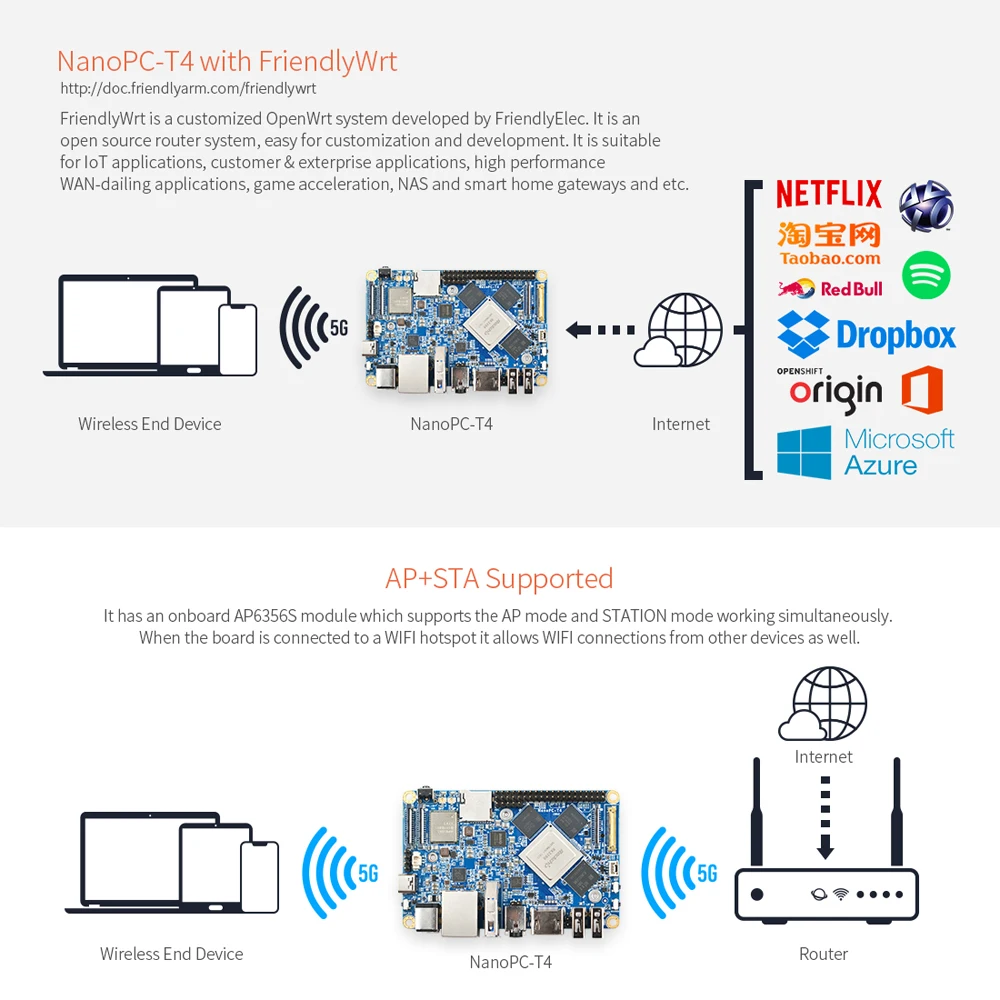

• Wi-Fi/BT: 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, 2x2 MIMO, dual antenna interface

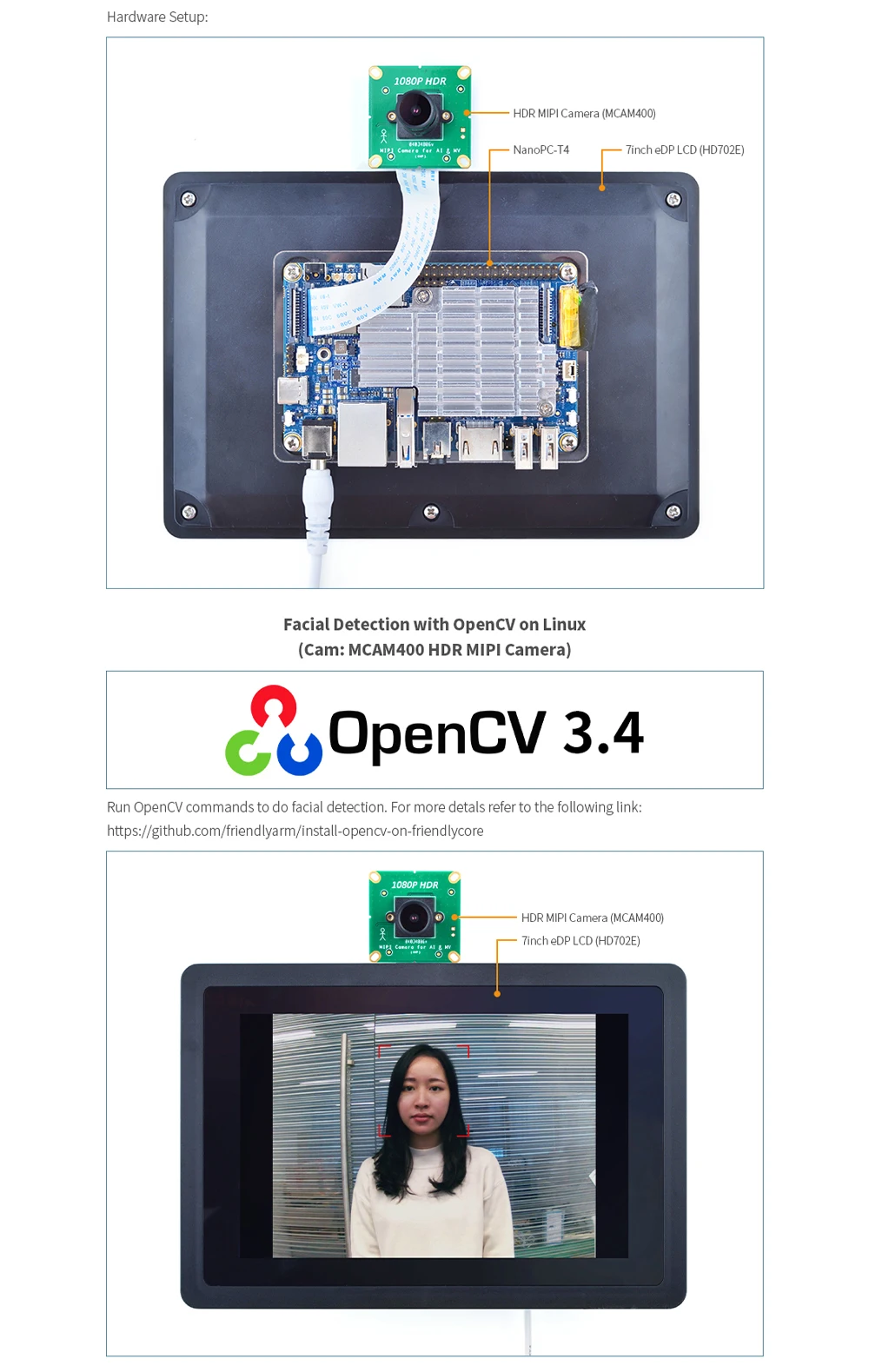

• Video Input: one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s，supports simultaneous input of dual camera data

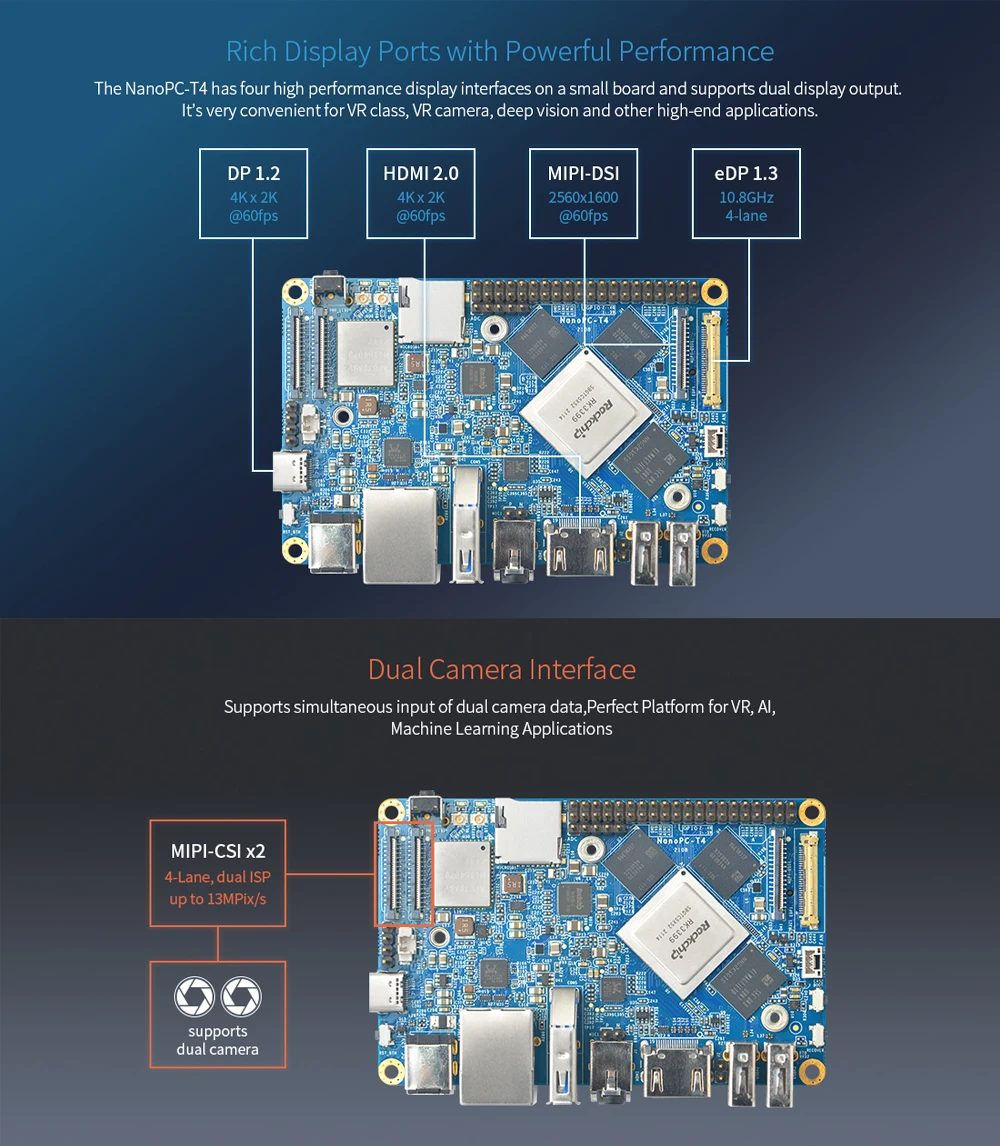

• Video output

• HDMI: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2

• DP on Type-C: DisplayPort 1.2 Alt Mode on USB Type-C

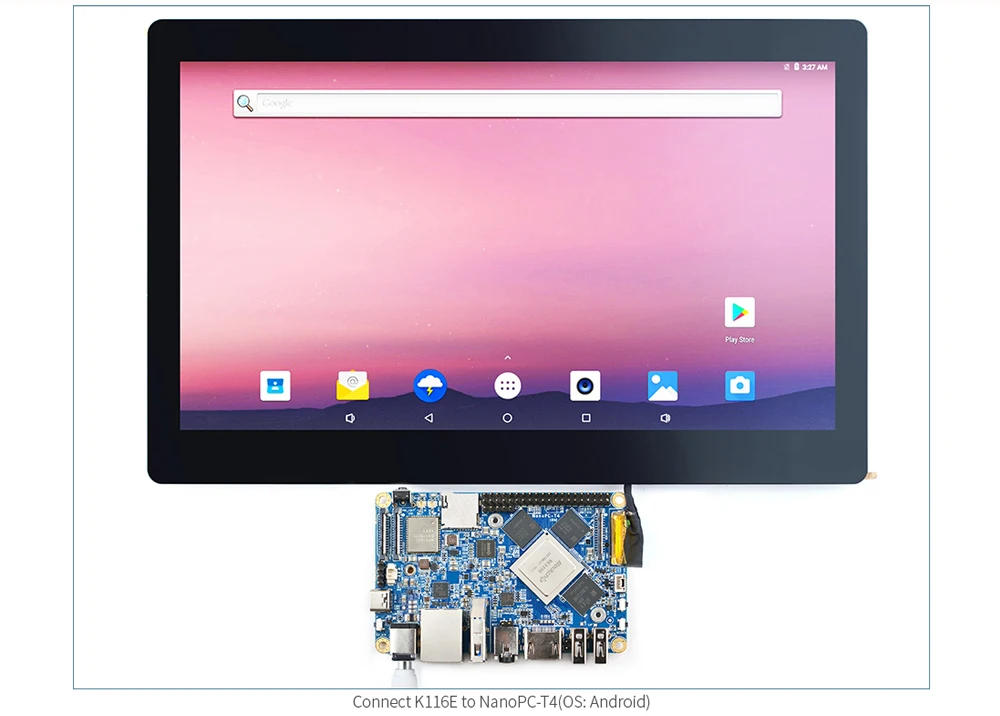

• LCD Interface: one eDP 1.3（4-Lane，10.8Gbps）, one or two 4-Lane MIPI-DSI

• Audio Out: 3.5mm Dual channel headphone jack, or HDMI

• Audio In: 2-Pin 2.54mm microphone interface

• USB 2.0: 2 independent native USB 2.0 Host A interfaces

• USB 3.0: 1 native USB 3.0 Host A type interface

• USB Type-C: Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C

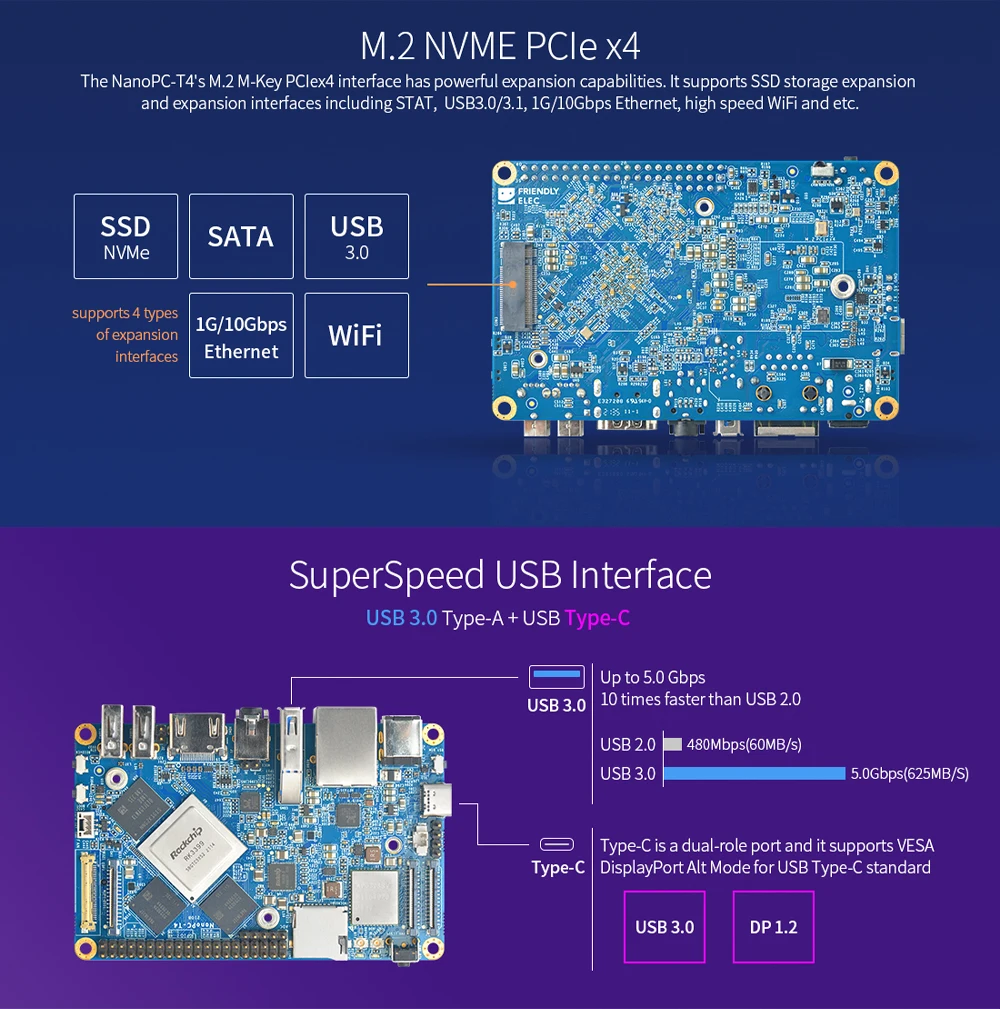

• PCIe: One M.2 M-Key PCIe x4 socket, compatible with PCIe 2.1, Dual operation mode; Onboard M3 PCB nut for mounting M.2 2280 module

• microSD Slot x 1

• 40Pin GPIO Extension ports:

• 3 X 3V/1.8V I2C, up to 1 x 3V UART, 1 X 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs

• 1 x 1.8V I2S, 3 x 1.8V GPIOs

• ADC: 3 x 1.8V ADC inputs, 5 Pin 2.54mm header

• Debug: one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps

• Keys: PowerKey, Reset, MASKROM(BOOT), Recovery

• LED: 1 x power LED and 1 x GPIO Controlled LED

• IR reciver: Onboard IR reciver, Acceptes 38KHz carrier frequency

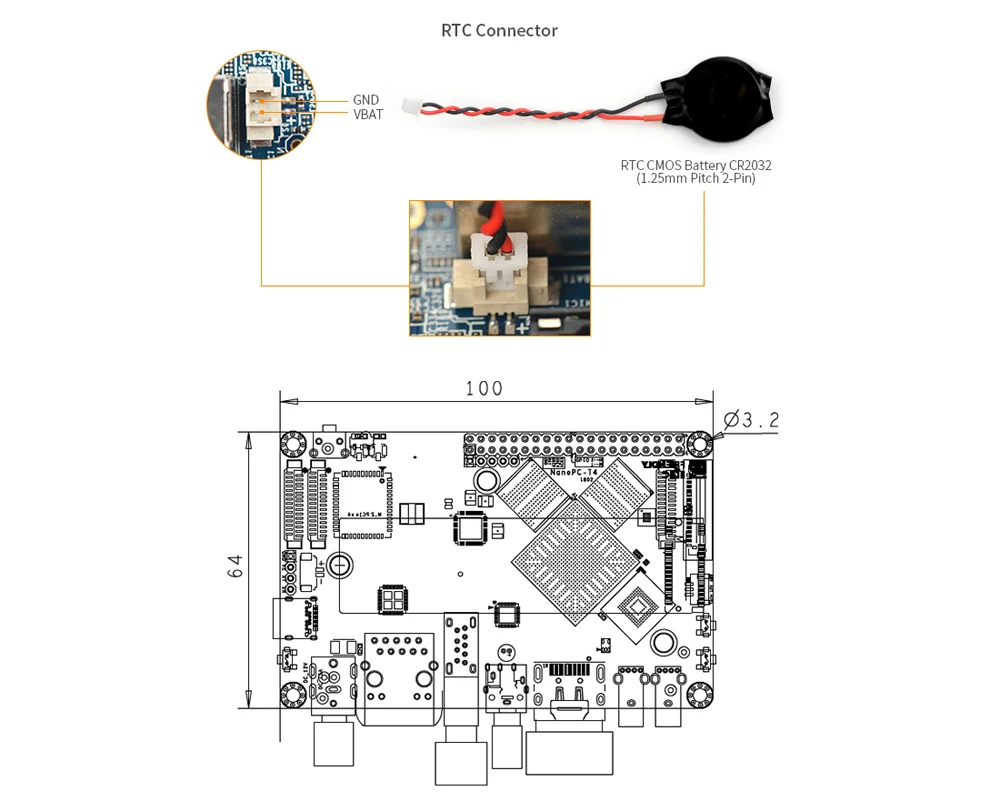

• RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector

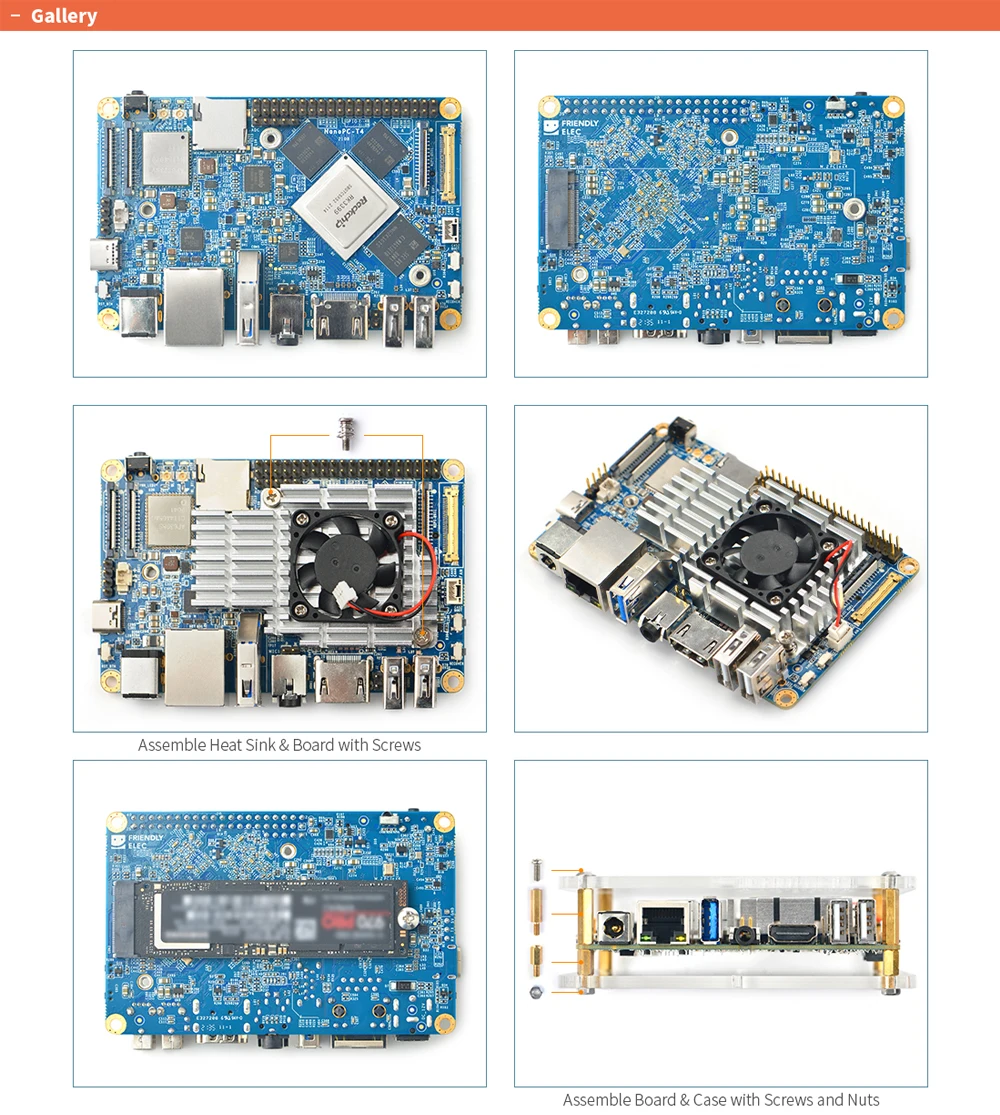

• Cooling: two 2.5mm PCB nuts for mounting heat sink; 3 Pin 12V cooling fan interface with PWM

• Power supply: DC 12V/2A

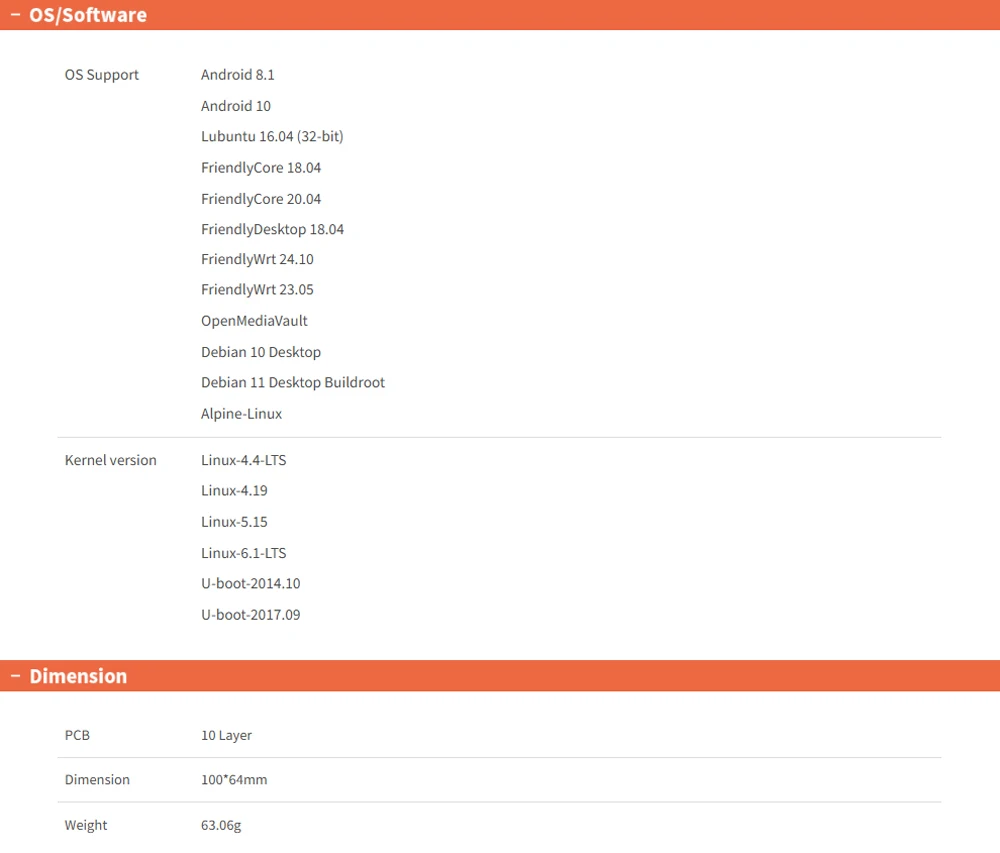

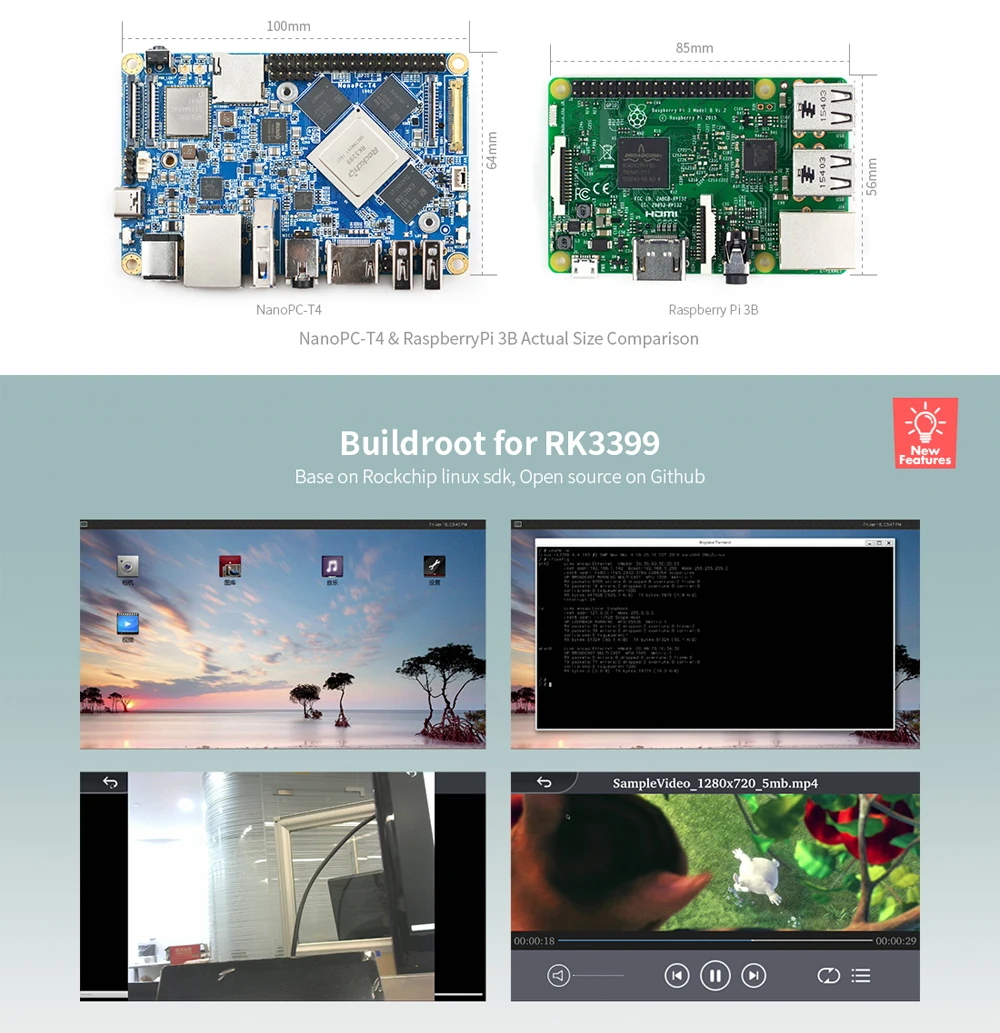

• PCB: Ten Layer, 100 mm x 64 mm

• Ambient Operating Temperature: -20℃ to 70℃
