Expansion Board Base for XIAO with Grove OLED Display IIC Uart Analog Digital SW

Product Description

Seeed Studio XIAO Expansion Board is a powerful functional expansion board for Seeed Studio XIAO series of only half Raspberry Pi 4 size. It enables building prototypes and projects in an easy and quick way. With its rich peripherals, you could explore the infinite possibilities of Seeed Studio XIAO series. Circuit python is also well supported by this board.

Features:

🌱 Quick Prototyping

Easy debug and Reset with RESET button and SWD pin led out to the male header. 0.96” OLED, enables visual data to display without PC serial monitor.

🌱 Rich peripherals

OLED display, RTC, expandable memory space, passive buzzer, user button, on board battery management chip… One board on hand to explore the infinite possibilities of Seeed Studio XIAO series.

🌱 Mini Size

Compact and elegant with only half Raspberry Pi 4 size, perfect for tiny and wearable projects.

🌱 No Soldering Needed

All pins are led out. Convenient plug-and-play Grove connectors support multiple data protocols, including IIC, Uart, and Analog/Digital.

🌱 Circuit Python Supported

Well supports circuit python. Mini SD card slot enables memory space expansion, making it possible to allocate more libraries needed in prototyping and project building.

Product Description:

Seeed Studio XIAO Expansion Board is a powerful functional expansion board for Seeed Studio XIAO series of only half Raspberry Pi 4 size. It enables building prototypes and projects in an easy and quick way. With its rich peripherals, you could explore the infinite possibilities of Seeed Studio XIAO series. Circuit python is also well supported by this board.

Application:

• SMD debug

• Rapid prototyping

• Data display

• Mini Size Project

• Rich peripherals on board including:OLED display: Visual data display without connecting to PC, which enables debug in a more efficient way, and builds application such as a sensor hub, data monitor system, .etc

• RESET button: No more jumper wire and short circuit, easy reset with just one click.

• SWD debug: SWD pin led out as male pin header, making debugger connection and firmware download much easier.

• High precision RTC: High precision real-time clock with battery backup, enables maintaining accurate time when the main power is turned off.

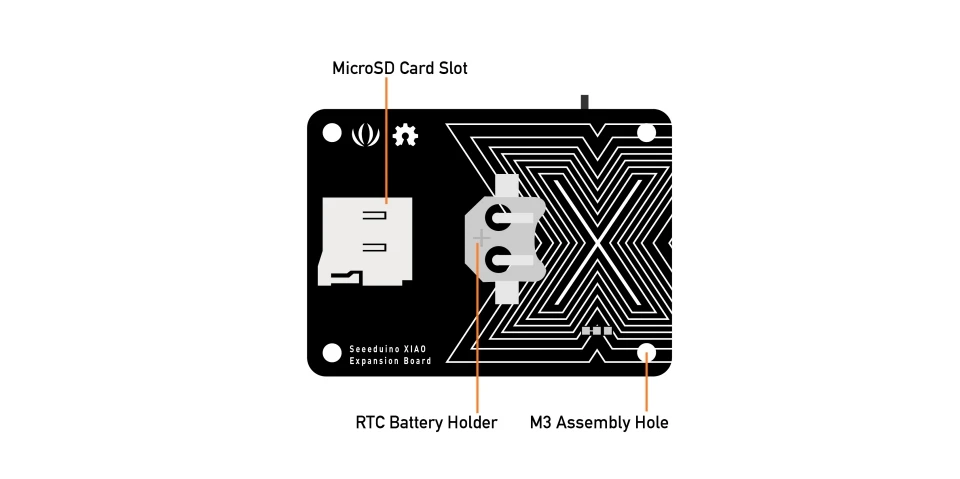

• Expandable memory: With a MicroSD card slot on the back, no worry about the memory limit any more when adding libraries and using circuit python.

• User button: Besides the RESET button, also provide another user-defined button.

• Passive buzzer: Same passive buzzer on Wio Terminal, with which you could change the PMW frequency to award different beep sound to get a "buzzer music".

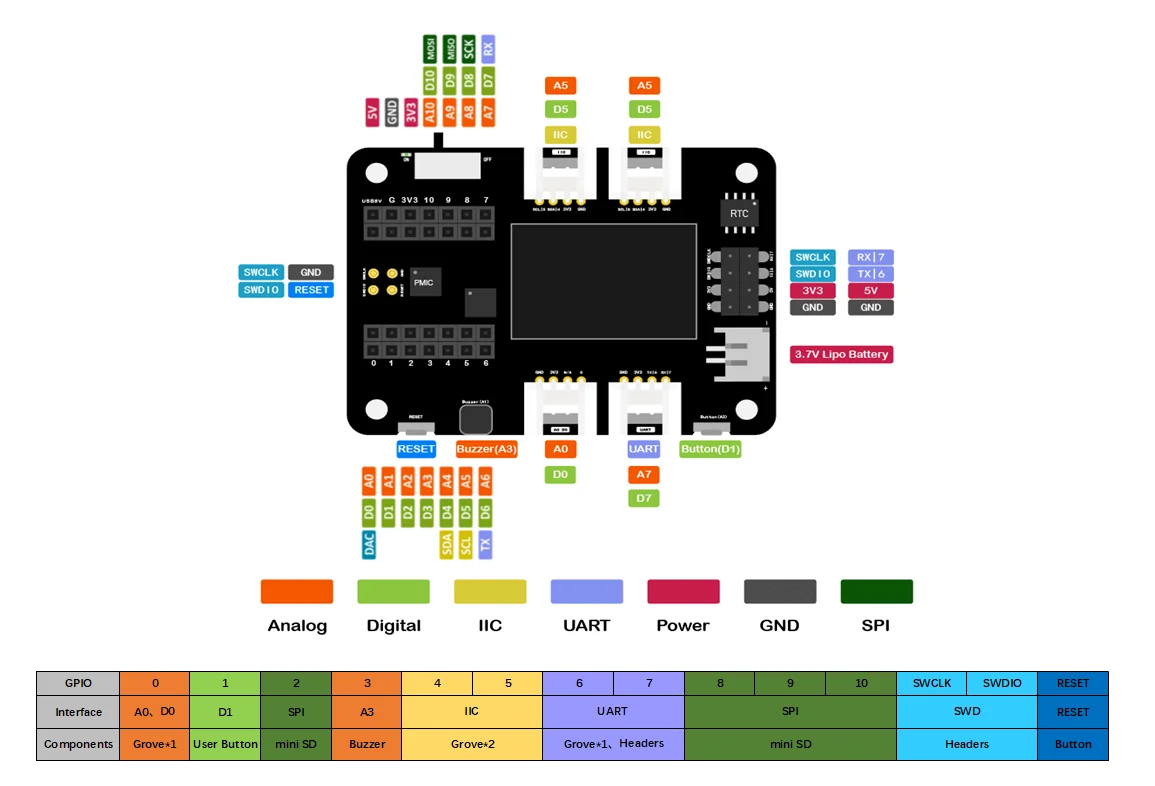

• Grove connectors: All pin led out, plug-and-play grove connectors support common data protocols (Grove IIC2, Grove UART1, A0/D0 Grove*1)

• Lipo Battery Charging: JST2.0mm standard lipo battery connector and battery management system, supports both USB and lipo battery power supply, and easy onboard battery recharge.

• 5V servo connector: 5V output led out to male header for 5V servo and sensor connection.

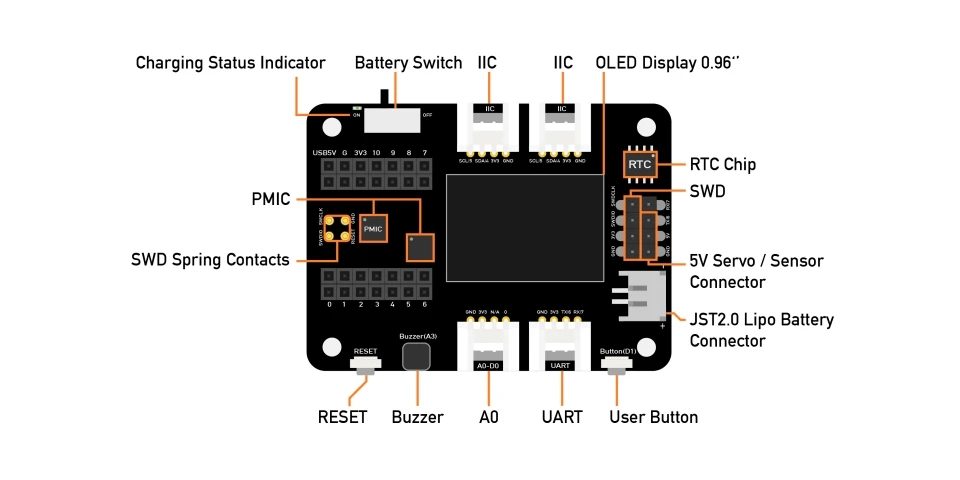

Hardware Overview:

Part List:

• Seeeduino XIAO expansion board x1

Learn and Documents:
