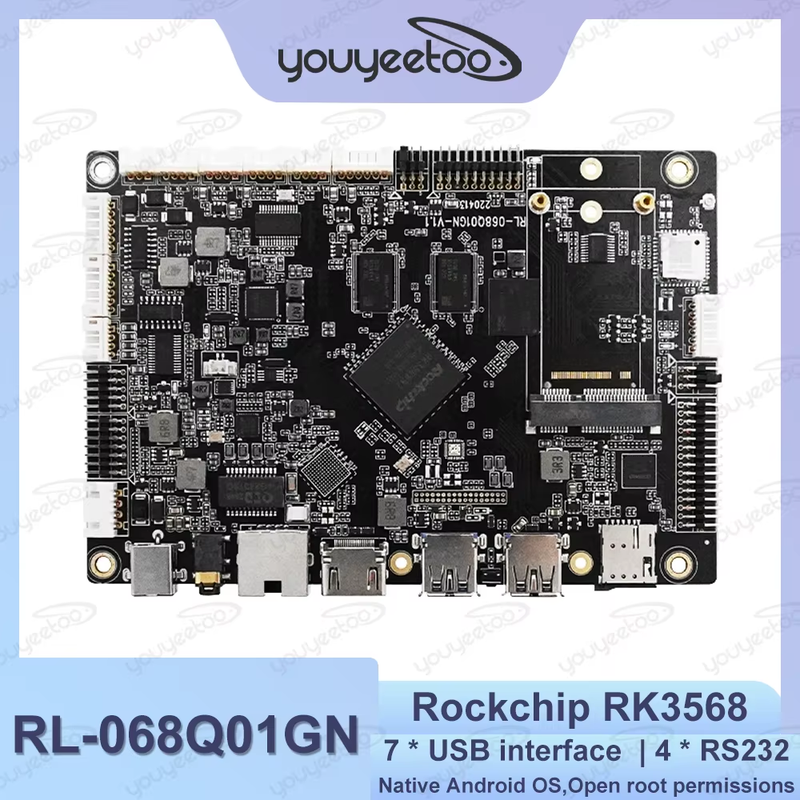

RL-068Q01GN ARM Cortex A55 4-core Rockchip RK3568 Development Board Open Root Pe

Product Description

Functional Overview:

RK3568 Android integrated motherboard, using Rockchip RK3568 quad-core 64-bit ARM chip solution, supports Android 11 operating system, RK3568 main control is based on the Cortex-A55 architecture CPU, GPU uses ARM G522EE, supports AFBC (frame buffer compression) and mainstream audio and video formats and picture encoding and decoding. Supports dual-screen (eDP and LVDS or HDMI and LVDS or HDMI and MIPI and other combinations) same display / different display function, dual 6/8-bit LVDS interface, supports 1080P display output, can drive 3.5-inch to 108-inch 1080P display screen. Support HDMI-4K video playback. Support infrared remote control, support 2.4/5GHz-WiFi, support Bluetooth 4.2 function, support USB/3.0/2.0/1.1, support PCIE expansion network port, support serial port expansion/IO port expansion/MIPI camera and other rich interfaces. Based on its hardware platform and Android intelligence, it is widely used in intelligent control fields such as identity card recognition, commercial advertising machine, interactive all-in-one machine, security, medical, transportation, finance, industrial control, etc.

Outstanding features:

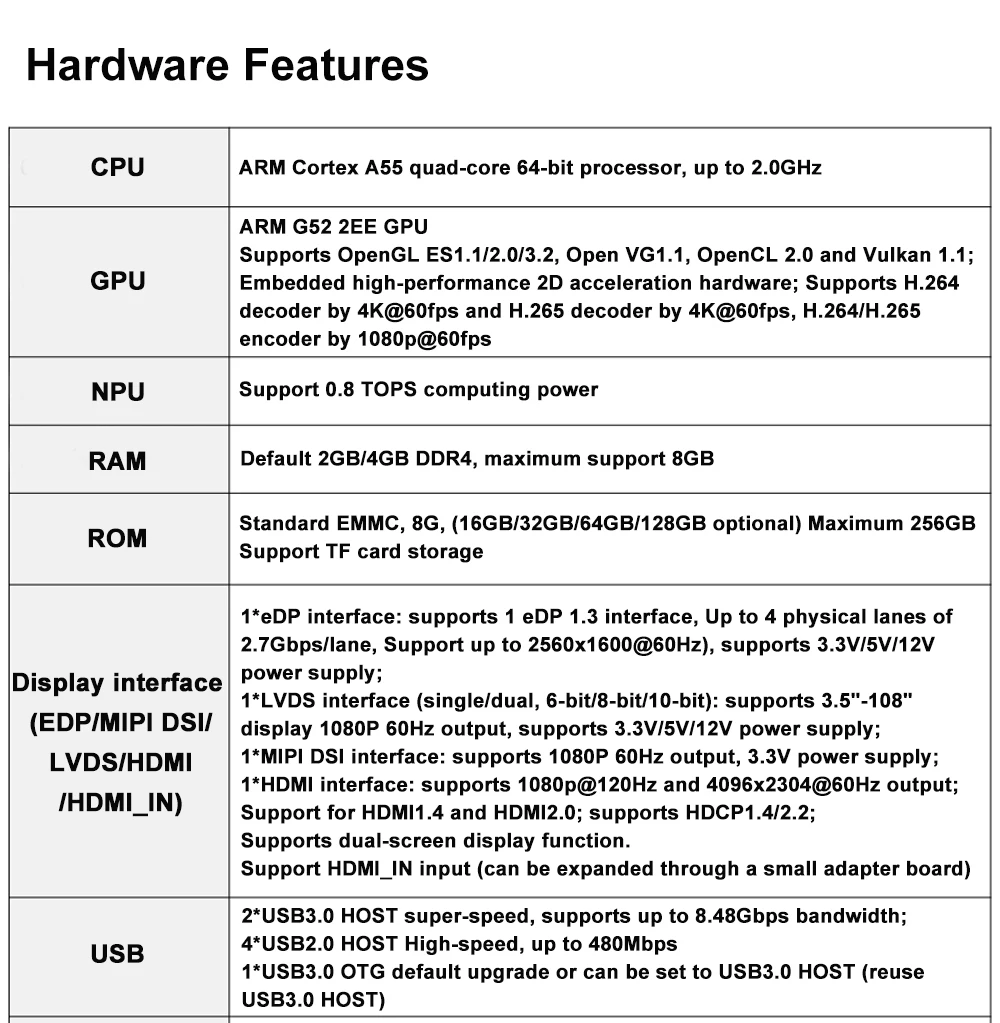

Performance: RK3568 chip uses quad-core 64-bit CPU, GPU uses ARM G52 2EE, NPU supports 0.8T computing power, which is the most powerful quad-core 64-bit ARM chip in the RK system;

Stability: RK3568 adds unique technology in hardware and software to ensure the stability of the product, which can finally achieve unattended operation of the product.

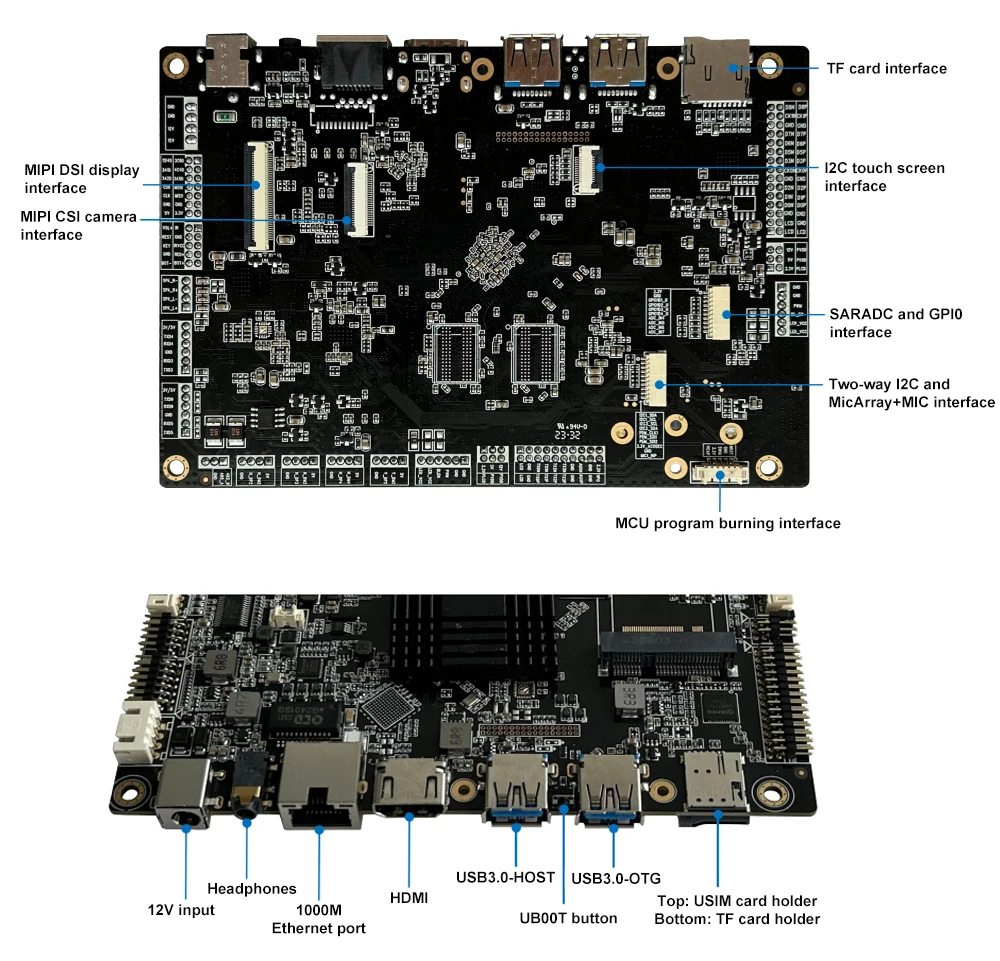

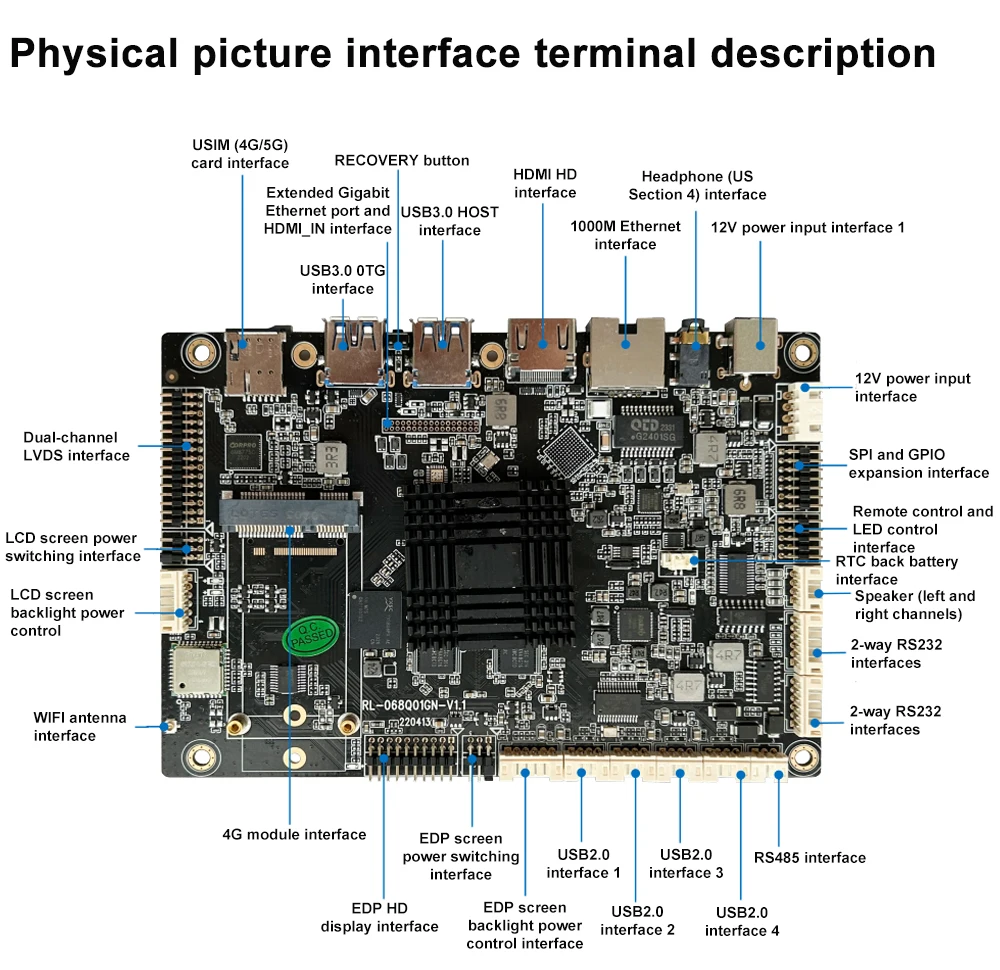

Integration and scalability: RK3568 integrated board adopts 6-layer high-density PCB board, integrating dual network ports: dual Gigabit Ethernet ports (1 1000M network port interface needs to be expanded externally), 2.4G/5G-WiFi, Bluetooth 4.2/5.0, 10W power amplifier, TF card expansion, 2 USB3.0, 4 USB2.0, device management RJ45-CONSOLE serial port (interface socket expanded externally), built-in 4G or 5G module interface (only one can be selected), IR remote control function, timed power on/off, hardware watchdog, HDMI input (HDMI input interface socket needs to be expanded externally) and output, LVDS, eDP, MIPI DSI, MIPI

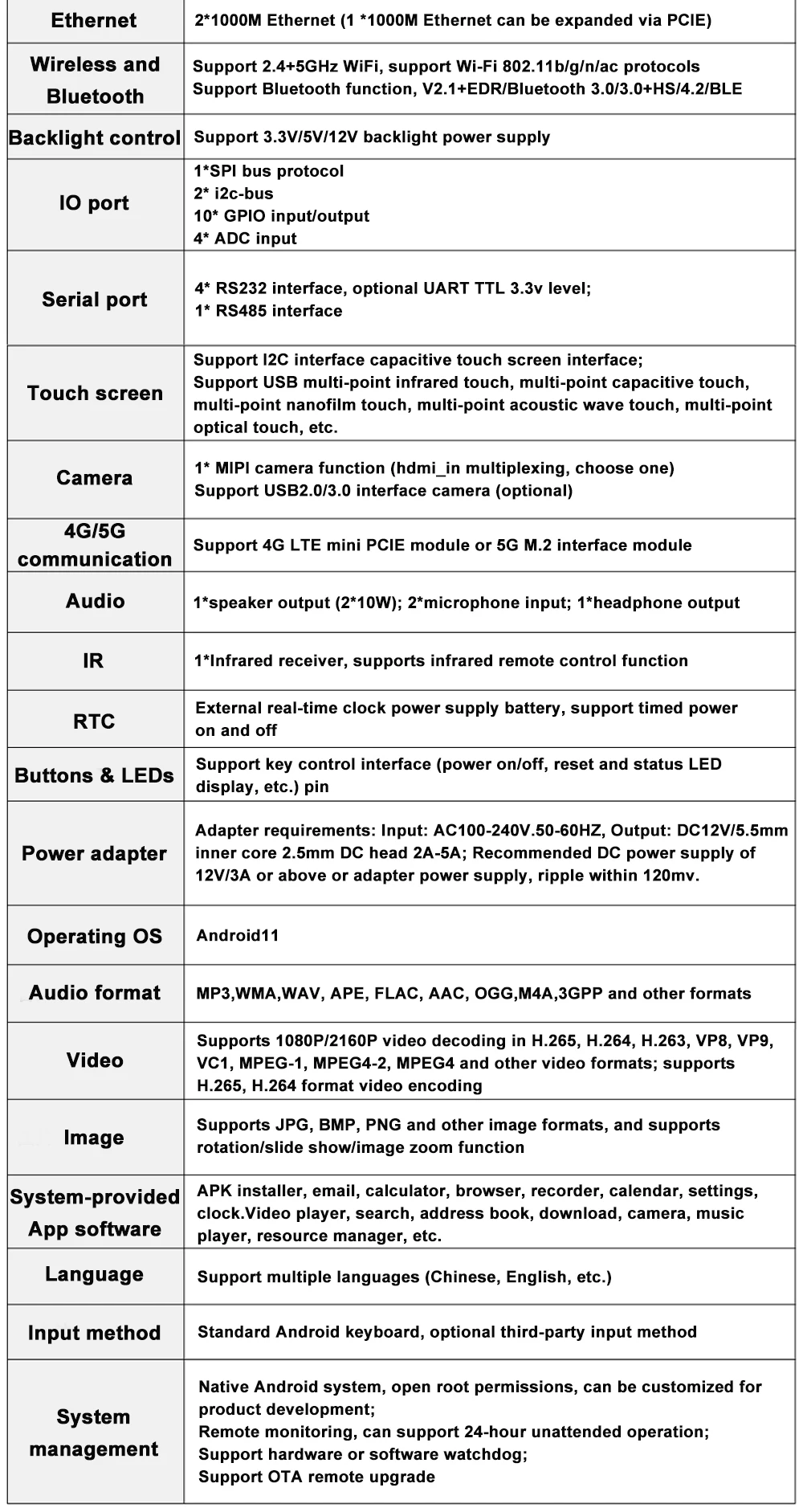

CSI camera, microphone and silicon microphone interface, echo cancellation control and other functions, which greatly simplifies the overall design and shortens the product launch cycle. The RK3568 motherboard comes with 6 USB interfaces (2 USB3.0 and 4 USB2.0), 4 RS232 serial ports, 1 RS485, 2 I2C interfaces, 4 ADCs, 1 SPI, 10 GPIOs and 1 silicon microphone I2S interface, which is convenient for expanding more peripheral devices.
