Product Description
Banana Pi BPI-W2 Router Board Realtek RTD1296 Quad Core Processor Motherboard 2G DDR4 SDRAM 8G eMMC Flash Smart electronics WIFI

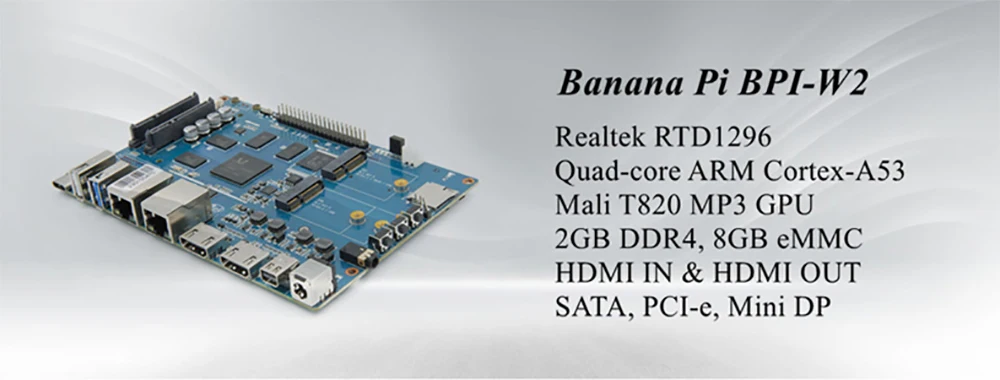

Banana Pi BPI-W2 Router Board Realtek RTD1296 Quad Core Processor Motherboard 2G DDR4 SDRAM 8G eMMC Flash Smart electronics WIFIBPI-W2 Introduction
The Banana Pi BPI-W2 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Android, and linux. It has 1 Gigabit LAN ports, 1 Gigabit WAN. it design with Realtek RTD1296, Quad-core ARM Cortex-A53. with 2G DDR4 and 8G eMMC flash onboard.

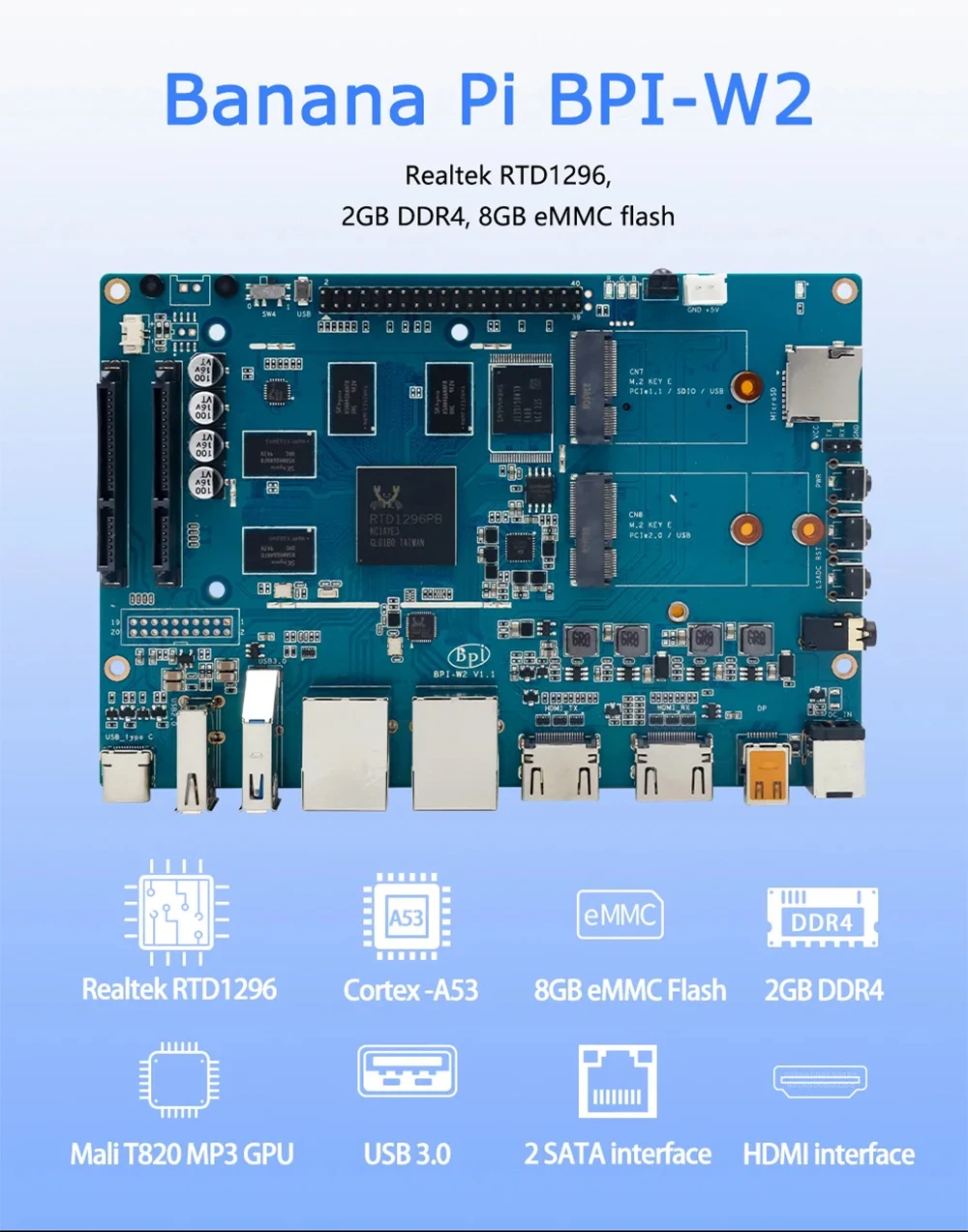

Key Features

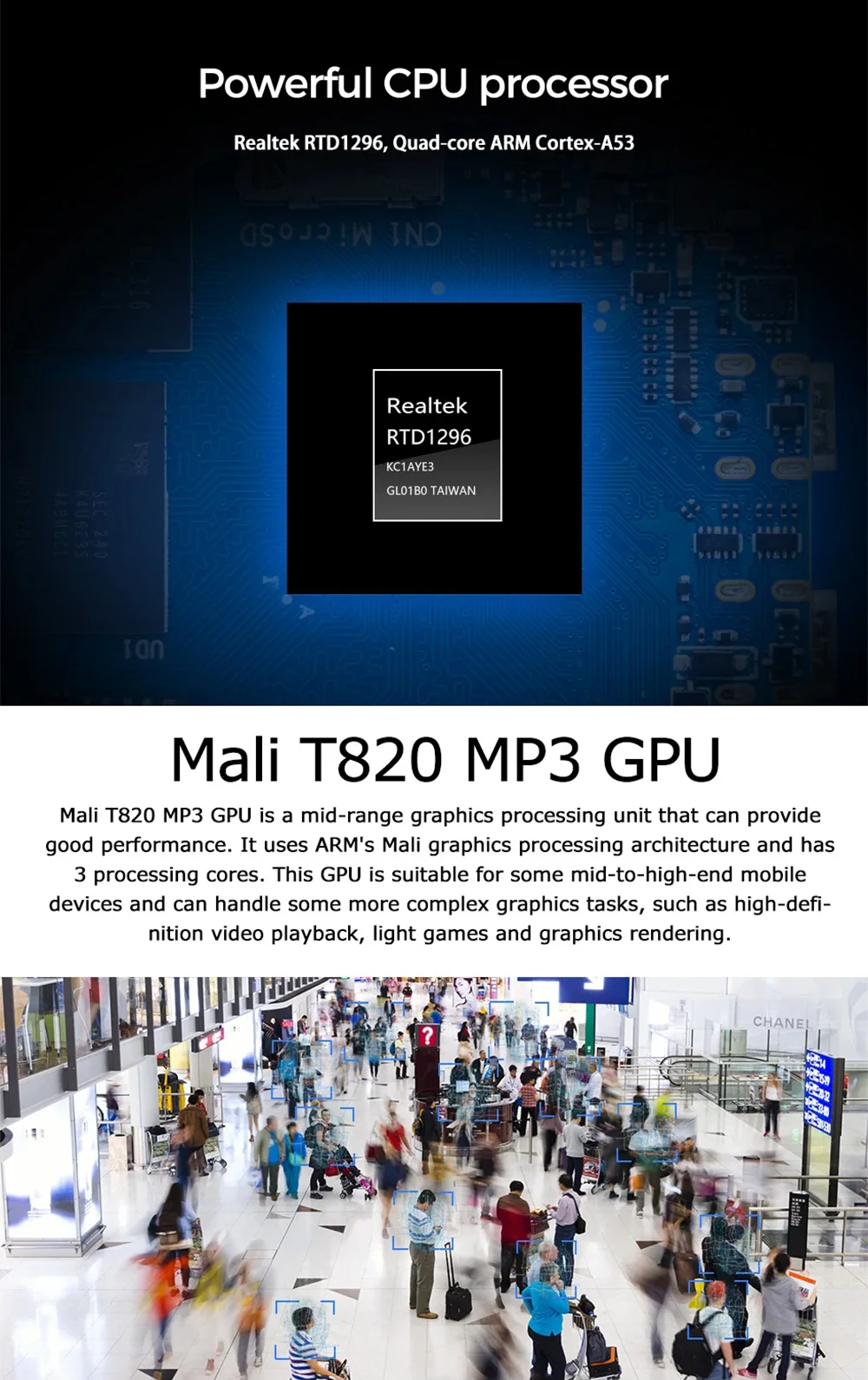

Realtek RTD1296, Quad-core ARM Cortex-A53
Mali T820 MP3 GPU
2G DDR4 SDRAM
8G eMMC flash
Mini PCIE 2.0 , 1.1 interface ,SDIO,M.2 intereface
MicroSD slot supports up to 256GB expansion
2xMIC in/Audio out
2 SATA interface
1XGigabit LAN 1x Gigabit WAN
1xUSB 3.0 2xUSB 2.0
HDMI in & HDMI out
Mini DP
TYPE C

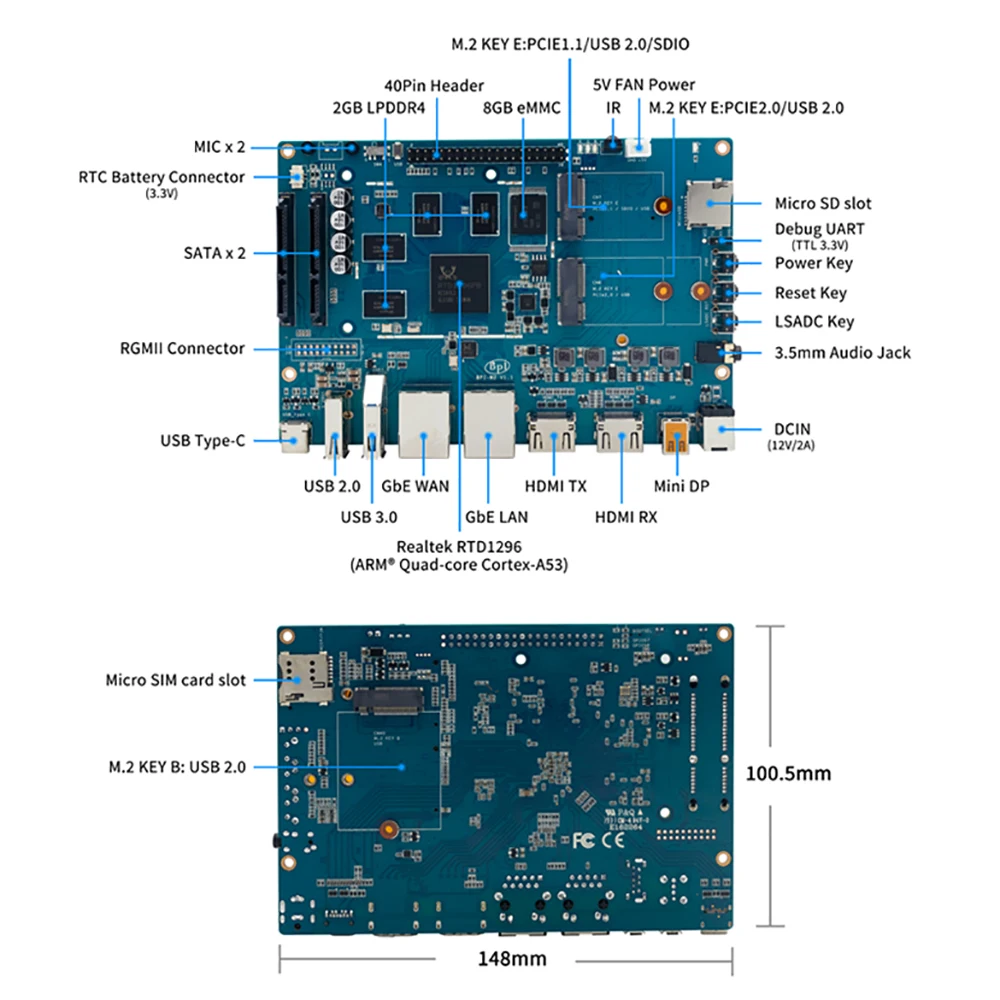

Hardware Interface
Hardware Spec
HardWare Specification of Banana Pi W2 | |
Soc | Realtek RTD1296 quad-core ARM A53 |
GPU | Mali T820 MP3 GPU |
SDRAM | 2GB DDR4 \(shared with GPU\) |
Power | 12V @ 2A via DC power 5.0mmx2.0mm jack |
Low-level peripherals | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
Onboard Network | 2x 10/100/1000Mbps Ethernet |
Wifi/Bluetooth | Option,not support onboard WIFI |
RGMII | 1 RGMII interface with PIN |
On board Storage | MicroSD \(TF\) card; 2 native SATA 3 6Gbps ;eMMC;SIM card slot |
Display | HDMI \(Type A\) output with HDCP 1.4, resolutions up 1920x1200； MIPI DP |
Video decoder/encode | The Video DSP of RTD1296 is dedicated to manipulating,decoding & encoding of video streams in various formats, e.g. decoding 4K2K H.265,Full HD MPEG1/2/4/H.264/H.264 MVC,AVC/VC-1,VP8,AVS,AVS Plus,HD jpeg,etc.Video decoding and encoding can run simultaneously. support 3D de-intrlacing,video scaling up to 4K2K and so on. |
Aideo decoding | Audio decoding is carried out by an Audio DSP that is capable of decoding a set of audio formats,e.g. DTS HD,Dolby Digital Plus,TrueHD,and other popular formats.the Audio DSP also performs audio post processing |
Audio | support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 2 MIC in |
HDMI Out/In | 1* HDMI 2.0a out port and 1* HDMI 2.0a In port |
Audio outputs/Inputs | HDMI, I2S audio,Audio micro out, Audio out/in with PIN define |
M.2 KEY E：PCIE 2.0/ USB 2.0 | 1 pcie 2.0 interface |
M.2 KEY E:PCIe 1.1 / SDIO / USB 2.0 | 1 pcie 1.1 and SDIO interface |
USB 3.0 | 1x USB 3.0 host |
USB 2.0 | 2x USB 2.0 OTG, 1 with standard USB port , 1 define with PIN |
M.2 KEY B | 1 * M.2 interface USB 2.0 for 4G with Micro SIM card slot |
Mini DP | 1* Mini DP |
TYPE C | 1 type C interface |
RTC battery | RTC battery power interface |
Buttons | Reset button, Power button, U-boot button |
Leds | Red, Green, Blue |
Other | IR reciever |
Sizes | 148 mm × 100.5mm |
Weight | 100g |
