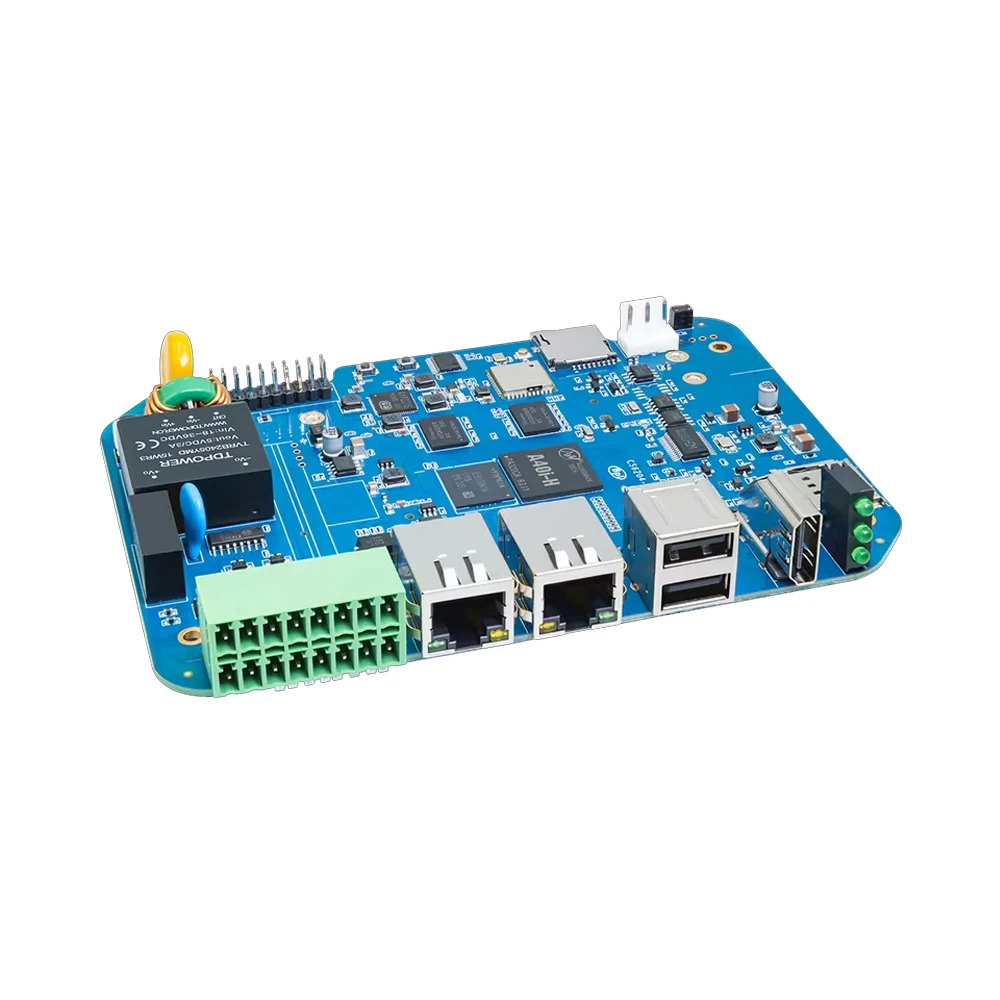

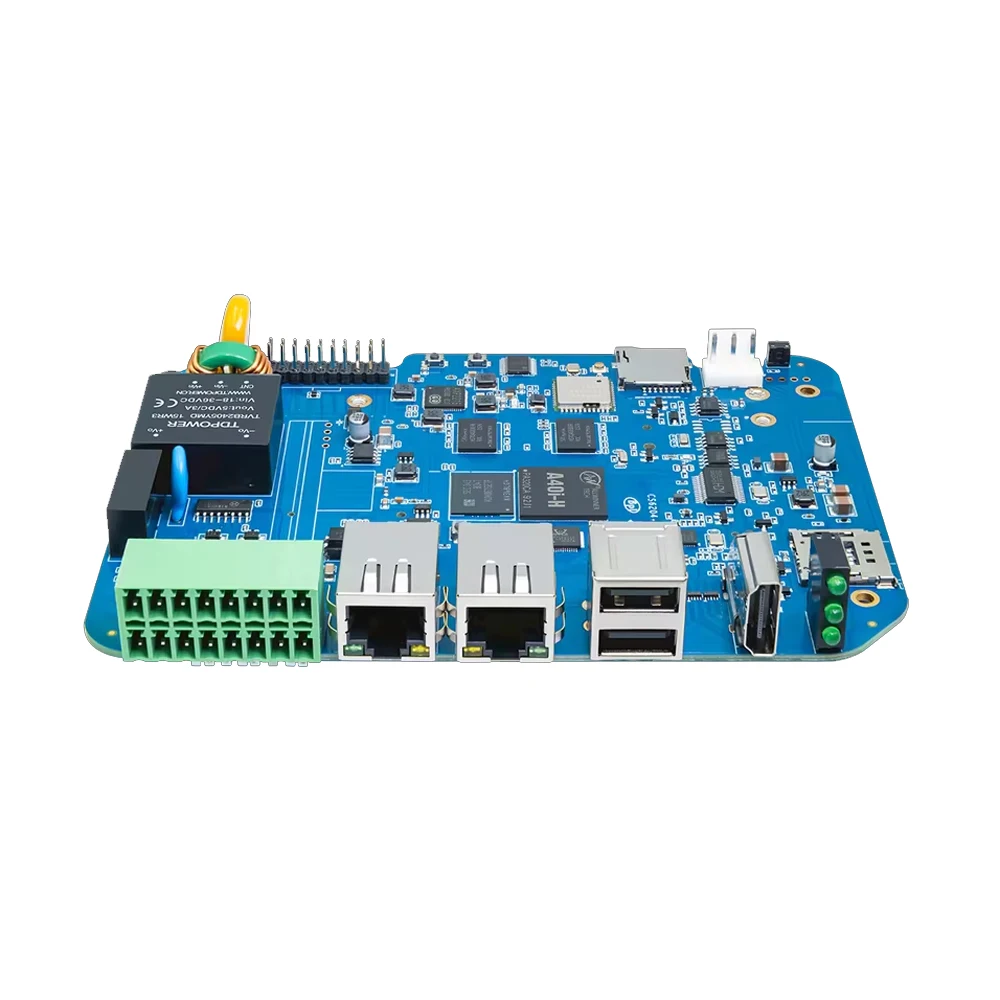

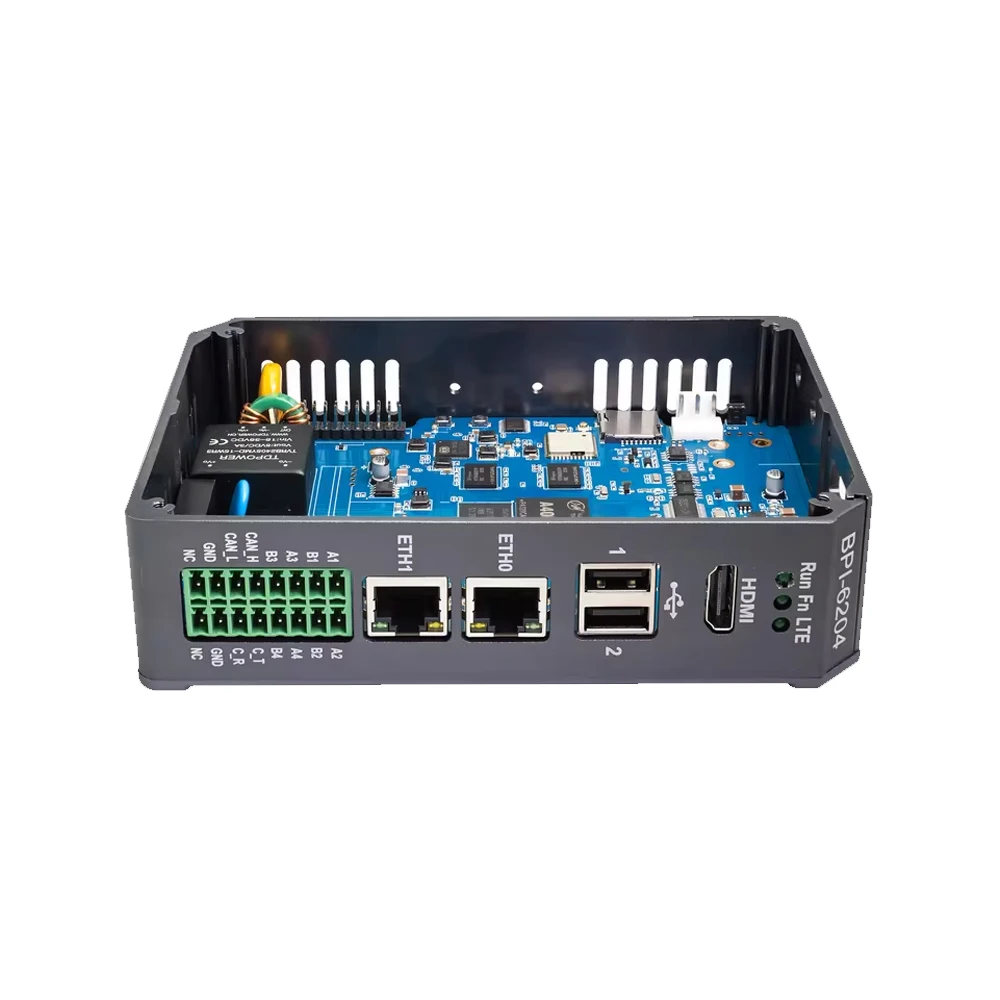

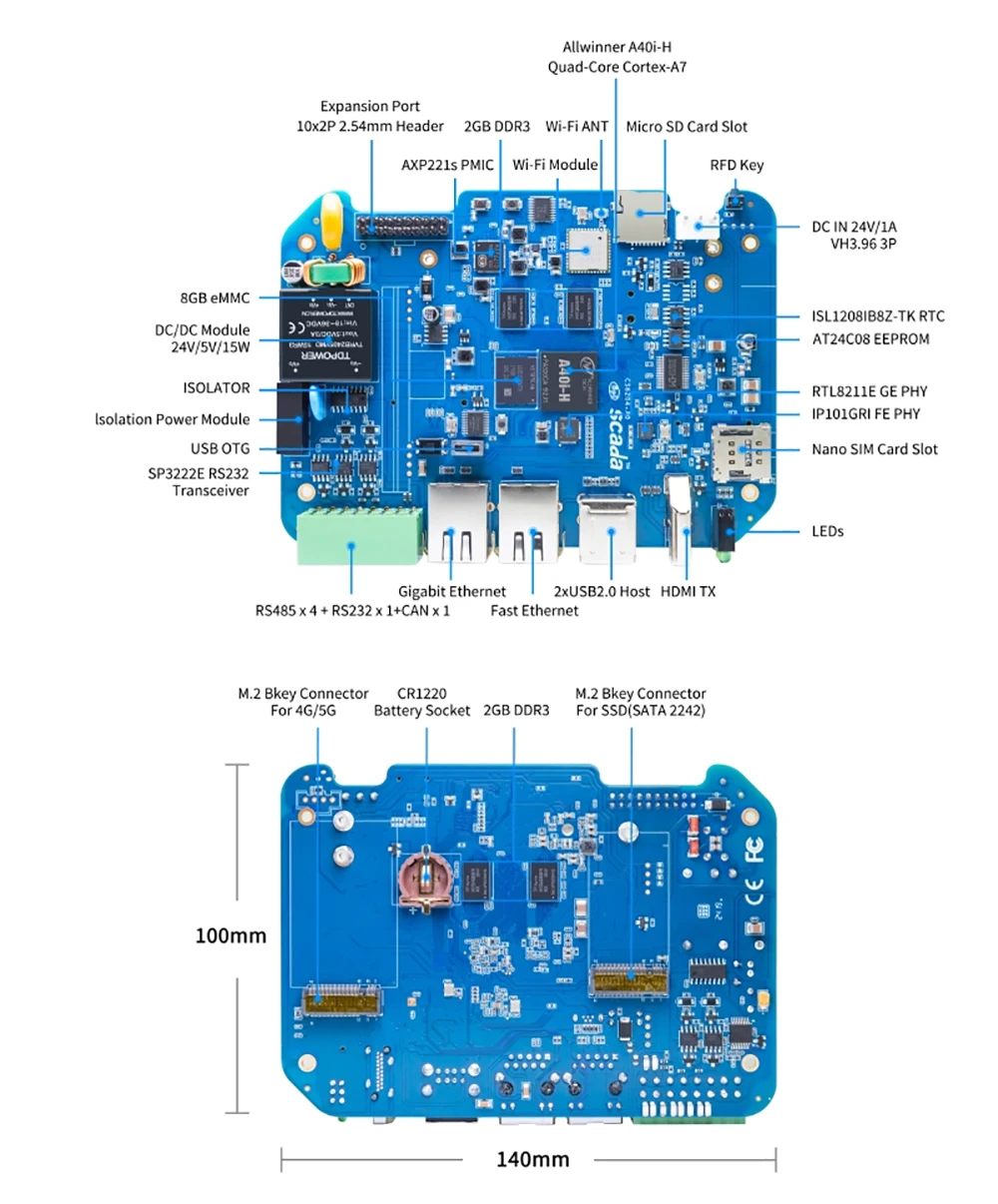

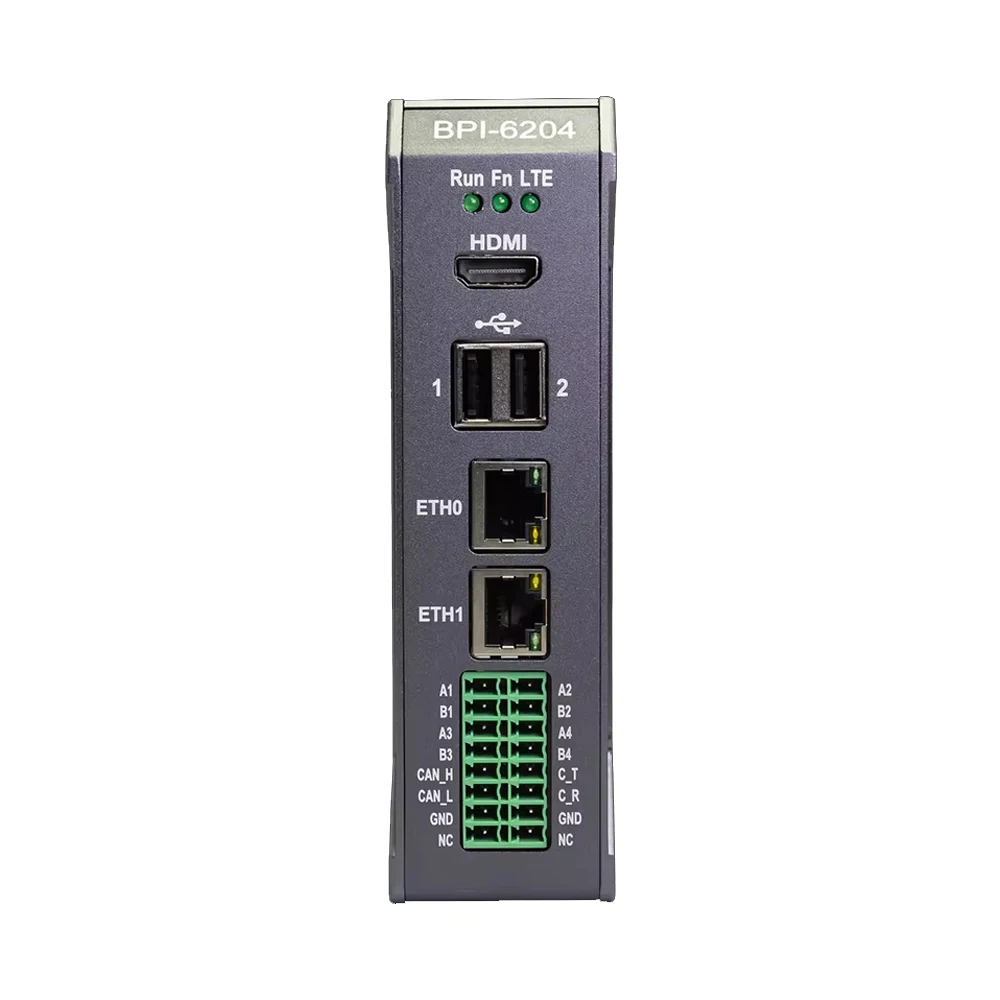

BPI-6202/6204 Embedded Single Board Industrial Computer Allwinner A40I ARM Corte

CPU and OS

Allwinner A40I ARM Cortex-A7 quad cord 1.2GHz，Ubuntu/Mate

Memory

2GB DDR3，8GB EMMC ；support SSD hardisk

Storage

8GB EMMC ；support SSD Hardisk

Communication function

• Ethernet port: 1 x 1000M + 1 x 100M independent MAC

• 2 x RS485 with isolation + 1 x RS232 Consoel with isolation
  BPI-6204is 4 x RS485 + 1 x RS232 + 1 x CAN .

• 4G/5G full Netcom + WiFi

Extended function modules

Reserve horizontal expansion capabilities and can customize the expansion of various functional modules, initially including:

• RS485: with isolation

• DI: Passive input type, the module provides 24V isolated power supply

• DO: relay output type, NC, COM, NO nodes

• AI: 0-5V/4-20mA, 2-wire/3-wire input, the board provides 24V isolated power supply

• AO: 0-5V/4-20mA, 2-wire/3-wire output, external 24V isolated power supply

• AI + AO: 0-5V/4-20mA, 2-wire/3-wire input/output. Power supply as above

• Other customized modules

HDMI interface

• HDMI1.4, supports 1080p@60fps

• USB supports keyboard, mouse; or resistive/capacitive display interface

Data processing capability

• Device access capability: ⇐128 units (adjustable according to bandwidth and sampling period)

• Analog quantity <8192

• Digital quantity <8192

• Control volume <8192

• Expression calculation definition and alarm processing

Video processing capabilities

• Video RTSP/RTMP, Onvif, GB28181

• Video recording and playback

• Data triggers segment video recording and uploading

• Video AI event return and linkage, data OSD coding

• Local streaming services

• H.264/H.265 playback

SCADA function

Full-featured SCADA system, processing points: 2048 points, C/S or B/S mode

Development environment

C/Expression/Ladder Diagram/Java/Python and other edge computing secondary development environments

Encryption chip

• Software license authorization encryption chip (SMEC98SP)

• Special encryption chip for State Grid communications (SC1161Y)

Power

DC：24V
