XIAO SAMD21 (3PCS) Mini Arduino Compatible Dev Board with SAMD21G18 MCU,Support

Product Description

Features:

🌱 Outstanding RF performance

Powered by SAMD21G18 chip, operating up to 48MHz, equipped with 32KB of SRAM, and 256KB of onboard flash memory.

🌱 Rich Interface

11x analog / 11x digital Pins, 1x I2C interface, 1x UART port, and 1 SPI port.

🌱 Thumb-size Design

21 x 17.5mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices.

🌱 Multiple Develop Platform

Support Arduino / Micropython / CircuitPython development, friendly for beginners, satisfied for electronics enthusiasts.

🌱 Perfect for Production

Breadboard-friendly & SMD design, no components on the back.

Product Description:

Seeed Studio XIAO SAMD21 carries the powerful CPU-ARM® Cortex®-M0+(SAMD21G18) running at up to 48Hz. In addition to the powerful CPU, it has 256KB Flash and 32KB SRAM on board and supports the USB Type-C interface which can supply power and download code.

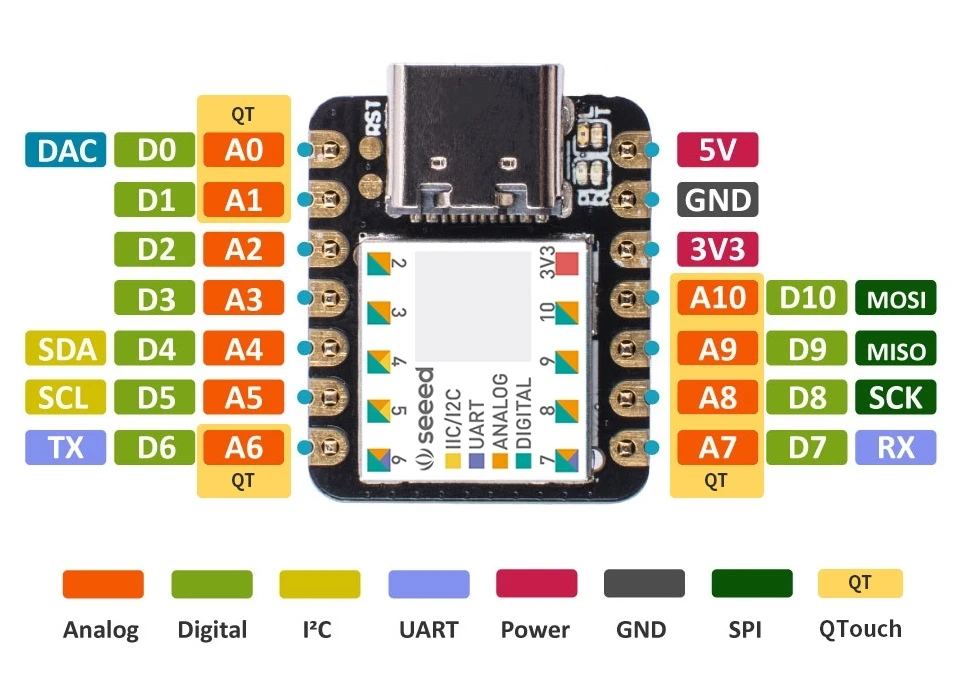

Seeed Studio XIAO SAMD21 has 14 PINs, which can be used for 11 digital interfaces, 11 mock interfaces, 10 PWM interfaces (d1-d10), 1 DAC output pin D0, 1 SWD pad interface, 1 I2C interface, 1 SPI interface, 1 UART interface, Serial communication indicator (T/R), Blink light (L) through pin multiplexing. The colors of LEDs(Power,L,RX,TX) are green, yellow, blue and blue. Moreover, Seeed Studio XIAO SAMD21 has a Type-C interface which can supply power and download code. There are two reset button, you can short connect them to reset the board.

Except for the power LED, we add a user LED on board for your better coding experience. Usually, a dev board as small as this size will use the chip’s inner crystal oscillator for time fixing, in order to make the clock more accurate, Seeed Studio XIAO SAMD21 layouts an extra 32.768KHz to make the clock more stable.

Moreover, Seeed Studio XIAO SAMD21 is friendly to the communities for its strong software compatibilities, which supports Arduino, Micropython, and CircuitPython. Except for the software, flexible I/O allows it to speak to almost any external device.

Application:

• Wearable devices

• Rapid prototyping (directly attached to the expanded PCB as a minimal system)

• Perfect for all the projects that need a mini Arduino

• DIY keyboard

• USB development (USB to multi-channel TTL/USB host mode, etc.)

• In a scenario where you need to read multiple mock values The DAC output

Hardware Overview:
