Product Description
IDO-EVB3562 AI Development Board RockChip RK3562 Intelligent Motherboard Embedded ARM G52 2EE Android Linux 13M ISP 1Tops NPU

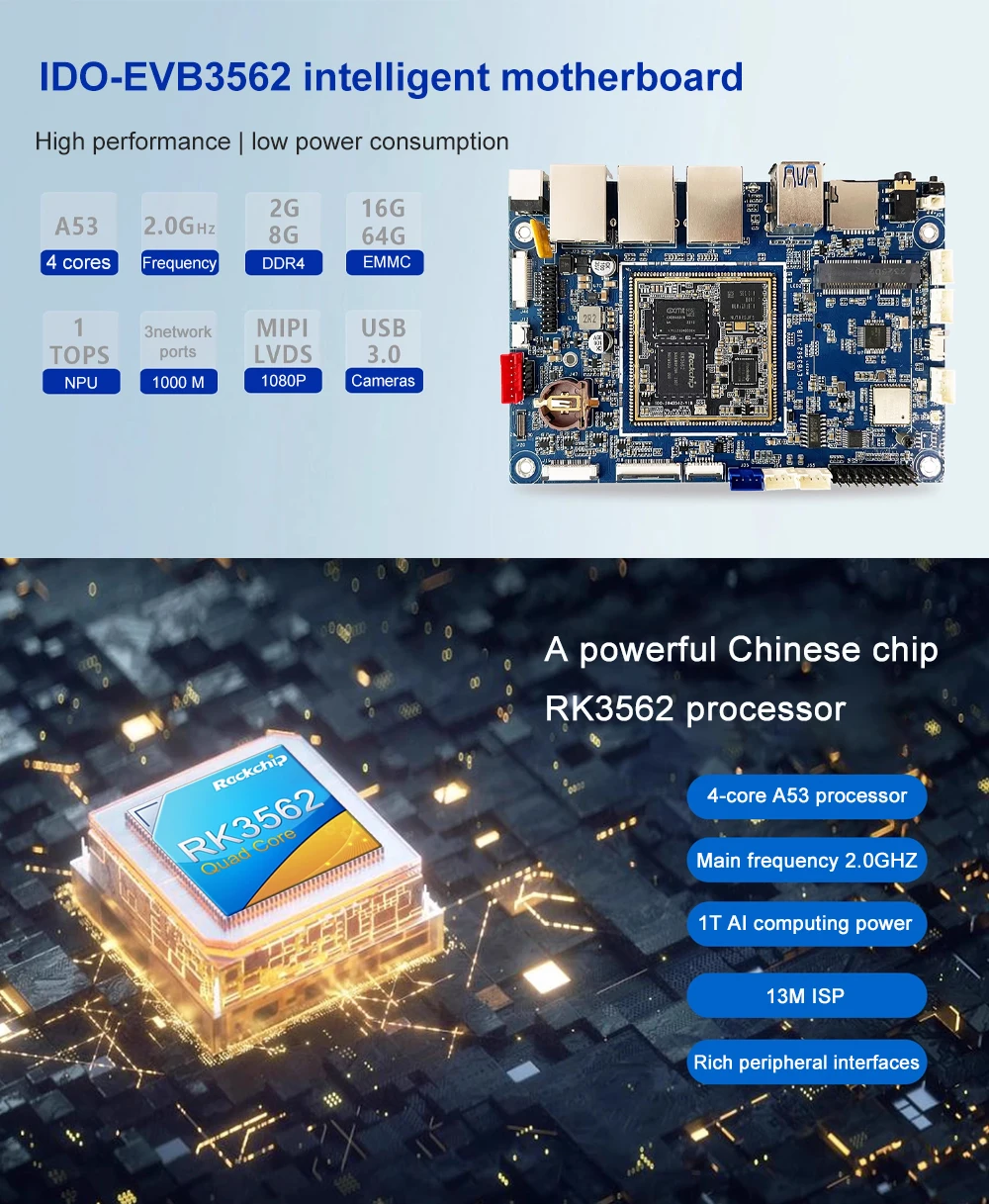

IDO-EVB3562 AI Development Board RockChip RK3562 Intelligent Motherboard Embedded ARM G52 2EE Android Linux 13M ISP 1Tops NPUIt adopts quad-core A53+Mali G52 architecture, built-in 1T NPU computing power and 13M ISP, AnTuTu running score reaches 14W+, and has rich peripheral interfaces. It supports 1080P@60fps and 4K@30fps video decoding and 1080P@60fps encoding, in addition to high-quality JPEG encoding and decoding. In terms of graphics processing, RK3562 includes a 3D GPU that can adapt to OpenGL ES1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1.
Hardware Parameters
Chip parameters | |
SoC | RockChip RK3562 |
CPU processor | Quad-core 64-bit Cortex-A53 processor, up to 2.0GHz |
GPU Graphics Processor | ARM G52 2EE Supported OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 Built-in high-performance 2D acceleration hardware |
NPU Embedded Neural Network Processor | 1TOP computing power neural network acceleration engine Supports INT8, INT16, Oat Point 16, BF16 and TF32 neural network operations Support deep learning frameworks: TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet |
VPU Video Processing Unit | Support 4K 30fps H.265/H.264/VP9 video decoding Support 1080P 60fps H.264 video encoding Support 13M ISP, support HDR |
Memory | LPDDR4/LPDDR4x, default 2GB/4GB (supports up to 8GB) |
Storage | eMMC default 16GB/32GB (optional 16GB/32GB/64GB) 1 × PCIE2.0 (M.2 interface NVME solid state drive) (M.2 interface/USB3.0/PCIE network port multiplexing) 1 × TF-Card Slot (supports TF card expansion) |
Hardware Parameters | |

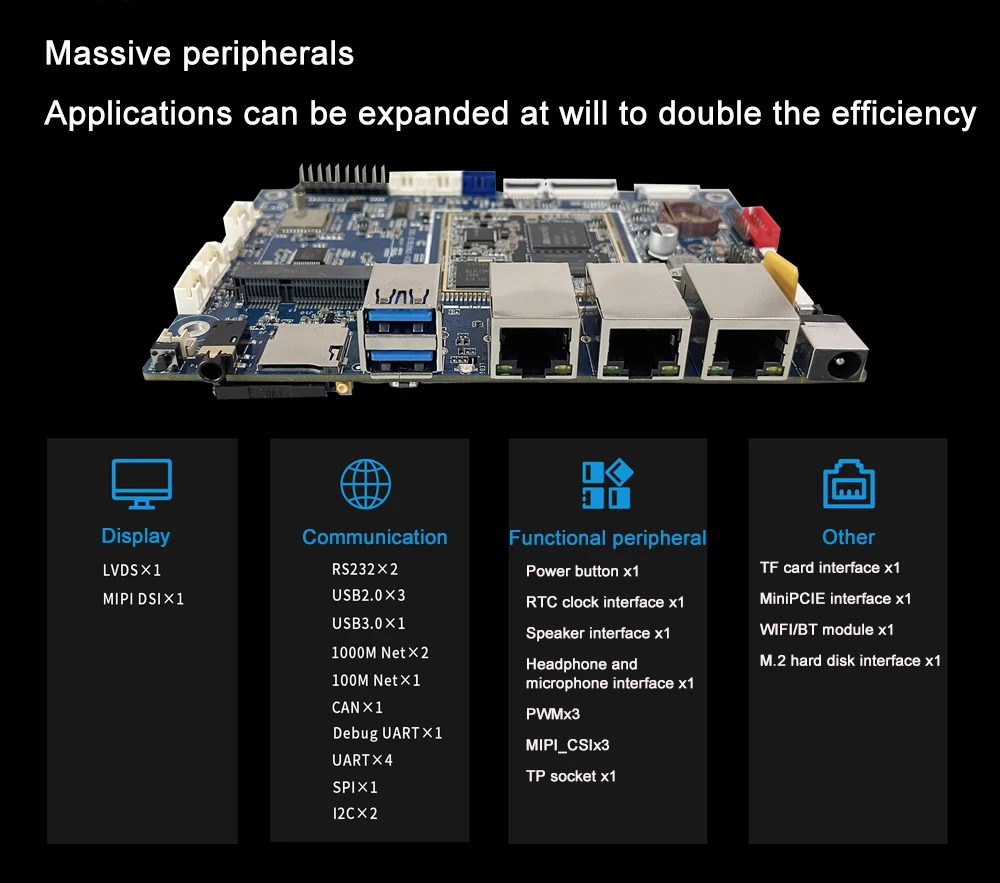

Ethernet | 1 × 100M Ethernet (100M bps) 1 × RGMII Gigabit Ethernet (1000 M bps) 1 × PCIE Gigabit Ethernet (1000 M bps) (M.2 interface/USB3.0/PCIe network port multiplexing) |
Wireless network | 1 × Mini-PCIe to expand 4G/5G communication Support dual-band 2.4G/5.8G WiFi Support BT4.2 and above |
Display Interface | Video Output: 1 x MIPI DSI interface, supporting 2048*1080@60fps output 1 x LVDS interface, support 1280*800@60fps output Video Input: 3 x MIPI CSI (default 2 4Lane, can be changed to 1 4Lane + 2 2Lane) |
Audio Interface | 1 × Speaker, left and right dual channel speaker output (4Ω 3W) 1 × 3.5mm 4-section headphone jack 1 × Mic 1 × Array silicon microphone interface |
USB | 1 × USB 3.0 (burning/debugging interface) 1 × USB 2.0 HOST (standard TYPE-A) 2 × USB 2.0 HOST（PH-4A） |
Extension interface | 1 × Debug UART TTL（UART0） 3 × UART TTL (2 of which can be multiplexed as RS232) 6 × ADC 4 × PWM / 1 × SPI (function multiplexed) 1 × I2C5 / 1 × UART9 TTL (function multiplexed) 1 × TP socket (I2C) 1 × CAN（RK3562J） |
Other parameters | |
Motherboard size | 135mm×90mm |
