Product Description
Banana Pi BPI-M64 Allwinner A64 2GB DDR3 8G eMMC 4 Core Processor Motherboard MIPI LCD Single Board Support Linux Raspberry Pi

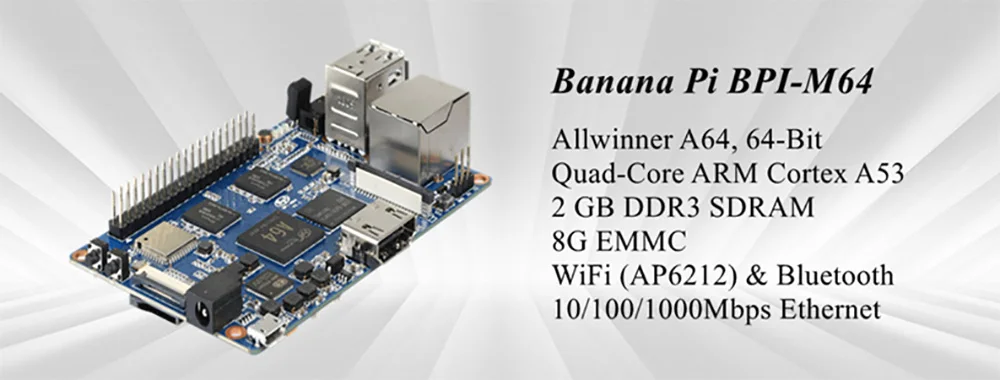

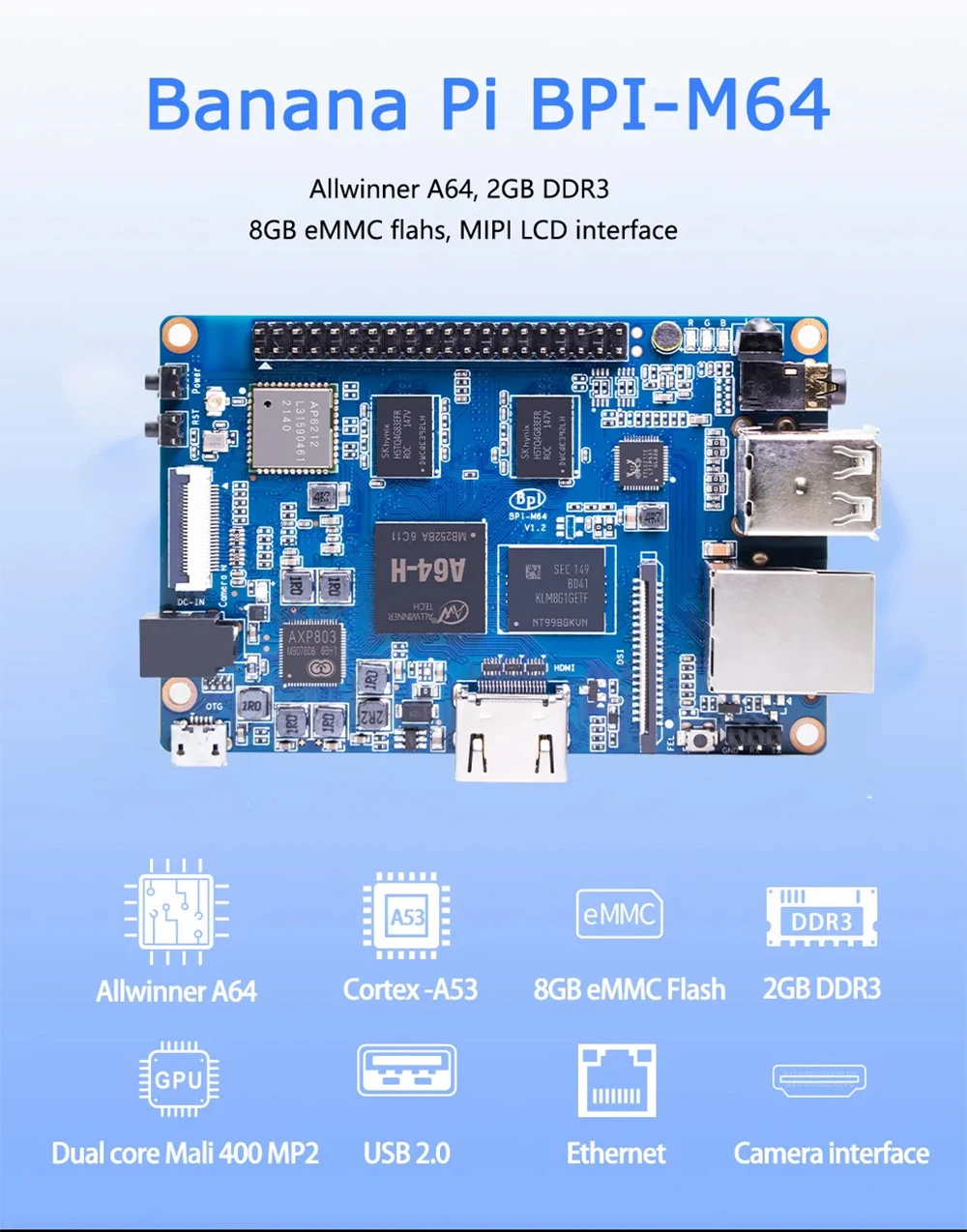

Banana Pi BPI-M64 Allwinner A64 2GB DDR3 8G eMMC 4 Core Processor Motherboard MIPI LCD Single Board Support Linux Raspberry PiBPI-M64 Introduction
Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port. The processor is pin-to-pin comptialbe with R18, so it comes with two versions: M64 and M64-R18.
Also being a member of the Banana Pi family, the M64 is a big jump from the octa-core BPI-M3. This is because this Banana Pi BPI is named after its 64-bit SoC. BPI-M64 will be reserved for an upcoming board.
BPI-M64 is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
Key Features
Allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor.
2 GB DDR3 SDRAM
8G EMMC
10/100/1000Mbps Ethernet
WiFi (AP6212) & Bluetooth
MIPI LCD interface
Camera interface

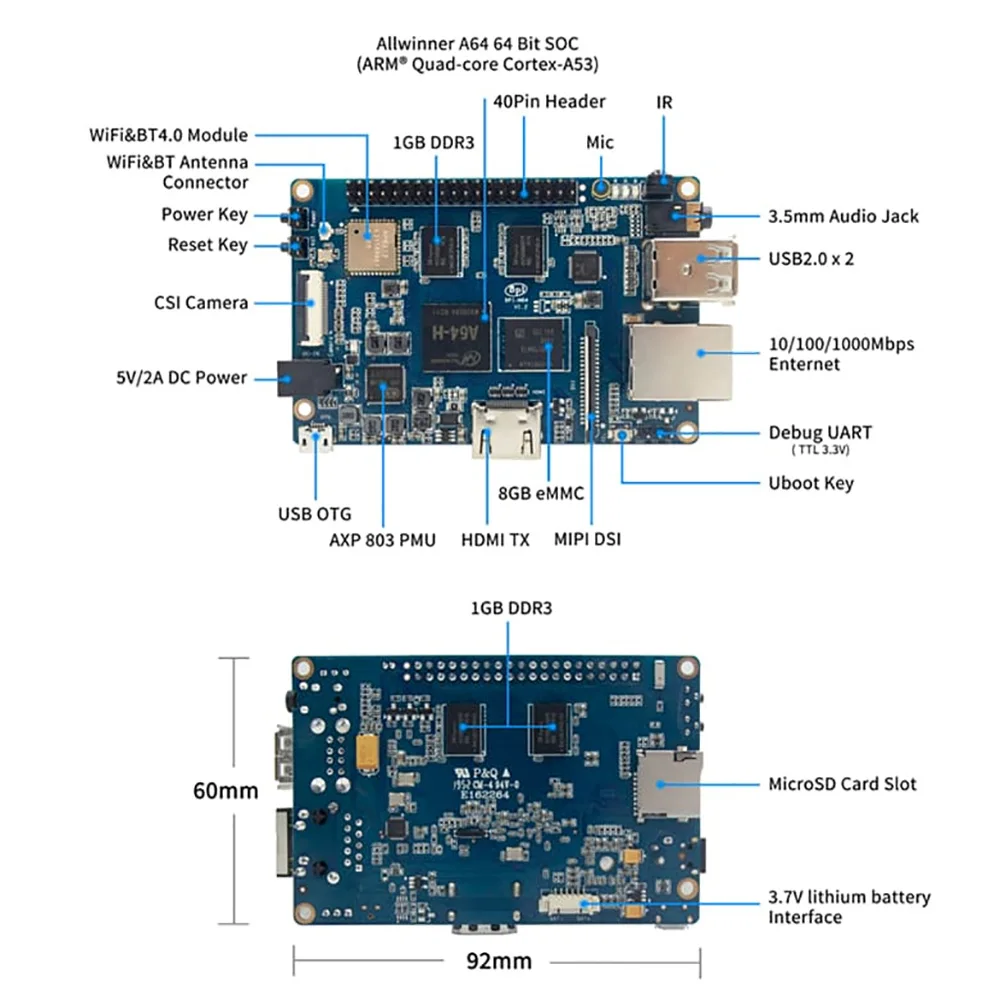

Hardware Interface
Hardware Spec
HardWare Specification of Banana Pi M64 | |
CPU | Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU |
GPU | Dual core Mali 400 MP2 GPU |
Memory | 2GB LPDDR3 (shared with GPU) |
Storage | MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB |
Network | 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth 4.0 |
Video Input(s) | A CSI input connector allows for the connection of a designed camera module |
Video Output(s) | 1080p capable HDMI port & multi-channel audio output (NO H./X.265 capabilities) |
Audio Input(s) | On board microphone |
Audio Output(s) | 3.5mm jack and HDMI |
USB ports | USB 2.0 PORT (x2), USB OTG (x1) |
Remote | IR Receiver |
GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
Switches | Reset, Power and U-boot |
LED | Power Status and 8P8C |
Power Source | 5 volt @2A via DC Power and/or Micro USB (OTG) |
Size & Weight | 92x60mm, 48g |
OS | Android and Linux |
