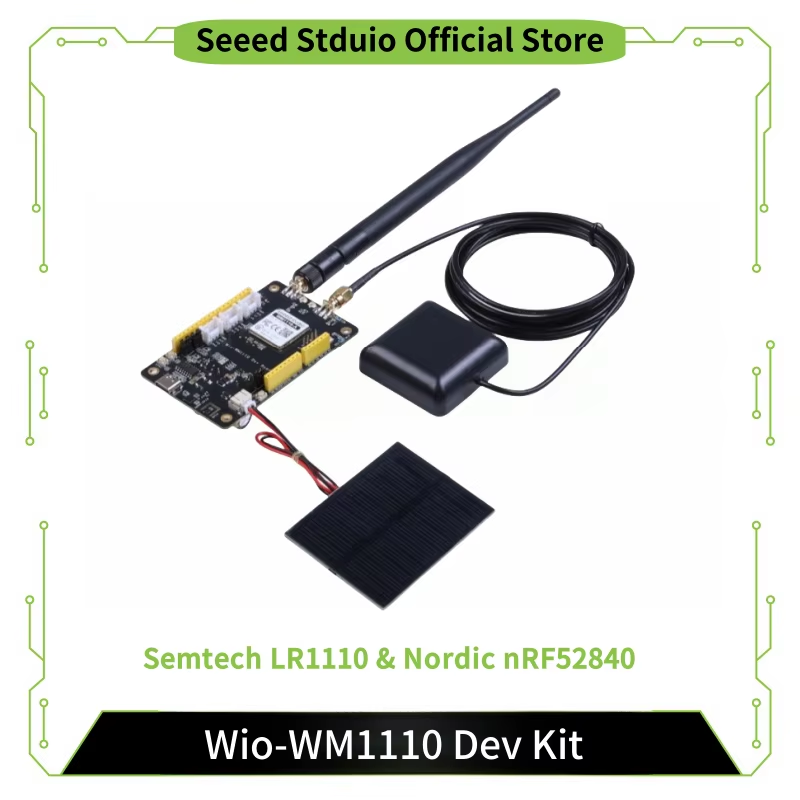

Wio-WM1110 Dev Kit, built-in Semtech LR1110 and Nordic nRF52840, LoRa,GNSS,Wi-Fi

Product Description

The WM1110 development kit is based onWio-WM1110 Wireless Module and integrates Semtech's LoRa® transceiver and a multi-purpose radio front-end for geolocation.

The LoRa® transceiver provides low-power, high-sensitivity network coverage, while GNSS (GPS/Beidou) and Wi-Fi scanning offer all-around location coverage.

SenseCAP WM1110 Dev Kit provides a complete solution for developers looking to create IoT applications that require low-power, long-range communication, and precise location tracking capabilities, while also providing connectivity options for a variety of peripherals.Note

Wio-WM1110 module has been perfectly applied to SenseCAP T1000, SenseCAP T1000 is a LoRaWAN® card size tracker for seamless indoor & outdoor positioning. It boasts months of battery life and is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications.

Features

🌱Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver: Frequency bands support in the range 863- 928MHz

🌱Multi-Purpose Radio Front-End for Geolocation: GNSS (GPS/ BeiDou)、Wi-Fi、Bluetooth

🌱Rich GPIOsand Compatible with Grove:Over 400 Grove-compatiblefor flexible expansion options.

🌱Open Source Platform:Leverage the extensive LR1110 andnRF52840open-source ecosystem for infinite application possibilities.

🌱Built-in Sensors andMultiple Power Supply Modes:Temp&Humidity sensor and 3-Axis accelerometer, support both solar power and battery-powered.

Description

Low Power LoRa® Transceiver

Benefiting from Semtech‘sLoRa Edge™ LR1110, the Wio-WM1110 Dev Kit provides long-distance, low-power LoRa® communication. To learn about Long Range and its features such as network architecture and applications, you can check outAn Introduction of LoRa® and LoRaWAN® technology,It explains what Long Range is, how it works, and its pros and cons.

Location Service

The Wio-WM1110 Dev Kit integrates Multi-Purpose Radio Front-End Targeting Geolocation Purposes. It's equipped with GNSS dedicated to outdoor positioning, as well as Wi-Fiand Bluetooth scanning for indoor positioning.It's able to automatically transition between outdoor and indoor activities, replacing the need to build different trackers for indoor or outdoor use, this provides all-around location coverage while reducing complexity and cost.

Outdoor Positioning(GNSS)

The Wio-WM1110 Dev Kit integrates GNSS (GPS/ BeiDou) low-power scanning,

getting data from satellites and sending it encrypted to the LoRa® Cloud, reducing power consumption and improving security.IPS(Wi-Fi+Bluetooth)

Complementary to outdoor GNSS, WM1110 Dev Kit also supports Wi-Fi ultra-low-power passive scanning and Bluetoothscanning suitable for indoor positioning, it scans the MAC address and RSSI of nearby Bluetooth beacons/Wi-Fi, upload the data to the cloud services to get the accurate location.Rich peripherals

In addition to the built-in TH sensor and 3-axis Accelerometer, this kit also includes a series of peripheral interfaces and supports ADC/UART and IIC transmission protocols, which can be connected to 400+Grovemodules, allowing for easy upgrades to smarter solutions. It's also compatible with Arduino, providing developers with unlimited possibilities.Develop User Applications

Wio-WM1110 Dev Kit is a fully open-source powerful IoT development platform for developers, also includes a set of example applications and code samples, as well as a software development kit (SDK) to help you get started.

Schematic DiagramHardware OverviewPinoutSpecifications

🌱LoRa® and Positioning (Semtech LR1110)

🌱Bluetooth(Nordic nRF52840)

🌱Built-in Sensors

🌱General

Part List
