Product Description
LoRa Meshtastic Node Wio SX1262 Develop Board Kit 868MHz 915MHz nRF52840 L76K GPS Grove With E ink Display low-power 862–930MHz

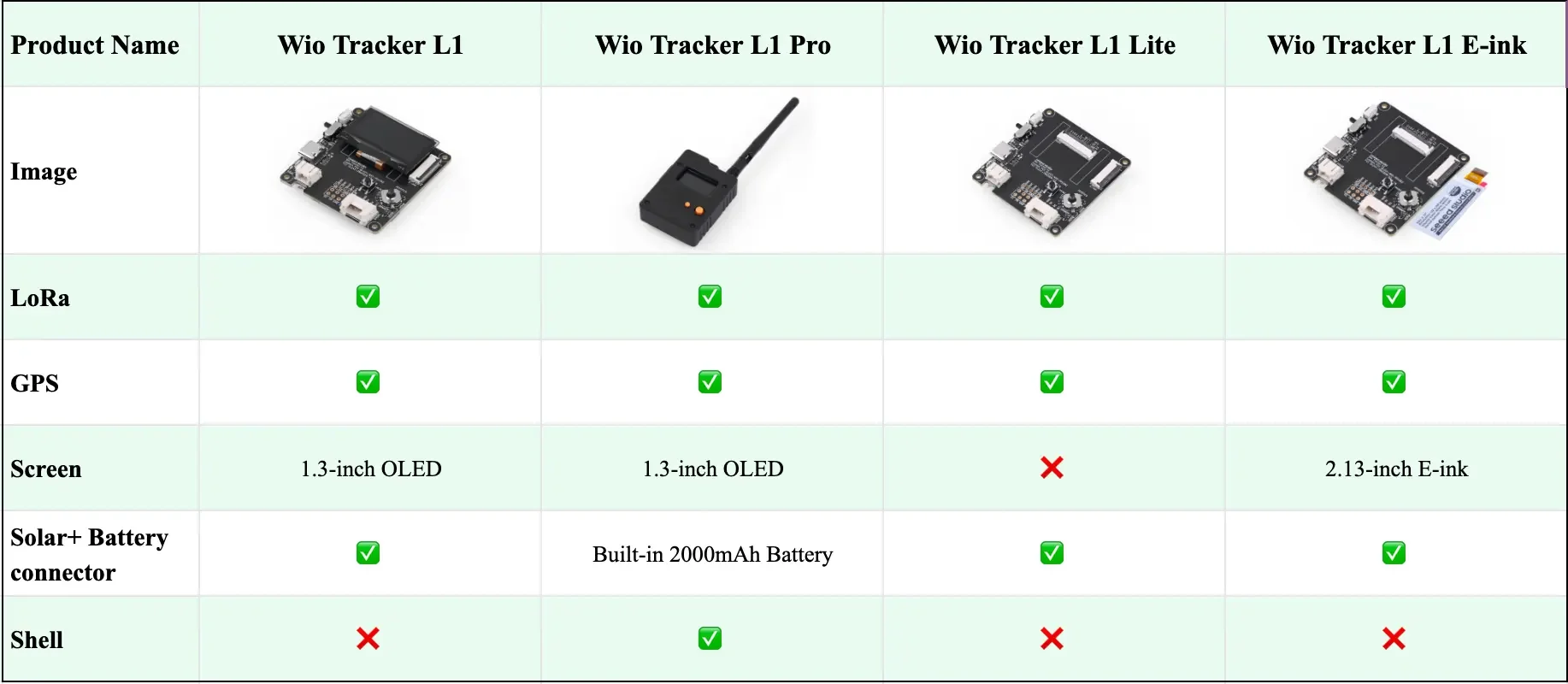

LoRa Meshtastic Node Wio SX1262 Develop Board Kit 868MHz 915MHz nRF52840 L76K GPS Grove With E ink Display low-power 862–930MHzThe Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.
The L1 E-ink version supports a detachable E-ink display — optimized for ultra-low-power, always-on visual updates. Ideal for digital signage, asset tracking.
Featur
Pre-flashed with Meshtastic firmware
Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.
Triple Power Supply Options
Supports Type-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments—ideal for outdoor and mobile applications.
Flexible Display Support
Optional 1.3-inch OLED and 2.13-inch E-Ink screens, offering versatile display options for different power consumption and visual feedback needs.
High Expandability

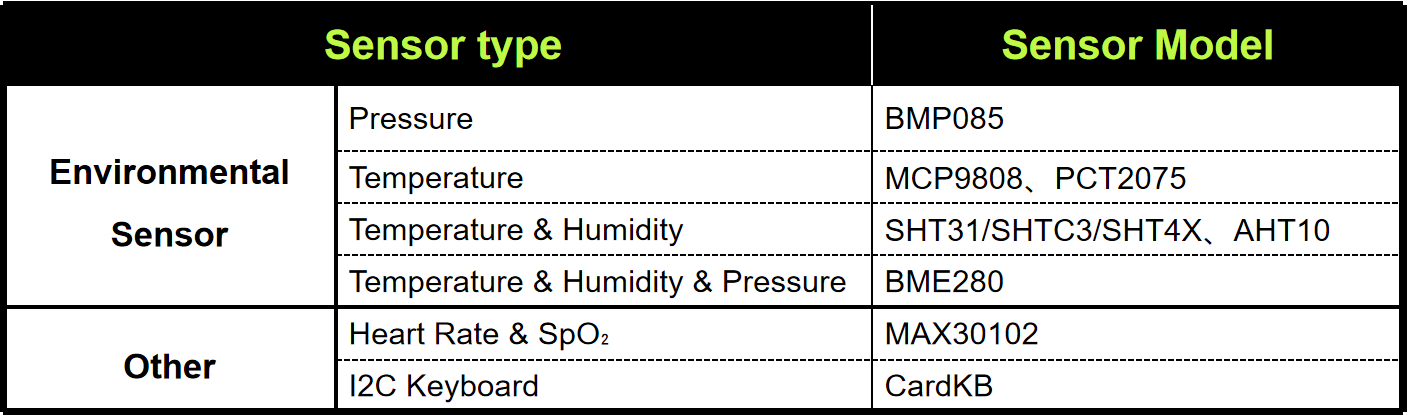

Fully compatible with the Grove Ecosystem (The list of supported sensors is provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
Specification
General
Processor | Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz |
On-chip Memory | 1 MB flash and 256 kB RAM |
Wireless | LoRa: Based on Wio-SX1262, supports 862-930MHz |
Bluetooth 5.0 | |
GPS | L76K(GPS,BeiDou,GLONASS,QZSS) |
Interface | Screen interfaces: ● 1.3 inch OLED *1 ● 2.13 inch E-ink *1 |
Grove *1: UART/IIC/GPIO | |
Plated Through Hole（PTH）: UART/IIC/GPIO/Analog | |
Soldering pads reserved for SWD | |
Power | Type-C: 5v---1A |
Solar energy interface(2.0mm 2p):5V---1A | |
Baterry interface(1.0mm 2p JST): 3.7v---1A | |
Certification | FCC, CE, RoHS |
ePaper Display
Size | 2.13 inch |
Active Area(mm) | 48.55 x 23.7046 |
Resolution | 122 x 250 pixels |
Pixel Pitch(mm) | 0.1943 x 0.1942 |
Display Color | Black, White |
Grayscale | 4 |
Partial Refresh Time | 0.42s |
Full Refresh Time | 3s |
Power Consumption | 10.5mW (typ.) |
Standby Consumption | 0.003mW |

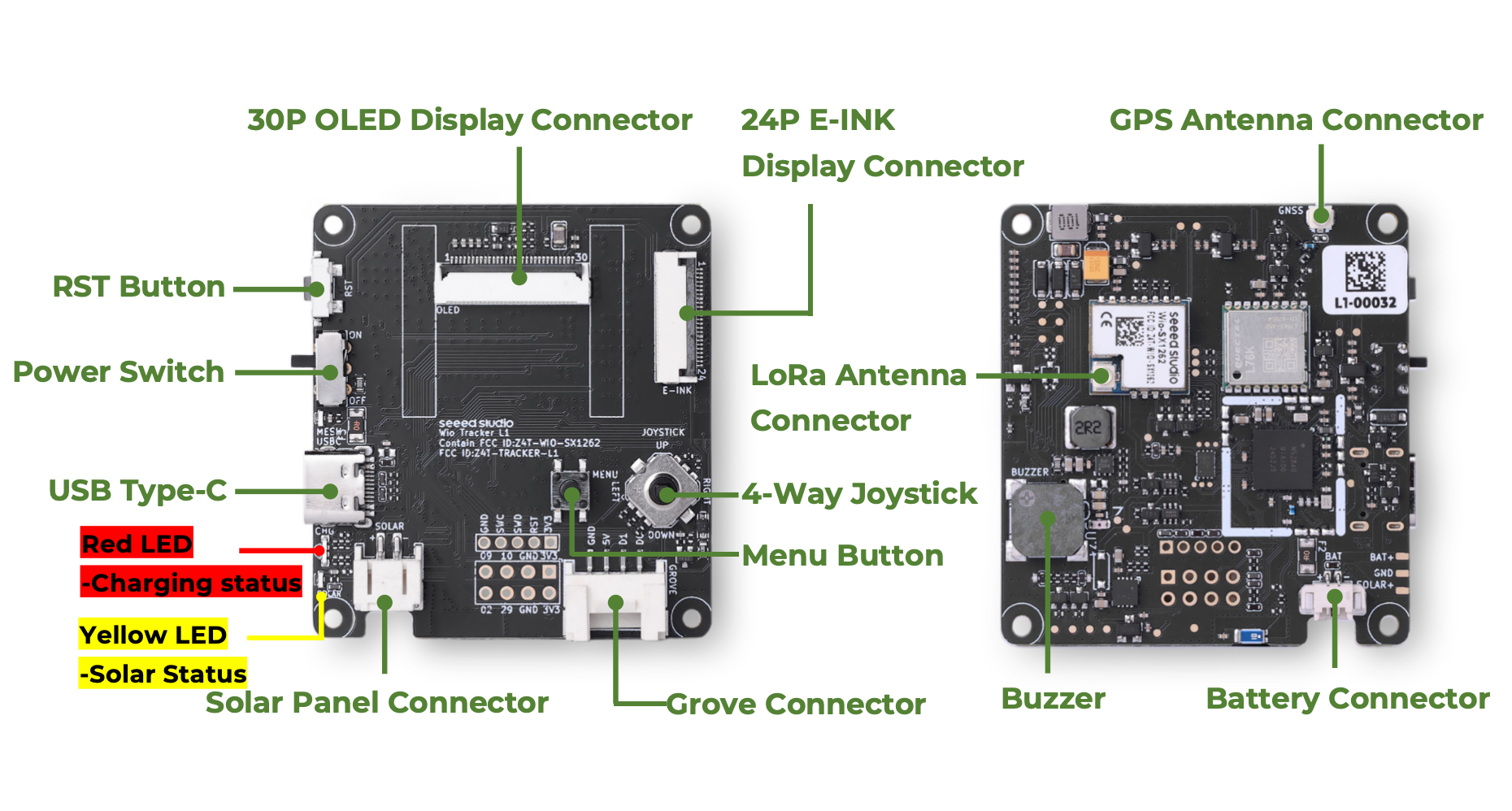

Hardware Overview

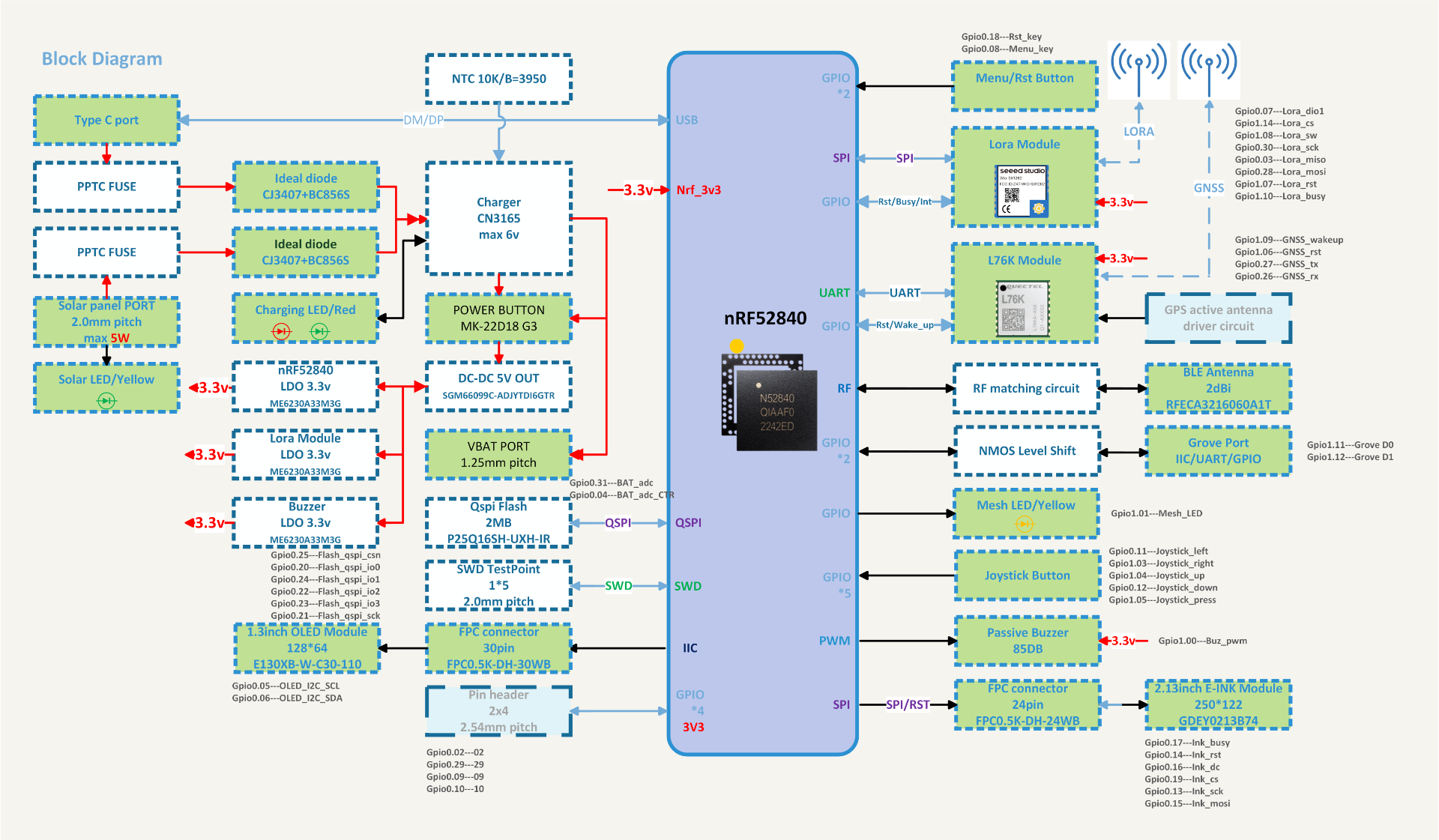

Diagram

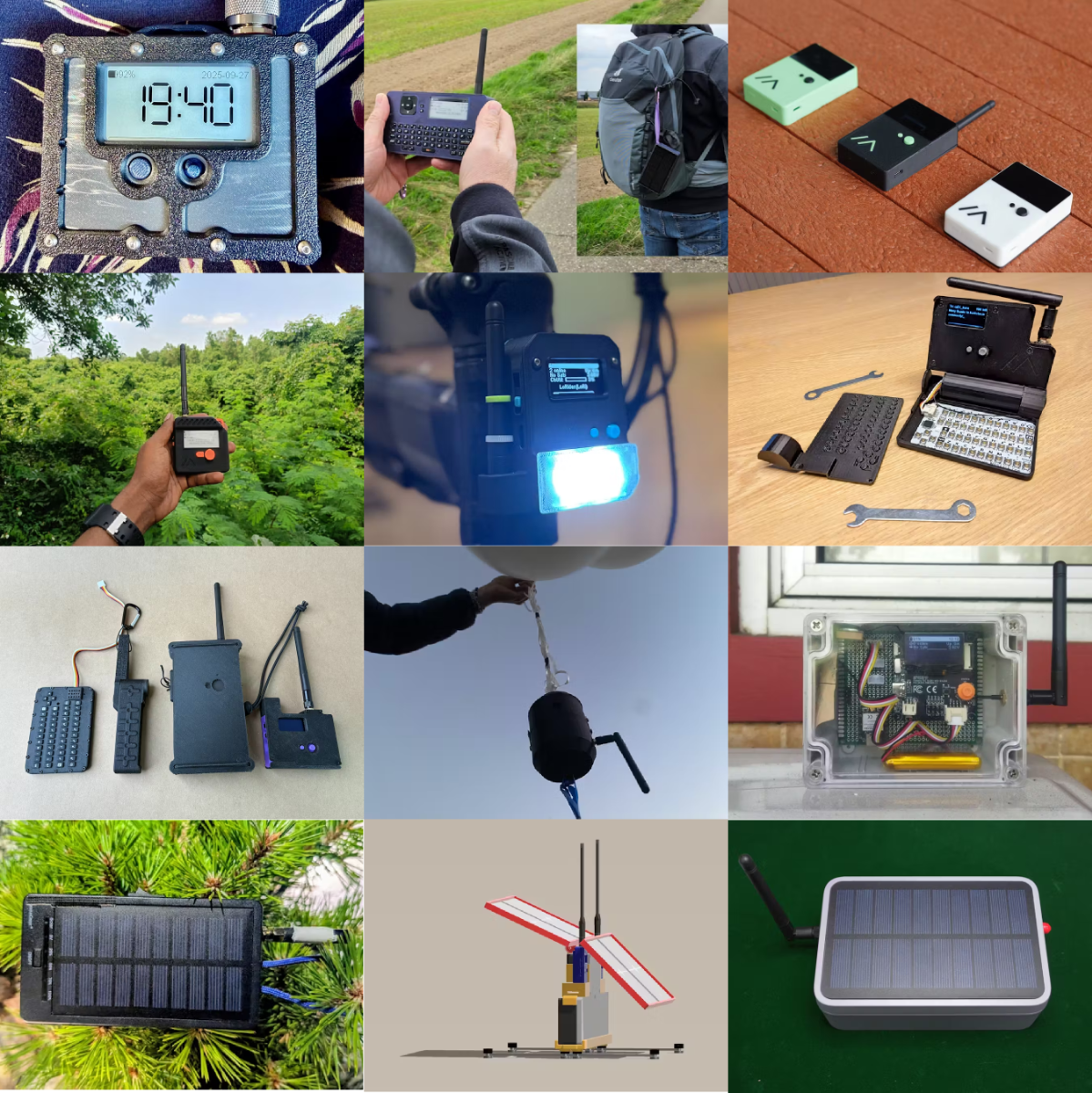

Explore what our community has built!
Discover all the amazing projects from the Meshtastic Device Design Challenge — powered by Seeed and Hackster.io and Meshtastic.
See how community members around the world used Wio Tracker L1 Series to bring their creative ideas to life.
[View All Community Projects]
Application
Documents
(V1)Wio Tracker L1 Pro 3D - Shell Reference Document
(V2 New Four-way Joystick) Wio Tracker Ll Pro 3D-Shell Reference Document
WioTrackerL1CECertification
WioTrackerL1FCCCertification
Seeed Wio Tracker L1 Power Consumption Test and Battery Life Calculation
Part List
Wio Tracker L1 Board | x1 |
2.13 inch E-Ink Display | x1 |
60mm RF Cable(RP-SMA Female to IPEX) | x1 |
LoRa Antenna | x1 |
GPS Antenna | x1 |
24P 0.5mm FPC Connector | x1 |
24P FFC Cable | x1 |
