Product Description
E-Ink ePaper reTerminal EInk Display Screen DIY Customizable Dash Board ESP32S3 TRMNL BYOD Home Assistant Arduino
E-Ink ePaper reTerminal EInk Display Screen DIY Customizable Dash Board ESP32S3 TRMNL BYOD Home Assistant ArduinoreTerminal E1001 is a 7.5 inch (E1002 =7.3 inch)open-source ePaper display with up to 3-month battery life. Powered by ESP32-S3, it natively supports our SenseCraft HMI no-code UI platform for effortless dashboard creation, while supporting Home Assistant, TRMNL E-ink dashboard, Arduino and ESP-IDF for further development. Whether for smart home dashboard visualization, office displays, or educational projects, this ready-to-use HMI device delivers beautiful visuals and flexible customization in one elegant package.FeatureNote:
The reTerminal E Series Display supports SenseCraft HMI by default firmware. If you need to re-flash the TRMNL Dashboard firmware, you need to purchase a separate TRMNL software license (https://shop.usetrmnl.com/products/byod).
The SenseCraft HMI platform is now in the beta trial stage, and the functions will be continuously improved. At present, there is a limit to the number of AI generation and UI generation.
Beautiful, Ready-to-Use ePaper Display
The reTerminal E1001 comes fully assembled as anHMI (Human Machine Interface)in a sleek, durable enclosure, featuring an integrated7.5Inch800×480 monochrome ePaper display. Powered by Espressif’s ESP32-S3, it delivers stunning visual performance straight out of the box—no extra setup required.
Ultra-Low Power with 3-Month Battery Life
Equipped with a built-in 2000mAh battery and engineered for maximum power efficiency, the reTerminal E1001 runs for up to 3 months on a single chargein deep sleep mode (6-hour refresh interval). Place it anywhere—on your desk, mounted on a wall, or in any space—without worrying about frequent recharging.
No-Code UI Design & Deployment with SenseCraft HMI

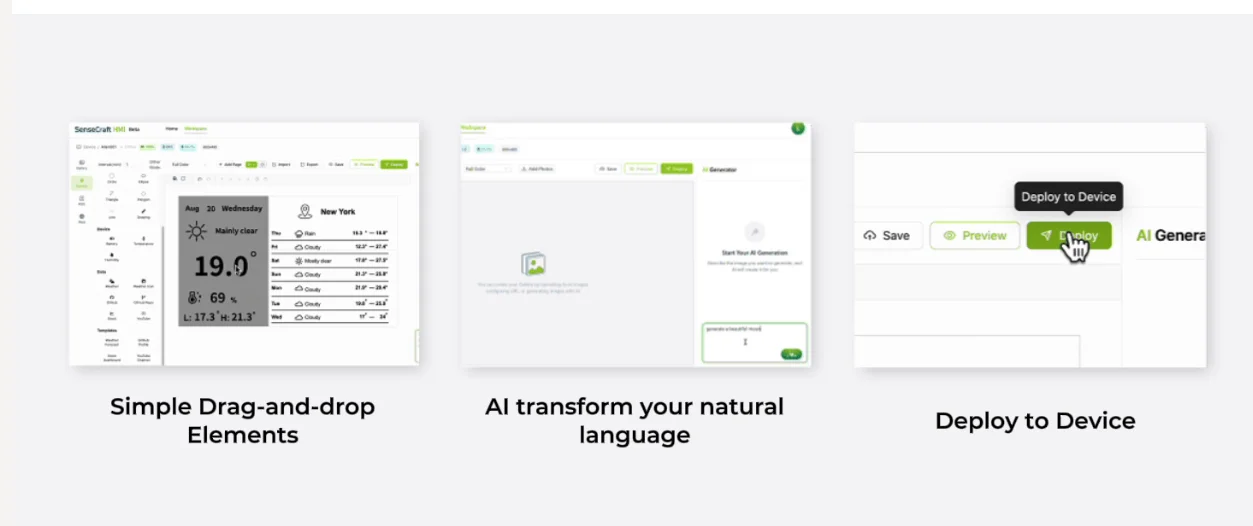

Design and deploy personalized dashboards effortlessly withSenseCraft HMI, our new AI-powered no-code platform. Create your UI through simple drag-and-drop elements, choose from our rich templates, or let AIhelpyou. Connect real-time data from onboard sensors or web APIs, then deploy your finished dashboard to reTerminal E1001/E1002display with just a few clicks. From design to data configuration to deployment, everything happens seamlessly on one single platform.
Works with Popular Software Platforms
Enjoy seamless compatibility with multiple software ecosystems.Create no-code TRMNL Dashboards with 300+ pluginsfor everyday and work data, connect instantly toHome Assistant via ESPHomefirmware, ordevelopingyourcustomizedapplications usingArduino, PlatformIOorESP32-IDFenvironment.
Flexible Hardware & Software Customization
Leveraging Seeed Studio’s extensive OEM/ODM expertise, the reTerminal E10E1001/E1002can be customized to fit your exact needs. Whether you require specific sensors, modified I/O configurations, or tailored UI designs, it’s built to adapt—ideal for industrial, educational, or personal use.
SpecificationProduct Name | reTerminal E1001 | reTerminal E1002 |
Processor | ESP32-S3with8MB PSRAM | |
Storage | 32MBFlash,supportMicroSDcard | |
Display | 7.5" Monochrome | 7.3"FullColor |
Resolution | 800x480Pixels | |
Micro SD Card | Maximum support 32GB SD card, FAT32 format | |
Wireless Connectivity | 2.4GHz 802.11 b/g/n Wi-Fi, Bluetooth 5.0 | |
Sensors | Temperature,humiditysensors | |
Microphone | Reservedforvoiceinteractionapplication | |
Buzzer | Buzzerforsoundalert | |
Battery | 2000mAh | |
Power Input | USB-C5V/1A | |
Software | DefaultfirmwaresupportSenseCraft HMI(SenseCraft HMI) | |
SupportESPHomefirmwareforHome Assistant | ||
SupportArduino/PlatformIO/ESP-IDFdevelopmentplatform | ||
WorkingTemperature | 0-40°C | |
Dimensions | 176mm*120mm*53mm(With Stand)/17mm(Without Stand) |
ePaper Device Comparison
ePaper Displays in Comparison | reTerminal E1001 | reTerminal E1002 | |
Display | Size | 7.5'' | 7.3'' |
Color | Monochrome | Full-color | |
Resolution | 800×480 | 800×480 | |
Partial Refresh | ✅ | ❌ | |
Refresh Rate | 2-5s | 12-15s | |
MCU | ESP32-S3 | ESP32-S3 | |
Enclosure | Metal | Metal | |
SD Card Support | ✅ | ✅ | |
Battery | Capacity | 2000mAh | 2000mAh |
Monitoring | ✅ | ✅ | |
Expansion Interfaces | UART & I2C | UART & I2C | |
Compatible Software | SenseCraft HMI Home Assistant/ESPHome TRMNL Arduino EEZ Studio | SenseCraft HMI Home Assistant/ESPHome TRMNL Arduino Sqaureline Vision EEZ Studio | |
Certifications | FCC/CE/MIC Radio/ROHS | FCC/CE/MICRadio/ROHS |
Desktop Personal Assistants：Track your personal calendars, notifications, weather, or news feed as a stylish, energy-efficient alternative to tablets.
Home Automation Dashboards：Display real-time smart home data like temperature, humidity, and air quality via Home Assistant.
Smart Office Displays：Show meeting room availability, office schedules, or directional guidance in low-power, always-on ePaper displays.
Retail & Public Information Displays：Low-power ePaper signs for menus, schedules, or occupancy indicators with long battery life.
Education & Rapid Prototyping：An ideal platform for developers and students to learn IoT, embedded systems, and no-code UI design, while quickly prototyping and testing sensors, modules, or custom dashboards.
reTerminal E1001/E1002 ePaper Display | X1 |
USBType-Ccable | X1 |
Displaystandwithscrew | X1 |
Screwdriver | X1 |
