LoRa module 868 915 mhz -Wio-E5 Dev Kit - STM32WLE5JC, ARM Cortex-M4 and SX126x

Product Description

Features

🌱High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.

🌱Long Distance Use:158dB link budget.

🌱Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan.

🌱Use-friendly: It features fully lead out GPIOs, rich interfaces including RS-485, Grove, and etc, as well as convenient RESET and BOOT buttons on board.

🌱FCC, CE, IC and Telec Certified

Description

LoRa-E5 Dev Kit features an ultra-long transmitting range, extremely low chip power consumption, and user-friendly interfaces. LoRa-E5 Dev Kit also has rich interfaces. Developed to unlock the full functionality of the LoRa-E5 module, It has led out full 28 pins of LoRa-E5 and provides with rich interfaces including Grove connectors, RS485, male/female pin headers for you to connect sensors and modules with different connectors and data protocols, saving your time on wire soldering. You could also easily power the board by connecting the battery holder with 2 AA batteries, enabling temporary use when lacking an external power source. It is a user-friendly board for easy testing and rapid prototyping.

Since LoRa-E5 is a LoRaWAN chip with an MCU, there are three main ways to utilize the LoRa-E5 Dev Board:

Connect LoRa-E5 Dev Board to PC via USB and control by AT commands

There is a built-in USB to UART function on board, you could just simply connect the LoRa-E5 Dev Board to your PC with a USB type C cable, and use serial communication software to send AT commands and read data from the board

Connect LoRa-E5 Dev Board to another mainboard via UART and control by AT commands

For example, connect LoRa-E5 Dev Board to Seeeduino XIAO and the Expansion Board via UART, send AT commands and read data from Seeeduino XIAO through Arduino IDE serial monitor.

Develop user applications by using SDK

Develop your own LoRa development board with MCU function by using STM32Cube Programmer, which is the SDK officially provided by STMicroelectronics. To download this SDK resource, please click here.

With all the outstanding features listed above, the LoRa-E5 Dev Board will be a superior choice for IoT device development, testing, prototyping, and applications in long-distance, ultra-low power consumption IoT scenarios like smart agriculture, smart office, and smart industry. Additionally, the module has already been certificated, so your completed device can be certified and approved by any agency cheaply and rapidly.

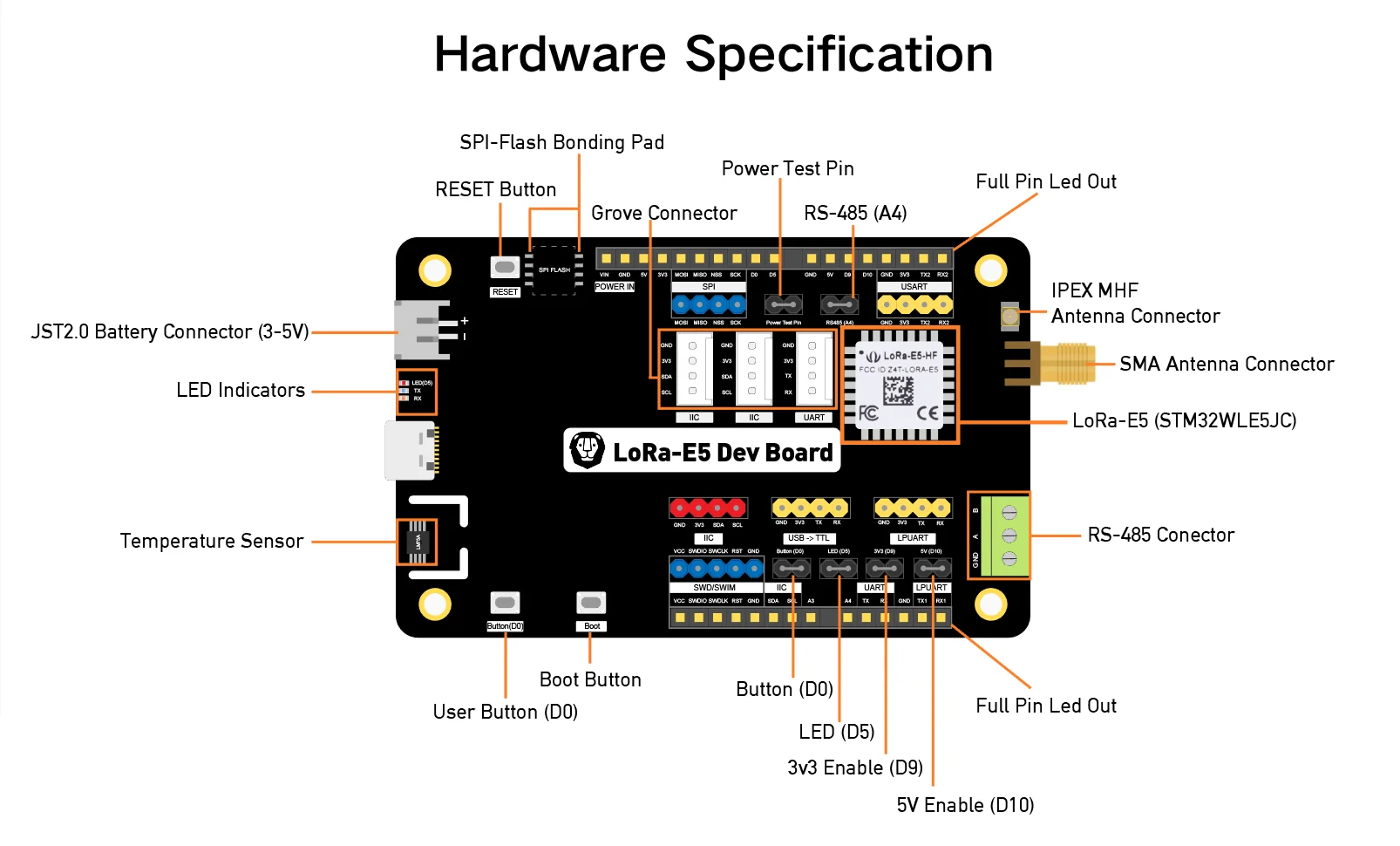

Hardware Overview

Applications

Development Tools

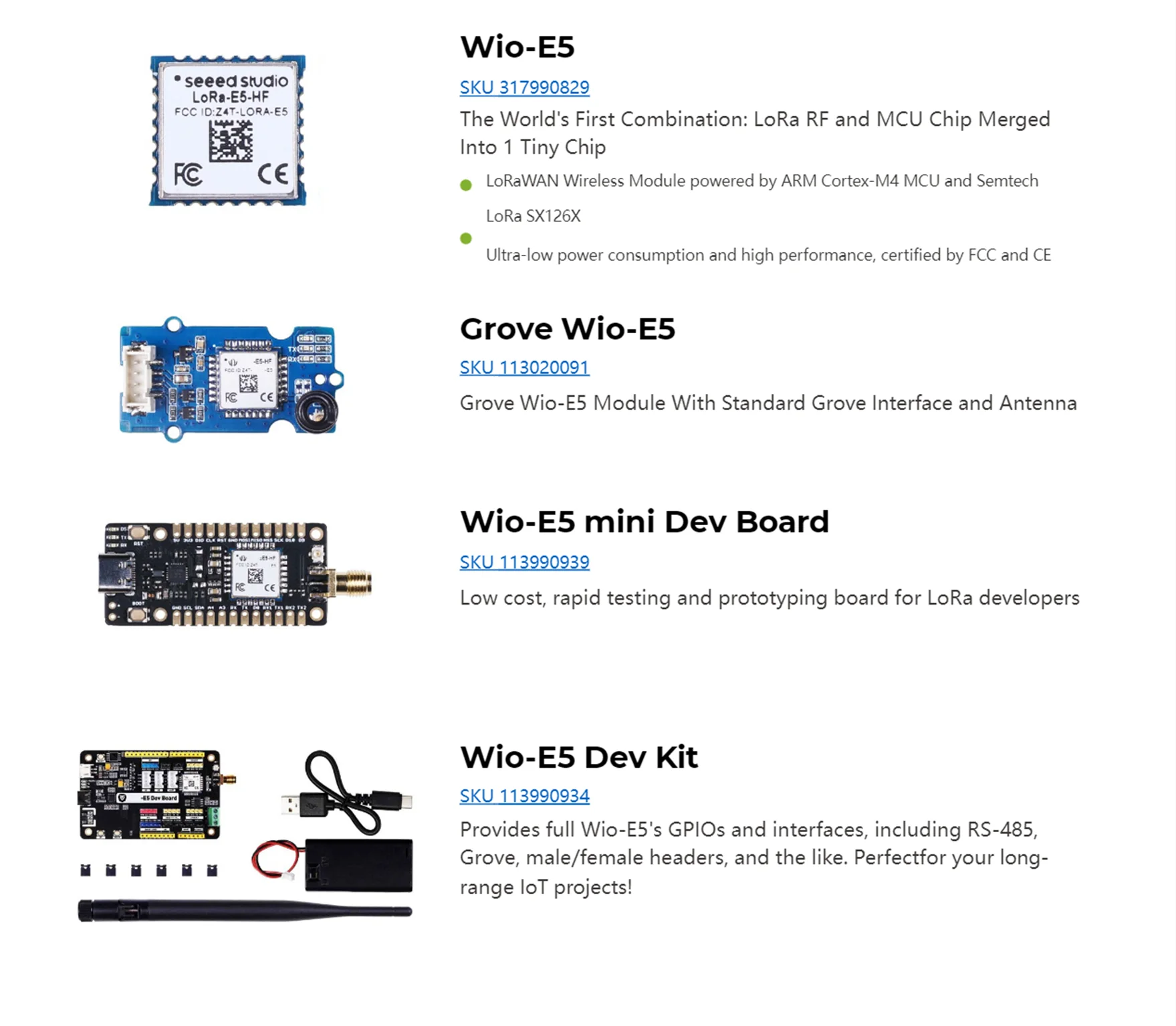

To facilitate your development, we have designed Wio-E5, Grove Wio-E5, Wio-E5 mini Dev Board, Wio-E5 Dev Kit that you can choose according to your needs to speed up your project development.

Part List:

• LoRa-E5 Dev Board *1

• Antenna(EU868/US915) *1

• USB TypeC (20cm) *1

• 2*AA 3V Battery Holder *1
