Product Description

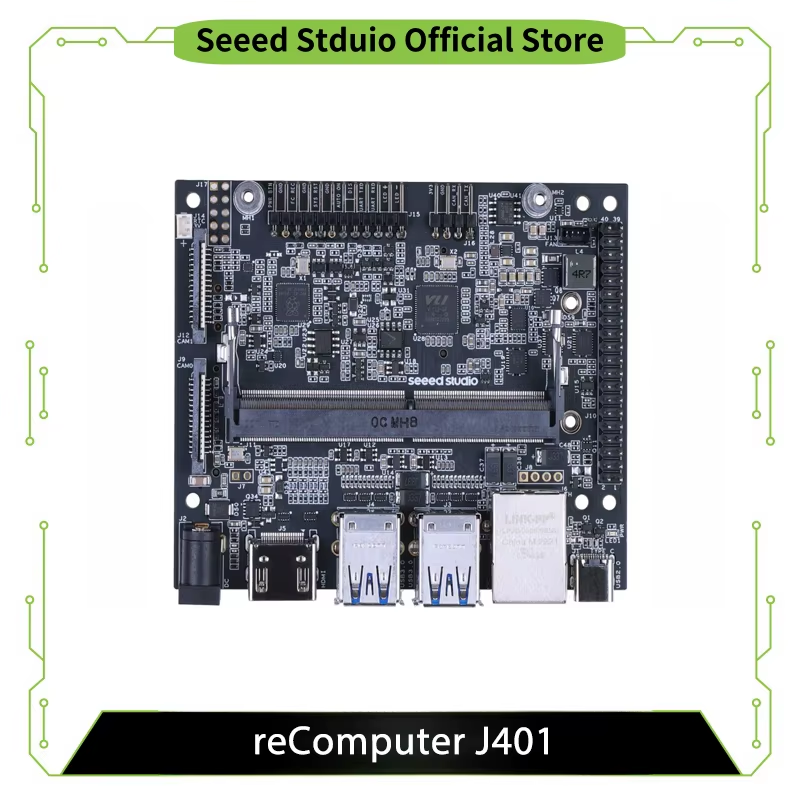

Jetson Orin Nano/Orin NX - reComputer J401 - Open-source carrier board for Jetson Orin Nano/Orin NX (without power adapter)
Jetson Orin Nano/Orin NX - reComputer J401 - Open-source carrier board for Jetson Orin Nano/Orin NX (without power adapter)Feature
Note
If you are looking for the version with power adapter, please check out reComputer J4012 with power adapter
Specification
Carrier Board | ||
Storage | 1xM.2 Key M (connector to Support 2280 NVMe SSD) | |
Networking | Ethernet | 1x RJ-45 Gigabit Ethernet (10/100/1000M) |
M.2 KEY E | 1xM.2 Key E for WiFi/Bluetooth module | |
I/O | USB | 4x USB 3.2 Type-A (10Gbps),1x USB2.0 Type-C (Device Mode) |
Camera | 2xCSI (2-lane 15pin) | |
Display | 1xHDMI 2.1 | |
Fan | 1x4 pin Fan Connector (5V PWM) | |
CAN | 1x CAN | |
Multifunctional Port | 1x 40-Pin Expansion header 1x 12-Pin Control and UART header | |
RTC | 1xRTC 2-pin,supports CR1220 but not included | |
Power | 9-19V DC | |
Mechanical | Dimensions (W x D) | 100mm x80mm |
Installation | Desk, wall-mounting | |
Operating Temperature | -10℃~60℃ |
Hardware Overview
Application
Application Fields:
AI Video Analytics
Machine Vision
Autonomous Mobile Robot (AMR)
Generative AI
Documents
reComputer J401 Carrier Board Datasheet:
NVIDIA Jetson Device and Carrier Boards Comparison:
Seeed NVIDIA Jetson Product Catalog:
J401 carrier board open-source file:
Part List
reComputer J401 Carrier Board | x1 |
