Product Description

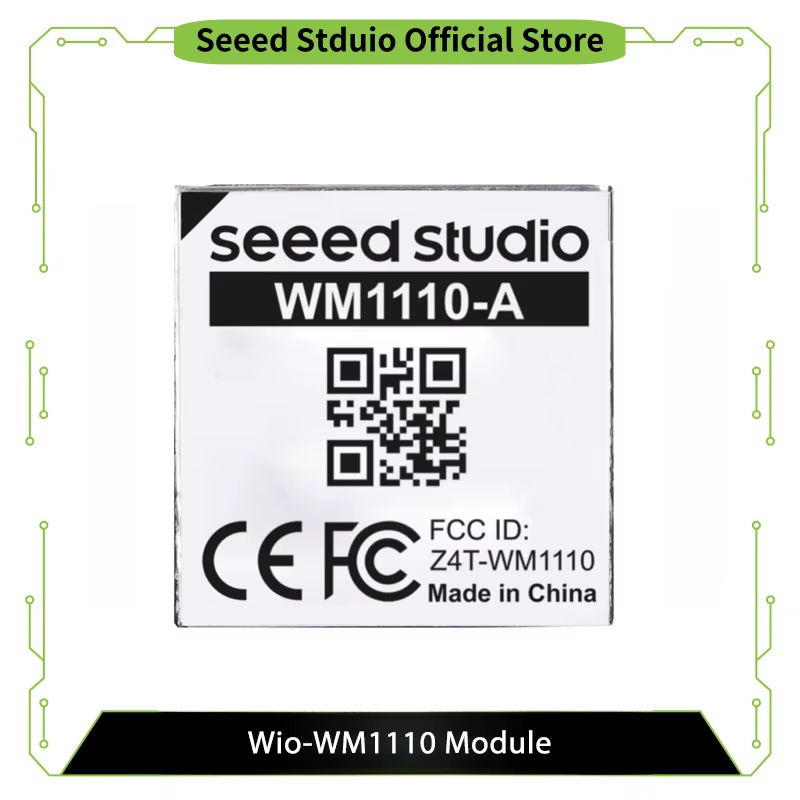

Wio-WM1110 Module (LR1110 and nRF52840)
Wio-WM1110 Module (LR1110 and nRF52840)Features
🌱Low-Power High-Sensitivity LoRaWAN® Network: Support the global LoRaWAN® frequency plan
🌱Multi-Purpose Radio Front-End Targeting Geolocation Purposes: GNSS (GPS/ BeiDou)、Wi-Fi、Bluetooth, suitable for indoor and outdoor positioning
🌱Nordic nRF52840 Bluetooth 5.3 SoC: Support Bluetooth Low Energy, Bluetooth mesh, NFC, Thread, and Zigbee
🌱Low-power consumption: 6 μA in sleep mode
🌱FCC, CE, Telec Certified
Description
Wio-WM1110 module is embedded with high-performance Semtech LR1110 and Nordic nRF52840, providing developers with low-power, long-range LoRaWAN® communication, and covering the global frequency band, making it highly versatile and adaptable to various low-power wide-area IoT scenarios like smart agriculture, wireless meter reading, and smart city applications.
The Wio-WM1110 module also utilizes GNSS (Global Navigation Satellite System) tracking for outdoor applications, additionally, the Wi-Fi passive scanning and Bluetooth mesh are suitable for the IPS(Indoor Positioning System), providing all-around location coverage while reducing complexity and cost. It's a perfect development platform for asset tracking、inventory management、asset loss and theft prevention, etc. Learn more about the LoRa Edge™ LR1110 solution.
Wio-WM1110 module has been perfectly applied to SenseCAP S2120 8-in-1 LoRaWAN Weather Sensor and has been widely used in smart agriculture、urban weather,etc. The weather sensor collects air temperature, humidity, wind speed/direction, rainfall intensity, light intensity, UV index, and barometric pressure data and uploads them via LoRaWAN®, provides you with hyperlocal weather at your fingertips.
Schematic diagram
Specification
LoRa and Positioning (Semtech LR1110)
LoRaWAN®Protocol | V1.0.4 |
Frequency | 863~928MHz |
Sensitivity | -125dBm @125K/SF7 -141dBm @125K/SF12 |
Output Power | 20dBm max @LoRa |
Positioning Technology | GNSS(GPS/BeiDou), WiFi |
Range | 2~10km (Depends on antenna and environment) |
Bluetooth(Nordic nRF52840)
Bluetooth | Bluetooth 5.3 |
Flash | 1MB |
RAM | 256KB |
Protocol | Bluetooth LE, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks |
Output Power | 6dBm max @Bluetooth |
General
Power Supply | 1.8~3.7V (3.3V typical ) | |
Sleep Current | 7.6uA (WDT on) | |
Operation Current (Transmitter) | 125mA @ LoRa TX 22dBm | |
Operation Current (Receiver) | 10mA @ LoRa SF12 125kHz 7mA @ Bluetooth Scan 7mA @ WiFi Scan | |
Operating Temperature | -40°C ～ 85°C | |
Interface | RFIO | Bluetooth Antenna x1 WiFi Antenna x1 GNSS Antenna x1 LoRa Antenna x1 |
NRST | Manual reset | |
SWD | Include 2 pins | |
NFC | x1 | |
USB 2.0 | x1 |
Part List
WM1110 Module x1
