Product Description

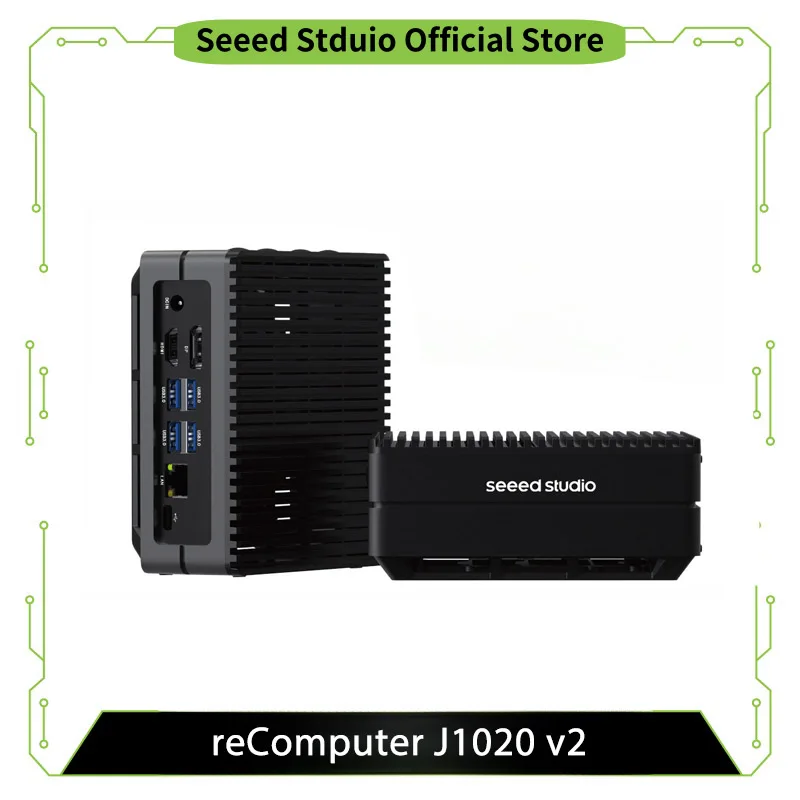

reComputer J1020 v2 - Edge AI Computer with NVIDIA® Jetson Nano 4GB, 16 GB eMMC, 2x SCI, 4x USB 3, M.2 Key M, HDMI, and DP.
reComputer J1020 v2 - Edge AI Computer with NVIDIA® Jetson Nano 4GB, 16 GB eMMC, 2x SCI, 4x USB 3, M.2 Key M, HDMI, and DP.Feature
Note
The official NVIDIA Jetson Nano Developer Kit has reached EOL and is no longer available for purchase. We recommand you check out this reComputer J10 full system as a replacing choice for Jetson Nano developer Kit.
If use some GPIO libraries that causes floating voltage 1.2V~2V , GPIO issues on the carrier board could happen as the normal voltage should be 3V. This is a common situation on the carrier boards, for both the reComputer series and official Nvidia Jetson developer kit. Thus, aftersales / warrenty does not come into effect regarding this isssue. For further information, refer to NVIDIA official document.
If you are looking for the version without power adapter, please check out reComputer J1020v2 without power adapter.
Specification
Jetson Nano 4GB System on Module | ||
Al Performance | Jetson Nano 4GB - 0.5 TOPS | |
GPU | NVIDIA Maxwel™ architecture with 128 NVIDIA CUDA® cores | |
CPU | Quad-core ARM Cortex-A57 MPCore processor | |
Memory | 4 GB 64-bitLPDDR425.6 GB/s | |
Video Encoder | 1x 4K30 | 2x1080p60 | 4x1080p30 | 4x720p60 | 9x720p30(H.265 & H.264) | |
Video Decoder | 1x 4K60 | 2x 4K30 | 4x 1080p60 | 8x 1080p30 | 9x 720p60(H.265 & H.264) | |
Carrier Board | ||
Storage | 1x M.2 Key M PCIe | |
Networking | Ethernet | 1x RJ-45 Gigabit Ethernet (10/100/1000M) |
I/O | USB | 4x USB 3.0 Type-A ； 1x Micro-USB port for device mode |
Camera | 2xCSI (2-lane 15pin) | |
Display | 1x HDMI Type A; 1x DP | |
Fan | 1x4 pin Fan Connector (5V PWM) | |
Multifunctional Port | 1x 40-Pin Expansion header 1x 12-Pin Control and UART header | |
Power | DC Jack 12V/2A | |
Mechanical | Dimensions (W x D x H) | 130 mm x 120 mm x 50 mm(with case) |
Installation | Desk, wall-mounting | |
Operating Temperature | 0℃ ~ 60℃ |
Hardware Overview
reComputer J202 carrier board, included in the full system - reComputer J1020 v2
Desktop, Wall Mount, Expandable, or Fit in Anywhere
Application
Application Fields:
Computer Vision
Machine Learning
Autonomous Mobile Robot (AMR)
Documents
reComputer J1020 v2 datasheet:
reComputer J1020 v2 3D file:
Seeed NVIDIA Jetson Product Catalog:
NVIDIA Jetson Device and Carrier Boards Comparison:
Part List
reComputer J1020 v2 (System Installed) | x1 |
12V/2A power adapter (with 5 interchangeable adapter plugs) | x1 |
*We will not include a 3V RTC battery |
