Product Description

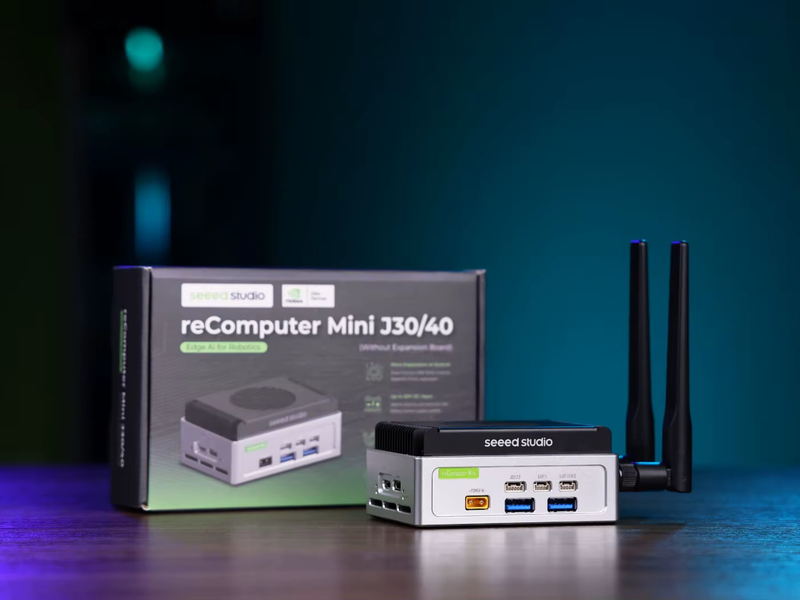

reComputer Mini J4012，J3011
reComputer Mini J4012，J3011Feature
🌱Brilliant AI Performance for Production: Achieves up to 40 TOPS AI performance with low power and latency, built by NVIDIA Orin Nano SoC combining the NVIDIA Ampere™ GPU architecture and a 6-core ARM CPU, integrated advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.
🌱Hand-Size Edge AI Device: Compact size at 63mm x 95mm x 42mm, featuring an NVIDIA Jetson Orin Nano 8GB module, Mini J401 carrier board, fan and enclosure. Support desktop and wall mounting.
🌱Expandable with Rich I/Os: Includes up to 4 x USB, DP 1.4, M.2 Key E, M.2 Key M. More extension possibilities of 4 x 3.0 USB, dual CAN, and RJ-45 GbE can be found at reComputer J3011 with extension.
🌱Accelerate Solutions to Market: Pre-installed JetPack 6.1.1 on 128GB NVMe SSD, Linux OS BSP, supporting Jetson software and leading AI frameworks.
🌱Scale to deploy: support OTA, remote management services powered by Allxon and Balena.
🌱Flexible Customization: inlcudes changing accessories modules, logo, and hardware interfaces modification based on reComputer Mini J3011 original design.
Specification
Jetson Orin System on Module | ||
AI Performance | reComputer Mini J4012 - Orin NX 16GB, 100 TOPS | reComputer Mini J3011- Orin Nano 8GB – 40 TOPS |
GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores | |
CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) | 6-core Arm® Cortex®-A78AE (Orin Nano 8GB) |
Memory | 16GB 128-bit LPDDR5 (Orin NX 16GB) | 8GB 128-bit LPDDR5 (Orin NX 8GB) |
Video Encode | 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265) | 1080p30 supported by 1-2 CPU cores |
Video Decode | 1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) | 1x 4K60 (H.265) 2x 4K30 (H.265) 5x 1080p60 (H.265) 11x 1080p30 (H.265) |
DL Accelerator | 2x NVDLA v2 | / |
Carrier Board | ||
Storage | 1x M.2 Key M PCIe (M.2 NVMe 2242 SSD 128G included) | |
Networking | M.2 KEY E | 1x M.2 Key E for WiFi/Bluetooth module |
I/O | USB | 2xUSB 3.2 Type-A (10Gbps); 1xUSB 2.0 Micro-B (Device Mode); 1x USB 3.2 Type-C (Host Mode); 1x USB 2.0 JST-5pin (Host Mode); |
UART | 1xUART 1xDebug Uart | |
Display | 1xDP 1.4 (included in Type-C conenctor) | |
Fan | 1x4 pin Fan Connector (5V PWM) | |
Button | 1xReset Button; 1xRecovery Button | |
Extension Port | 2x60 pin High Speed Connector (For extension board) 1x10 pin Power Connector (For extension board) | |
RTC | 1x RTC 2-pin | |
Power | 1xXT30 Connector (12-54V DC) | |
Mechanical | Dimensions (W x D x H) | 63mm x 95mm x 42mm (Without Extension) |
Weight | 345g (Without Extension) | |
Installation | Desk, wall-mounting | |
Operating Temperature | -10℃~50℃ | |
Warranty | 1 Year |
Hardware Overview
Part List
reComputer Mini J3011 | x1 |
Antenna | x2 |
xt30 to DC power connector | x1 |
