Product Description

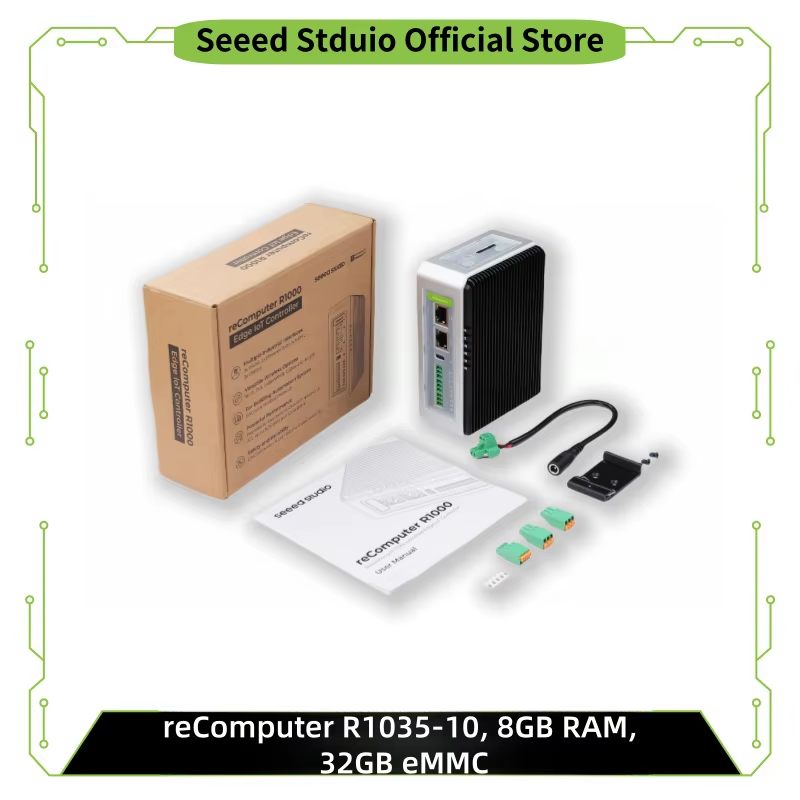

reComputer R1035-10 - Raspberry Pi IoT Gateway & Controller, CM4-Powered, AI Capable | 8GB RAM, 32GB eMMC
reComputer R1035-10 - Raspberry Pi IoT Gateway & Controller, CM4-Powered, AI Capable | 8GB RAM, 32GB eMMCFeatureNote
The R1000 has been upgraded to version 1.1. For detailed upgrade information, please refer to the Wiki:R1000_v1_1_description
Note
reComputer R1000 provides flexible IoT wireless communication(4G, LoRa®, Wi-Fi/BLE, Zigbee) and essentialfunctionalmodules (GPS, UPS, TPM2.0, PoE, SSD, etc.).
🌱Customize, Configure, and Engineer your own reComputer R1000.
🌱Check the accessory list and assembly guide.
🌱Upgrade it to an AIoT gateway with Raspberry Pi AI kit.
Parameter | Description |
Hardware Spec | |
Product Series | R1000 |
CPU | Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz |
Operating System | Raspbberry Pi OS, Ubuntu |
RAM | 8GB |
eMMC | 32GB |
System Spec | |
Input | 2-pin Terminal Block |
PoE | IEEE 802.3af Standard 12.95W PoE* |
Supply Voltage(AC/DC) | 12~24V AC/9~36V DC |
Overvoltage Protection | 40V |
Power Consumption | Idle:2.88W; Full Load:5.52W |
Power Switch | No |
Reboot Switch | Yes |
Interface | |
Ethernet | 1 x 10/100/1000 Mbps (supports PoE*) |
1 x 10/100 Mbps IEEE802.3/802.3u | |
USB | 2 x USB-A 2.0 Host |
1 x USB-C 2.0 (For flashing OS) | |
RS485 | 3 x 3-pin Terminal Block (isolated) |
HDMI | 1 x HDMI 2.0 |
SIM Card Slot | supports Standard SIM Card |
M.2 Slot | supports M.2 NVMe SSD |
LED | 6 x LED indicators |
Buzzer | 1 |
Reset Button | 1 |
HDMI | 1 x HDMI 2.0 |
Wireless Communication | |
LoRa® | USB LoRa®*/SPI LoRa®* |
4G Cellular | 4G LTE* |
Zigbee | USB Zigbee* |
Standards | |
EMC | ESD: EN61000-4-2, Level 3 |
EFT: EN61000-4-4, Level 2 | |
Surge: EN61000-4-5, Level 2 | |
Certification | CE, FCC |
TELEC | |
RoHS | |
Ambient Conditions | |
Ingress Protection | IP40 |
Operating Temperature | -30~70 °C |
Operating Humidity | 10~95% RH |
Storage Temperature | -40~80 °C |
Others | |
Supercapacitor UPS | SuperCAP UPS LTC3350 Module* |
Hardware Watchdog | 1~255s |
RTC | High Accuracy RTC |
Security | Encryption Chip TPM 2.0* |
ATECC608A | |
Heat Dissipation | Fanless |
Warranty | 2 years |
Production Lifetime | Until at leaset December 2030 |
Statement | Options marked with * require additional purchase according to the accessories list. |
The reComputer R1000 boasts up to 8GB RAM for processing numerous data points efficiently, along with multiple isolated RS485 channels, versatile interfaces and various wireless communication protocols.
🌱Mini-PCIe1 Slot: Supports 4G LTE, USB LoRa®, USB Zigbee modules.
🌱Mini-PCIe2 Slot: Supports SPI LoRa®, USB LoRa®, USB Zigbee modules.
🌱3x RS485 (isolated) Supports serial communication with isolation for enhanced safety.
🌱1x 10M/100M/1000M Ethernet: Supports Power over Ethernet (PoE) for convenient power delivery over the network cable.
🌱1x 10M/100M Ethernet: Ethernet port for standard network connectivity.
🌱1x HDMI 2.0HDMI port for high-definition video output.
🌱2x Type-A USB 2.0: Standard USB ports for connecting peripherals or storage devices.
🌱1x Type-C USB 2.0: USB- port primarily used for updating the operating system and possibly other functions.
🌱1x SIM Card Slot: Slot for inserting a SIM card, typically used for cellular network connectivity.
🌱1x M.2 Slot: Slot for M.2 expansion cards, allowing for additional functionality or SSD storage option.
This hardware configuration offers a diverse range of connectivity options and expansion possibilities, suitable for various applications requiring communication, networking, and peripheral connections.
ApplicationThe application of the reComputer R1000 spans five key areas: First Look Guide, Industrial Edge, Fleet Management, Cloud Solutions, and Computer Vision. It integrates technologies such as NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core, and Ultralytics Computer Vision.
🌱Raspberry Pi CM4-Powered Intelligent Supermarket System
🌱Pose-based Light ControlSystemwith Node-Red & Raspberry Pi AI Kit
🌱MING Stack for Seamless IIoT Data Management
🌱FIN Framework for Smart Building Management
