Product Description

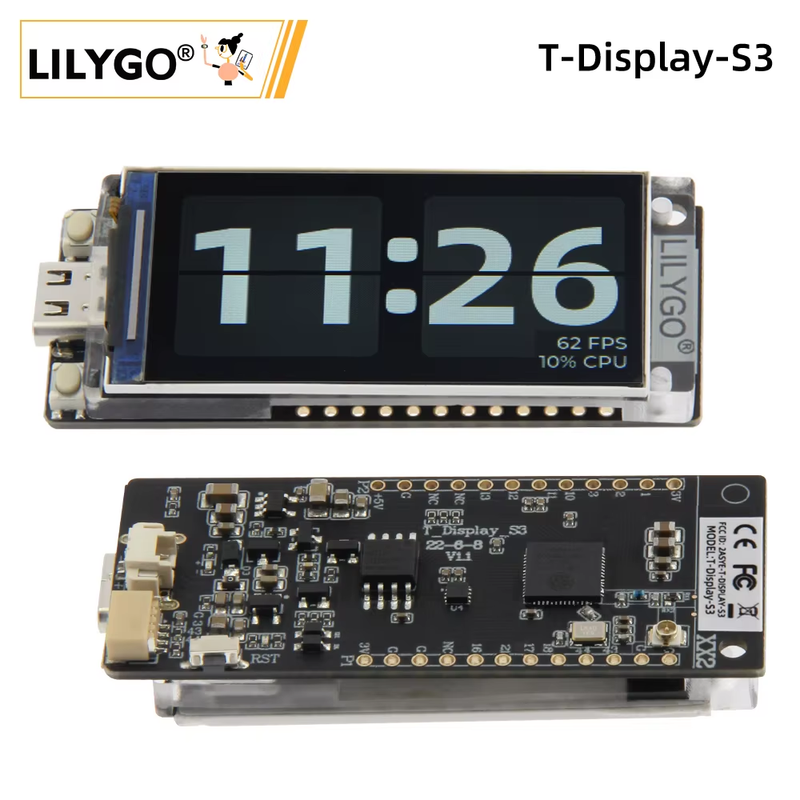

® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution
® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 ResolutionT-Display-S3 Introduction
Introducing the latest addition to the T-Display series - the T-Display-S3. Equipped with the latest ESP32-S3 and Bluetooth 5.0, this model boasts a larger 1.9 inch screen and features an acrylic plate for added stability.
The T-Display-S3 maintains the sleek and modern design of the T-Display series.
There are MIDI expansion boards for use with the T-Display S3
Connect it to headphones or a stereo and playback the simulated sound!
Compatible with T-Display S3 and .
⚠️[Please note that the package does not include the T-Display S3 device, only the MIDI Board; please select the appropriate version of the S3 to use with the MIDI Board according to your needs].
T-Display S3-MIDI
More Information
From YouTube's "" presentation:
Contribution from ""
What engineers have done with T-Display-S3
Car Dashboard/Controller, Game, Monitors....
Certification
"" "" "" ""
The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually.
Press and hold the BOOT button when the power is off, the button is located behind the RST button.
When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button
Please refer to the diagram for further instructions.
T-Display-S3 Specifications | |
MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
Flash | 16MB |
PSRAM | 8MB |
Wireless Connectivity | Wi-Fi 802.11 |
Bluetooth 5.0 + BT mesh | |
Programming Platform | Arduino-ide、Micropython |
Bat voltage detection | IO04 |
Onboard Functions | Boot+Reset+IO14 Button |
1.9 inch ST7789V IPS TFT LCD | |||
Drive Chip | ST7789 | Resolution | 170(H) x 320(V) |
Screen Size | 1.9" Diagonal | Interface | 8-Bit Parallel |
Screen Type | TFT IPS LCD | Pixels Per Inch(PPI) | 260 |
Screen Color | Full color | Color | White |
Support USB/Li-Po Battery Dual Power Supply | |||
|
T-Display-S3 | ||
No Soldering Pin | Soldering Pin | What's in the box? |
|
| 1 X T-Display-S3 |
2 X 2.54mm Male Pin (1*12P) | ||
1 X Power Cable 1.25mm 2P |
T-Display-S3 With Shell
T-Display-S3 With Shell | ||
Grey Shell | Black Shell | What's in the box? |
|
| 1 X T-Display-S3 With Shell |
2 X 2.54mm Female Pin (1*12P) | ||
2 X 2.54mm Male Pin (1*12P) | ||
1 X Power Cable 1.25mm 2P |
T-Display-S3-MIDI Shield
T-Display-S3 Shield ⚠ [Please note that the package does not include the T-Display S3 device, only the MIDI Board.] | ||
Only MIDI Shield | Not include the T-Display S3 | What's in the box? |
| 1 X Shield | |
1 X 2.54mm Male Pin (1*16P) | ||
2 X 2.54mm Male Pin (1*12P) | ||
3 X 2.54mm Male Pin (1*3P) | ||
1 X USB Type-C to USB Type-C |
