® TTGO T-PCIE ESP32 SIM Series Module WIFI Bluetooth Nano Card Composable ESP32-WROVER 4MB 16MB Wireless Development Board

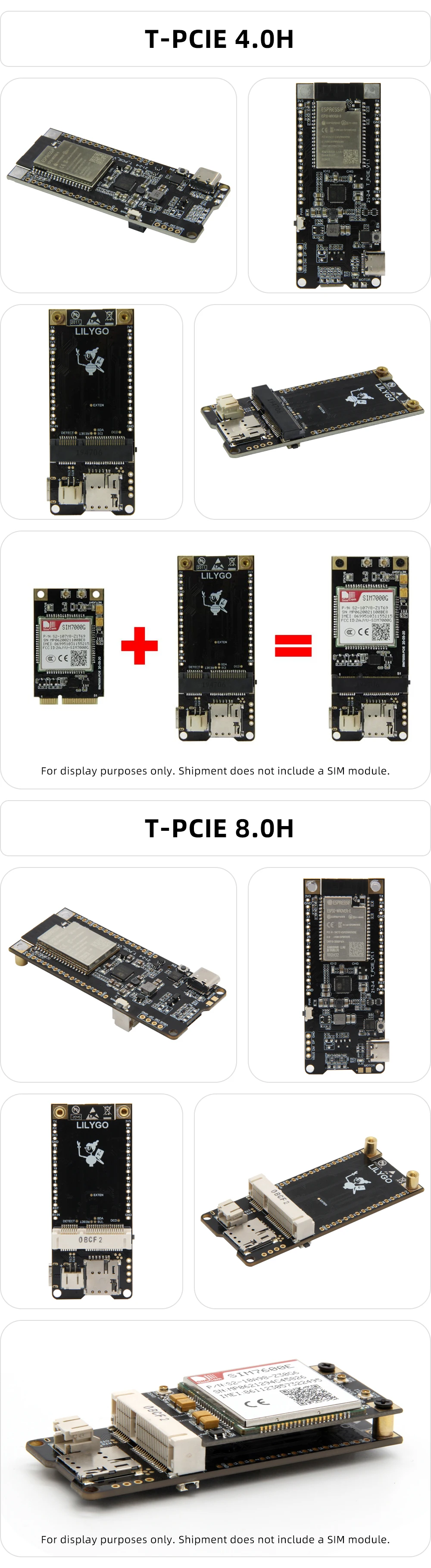

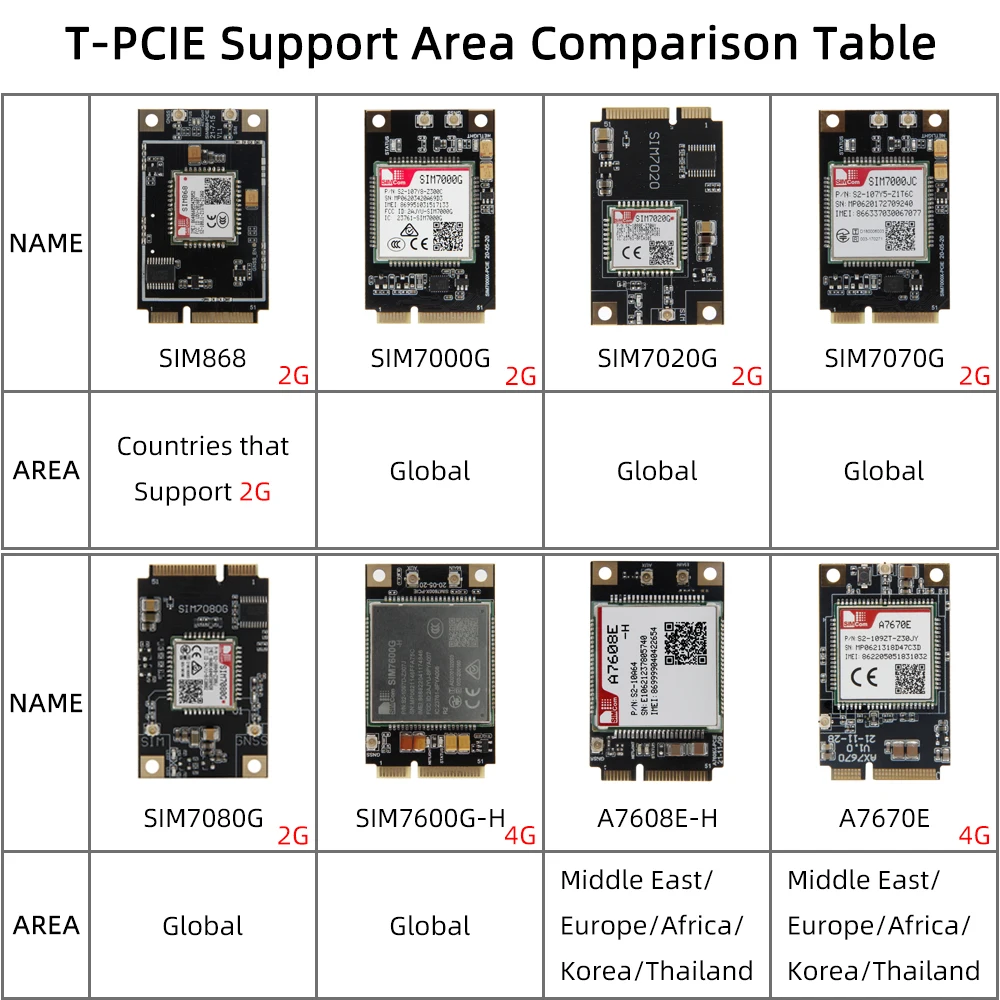

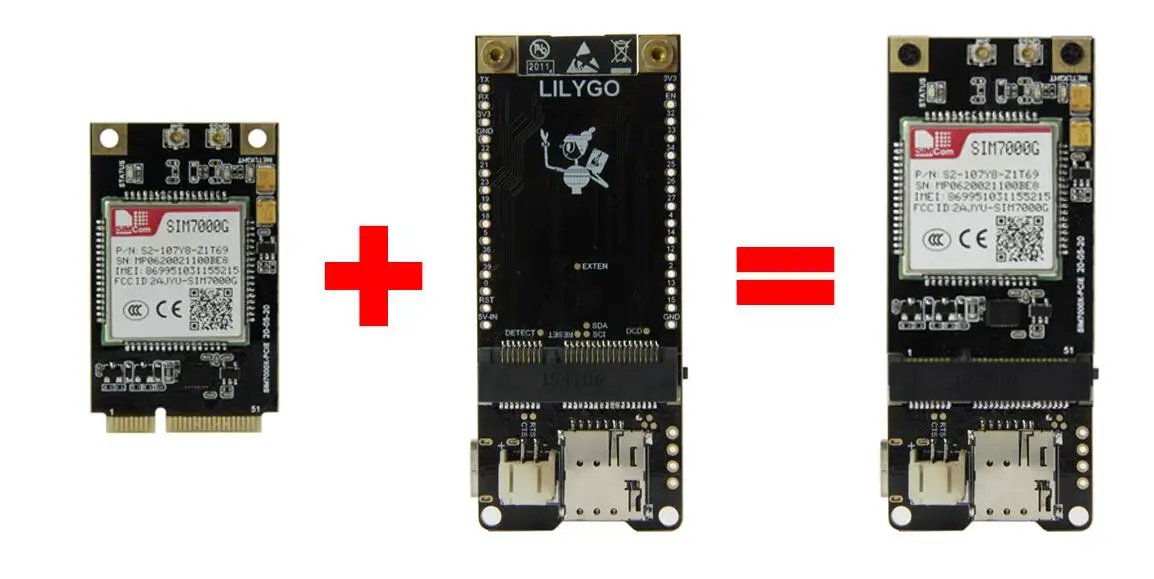

® TTGO T-PCIE ESP32 SIM Series Module WIFI Bluetooth Nano Card Composable ESP32-WROVER 4MB 16MB Wireless Development BoardT-PCIE IntroductionThis T-PCIE is equipped with a 4.0H socket, which is used to link the T-PCIE SIM module. We have many T-PCIE SIM modules, you can match freely, we have: SIM868, SIM7000X, SIM7600X, SIM7020X, SIM7070X,SIM7080X, A7608X-H, A7670X.
More Information:
Note:
For display purposes only. Shipment does not include a SIM module.
Hardware Specifications | |
Chipset | ESP32-WROVER-B/E(B and E are shipped randomly) AXP2101 Power Management Chip |
FLASH | 4MB/16M |
PSRAM | 8MB |
SRAM | 520 kB SRAM |
Button | PWR Power Switch,Reset |
USB to TTL | CH9102F |
On-board clock | 40MHz crystal oscillator |
Peripherals | SIM Nano Card Slot,Mini PCIE Card Slot |
Antenna | Onboard antenna(Default) |
Working voltage | 2.7V-3.6V |
Working current | - |
Sleep current | About 700uA |
Working temperature range | -40℃ ~ +85℃ |

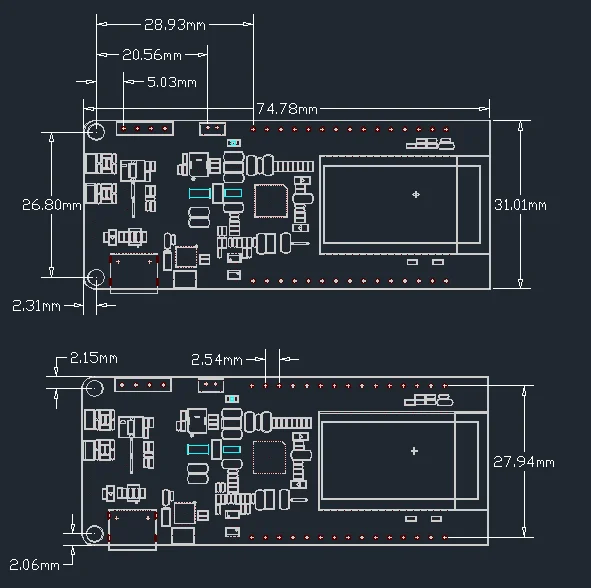

Size | 75*33*10.5mm |
Weight | 14.5g |
Power Supply Specifications | |
Power Supply Input | USB 5V/1A |
Charging current | 500mA |
Battery Input | 3.7-4.2V |
Charge IC | AXP2101 |
JST Connector | 2Pin 2.0mm |
USB | Type-C |
Wi-Fi | |
Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC (ESP32 Chip) |
Protocol | 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
Transmit Power | 22dBm |
Communication distance | 300m |
Bluetooth | |
Protocol | Meet bluetooth v4.2BR/EDR and BLE standard |
Radio frequency | With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
Audio frequency | CVSD&SBC audio frequency |
Software specification | |
Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
Encryption Type | AES/RSA/ECC/SHA |
Firmware upgrade | UART download/OTA（Through network/host to download and write firmware） |
Software Development | Support cloud server development /SDK for user firmware development |
Networking protocol | IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT |
User Configuration | AT + Instruction set, cloud server, android/iOSapp |
OS | FreeRTOS |

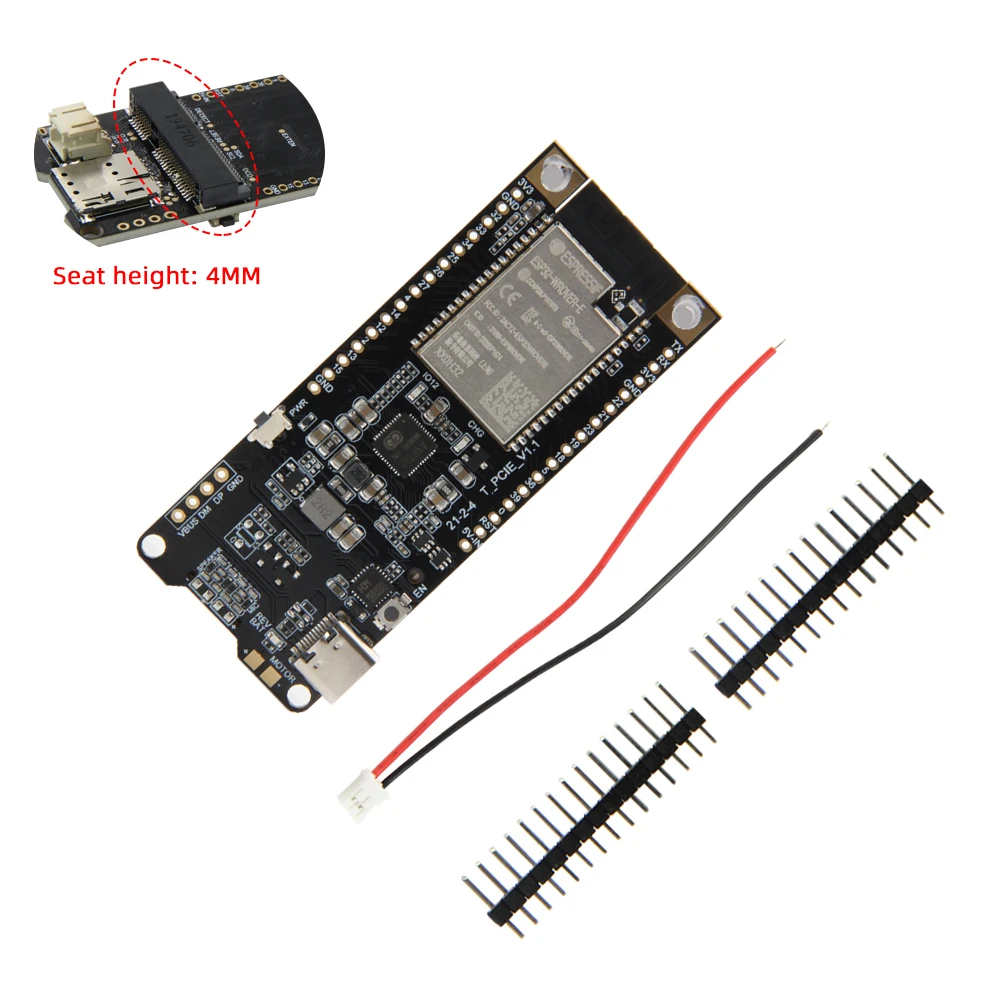

T-PCIE 4.0H CH9102 4/16MB Optiones
1 X T-PCIE 4.0H CH9102 4/16MB
1 X Charging Cable
2 X Pin

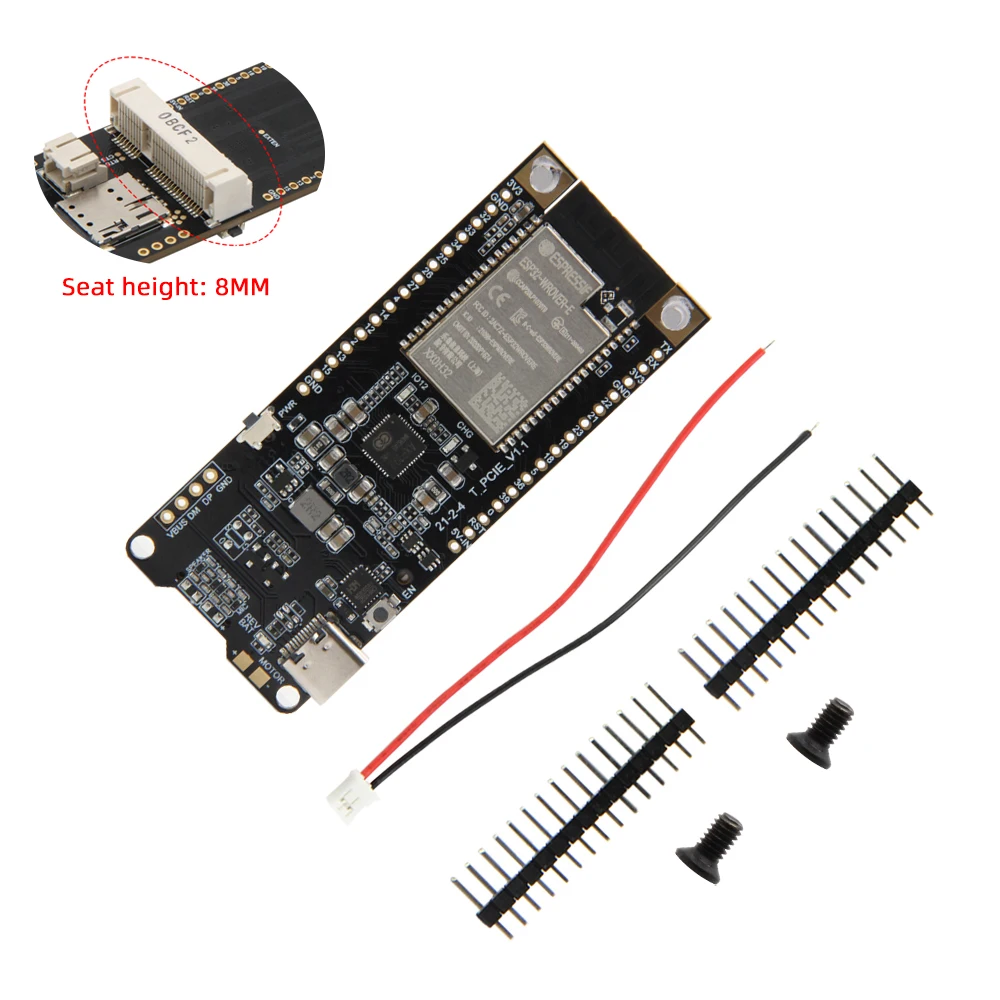

T-PCIE 8.0H CH9102 4/16MB Optiones
1 X T-PCIE 8.0H CH9102 4/16MB
1 X Charging Cable
2 X Pin
