Product Description
® T-QT Pro ESP32-S3 GC9107 0.85 Inch LCD Display Module Development Board WIFI Bluetooth Full Color 128*128 Screen
® T-QT Pro ESP32-S3 GC9107 0.85 Inch LCD Display Module Development Board WIFI Bluetooth Full Color 128*128 ScreenT-QT Introduction

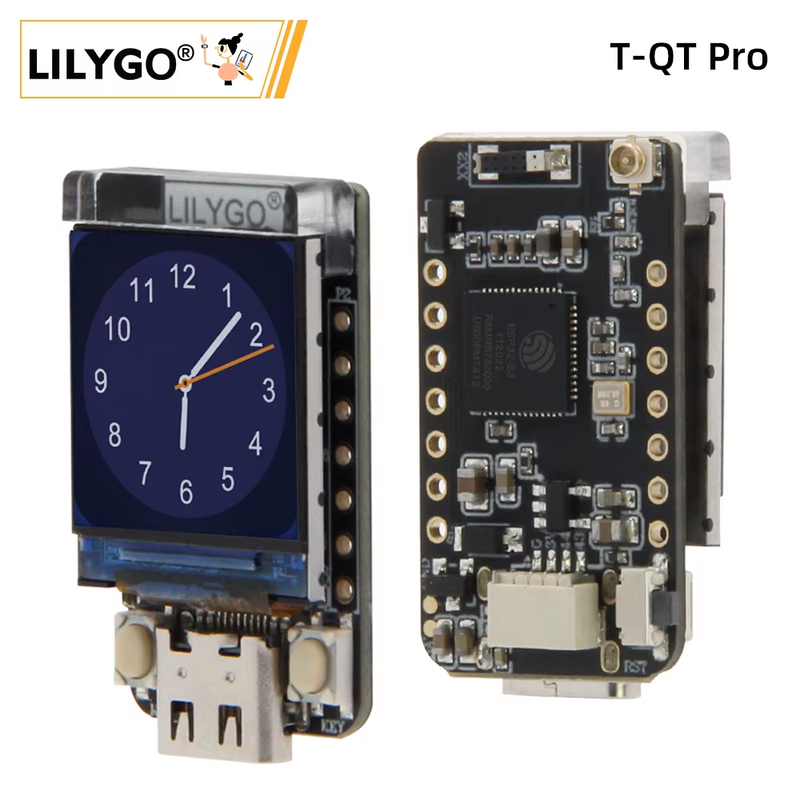

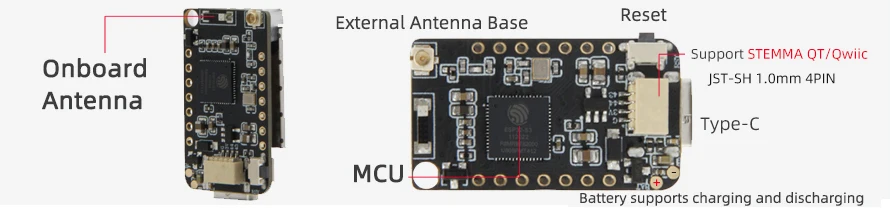

T-QT keeps the design style of T-Display, using 0.85 inch LCD Display equipped with ESP32-S3 main control chip, which is smaller in size on the basis of supporting WIFI and Bluetooth.
Innovative design: An acrylic plate is used to fix the screen to make the it more stable.
LILYGO® June 24, 2022
Sample Code For Reference [Github]If you need technical support please check the link to find more details.
MCU Clock Frequency: 240Mhz | |||
ESP32-S3FN4R2 | ESP32-S3FN8 | ||
Flash | 4MB | Flash | 8MB |
PSRAM | 2MB | PSRAM | - |
Wireless Connectivity | Wi-Fi 802.11 |
Bluetooth V5.0+BLE | |
Programming Platform | Arduino-ide / Micropython |

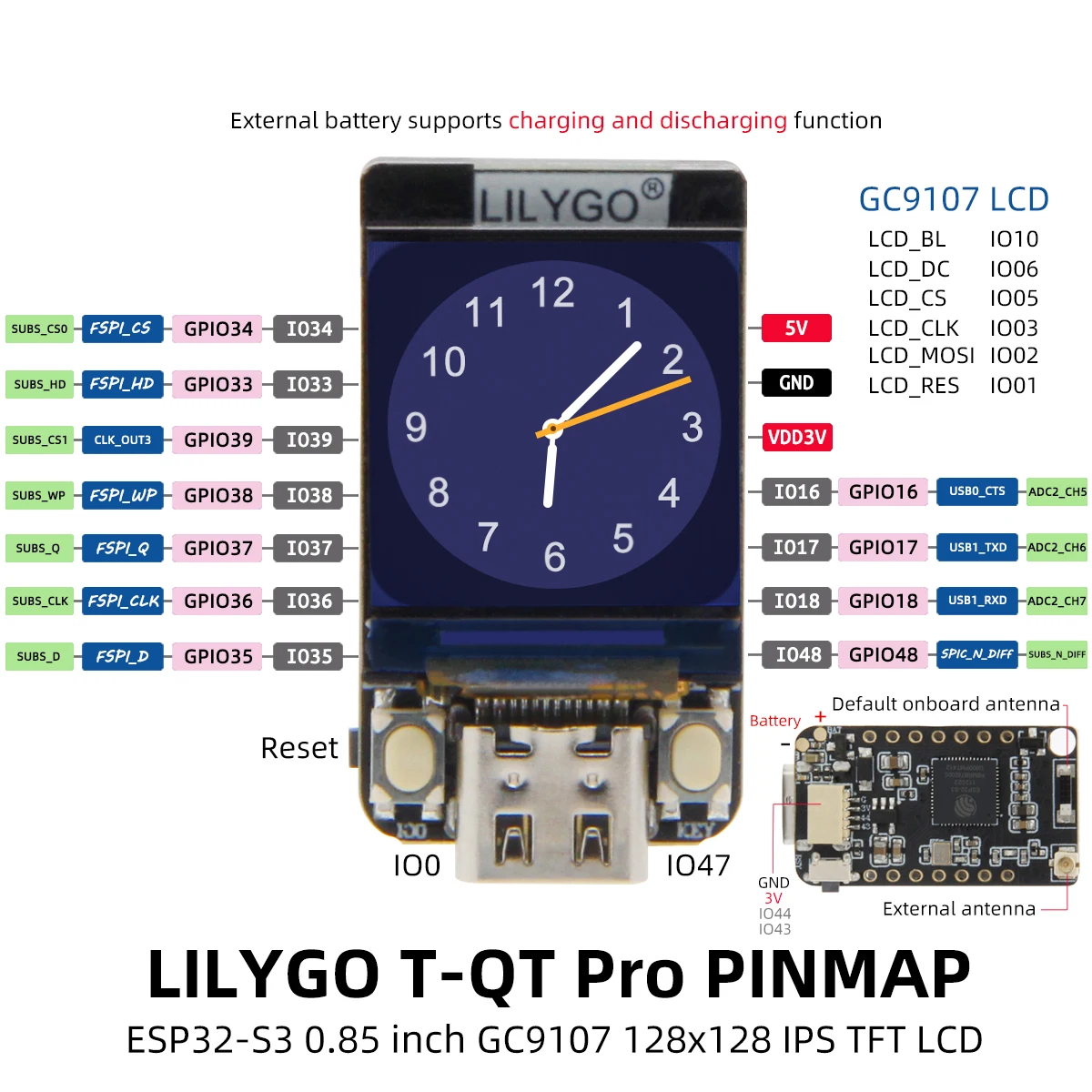

Onboard Functions | Buttons: IO00+IO47 Battery Detection: IO04 Battery Supports charging and discharging |
0.85 inch GC9107 TFT IPS LCD | |||
Drive Chip | GC9A01 | Resolution | 128(H) x 128(V) |
Screen Size | 0.85" Diagonal | Interface | 4-Wire SPI |
Screen Type | TFT IPS LCD | Display Area | 15.2064 x 15.2064 |
Display Colors | 262K | Brightness | 260 cd/m2 |
Support onboard / external antenna switching | |||
|

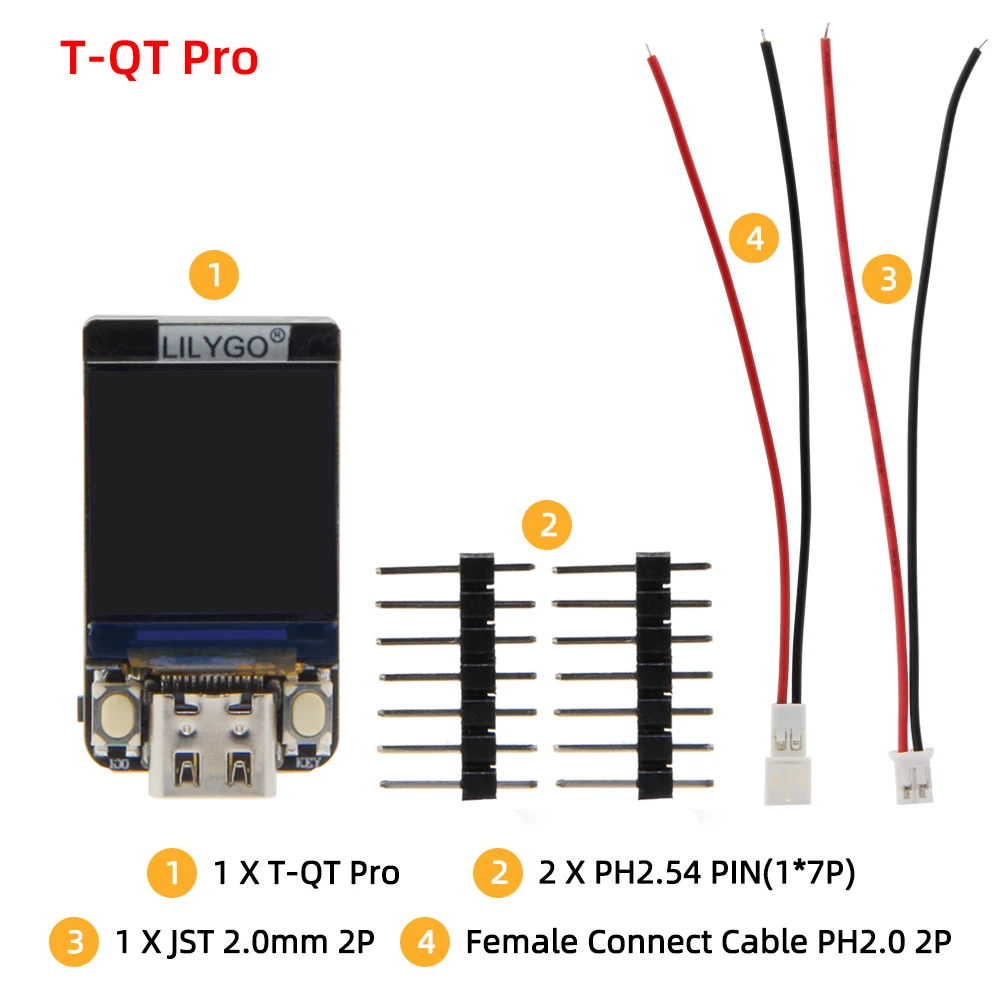

| What's in the box |
① 1 X T-QT PRO | |
② 2 X PH2.54 Pin (1*7p) | |
③ 1 X JST 2.0MM 2P | |
④ 1 X Female Connect Cable PH2.0 2P |

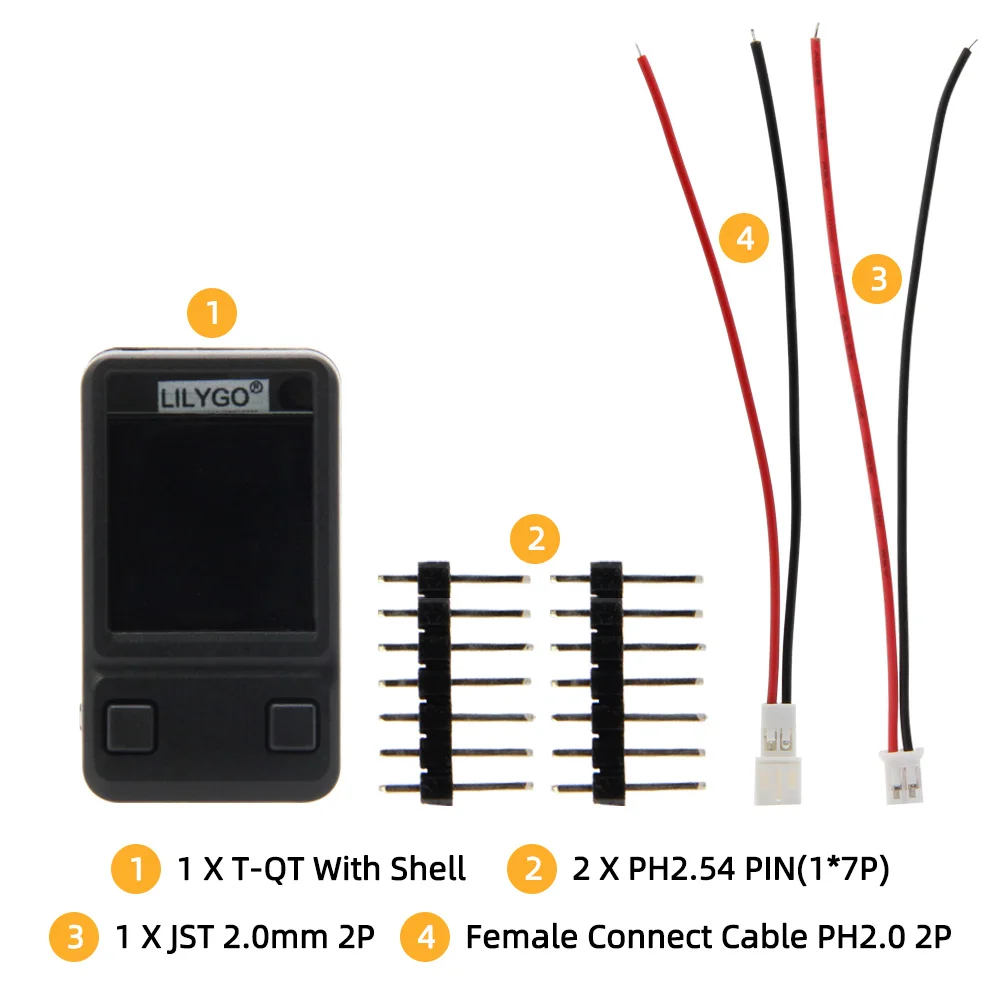

| What's in the box |

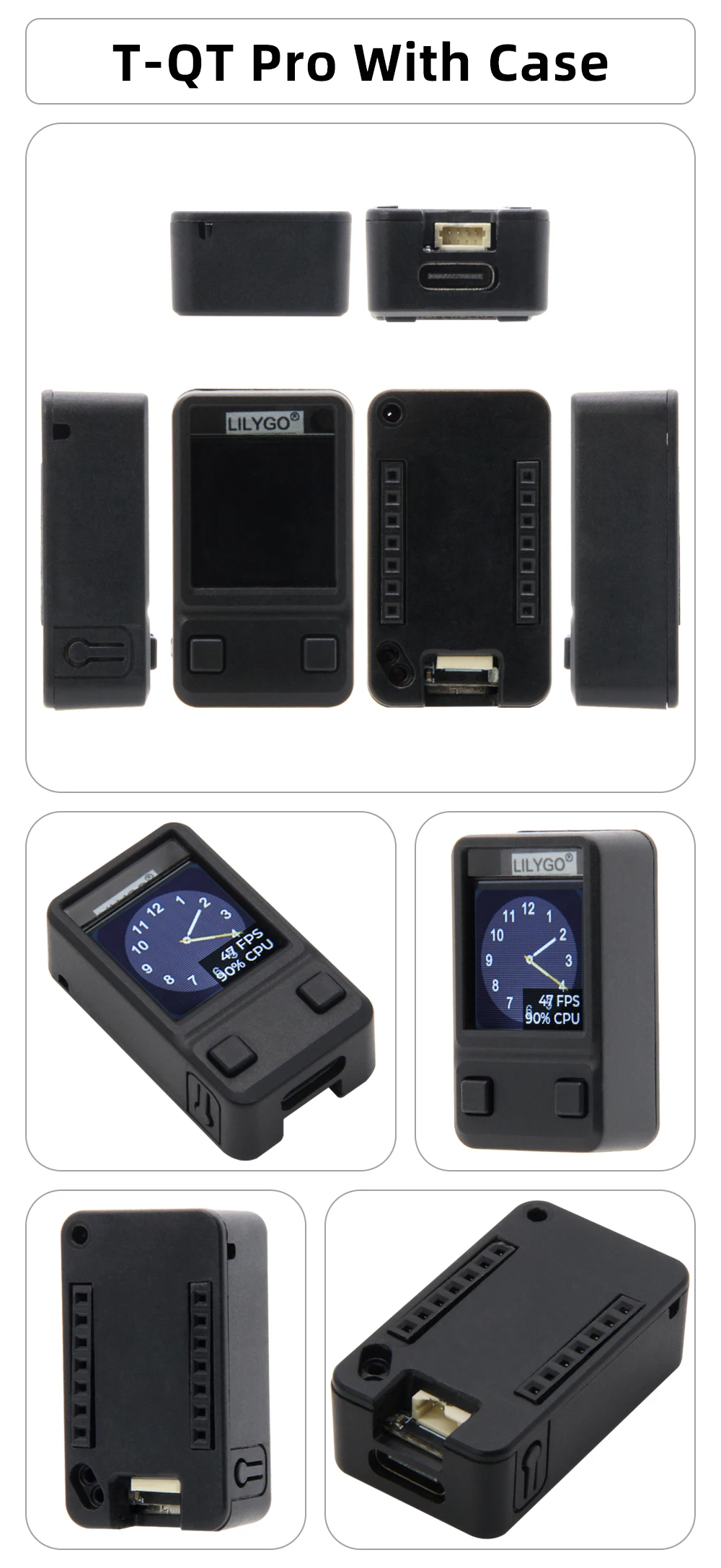

① 1 X T-QT PRO With Case (Without Battery) | |
② 2 X PH2.54 Pin (1*7p) | |
③ 1 X JST 2.0MM 2P | |
④ 1 X Female Connect Cable PH2.0 2P |
