® T-Display-S3-Pro ESP32-S3 Touch Display 2.33-inch LCD Development Board I2C Di

Product Description

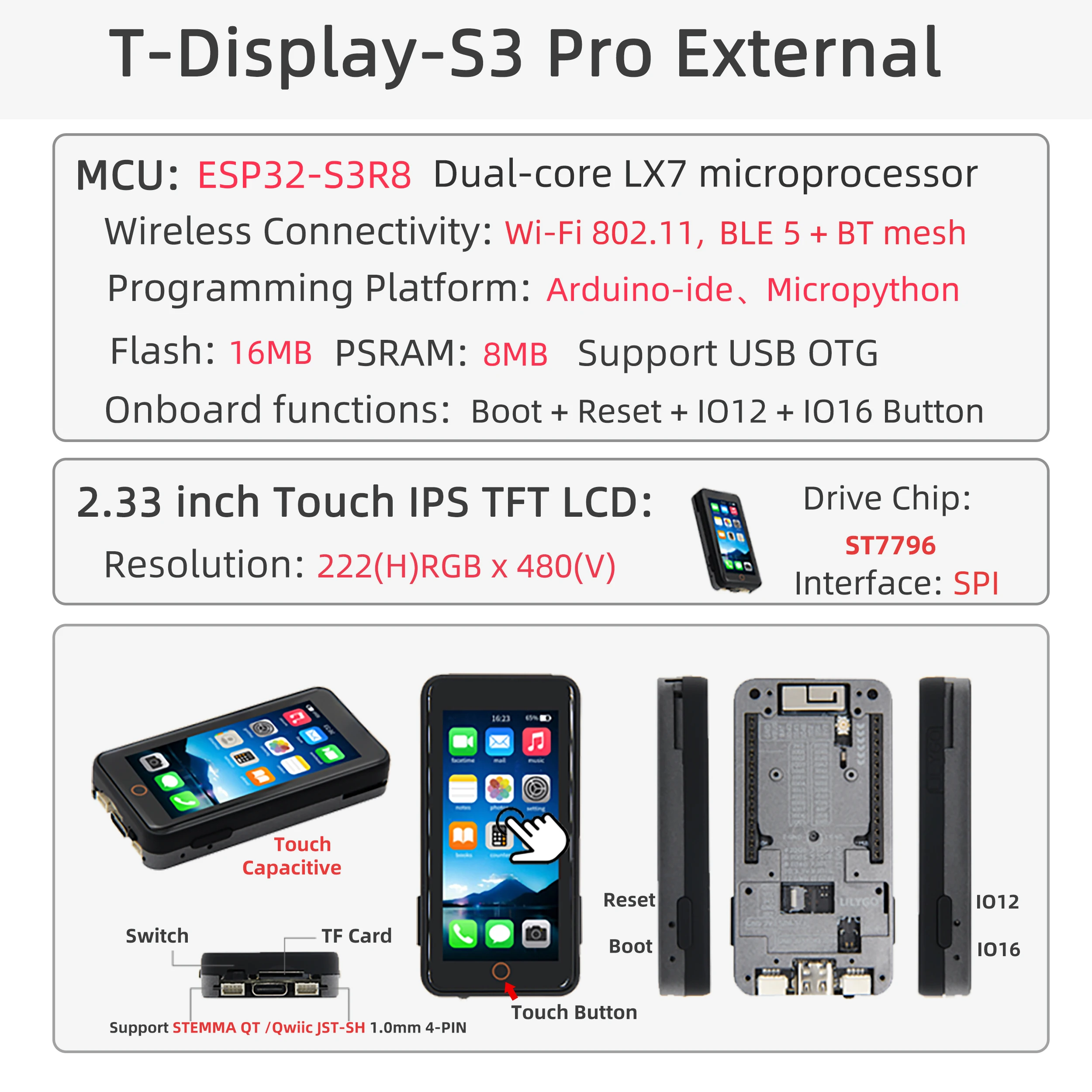

T-Display-S3-Pro is the upgraded version of T-Display-S3.

• The main thing is the use of a larger screen 2.33-inch screen and the addition of the chip SY6970 for phone OTG.

• Continuing the way of the T-display S3, the case is ABS, and there is the expansion of the camera module through POGOpin for the use of a built-in module. Default built-in 3.8V 470ma battery.

• Ambient light and proximity sensors on the top of the screen, two integrated QWIIC ports, and a battery power switch. An optional MPU9250 IMU module is also available internally.

Note:

• The interface shown in the picture is a sample UI routine, not a function that this product has. Specific on-board features are subject to detailed descriptions.

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

Show Notes:

Pictures are for display use only, please refer to the real thing.
