Product Description

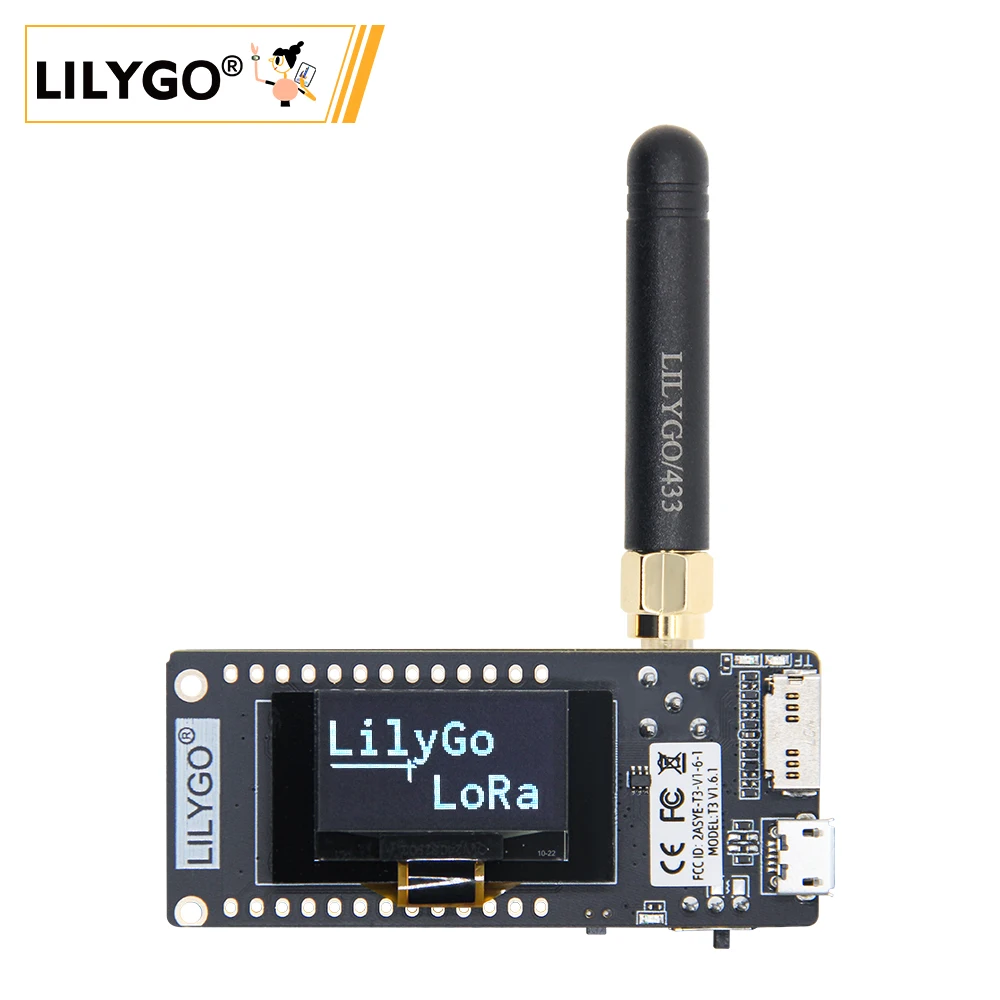

® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMA
® TTGO LoRa32 V2.1_1.6 Version 433/868/915Mhz ESP32 LoRa OLED 0.96 Inch SD Card Bluetooth WIFI Wireless Module ESP-32 SMALoRa32 V2.1_1.6 Introduce
We have enhanced the capabilities of the LoRa V2.1 board by adding an SMA antenna.
Additionally, we have modified the power switch interaction mode for improved performance. The SMA antenna improves signal transmission.
ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.
⚠️Notice:The shipping list does not include battery and SD card.The Meshtastic firmware is not adapted to the TCXO version yet.You can add the below sentences in the source codes to make it work.
Or you can ask in the github or community of Meshtastic:
LoRa32 Specifications | |
MCU | ESP32 |
Flash | 4MB |
Wireless Connectivity | Wi-Fi 802.11 |
Bluetooth V4.2 + Bluetooth LE | |
Programming Platform | Arduino-ide、Micropython |
Onboard Functions |
|
Onboard Button | Reset + Boot |
Screen Specifications | |||
Type | OLED | Resolution | 128 x 64 |
Drive | SSD1306 | Size | 0.96-inch Diagonal |
Interface | I2C | I2C Interface | SDA--IO21 SCL--IO22 |
Text Color | White | Background Color | Blue |
Low Power LoRa Transceiver | ||
LoRa Module | SX1276 | SX1278 |
Frequency Bands | 868/915/923MHz | 144-148MHz/433MHz |
High-efficiency PA | +14dBm | +14dBm |
Low RX Current | 9.9mA | 9.9mA |
LoRa32 | |
| What's in the box? |
1 X LoRa32 Module | |
1 X LoRa Antenna | |
2 X Pin | |
1 X Power Cable(Jst 2pin 1.25mm) |
