Product Description

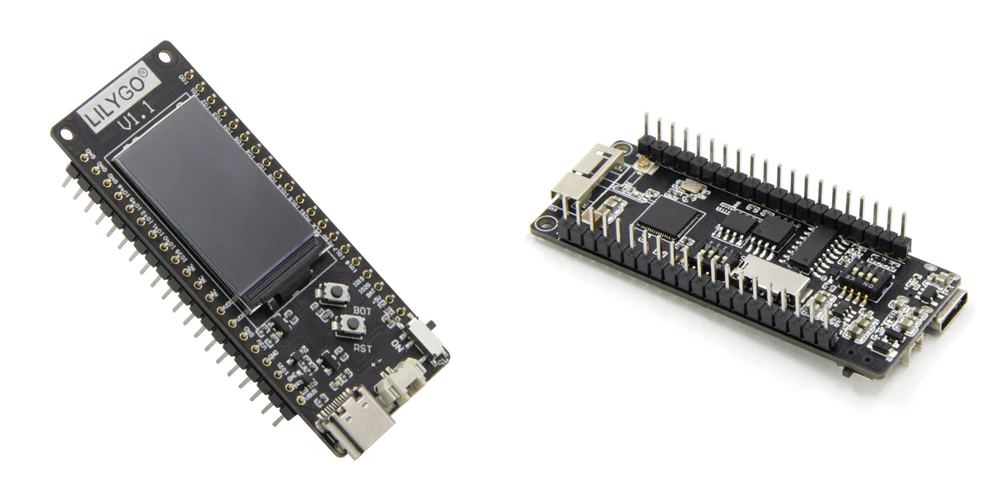

® TTGO T8 ESP32-S2 V1.1 Wireless Module ST7789 1.14 Inch LCD Display WIFI Development Board Type-c Connector TF Card Slot
® TTGO T8 ESP32-S2 V1.1 Wireless Module ST7789 1.14 Inch LCD Display WIFI Development Board Type-c Connector TF Card Slot
Hardware Specifications | |
Chipset | ESPRESSIF-ESP32-S2 |
FLASH | 4MB |
PSRAM | 8MB |
SRAM | 320 kB SRAM |
Button | Power Switch,Rest,Boot,Customize,SMD DPI Switch |
External Device | TF Card（Product does not contain SD card） |
USB to TTL | CH340C |
Modular interface | SD card、UART、SPI、I2C、PWM、I2S、ADC |
On-board clock | 32.768KHz crystal oscillator |
Working voltage | 2.7V-3.6V |
Working temperature range | -40℃ ~ +85℃ |
Weight | 9g |

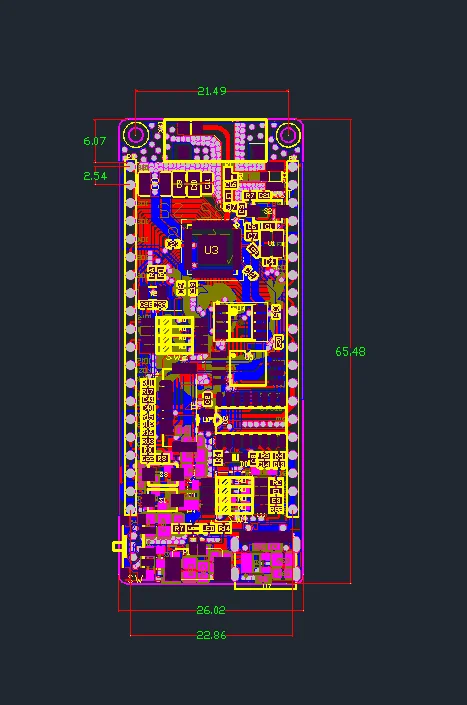

Size | 65.48*26.02*5mm |
Power Supply Specifications | |
Power Supply Input | USB 5V/1A |
Charging current | 500mA |
Battery Input | 3.7-4.2V |
JST Connector | 2Pin 1.25mm |
USB | Type-C USB |
Wi-Fi | |
Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip) |
Protocol | 802.11 b/g/n(802.11n，speed up to150Mbps)A-MPDU and A-MSDU polymerization，support 0.4μS Protection interval |
Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
Transmit Power | 22dBm |
Communication distance | 300m |
Screen Specifications | |
Display Screen | ST77789 / 1.14 Inch |
More Information |
This link has a screen, if you don’t need a screen, you can buy the products above up.
Note:The product does not solder pin headers by default, the pictures are only for reference .

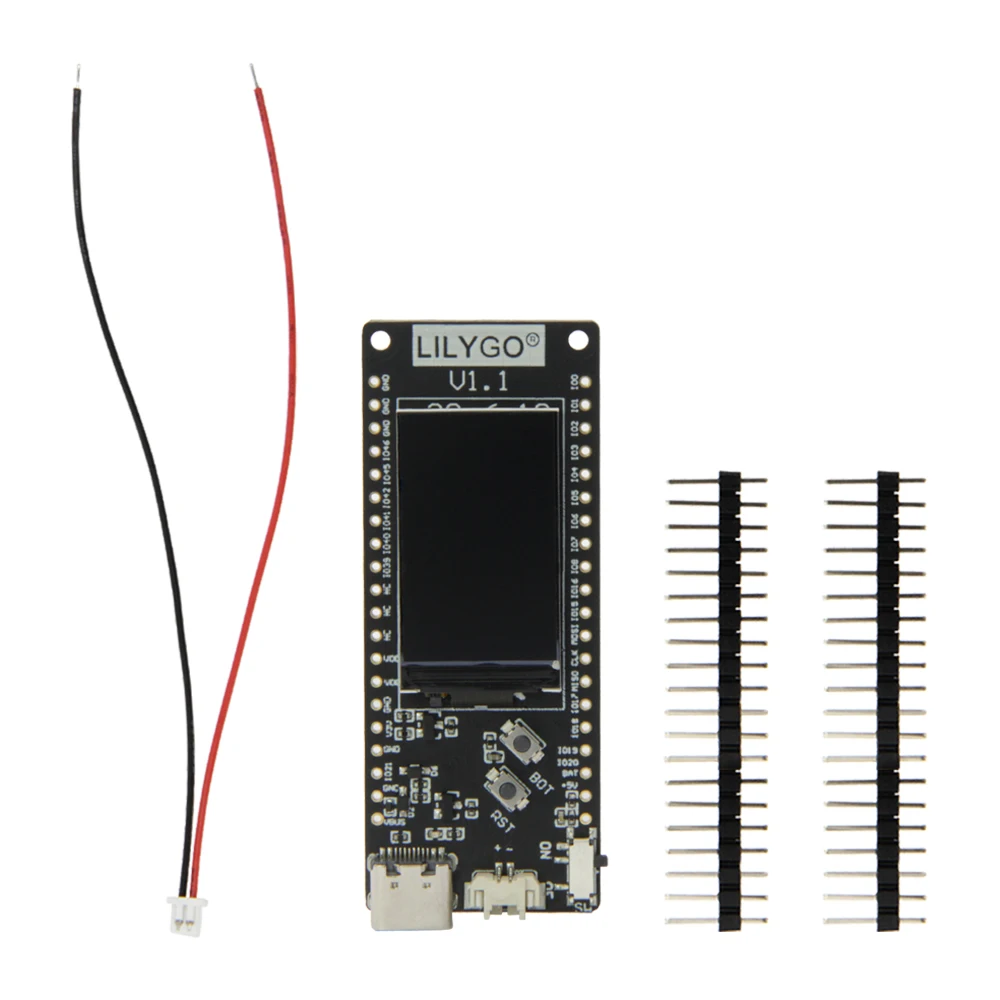

T8 ESP32-S2 V1.1
1 X T8 ESP32-S2 V1.1 Board（Product does not contain SD card）
1 X Power Cable (Jst 2pin 1.25mm)
2 X Pin
