® T-Dispay E-paper 1.02 inch Adapt to T-U2T USB To TTL Automatic Downloader

Product Description

If you are buying this product for the first time, it is recommended to buy a T-display E-paper kit containing T-U2T USB To TTL

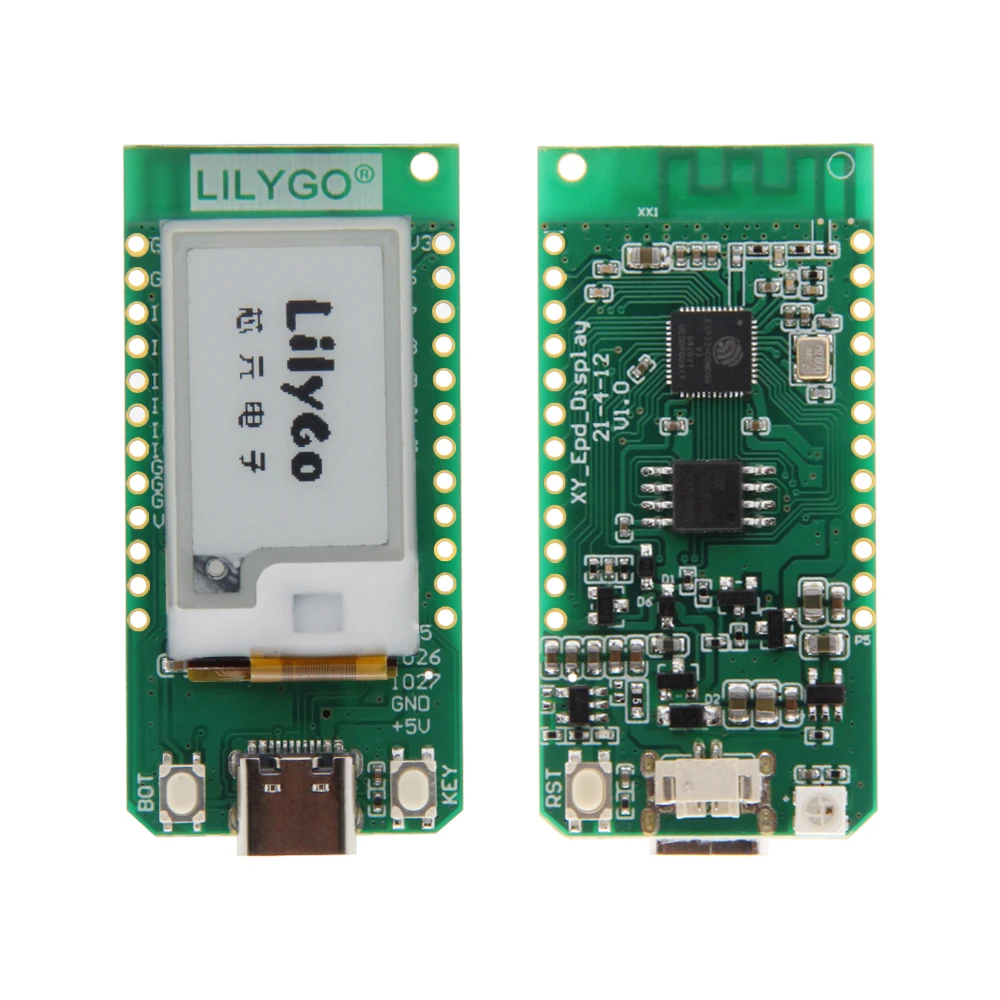

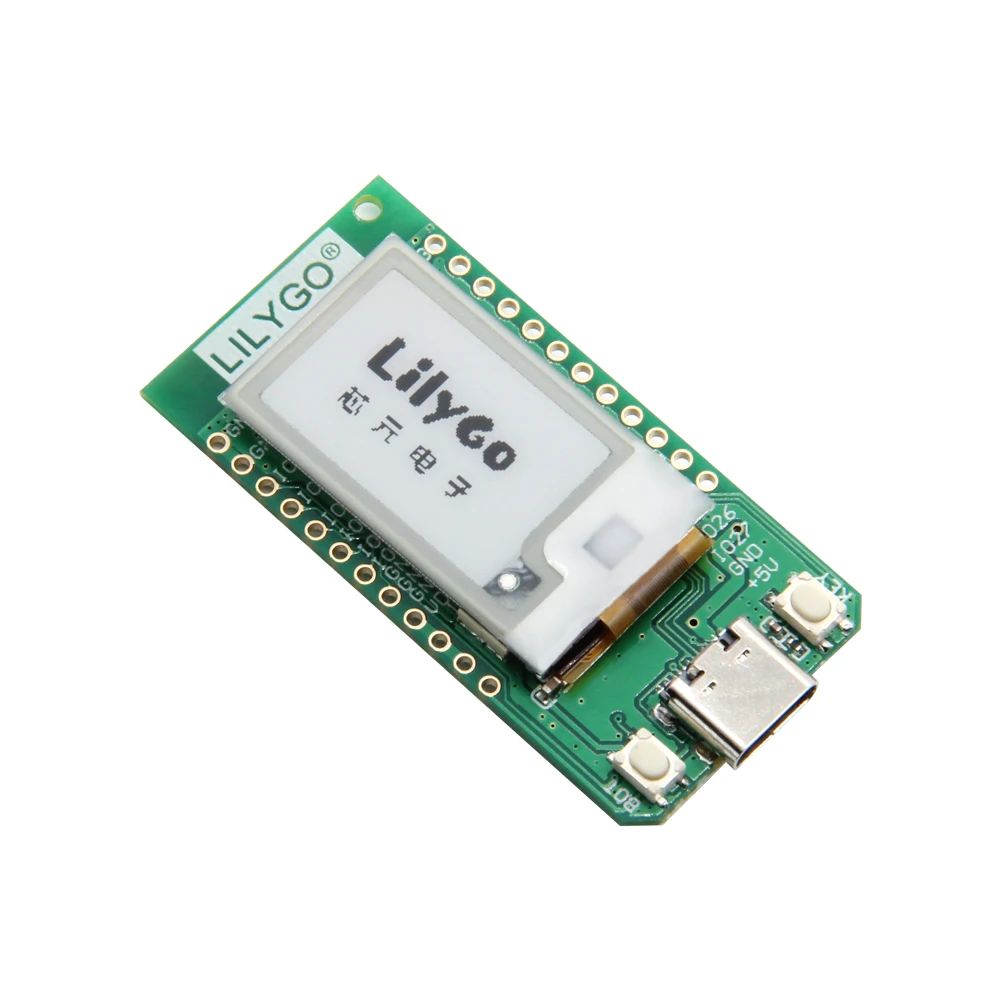

LILYGO T-display e-paper

It is the "brother version" from the T-display TFT version based on the size structure of the TFT version,

Change the 1.14 inch TFT display to 1.02 inch e-paper display,

Adding PCB positioning holes, 3535 RGB and IPEX antenna sockets, PCB color LILYGO selected bright green PCB with black and white ink screen for the first time, making the overall vision more comfortable.

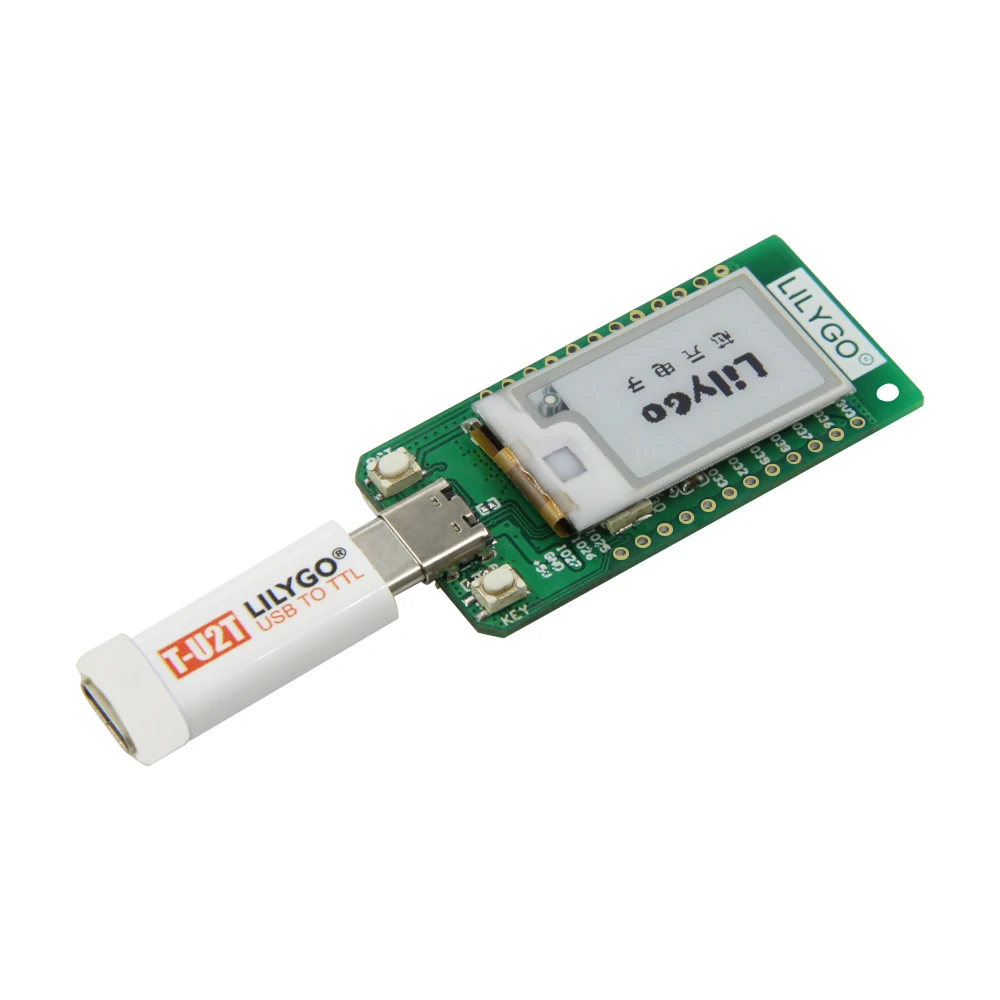

This is also a product compatible with T-U2T automatic downloader(CH340K ,Currently only compatible with Windows , Mac systems of 10.15 and below)

We will be compatible with the T-U2T automatic downloader on the new version of the product, that is, when you have a T-U2T automatic downloader, it will support the motherboard that requires the USB to TTL function.

LILYGO T-display E-paper parameters;

• -1.02 inch E-paper resolution: 128X80

• -ESP32-D0WDQ6-V3

• -4MB FLASH

• -TP4054 battery charge and discharge chip

• -Custom button X2

• -RST button X1

• -Type-C USB for T-U2T

• -Onboard wi-fi antenna

• -3535 RGB

• -Jst 2pin 1.25mm battery connector

• -Low power consumption design (sleep power consumption is about 15uA)

Application scenarios

• -Shelf label

• -Badge

• –DIY

• -STEM

• -IOT terminal equipment

Githublink：

How to start T-Display Epaper：

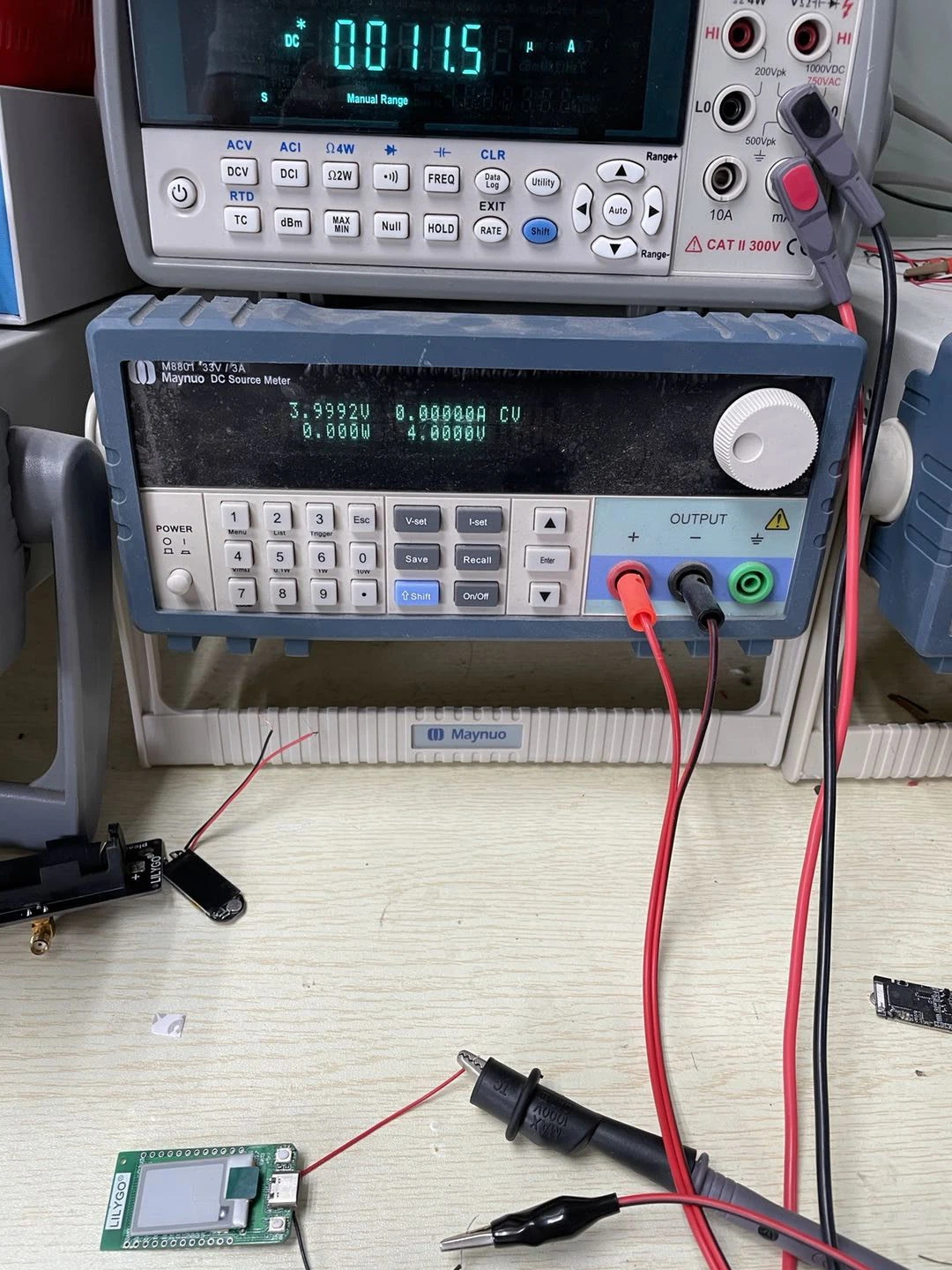

Power consumption

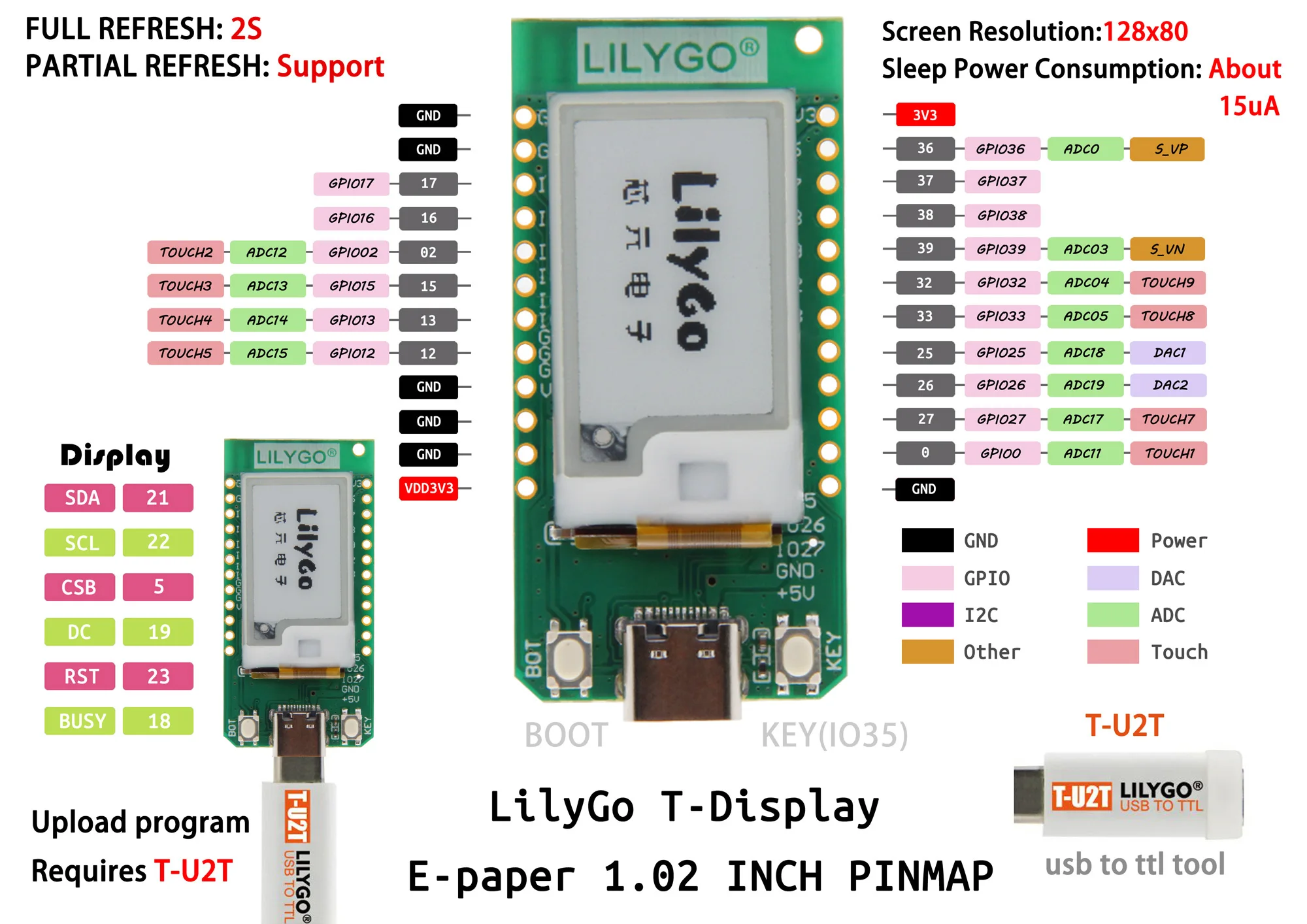

Pin diagram

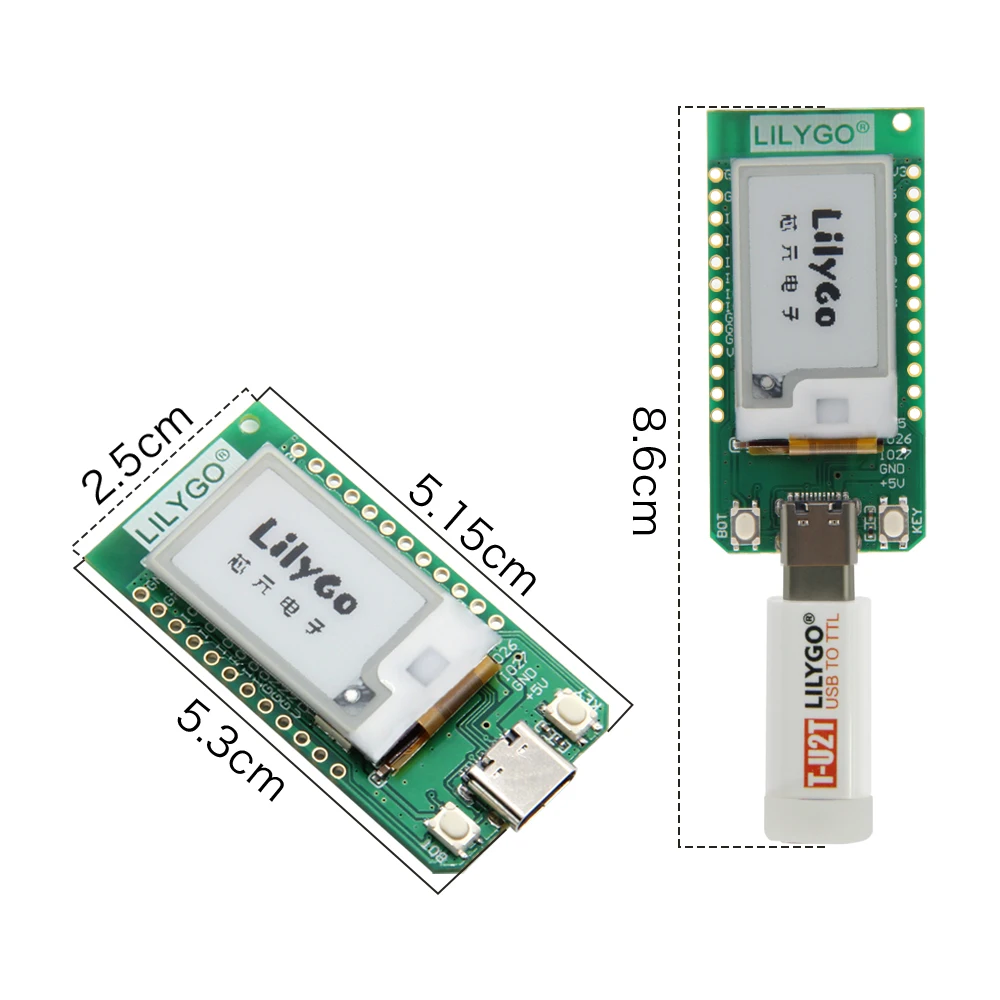

size chart

Shipping list

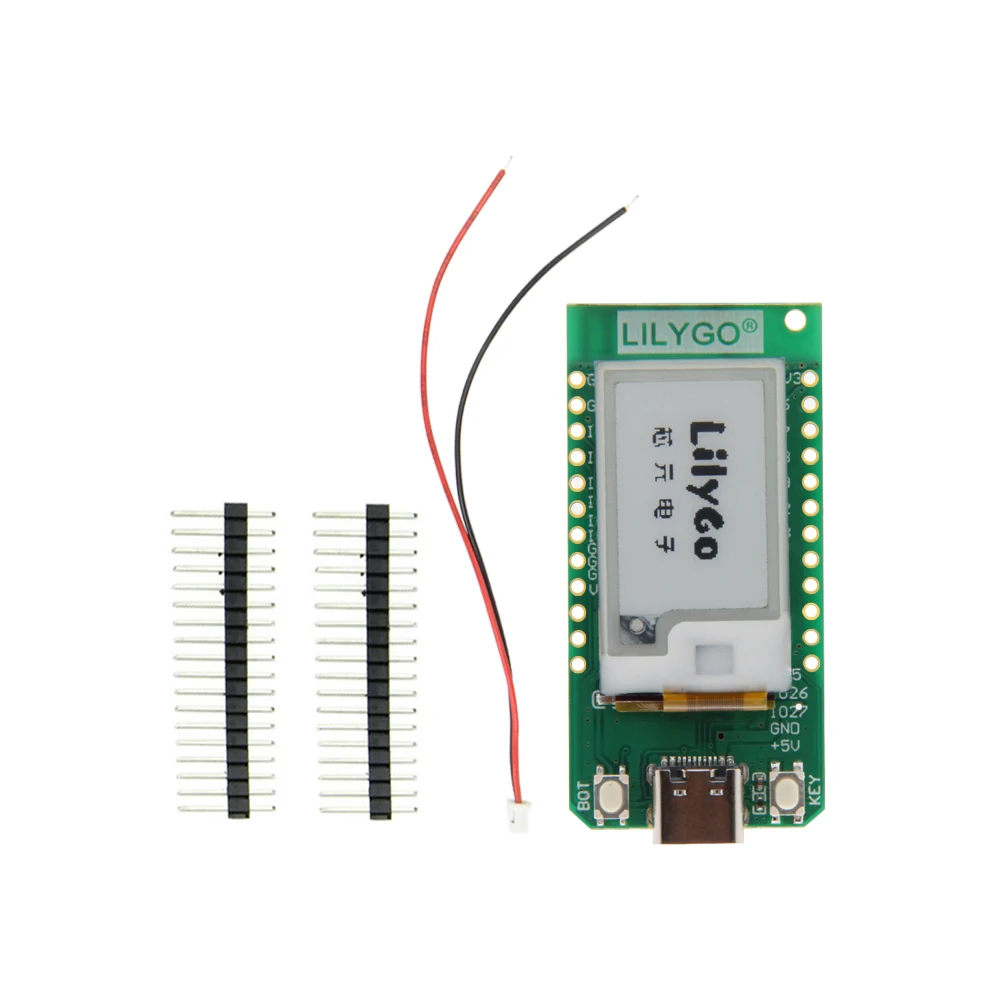

T-display E-paper options

1 X T-display E-paper

1 X Battery cable(Jst 2pin 1.25mm)

2 X Pin

T- U2T USB to TTL options

1 X T- U2T USB to TTL

(CH340K ,Currently only compatible with Windows , Mac systems of 10.15 and below)

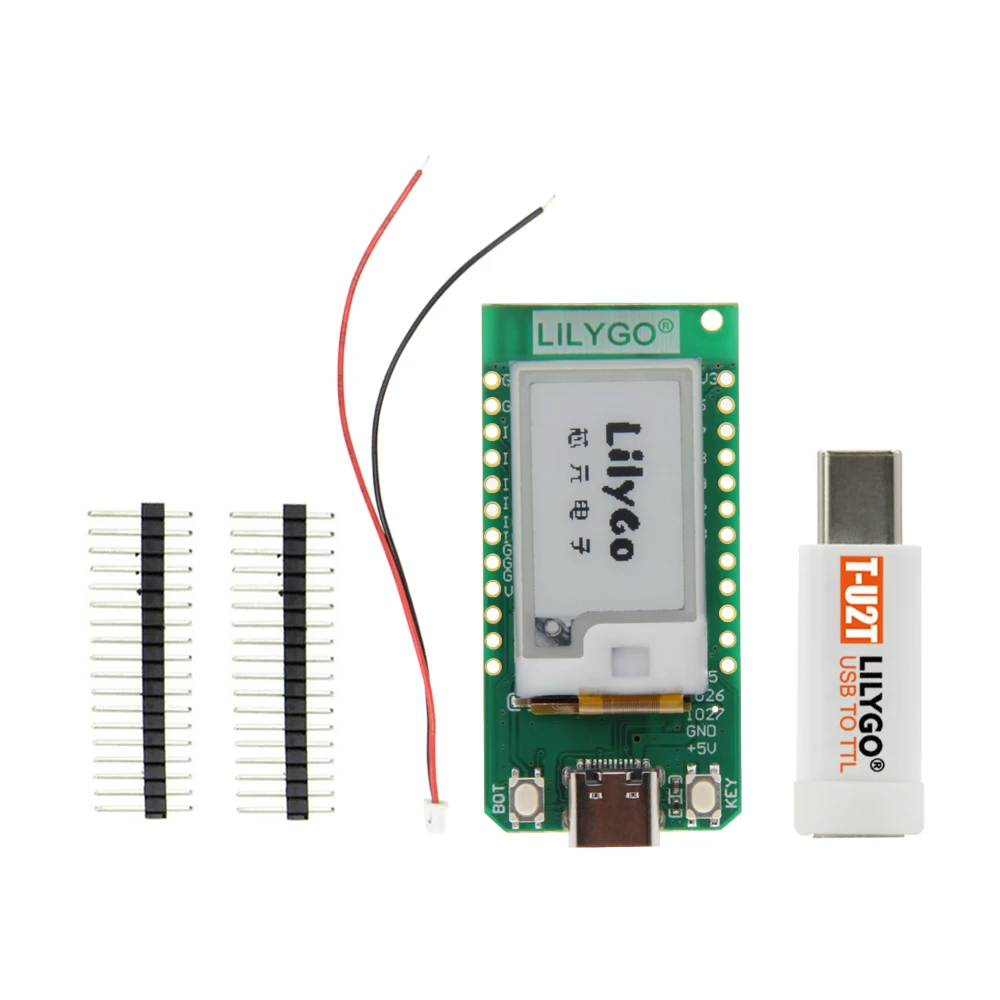

T-display E-paper kit options

1 X T-display E-paper
1 X Battery cable(Jst 2pin 1.25mm)

1 X T- U2T USB to TTL

2 X Pin
