Product Description
reComputer R1025-10 Raspberry Pi IoT Gateway & Controller,CM4-Powered,AI Capable,4GB RAM,32GB eMMC,BMS,BAS,iBMS, Remote Access
reComputer R1025-10 Raspberry Pi IoT Gateway & Controller,CM4-Powered,AI Capable,4GB RAM,32GB eMMC,BMS,BAS,iBMS, Remote AccessDescriptionreComputer R1000 is a powerful and flexible industry Raspberry Pi IoT gateway & controller, CM4-powered, with AI capabilities. With 3*RS485, dual-ethernets, BACnet, and Modbus support, equipped with all the necessary features that a robust and reliable industrial edge IoT device needs. With compatibility with AI NPU accelerator, it's a perfect fit for remote access control, especially BMS, BAS, and iBMS.Note
reComputer R1000 provides flexible IoT wireless communication(4G, LoRa®, Wi-Fi/BLE, Zigbee) and essentialfunctionalmodules (GPS, UPS, TPM2.0, PoE, SSD, etc.).
Customize, Configure, and Engineer your own reComputer R1000
Check the accessory list and assembly guide.
Upgrade itto anAIoT gatewaywith Raspberry Pi AI kit.
Parameter | Description |
Hardware Spec | |
Product Series | R1000 |
CPU | Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz |
Operating System | Raspbberry Pi OS, Ubuntu |
RAM | 4GB |
eMMC | 32GB |
System Spec | |
Input | 2-pin Terminal Block |
PoE | IEEE 802.3af Standard 12.95W PoE* |
Supply Voltage(AC/DC) | 12~24V AC/9~36V DC |
Overvoltage Protection | 40V |
Power Consumption | Idle:2.88W; Full Load:5.52W |
Power Switch | No |
Reboot Switch | Yes |
Interface | |
Ethernet | 1 x 10/100/1000 Mbps (supports PoE*) |
1 x 10/100 Mbps IEEE802.3/802.3u | |
USB | 2 x USB-A 2.0 Host |
1 x USB-C 2.0 (For flashing OS) | |
RS485 | 3 x 3-pin Terminal Block (isolated) |
HDMI | 1 x HDMI 2.0 |
SIM Card Slot | supports Standard SIM Card |
M.2 Slot | supports M.2 NVMe SSD |
LED | 6 x LED indicators |
Buzzer | 1 |
Reset Button | 1 |
HDMI | 1 x HDMI 2.0 |
Wireless Communication | |
LoRa® | USB LoRa®*/SPI LoRa®* |
4G Cellular | 4G LTE* |
Zigbee | USB Zigbee* |
Standards | |
EMC | ESD: EN61000-4-2, Level 3 |
EFT: EN61000-4-4, Level 2 | |
Surge: EN61000-4-5, Level 2 | |
Certification | CE, FCC |
TELEC | |
RoHS | |
Ambient Conditions | |
Ingress Protection | IP40 |
Operating Temperature | -30~70 °C |
Operating Humidity | 10~95% RH |
Storage Temperature | -40~80 °C |
Others | |
Supercapacitor UPS | SuperCAP UPS LTC3350 Module* |
Hardware Watchdog | 1~255s |
RTC | High Accuracy RTC |
Security | Encryption Chip TPM 2.0* |
ATECC608A | |
Heat Dissipation | Fanless |
Warranty | 2 years |
Production Lifetime | Until at leaset December 2030 |
Statement | Options marked with * require additional purchase according to the accessories list. |
The reComputer R1000 boasts up to 8GB RAM for processing numerous data points efficiently, along with multiple isolated RS485 channels, versatile interfaces and various wireless communication protocols.
Mini-PCIe1 Slot: Supports 4G LTE, USB LoRa®, USB Zigbee modules.
Mini-PCIe2 Slot: Supports SPI LoRa®, USB LoRa®, USB Zigbee modules.
3x RS485 (isolated) Supports serial communication with isolation for enhanced safety.
1x 10M/100M/1000M Ethernet: Supports Power over Ethernet (PoE) for convenient power delivery over the network cable.
1x 10M/100M Ethernet: Ethernet port for standard network connectivity.
1x HDMI 2.0HDMI port for high-definition video output.
2x Type-A USB 2.0: Standard USB ports for connecting peripherals or storage devices.
1x Type-C USB 2.0: USB- port primarily used for updating the operating system and possibly other functions.
1x SIM Card Slot: Slot for inserting a SIM card, typically used for cellular network connectivity.
1x M.2 Slot: Slot for M.2 expansion cards, allowing for additional functionality or SSD storage option.
This hardware configuration offers a diverse range of connectivity options and expansion possibilities, suitable for various applications requiring communication, networking, and peripheral connections.

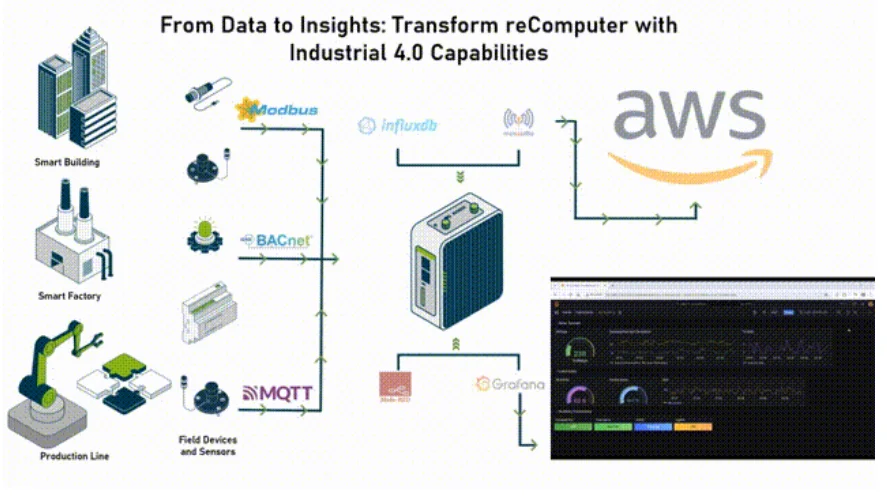

ApplicationThe application of the reComputer R1000 spans five key areas: First Look Guide, Industrial Edge, Fleet Management, Cloud Solutions, and Computer Vision. It integrates technologies such as NodeRed, FUXA, FIN, N3uron, balena, Home Assistant, AWS IoT Core, and Ultralytics Computer Vision.

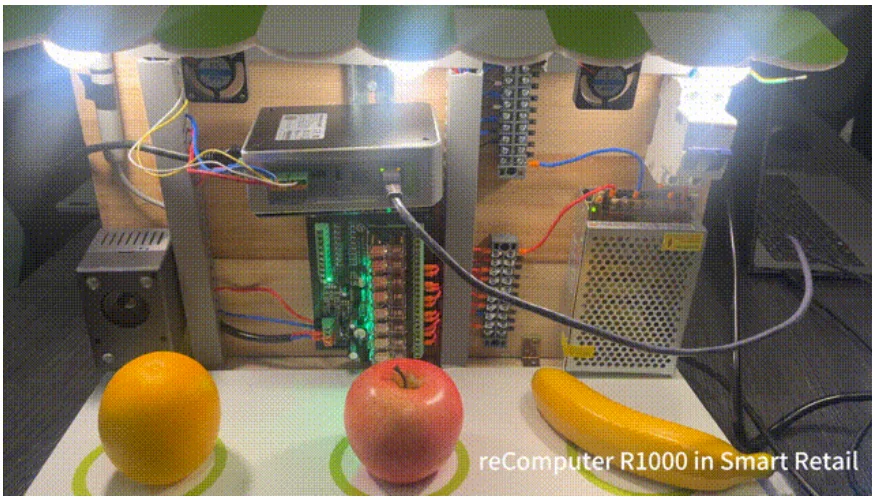

Raspberry Pi CM4-Powered Intelligent Supermarket System
Pose-based Light Control System with Node-Red & Raspberry Pi AI Kit
MING Stack for Seamless IIoT Data Management

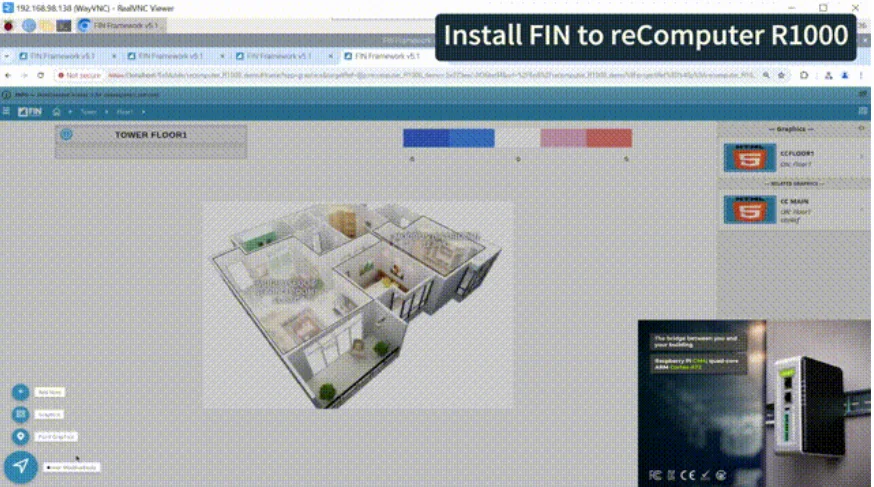

FIN Framework for Smart Building Management
reComputer R1000 x 1
DIN-rail clip x 1
Screw Pack x 1
DC Power Female Jack to Screw Terminal Adapter x 1
3-pin Terminal Block Connector(Male) x 3
120Ω Resistor x 5
User Manual x 1
