Product Description

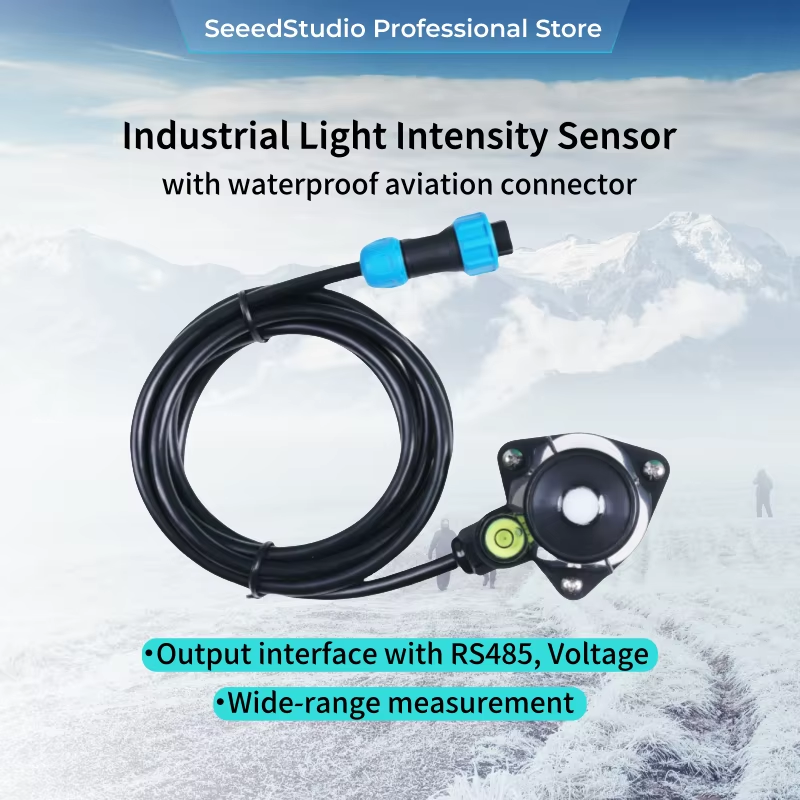

Industrial Light Intensity Sensor, MODBUS-RTU RS485 &0-2V (S-Light-02), with Waterproof Aviation Connector
Industrial Light Intensity Sensor, MODBUS-RTU RS485 &0-2V (S-Light-02), with Waterproof Aviation ConnectorDescription
Note
This Industrial Light Intensity Sensor comes in two versions. The main difference is in the cable connector. Please choose the version that best suits your needs:
(1) S-Light-02: with a waterproof aviation connector. This version saves you time in deployment as you won't have to use screws to connect the cable to the data logger. And it can be used with SenseCAP Sensor Hub 4G Data Logger instantly with ease.
(2) S-Light-01: with hook-up wires.
Features:
🌱Reverse power protection and built-in TVS/ESD protection🌱High accuracy and consistency with excellent stability🌱IP66 rated: waterproof & dustproof, suitable for outdoor applications🌱Level indicator and spring-loaded for installation🌱Output interface with RS485, Voltage🌱Wide-range measurement: up to 200000luxLight intensity sensors are used to measure ambient illuminance in a given environment. This can have many important applications. Light directly impacts the growth of plants, so in agriculture, it can run manage farms and greenhouses more efficiently with real-time light data and analysis. Operators of electric grids and solar farms can use the data to predict the available electricity and run their operations more efficiently.
This Light Intensity Sensor (S-Light-01) is ideal for this kind of environment. It is IP66 rated, waterproof, and dustproof, and has no problem working under harsh conditions like solar farms, outdoor agricultural farms, as well as greenhouses. Each sensor is calibrated and offers high accuracy and consistency.
This sensor support two output options MODBUS-RTU RS485 protocol or analog voltage (0-2v) and can be used with a data logger conveniently.
Applications:
🌱Weather stations
🌱Solar farms
🌱Outdoor Farming
🌱Greenhouse
🌱Research
Specifications
Output Interface | RS485 Modbus-RTU, Analog Voltage 0-2V (Output resistance ~0ohm) |
Power Supply | 3.9-30V/DC |
Power Consumption | 7mA@24V DC |
Illuminance Range | Range:0～200000 Lux, Accuracy:±6% , Resolution:1lux |
Direction Error | 30°±3%,60°±6%,80°±24%（Cosine Characteristics） |
IP Ratings | IP66 |
Operating Temperature | -40~85°C |
Installation | Screw hole * 3 |
Cable Length | 2 meters |
Dimension | 75*55*58mm |

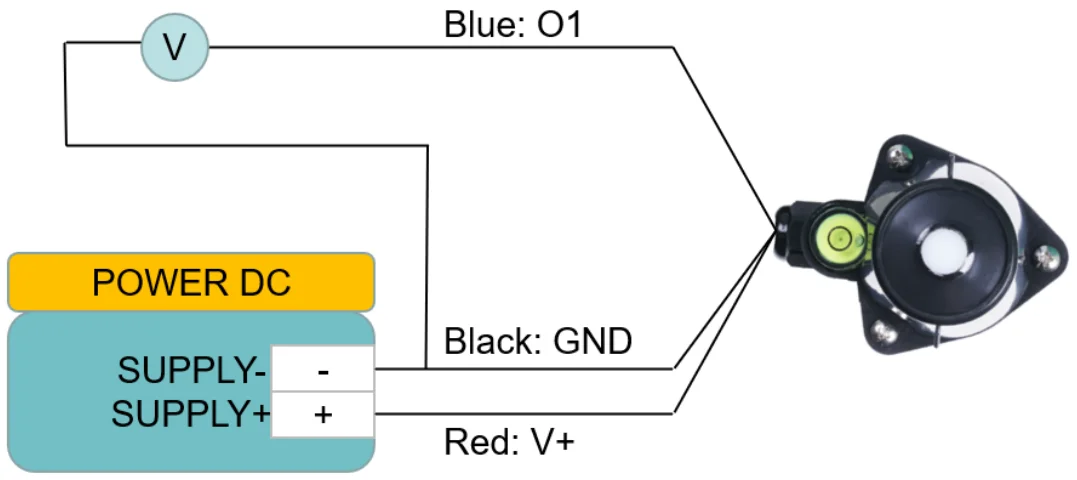

Wiring

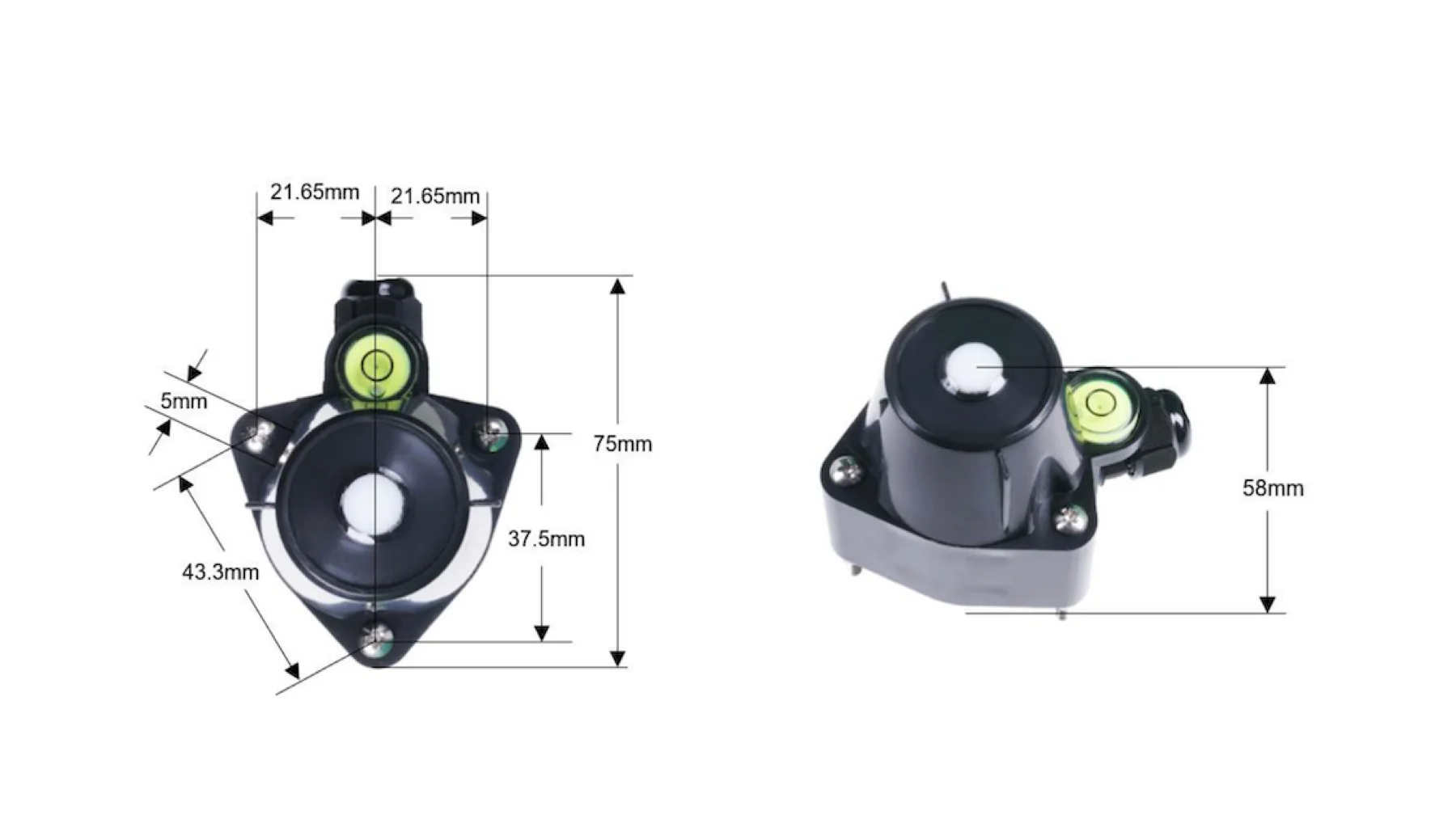

Dimensions
Documents🌱 SenseCAP Sensor Hub Catalog (Data Logger & Sensor Probes)🌱 Light Intensity Sensor-User Guide.pdfAbout Prime Living
