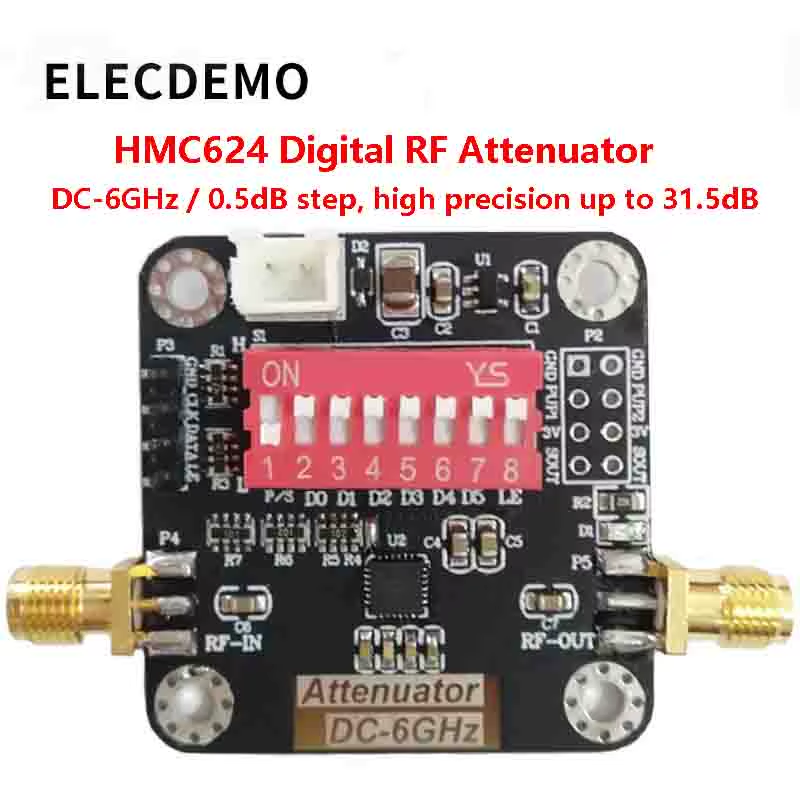

HMC624A Module Digital RF Attenuator Module DC~6GHz 0.5dB Step Accuracy Up to 31.5dB
HMC624A Module Digital RF Attenuator Module DC~6GHz 0.5dB Step Accuracy Up to 31.5dBHighlights:
This product in our store uses a large number of filtering capacitors for power decoupling, extensively laid on the ground and perforated, all designed according to high-frequency circuits, with good frequency characteristics. The power supply uses a low ripple linear power supply RT9193, instead of directly letting the user input the power supply voltage, which greatly reduces power supply fluctuations and ripple interference. This module supports manual step attenuation and also provides driver program controlled attenuation. This module has been applied in practical applications and the effect is really good. Buyers can purchase with confidence. Some parameters are not provided. If you want to purchase, please consult the seller for details.
Parameters:
Name: HMC624A RF Attenuator Module
Size: 40mm * 40mmPower supply voltage: 5VChip characteristics：1.50Ω RF digital attenuator2.6 bits, maximum gain 31.5dB3. Bandwidth: DC~6.GHz4.The stepping accuracy of 0.5dB ，can reach 31.5dB and Step-by-step error of 0.25dB.5. +55dB IIP36. Power supply range: 3~5V7. Mode: Serial, Parallel8. High attenuation mode in PUP configurationnote:The above chip features are only used as user selection, not equivalent to module features.Package include:module*1PDF schematic*1+STM32F103RCT6*1:Please contact customer service after purchase, we will send the module information to your mailbox.
