AD9226 module high-speed ADC 65M sampling data acquisition analog-to-digital con

Product Description

Shipping list

1. AD9226 high-speed ADC module;

2. Module schematic diagram (PDF version), FPGA test reference program, module usage instructions and chip manual;

3. Technical support for the module itself;

Kind tips

(1) The module interface of our store is clear and the performance is stable. Please combine the schematic diagram provided by our store for functional verification under the corresponding experimental conditions.

(2) The basic parameters of this module are all in the details page, and the module information PDF document and routine source code are provided, but the project file is not provided. Please be informed by the buyer. If you have any operational problems, you can consult customer service.

(3) Before using the module, please read the details page of this module in detail to understand the power supply and usage restrictions to avoid damage to the module due to improper operation.

(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules are shipped after testing.

Module parameters

Module model；AD9226_01

Module type；Analog-to-digital conversion module

Sampling Rate；65M SPS(Max)

ADC resolution bits；12 bits

Input voltage range；10VPP(±5V)；Signal Impedance: 50Ω

Powered by；5V DC；Min:4.75V Typ:5V Max:5.25V

Provide routines；Verilog FPGA source code

Routine platform；QuartusII EP4CE15F17C8

Protocol；13-bit parallel SPI

Communication signal level；3.3V

Input resistance；50 euros

Number of input channels；1 channel

Input interface；SMA tuner/XH2.54 hole

The reference voltage；Internal 2V

-3dB analog bandwidth；320MHz

Output mode；Parallel data

Module Features；High-speed ADC acquisition

Module application；High-speed signal acquisition

Module weight；16g

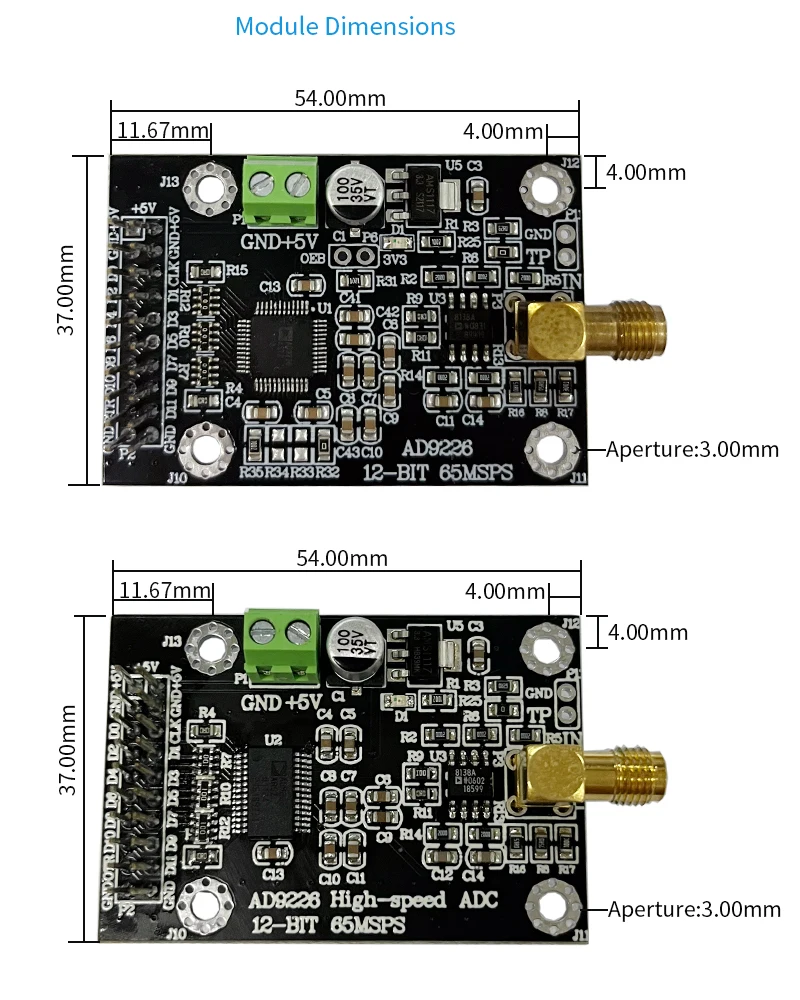

Module Specifications；54*37*23mm；L*W*H-PCB size

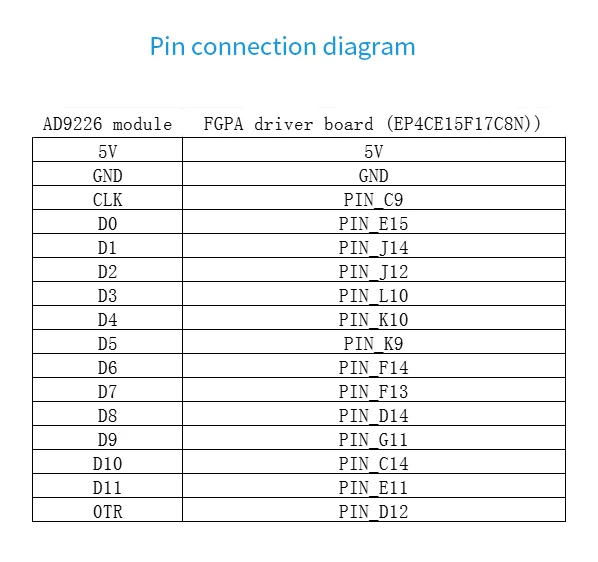

Module interface type；13-bit data SPI parallel

Module description

The high-speed AD of this module selects the 12-bit high-speed A/D converter AD9226 of ADI Company. AD9226 adopts a multi-stage differential pipeline architecture with a maximum sampling rate of 65MSPS; the chip is powered by a single power supply, and has a sample-and-hold and a reference voltage source on-chip, which simplifies the design of peripheral circuits; it meets industrial-grade applications and operates within the entire operating temperature range. Guaranteed no missing codes.

Module usage precautions

1. Do not overvoltage the power supply

2. Do not use longer lines for data communication

3. It is recommended to use SMA shielded cable for high-speed signal input

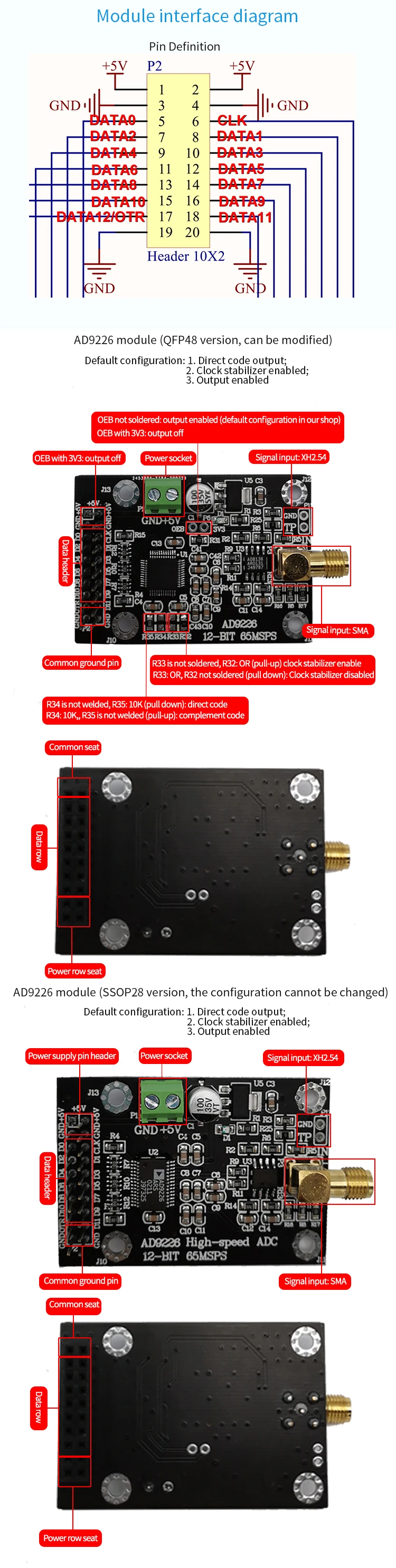

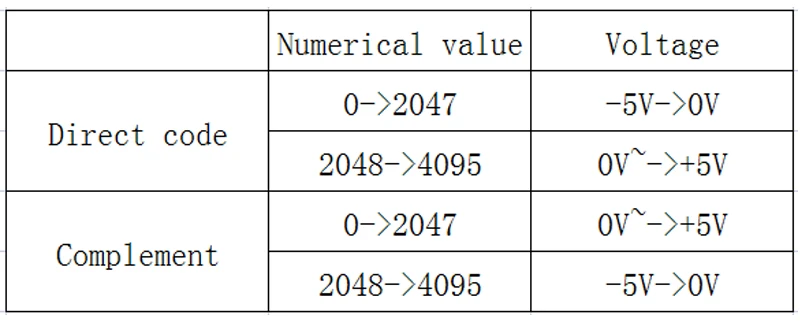

4. Direct code: (-5V~+5V, 12-bit value increments, complement code: (D11 is the sign bit, D10~D0-bit value)

FAQ

Q: The input voltage has not yet reached 5V, and the output data has reached the maximum value

A: Check whether the power supply is +5V power supply, the module power supply is too low, which will affect the measurable voltage range.

Q: A certain voltage has been input, but the measured data can only correspond to half or lower of the input voltage

A: Please confirm that the input signal is 50 ohm impedance. (The input impedance of the module is 50 ohms. If the input signal driving capability is insufficient, the voltage will drop by half or more after being input to the board. The actual voltage measured at the input end of the module with a multimeter or oscilloscope is the same as the value measured by the module) .

Q: The voltage has been input to -5V, but the data cannot reach the minimum value of 0 (may be 2,5..), or the input 5V data is only close to the maximum value.

A: Affected by the tolerance of the on-board components, there may be slight differences in the input voltage after being conditioned by the signal preprocessing circuit, or the accuracy of the signal itself will also have a certain impact (display input -5V, actually only input -4.99V). In this case, the minimum value of 0 can be reached by inputting data slightly less than -5V.

Q: What is the OTR pin for, is it data?

A: OTR is the data overflow flag. For example, the design input range of this module is plus or minus 5V. If the input exceeds +5V or exceeds -5V, this pin will be set high.

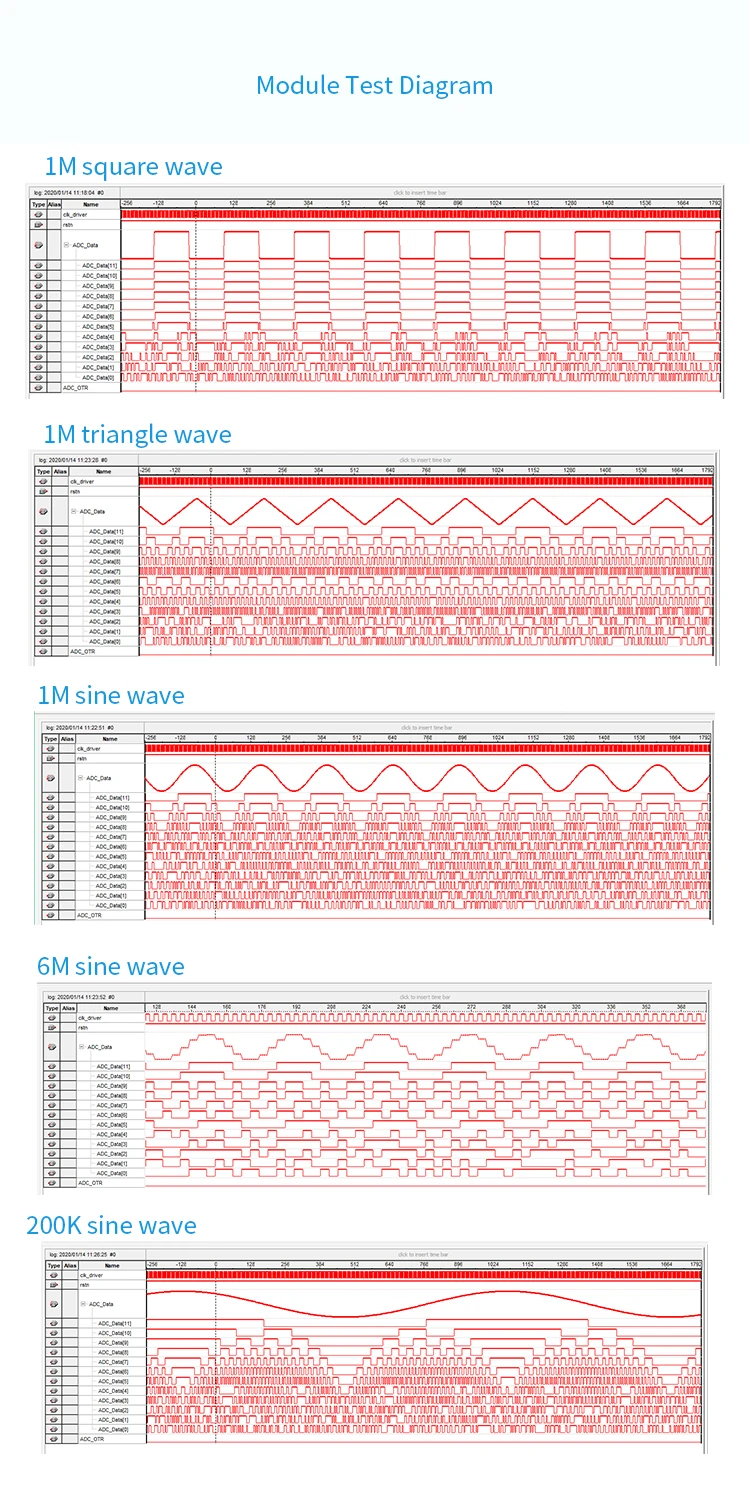

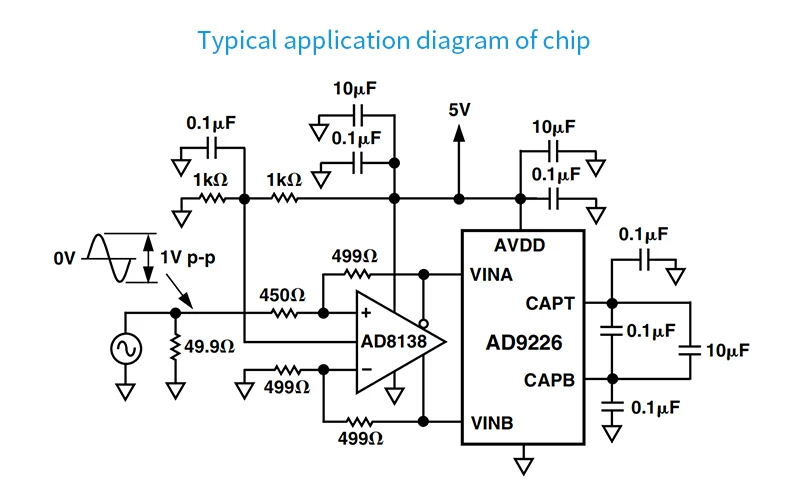

Chip Introduction

AD9226 is a single-chip, single-power supply, 12-bit precision, 65Msps high-speed analog-to-digital converter produced by ADI, which integrates a high-performance sample-and-hold amplifier SHA and a reference voltage source. AD9226 adopts multi-stage differential pipeline structure with error correction logic to ensure accurate 12-bit data at 65Msps sampling rate. At the same time, AD9226 also has lower power consumption (475mw) and higher signal-to-noise ratio (69dB).
