4-20mA signal generator two-wire passive current constant current sensor transmi

Product Description

YK-CSG2425 module delivery list

Physical module+user manual+after-sales technical support

reminder:

(1) The module interface of our store is clear and the performance is stable. Please verify the function under the corresponding experimental conditions in combination with the data provided by our store.

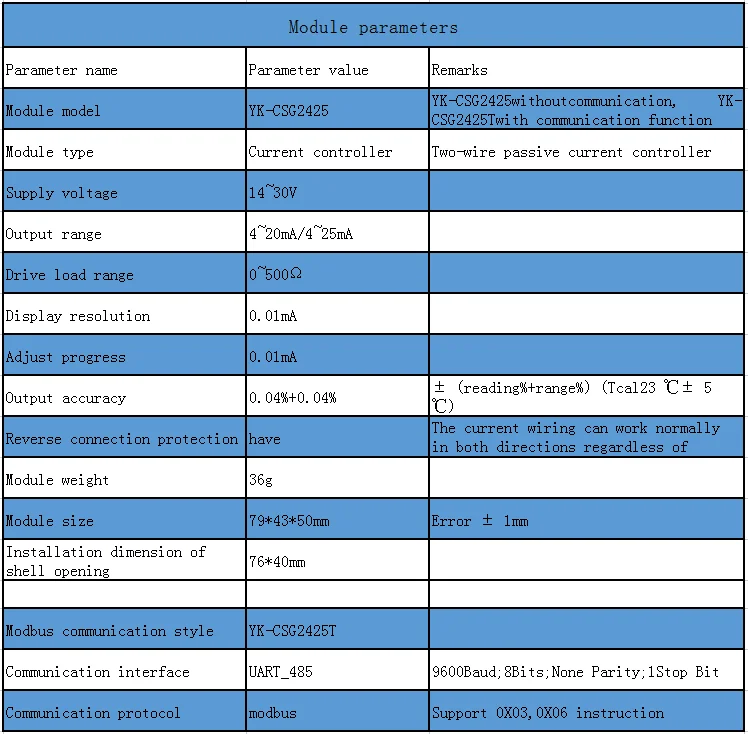

(2) The basic parameters of this module are all in the details page. The module parameter index data PDF document is provided, and the schematic diagram and engineering documents are not provided. The buyer should be informed. If there is any operation problem, please consult customer service.

(3) Before using the module, please read the details page of the module carefully to understand the power supply and use restrictions, and avoid damaging the module due to improper operation.

(4) All modules in our store are guaranteed to provide real module parameters, functions and pictures, and all modules are delivered after detection.

Precautions for module use

1. The product is DC power supply. Do not use AC power supply.

2. Do not supply power beyond the nominal supply voltage range.

3. Please use it within the nominal driving load range (if it is out of range, the actual output current may be less than the display control current)

Frequently asked questions

Q: What is the case that the product access circuit is not displayed?

A: 1. Check whether the power supply voltage is normal and between 14~30V;

2. Check whether the current circuit is disconnected;

3. Check whether the total resistance value of the current circuit is too large (ensure that the resistance value is less than the supply voltage/circuit current)

Q: Whether the access needs to distinguish directions

A: No. The product is equipped with an adaptive circuit, which does not need to distinguish the direction, and the positive and negative connections can work normally.

Q: Is it possible to use battery power?

A: Yes. The module has a wide power supply voltage. As long as the battery voltage is within the nominal power supply range of the product, the battery can be used for power supply.
