IV conversion amplifier module transimpedance amplification silicon PIN photodet

Product Description

IV-AMP1656SP Transimpedance Amplifier Shipping List

Input is terminal interface: physical module * 1+XH2.54-4PIN cable * 1+PN502 photoelectric board diode * 1+after-sales technical support+electrostatic bag packaging+shockproof foam

The input is SMA shielding interface: physical module * 1+XH2.54-4PIN cable * 1+SMA cable 10cm * 1+after-sales technical support+electrostatic bag packaging+shockproof foam

reminder:

(1) The interface of our module is clear and the performance is stable. Please verify the function under the corresponding experimental conditions in combination with the user manual provided by our store.

(2) The basic parameters of this module are in the details page, and no engineering data and other documents are provided. The buyer should be informed. If there are any operational problems, please consult customer service.

(3) Before using the module, please read the details page of the module carefully to understand the power supply and use restrictions, and avoid damaging the module due to improper operation.

(4) All modules in our store are guaranteed to provide real module parameters, functions and pictures, and all modules are delivered after detection.

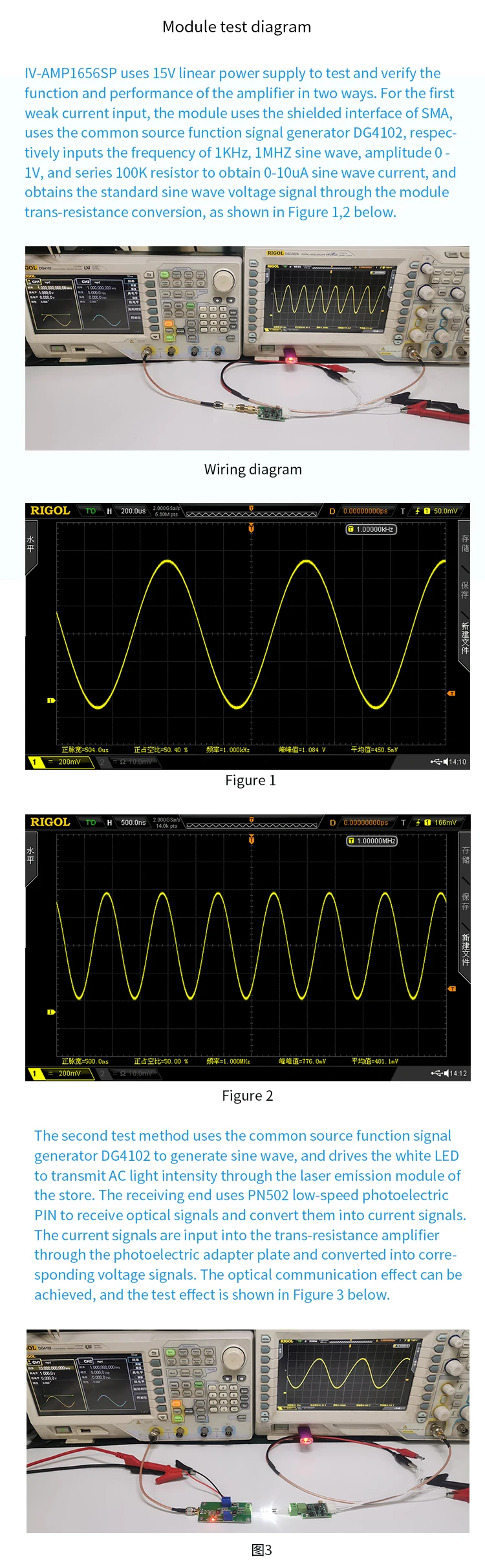

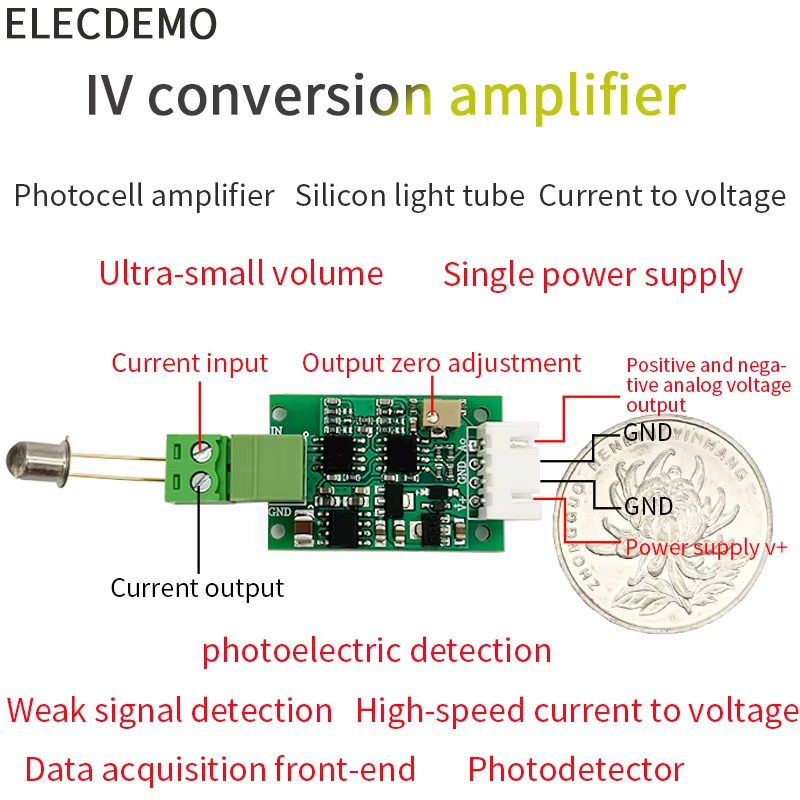

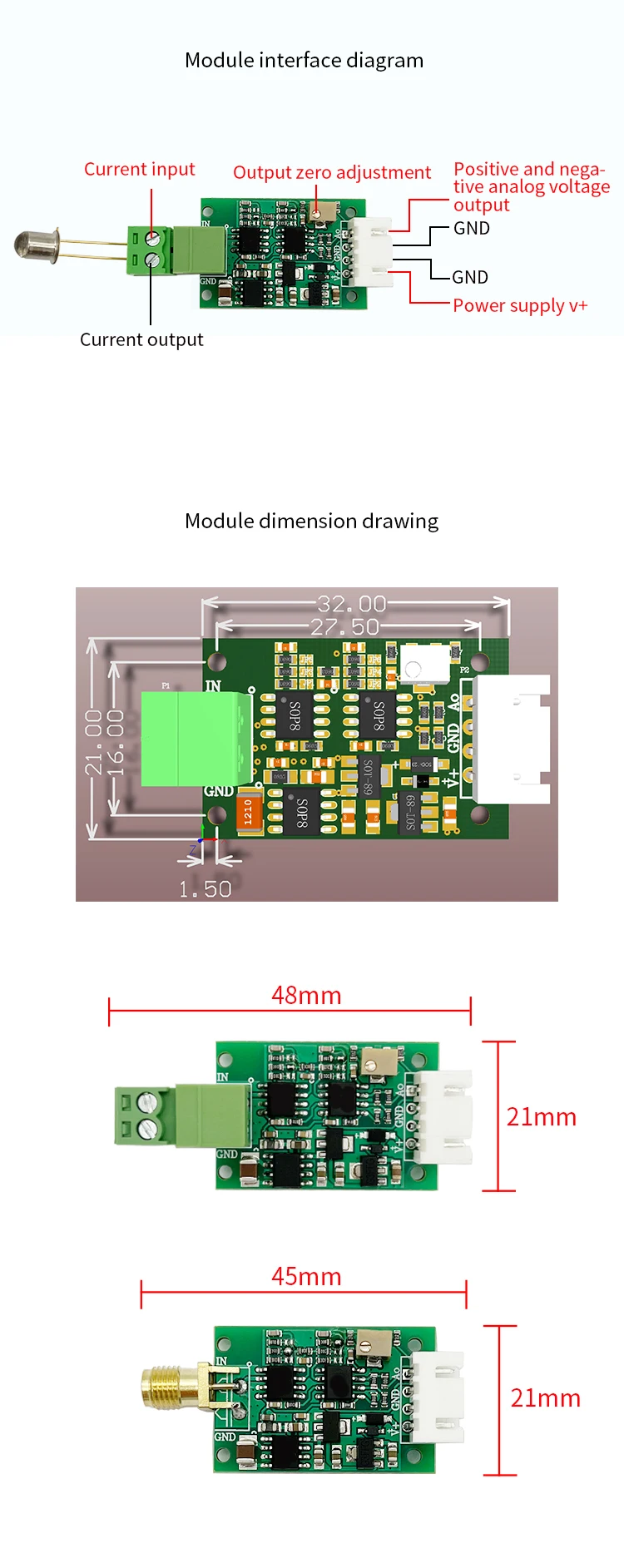

Module description

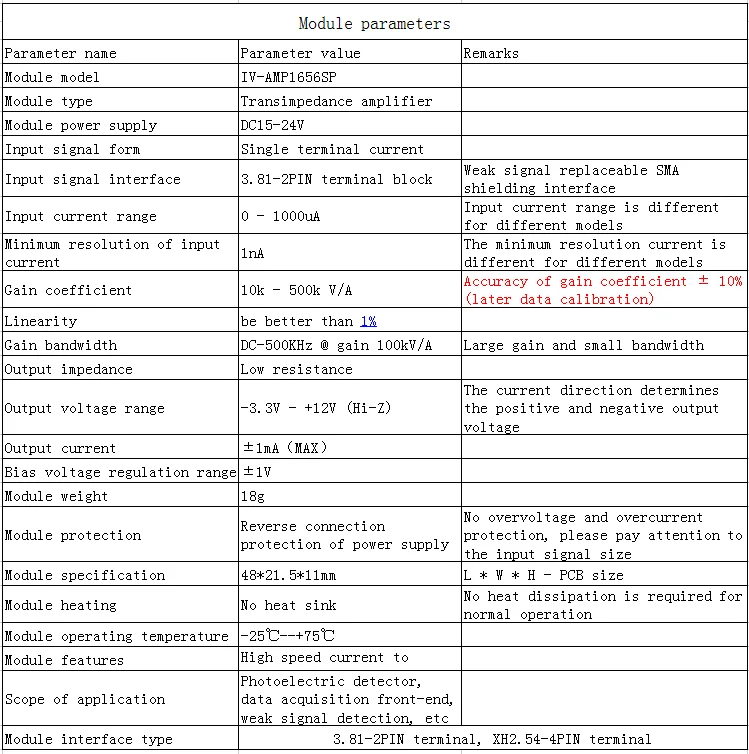

IV-AMP1656SP is a multi-specification and multi-bandwidth transimpedance amplifier, with a gain coefficient range of 10k - 500kV/A, a 1000KHZ signal bandwidth at a gain of 100kV/A, excellent noise performance within the bandwidth, high bandwidth and high amplification characteristics. The minimum current resolution of the trans-resistance amplifier is 1nA, which is compatible with and suitable for most high-speed and small-current photodiodes PD. The mini design of amplifier is convenient to embed in the acquisition system, and the power supply mode of single power supply also simplifies the power supply. The matched collector can complete weak signal detection, pulse light conversion, laser ranging, high-speed photoelectric detection and fluorescent material detection, etc.

Precautions for module use

(1) The amplifier power supply is recommended to be a linear power supply with low ripple power supply to avoid excessive power noise affecting the measurement.

(2) As the amplifier is a high-precision high-speed device, high-quality short wire is recommended to avoid unnecessary interference.

(3) The input signal cannot be over-range, over-voltage input, and the module has no input protection circuit.

(4) Poor input contact or poor quality wire may cause signal attenuation or excessive noise.

Frequently asked questions

Q: When the photocell is connected, the output hardly reacts after light irradiation?

A: First of all, confirm how much current the photocell generates under the current light intensity. You can use a multimeter to measure the current of the two pins of the photocell. According to the photocurrent, you can calculate the output voltage. If the input current is too small, the output will have little response.

Q: Is the input current signal and output voltage noisy?

A: First of all, good wire should be used for wiring and measurement. The input wire should not be too long or unshielded, which is easy to introduce external noise. The input current line should be as short and shielded as possible.

Q: Is there an amplifier with higher trans-resistance gain?

A: Various modules of our store are being developed in succession, which can provide customers with customized services of function customization and size customization. For details, please consult customer service.
