ADL5501 Module Power Detector Module RF 50M-4G Power Measurement Power Meter Lin

Product Description

Highlights:

ADL5501 is suitable for simple real power measurement and complex waveform. This device is especially suitable for measuring high peak factor (peak to root mean square ratio) signals, such as CDMA-, CDMA2000W-CDMA-and QPSK/QAM-based waveforms. On-chip modulation filters provide average values for most waveforms

ADL5501 module shipping list:

Physical module + PDF schematic diagram + after-sale technical support + electrostatic bag packaging + shockproof foam

Tips:

(1) The module interface of our shop is clear and the function is simple. Please combine the schematic diagram provided by our shop and the reference experimental conditions to do the corresponding function verification.

(2) The details of the basic parameters of this module are in the details. Only one PDF format principle is provided, and no engineering documents are provided. Please be clear to the buyer. If you have any operation problems, you can consult customer service.

(3) Before buyers use the module, please read the details page of this module to understand the power supply and use restrictions to avoid damage to the module due to improper operation.

(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules will be shipped after detection.

Please contact customer service after purchase, we will send the information to your mailbox

Module parameters

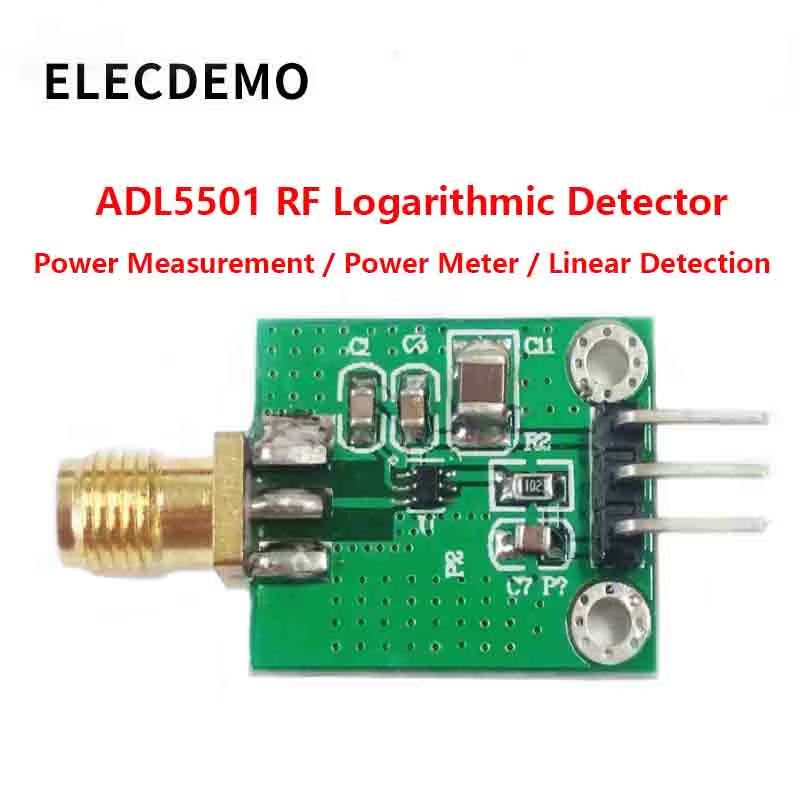

Module model: ADL5501

Module type: RF logarithmic detector

Module supply voltage: DC5V

Module supply current: 1mA

Input signal form: single-ended

Input voltage range: -25dBm-+ 15dBm

Input frequency range: 50MHz-4GHz; due to instrument limitations, parameters above 3G are not measured

Input impedance: 50 ohms

Output voltage range: 0.6V-5V; subject to actual measurement, there are differences between different modules

Input signal characteristics: The input internal AC coupling can be continuous sine wave or pulse. The circuit needs to be modified for pulse measurement. The module defaults to continuous average detection.

Output current: 2mA (max); the output is a voltage signal, generally without current.

Module dynamic range: better than 30dB

Module weight: 4g

Module protection: none; no reverse connection protection, unlimited current protection

Module weight: 4g

Module specification: 21 * 17 * 7mm length * width * height-PCB size

Module shield: no shield cover

Module heating factors: excessive power supply voltage damages the chip or the module is damaged

Module working temperature: -40 ℃-+ 85 ℃; industrial grade

Module features: low power consumption, simple structure, easy to calibrate

Applications: transmitter power measurement, receiver strength measurement, etc.

Module interface type: SMA signal input, 2.54 pin output and power supply

Module description

The ADL5501 is an average response power detector, 50MHz to 4GHz in the high-frequency receiver and transmitter signal chain. It is easy to apply, only requires a power supply voltage between 2.7V and 5.5V, power supply decoupling capacitor. The input is internally AC-coupled, with a nominal input impedance of 50Ω, and the output is linearly responsive to a DC conversion voltage of 6.3V / Vrms at 900MHz.

The ADL5501 is suitable for simple true power measurements and complex waveforms. The device is particularly suitable for measuring high crest factor (high peak to rms ratio) signals, such as CDMA-, CDMA2000-W-CDMA- and QPSK- / QAM-OFDM-based waveforms. The on-chip modulation filter provides an average value suitable for most waveforms.

On-chip, a 1000Ω series resistor at the output, combined with an external bypass capacitor, creates a residual ripple DC output voltage that reduces the response of the low-pass filter. For more complex waveforms, an external capacitor at the FLTR pin can be used to supplement signal demodulation. The ADL 5501 provides excellent temperature stability across the 30 dB range and near the entire temperature of 0 dB measurement error at the top of the dynamic range. In addition to its temperature stability, the ADL5501 has low process variations which further reduces the complexity of calibration.

Features:

Precautions for using the module

(1) The maximum input power of the detector module is + 15dBm, and the dynamic range of the detector is 40dB.

(2) The output terminal of the module and the power supply are pin headers connected together. When power is turned on, it must correspond to VCC and GND. The module does not have a power indicator, so be sure to correspond and then power on; avoid chip or module damage .

(3) The module is a low-power module, and the power supply does not exceed 5.5V.

(4) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply.

(5) It is recommended to use the SMA interface for the input signal. Poor contact or poor quality wires may cause signal attenuation or excessive noise, making the measurement inaccurate.

(6) The response and dynamic range of the detector module at different frequencies will be different, and there are differences between different modules. It is a normal phenomenon and not a module problem.
