low-pass filter MAX292 Deep filtering clock adjustment filtering frequency progr

Product Description

Highlights：

This filter is an eighth-order Bessel filter. It is suitable for the range of angular frequency from 01Hz to 25kHz, and its clock angular frequency ratio is 100:1. At the same time, MAX292 has a built-in amplifier. This module can further filter the output by changing the amplifier to a second-order filter, and the filtering effect is better.

MAX292 module shipping list

Physical module + PDF schematic diagram + after-sale technical support + electrostatic bag packaging + shockproof foam

Tips:

(1) The module interface of our shop is clear and the performance is stable. Please perform functional verification under the corresponding experimental conditions in conjunction with the schematic diagram provided by our shop.

(2) The basic parameters of this module are in the details page, providing PDF information of the module information, and no engineering files; please buyers understand that if there are operational problems, you can consult customer service.

(3) Buyers, before using the module, please read the details page of this module to understand the power supply and use restrictions, to avoid damage to the module due to improper operation.

(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules will be shipped after detection.

Please contact customer service after purchase, we will send the information to your mailbox

Module parameters

Module model: MAX292

Module type: switched capacitor filter

Power supply voltage: ± 5V

Module current: 12mA

Module control mode: external clock control

Module clock frequency: 2.5MHz (MAX)

Module provides routines: STM32F103RBT6

Filter type: low pass

Filter order: eighth order

Low-pass cut-off frequency range: 0.1Hz-25KHz

Input signal form: single-ended

Input channel: 1 channel; can be cascaded, the output has 2 channels

Input signal voltage range: 0.4Vpp-3.5Vpp

Input frequency range: 0.1Hz-10KHz

Module gain: none

Input and output signal characteristics: coupled input and output; signal amplitude at low frequency will be attenuated

Because it is a switched capacitor filter, the output signal of channel A is sawtooth. The B channel is the output of the A channel through the analog filter, and the output is basically without aliasing.

Module input and output interface: SMA; 24-hour salt spray anti-oxidation

Module protection: none; no reverse connection protection, unlimited current protection

Customized parameters: none; need to program by yourself to realize the functions you need

Module features: multi-function filter, universal adjustable filter

Module application: power system, sensor signal processing, transmitter and receiver, signal generator

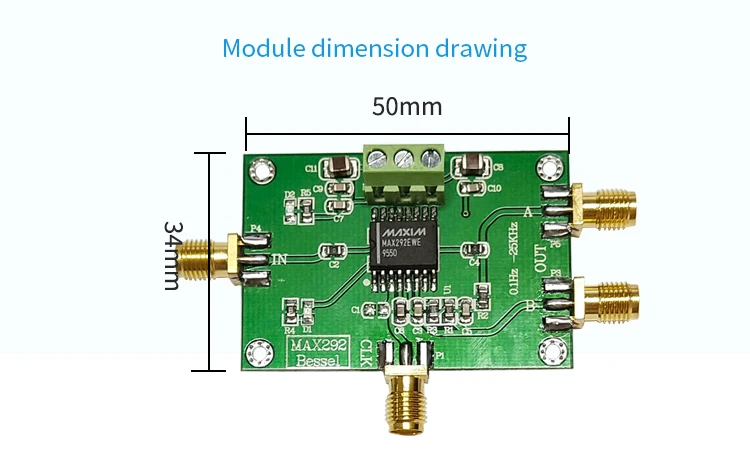

Module specifications: 50 * 34 * 12mm; length * width * height-PCB size

Module weight: 13.8g

Module working temperature: 0-75 ℃; civil grade

Chip characteristics：

Module description

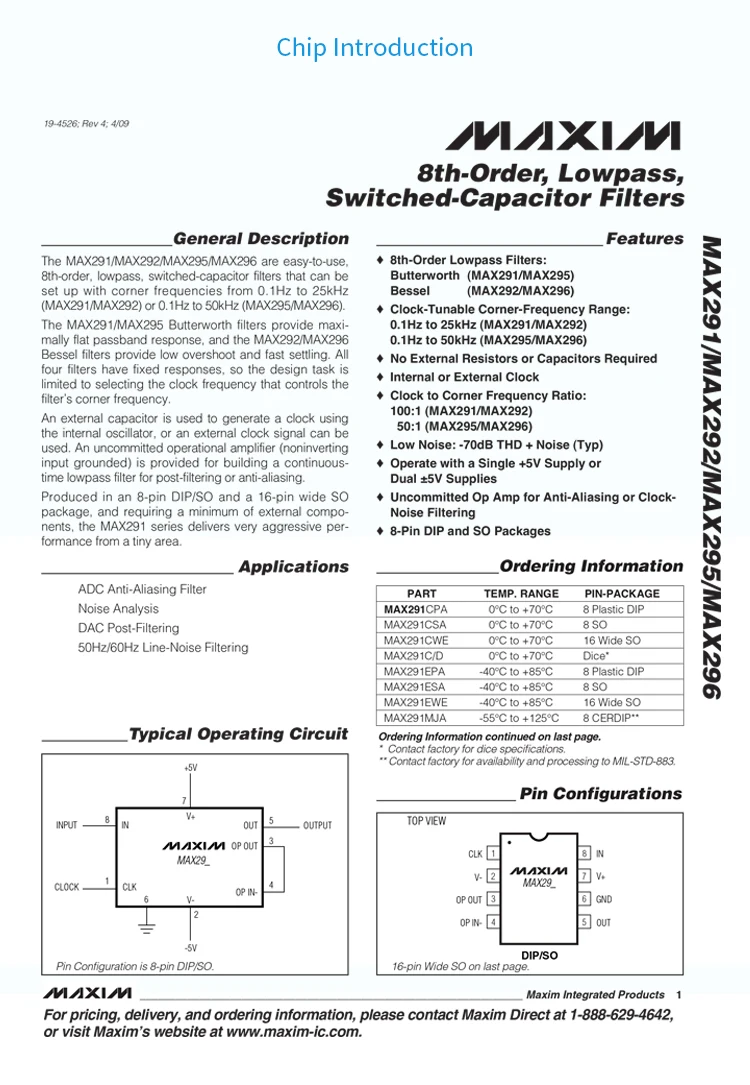

The MAX292 is an easy-to-use 8th-order low-pass switched capacitor filter that can set the angular frequency from 0.1 Hz to 25 kHz. The MAX292 Bessel filter provides low overshoot and fast stabilization. The filters all have a fixed response, so the design task is limited to selecting the clock frequency that controls the angular frequency of the filter. An external clock signal can be used. An operational amplifier is provided to construct a continuous-time low-pass filter for post-filtering or anti-aliasing. Only a few external components are required to provide very powerful performance in a small range.

Precautions for using the module

(1) The power supply of the module is a positive and negative dual power supply, and the voltage cannot exceed 5.5V.

(2) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply.

(3) It is recommended to use SMA to BNC line input and output signals for output signals. Use an oscilloscope to observe the effect. Poor contact or poor quality wires may cause signal attenuation or excessive noise.

(4) The filter measurement generally adopts the oscilloscope point frequency method. If possible, it can be tested with a frequency sweeper or a vector network analyzer.

(5) If you need to simply test the function of the module, you only need to supply power normally, and you must input an external clock board to work properly.

Frequently asked questions

Q: The output waveform of the module is jagged, and the noise is relatively heavy. Is the effect correct?

A: MAX292 is a switched capacitor filter, and the sawtooth of the switching frequency will appear on the waveform. The direct output of the A channel is sawtooth. It is recommended to use a good wire. The B channel output plus a first-level analog low-pass filter will make the waveform much better; This module is shipped after inspection and testing, and there is no problem with the normal driving effect.

Q: Can the modules be cascaded?

A: The modules can be directly cascaded, and the filtering effect is directly superimposed.

Q: What is the amplitude of the external clock input?

A: It is recommended to input a square wave of ± 5V as a clock signal.
