Low ripple TPS54560 power module DCDC high-voltage 60V step-down 5A high current

Product Description

Shipping List

Physical module+after-sales technical support+electrostatic bag packaging+shockproof foam

Reminder:

(1) The module interface of our store is clear and the performance is stable. Please conduct Functional verification under the corresponding experimental conditions in combination with the details of Taobao in our store.

(2) The basic parameters of this module are all in the details page, and schematic diagrams and engineering documents are not provided. Please be informed by the buyer. If there are any operational issues, please consult customer service.

(3) Please read the detailed page of this module carefully before using it, understand the power supply and usage restrictions, and avoid damaging the module due to improper operation.

(4) Our store ensures that all modules provide true module parameters, functions, and images, and all modules are tested before shipment.

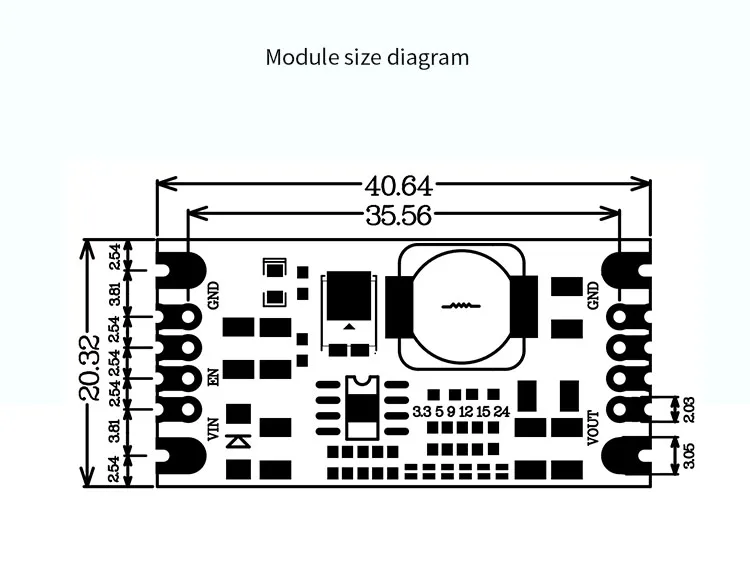

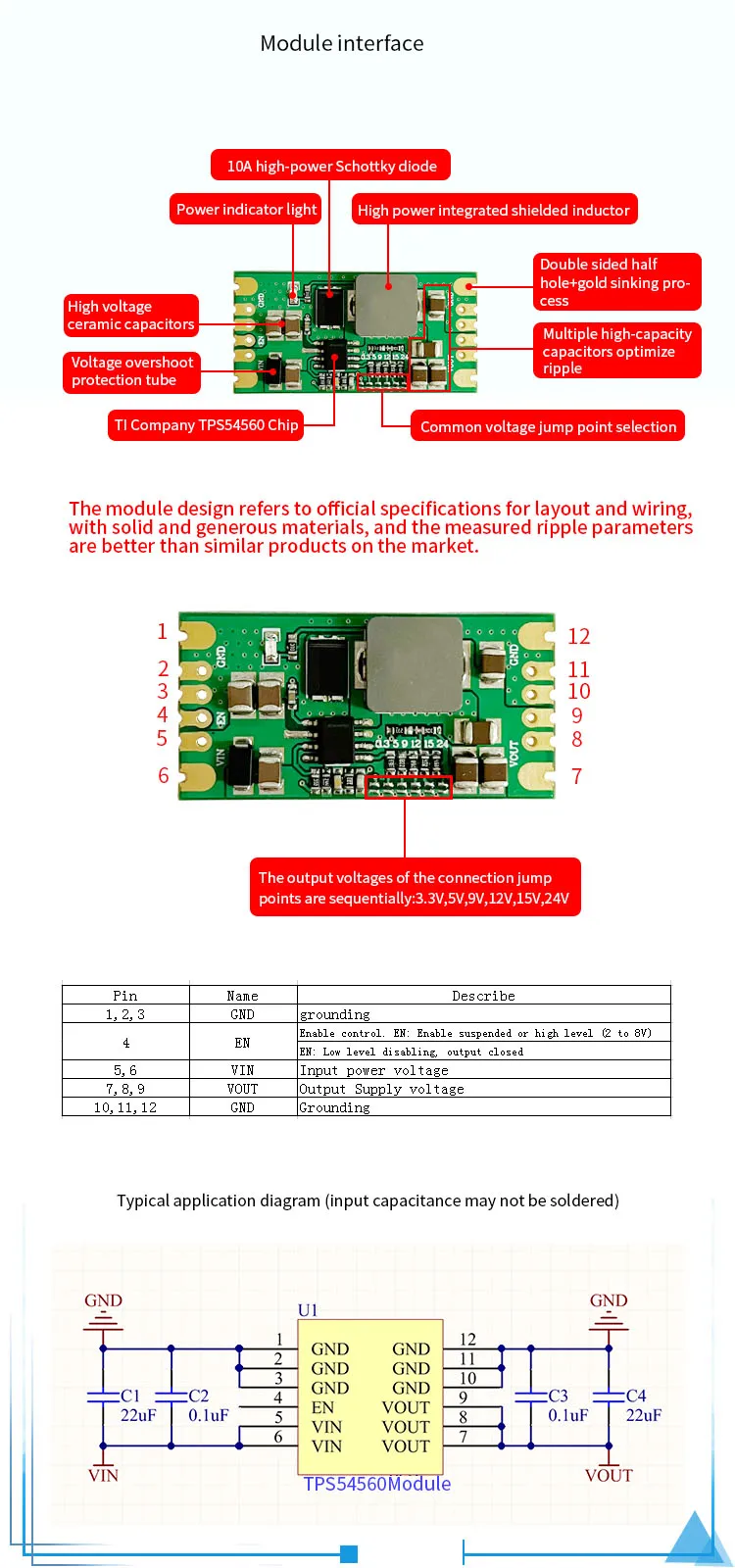

Module Introduction

This module adopts TPS54560 chip, with a maximum load current of 5A

and a maximum input of 60V, and a theoretical conversion efficiency of 91%. The module's on-board voltage is selected to jump for quick and convenient selection of output voltage, providing optional voltage values: 3.3V, 5V, 9V, 12V, 15V, 24V. The chip has overheating protection inside. When using at high power for a long time, please pay attention to the heating condition of the modules (chips, inductors, diodes) to avoid chip overheating protection. The module refers to official design specifications for layout and wiring, with generous materials, small ripple, and convenience and practicality. Suitable for student competition modules and personal project development.

Module usage precautions

(1) The module belongs to the step-down type, and the input voltage needs to be greater than the output voltage by more than 2V to achieve stable output.

(2) The detailed description of our store's treasures is mainly measured for 5V output models.

The heating of the module is mainly determined by the input and output voltage difference and the load current. Due to the limited volume of the module,When using high-power (output 3A) or higher, please add heat sinks, fans, etc. by the buyer to cool the chip and module. Otherwise, temperature accumulation will trigger chip thermal protection, leading to output shutdown. Only with good heat dissipation conditions can the module work well and achieve optimal performance,Please choose and use the power module reasonably, and generally reserve a certain margin. (4) If you have a need for high current and long-term work, you can purchase the version with a heat sink in our store (click on the following image to jump to it).

Frequently asked questions

Q: Why can't the maximum output of the module reach the nominal value when in use?

A: To achieve high output power, the input power of the module must be greater than the output power.

Q: My input voltage is normal, why is the module unable to output normally?

A: Firstly, ensure that the EN pin of the module is correctly enabled. Secondly, all switch power modules have a starting current limit, and the input power supply needs to have an instantaneous output capacity of more than 300mA to start the module.

Q: 12V output for skip point selection, module power supply 13V, output 11V?

A: The module belongs to the step-down type, and it is recommended that the input voltage be greater than the output voltage by more than 2V to achieve stable output.

Q: Why cannot the nominal ripple parameters be tested?

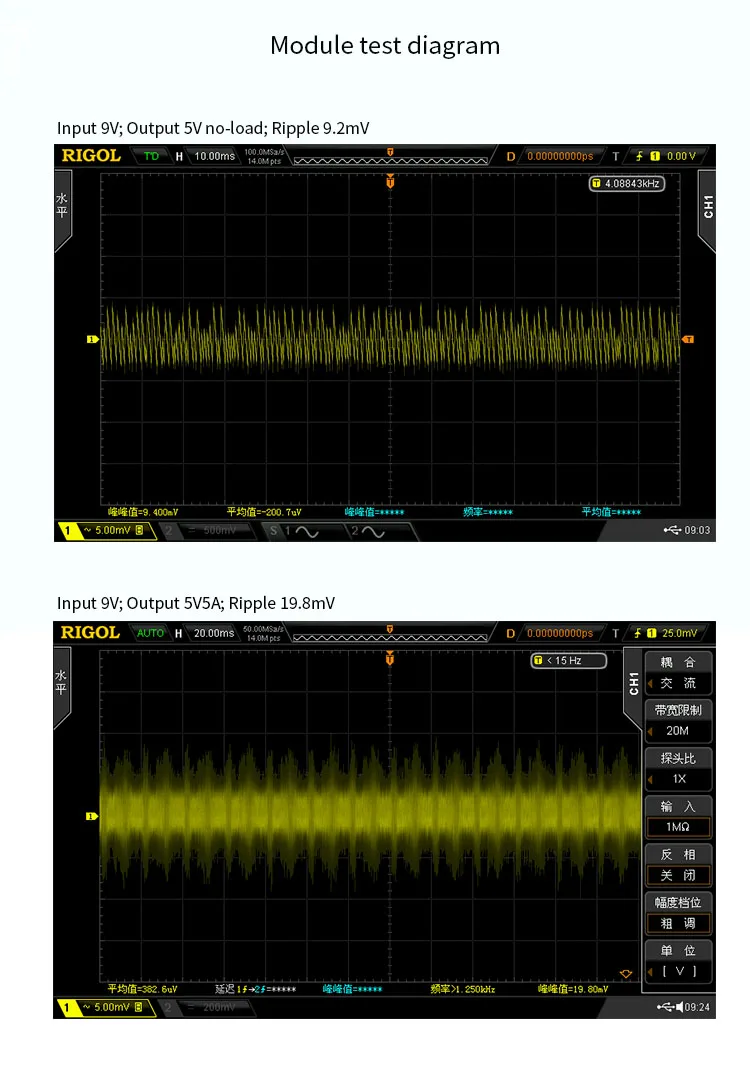

A: Firstly, it is necessary to have the correct measurement method, such as Baidu Power Ripple Measurement Method. Secondly, the input and output voltage difference and the load current also have a certain impact on the output ripple.
