Piezoelectric ceramic PZT drive controller module linear 130V high-voltage outpu

Product Description

Delivery list

Delivery list of piezoelectric ceramic driver

Physical module+power adapter+user manual+after-sales technical support+electrostatic bag packaging+shockproof foam

Reminder:

(1) The module interface of our store is clear and the performance is stable. Please verify the function under the corresponding experimental conditions in combination with the user manual provided by our store.

(2) The basic parameters of this module are in the detail page, and the schematic diagram, PCB and other engineering documents are not provided. The buyer should be informed. If there is any operation problem, please consult the customer service.

(3) Before using the module, please read the details page of this module in detail to understand the power supply and use restrictions, so as to avoid damage to the module due to improper operation.

(4) All modules in our store guarantee to provide real module parameters, functions and pictures, and all modules will be delivered after inspection.

Module parameters

Parameter name；Parameter value；remarks

Module model；Piezoelectric ceramic driver

Module Type；High pressure drive

Module supply voltage；DC5V

Module supply current；1A

Input impedance；10K

Input signal type；Arbitrary waveform

Input signal amplitude；0-15V；All signals are required to be above 0

Input signal frequency；40K (sine wave)

Output voltage；130V (MAX)

Magnification；10-44 times adjustable

Rise time；5uS (MAX)

Module output current；小于10m4

Module protection；Reverse connection protection of power supply

Module weight；55g

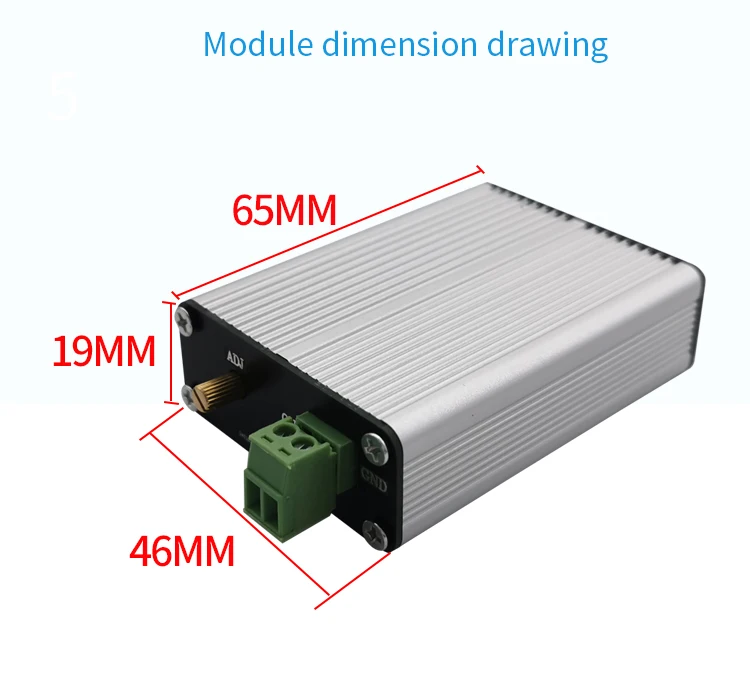

Module specifications；79*46*19mm；Length * width * height - PCB size

Module heating；No heat sink；No heat dissipation required for normal operation

Module heating factor；The chip or module is damaged due to excessive power supply voltage

Module operating temperature；-25C--+75C；Industrial grade

Module Features；Output power LED indication, adjustable voltage output

Scope of application；Photoelectric drive, piezoelectric ceramic drive, PZT drive control, etc

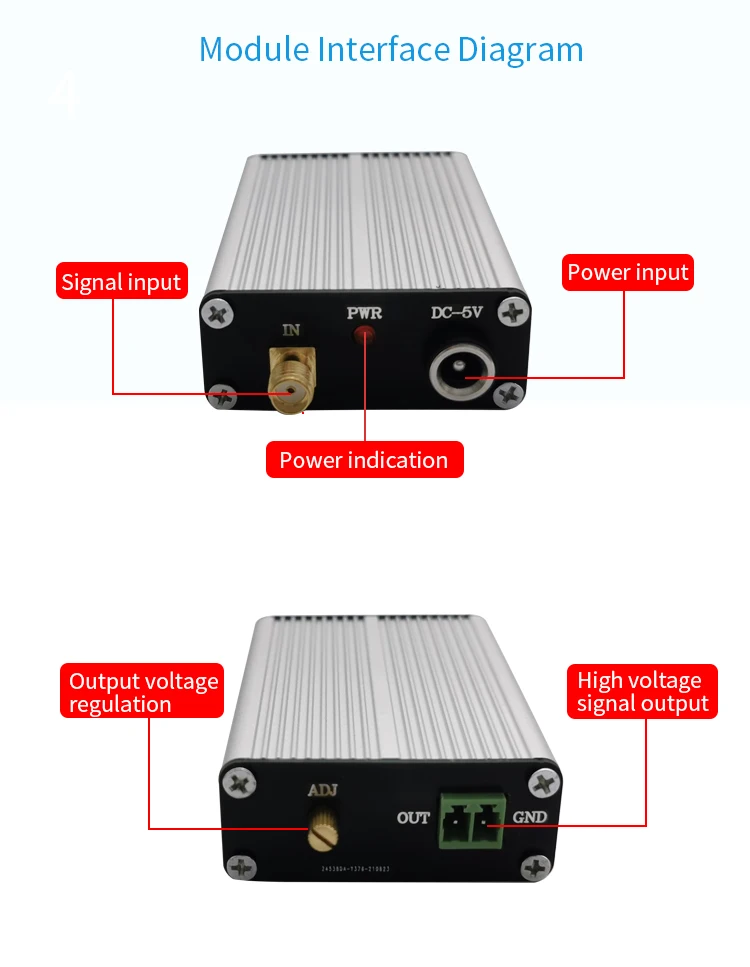

Module interface type；SMA signal input, 3. 81-2 PIN output, DC5 5 * 2.1 Power supply base

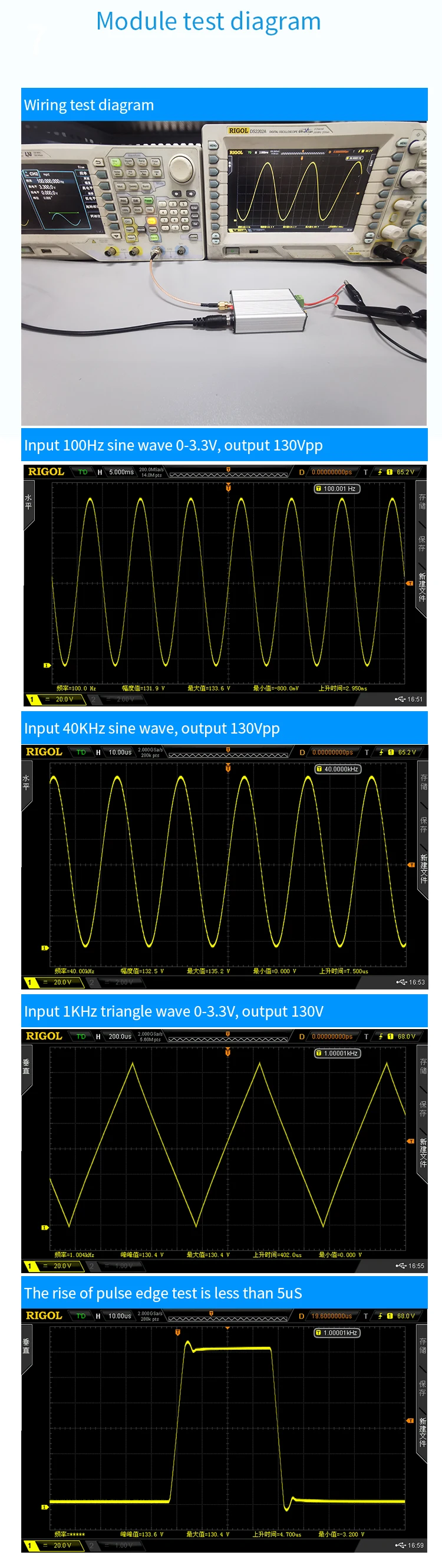

Module Description

Piezoelectric ceramic driver is a driving module with high voltage output and linear adjustment. The maximum output voltage of the module can reach 130V. It is usually used in pulse light conversion and some places where piezoelectric ceramics are driven. The maximum rise time of the module is 5uS, and the smaller rise time ensures good accuracy in biomedical sensor field, especially in ultrasonic imaging. The module output is linear amplification, which can input any waveform amplification output above 0. The module amplification ratio is 10-44 times adjustable, realizing a wide dynamic range. The module is compatible with and adaptable to most piezoelectric ceramics. The module is also suitable for CCD imaging, avalanche photoelectric detection and other optical applications, such as high-speed photoelectric detection, light pulse detection and fluorescent material detection.

Precautions for module use

(1) The power supply of the module is 5V DC, and the voltage cannot exceed 5.5V.

(2) Since the module is a high-voltage output device, users need to pay attention to their own safety.

(3) It is recommended to use good wire for input and output signals to ensure good grounding. When measuring high voltage, please use a high-voltage attenuation probe. Poor contact or poor quality wire may cause signal attenuation or excessive noise.

(4) As the output voltage of the module is high, pay attention not to short circuit or over-current the load. Otherwise, the module will be damaged.

Frequently asked questions

Q: Is there a higher voltage driver module?

A: All kinds of drive modules in our shop are being developed in succession, including higher voltage and smaller pulse width. In addition, we can also provide customers with customized services for function customization and size customization. For details, please consult customer service.

Q: No output after signal input?

A: First, check whether the power indicator is on. The power supply requires a drive capacity of 5V1A or above, otherwise the module cannot be started. If the input signal pulse width is too small or the signal line is not connected properly, it is generally recommended to use the SMA interface line for direct connection.

Q: Is it possible to use batteries and other devices for power supply?

A: Yes. As long as the voltage and current requirements required by the module are met, the voltage is 5V and the current is 1A.
