Product Description

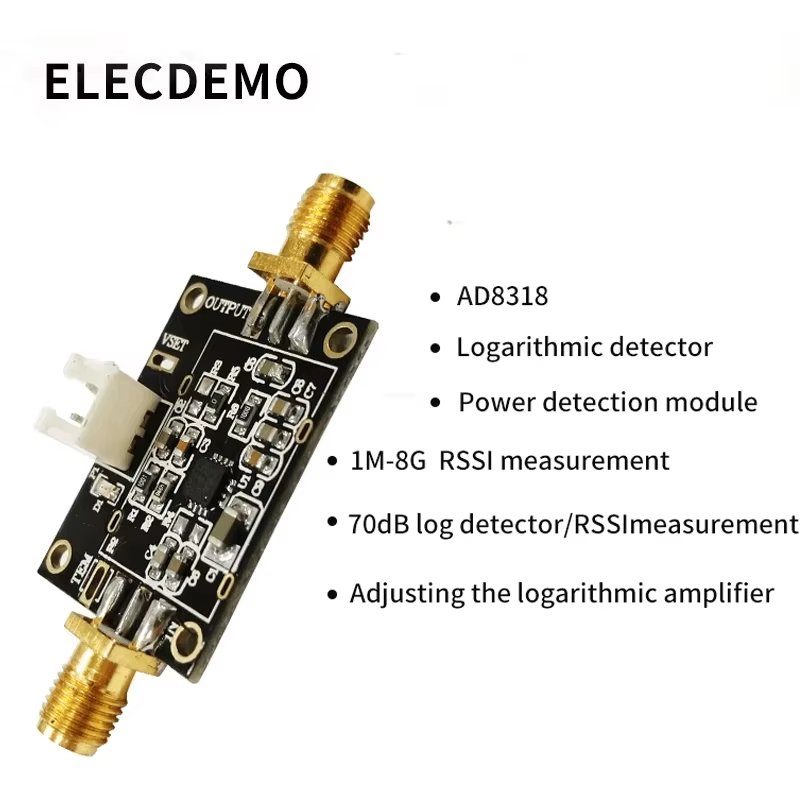

AD8318 Module Logarithmic detector power detection module 1M-8G RSSI measurement RF power meter Function demo board
AD8318 Module Logarithmic detector power detection module 1M-8G RSSI measurement RF power meter Function demo boardHighlights：
AD8318 is a demodulation logarithmic amplifier, which can accurately convert the RF input signal to the corresponding dB scale output voltage. For 1MHz to 6GHz signals, it can maintain accurate logarithmic consistency and work at a maximum of 8GHz.
AD8318 module shipping list:Module + PDF schematic + after-sale technical support + electrostatic bag packaging + shockproof foamTips:(1) The module interface of our shop is clear and the function is simple. Please combine the schematic diagram provided by our shop and the reference experimental conditions to do the corresponding function verification.(2) Details of the basic parameters of this module are in the details, only one PDF format principle is provided; no engineering documents are provided, please be clear to the buyer. If you have any operation problems, you can consult customer service.(3) Before buyers use the module, please read the details page of this module to understand the power supply and use restrictions to avoid damage to the module due to improper operation.(4) Our modules are guaranteed to provide real module parameters, functions and pictures, and all modules will be shipped after detection.Please contact customer service after purchase, we will send the information to your mailbox
Module parametersModule model: AD8318Module type: RF logarithmic detectorModule supply voltage: DC5VModule supply current: 80mAInput signal form: single-endedInput voltage range: -65dBm - +20dBmInput frequency range: 1MHz-8GHz; due to instrument limitations, parameters above 3G are not measuredInput impedance: 50 ohmsOutput voltage range: 0.5V-2.1V; subject to actual measurement, there are differences between different modulesInput signal characteristics: input coupling; can be continuous sine wave or pulse. The circuit needs to be modified for pulse measurement. The module defaults to continuous mean detection.Output current: 2mA (max); the output is a voltage signal, generally without current.Module dynamic range: better than 70dBModule weight: 10gModule protection: none; no reverse connection protection, unlimited current protectionModule weight: 10gModule specification: 32*24*7mm; length*width*height-PCB sizeModule shield: with shield coverModule heating factors: excessive power supply voltage damages the chip or the module is damagedModule working temperature: -25℃--+75℃; industrial gradeModule features: the module is simple and compact, and the interface is simpleApplications: transmitter power measurement, receiver strength measurement, etc.Module interface type: SMA signal input and output, XH2.54 foolproof power base
Module description
The typical value of the AD8318 input range is 60dB (re:50), and the error is less than ±1dB. The AD8318 has a response time of 10ns and can detect RF bursts above 45MHz. Under ambient temperature conditions, the device has good log intercept stability. The device also provides a temperature sensor output with a slope of 2mV°C for other system monitoring. Requires 5V single power supply. Typical current consumption is 68mA. When the device is disabled, power consumption drops to <1.5mW.
The AD8318 can be configured to provide a control voltage to a VGA such as a power amplifier, or to provide a measurement output from the VOUT pin. Because the output can be used for controller applications, the broadband noise is extremely low. In this mode, the setpoint control voltage acts on the VSET pin. The feedback loop through the RF amplifier is closed by VOUT, and its output adjusts the output of the amplifier to a magnitude corresponding to VSET. AD8318 can provide 0V to 49 output through the VOUT pin, suitable for controller applications. As a measuring device, the OUT pin is externally connected to VSET to generate the output voltage VOUT, which is a linear dB function of the RF input signal amplitude. The nominal value of the logarithmic slope is -25mvdB, but it can be adjusted by adjusting the feedback voltage of VOUT to the VSET interface. When using NH input, the intercept is 20dBm (re:500CW input). These parameters are very stable and do not change with power supply voltage and temperature fluctuations
Precautions for using the module
(1) The maximum input power of the detector module is +20dBm. The dynamic range of the detector is 85dB, and there are actual measurements to see that non-linearity starts to appear when it is greater than -5dBm.
(2) The module has no reverse connection and no current limiting protection. When using the module, be careful not to reverse the connection, otherwise the chip or module will be easily damaged.(3) The module is a low-power module, and the power supply does not exceed 5.5V.(4) Since the module is a high-precision device, in order to avoid unnecessary interference, it is recommended to use a linear power supply.(5) It is recommended to use the SMA interface for the input signal. Poor contact or poor quality wires may cause signal attenuation or excessive noise, making the measurement inaccurate.(6) The response and dynamic range of the detector module at different frequencies will be different, and there are differences between different modules, which is normal and not a problem of the module
Frequently asked questions
Q: Is there no response when measuring pulse power? The output is a straight line.
A: The default function of the module is power detection. It cannot detect pulse or instantaneous power. You need to change the C7 capacitor to a small capacitor value to detect pulse and instantaneous power. Generally, the higher the instantaneous requirements, the C7 capacitor should be small enough.
Q: I bought 3 modules, but the output voltage of the same test condition is different. Is this normal?
A: There are individual differences between the modules. The actual measured details are typical data, and the specific parameters have been measured.
Q: Can I do fast detection or demodulation?
A: With the C7 capacitor removed, fast detection or demodulation can be done.
