Product Description

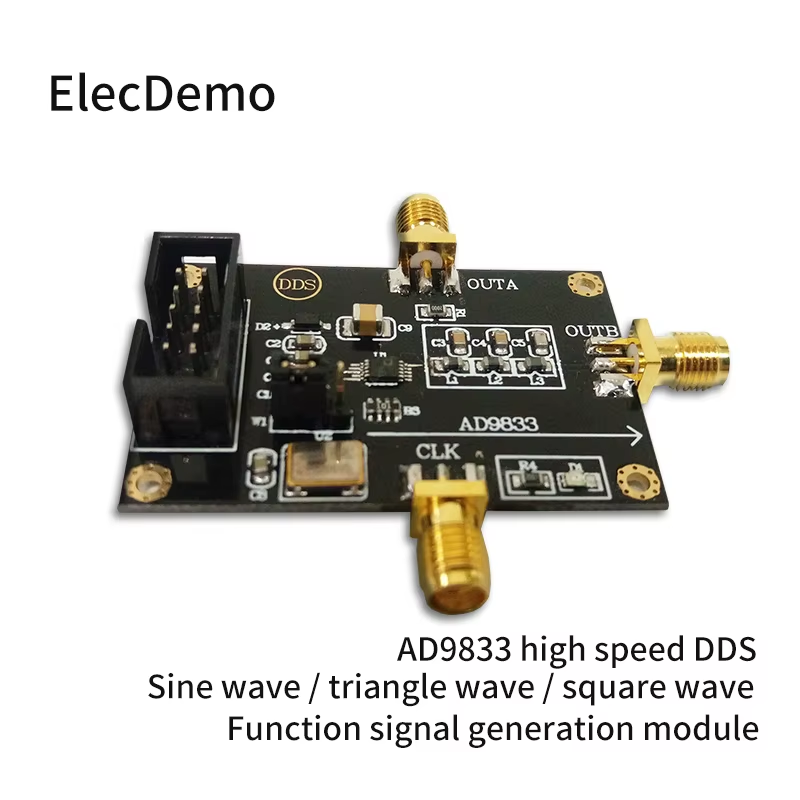

AD9833 DDS Signal Generator Triangle Sine Wave Signal Source Programmable Microprocessors Sine Square Wave Module Board
AD9833 DDS Signal Generator Triangle Sine Wave Signal Source Programmable Microprocessors Sine Square Wave Module BoardHighlights：
We do not save material, all use large capacity tantalum capacitor as power filter, so that the power ripple is better. In PCB layout, according to RF routing strictly, impedance and phase delay can be calculated by APPCAD, which can effectively reduce signal attenuation, especially high-frequency signal. In power supply routing, current is supplied by a very short circuit, and power interference is reduced.
Features:

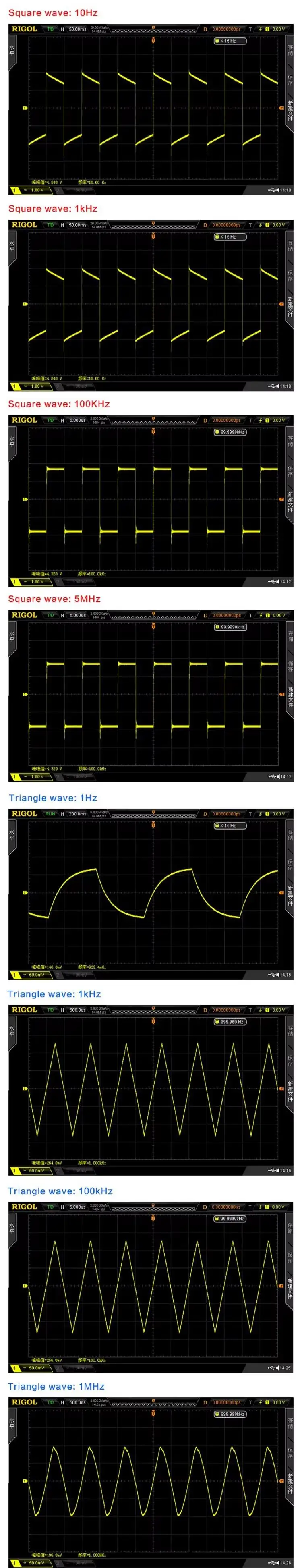

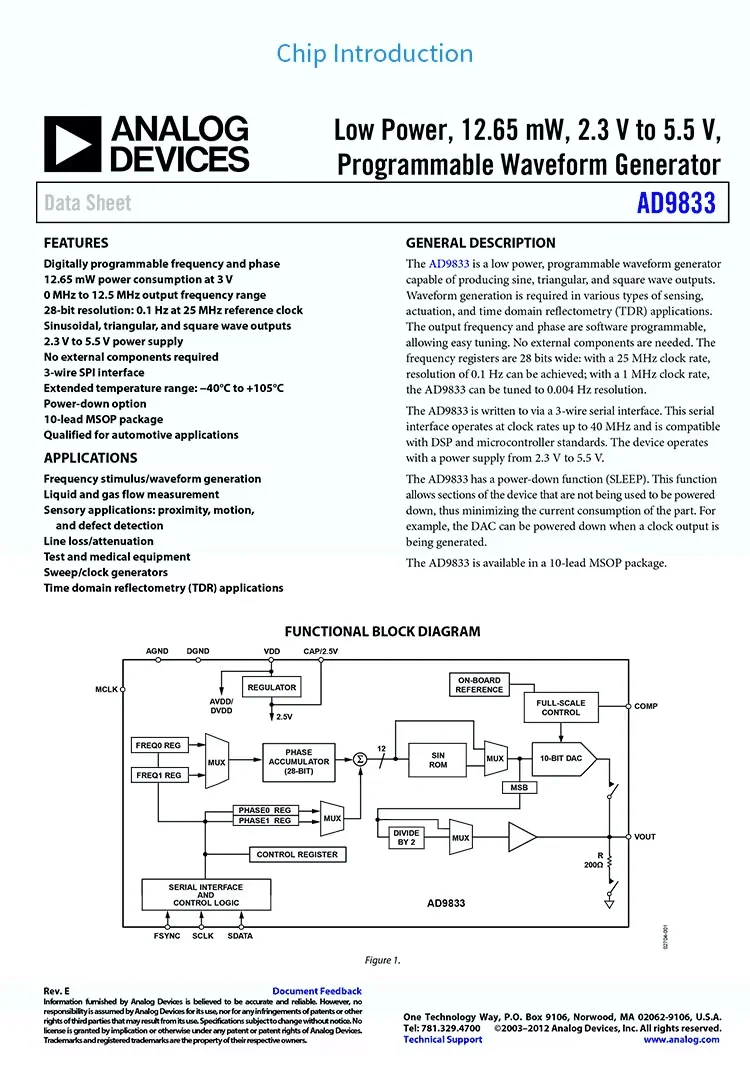

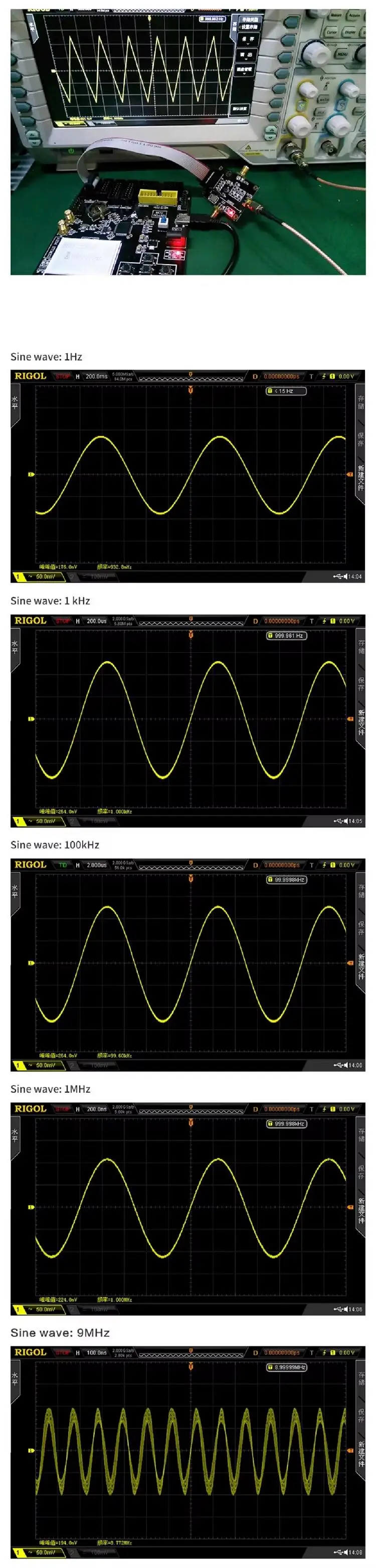

*Digital Programmable Frequency and Phase*When the supply voltage is 3V, the power consumption is 12.65mW.*Output frequency range: 0 MHz to 12.5 MHz*28-Bit resolution (25MHz reference clock time is 0.1Hz)*Sinusoidal/Triangular/Square Wave Output*2.3V to 5.5V power supply*No need for external components*Three-wire SPI interface*Extended temperature range: - 40°C to + 105°C*Power-off option*10 pin MSOP packageParameters:*[Name]: AD9833 High Speed DDS Module*[Size]: 50mm X33mm*[Power supply voltage range]:5VApplication:*Frequency Stimulation/Waveform Generation*Measurement of liquid flow and airflow*Sensor applications: proximity, motion and defect detection*Line loss/attenuation*Testing and medical equipment*Scanning/Clock Generator*Time Domain Reflection (TDR Application)Package include:*module*1*PDF schematic*1+STM32F103RCT6 Source Program*1:Please contact customer service after purchase, we will send the information to your mailboxBelow is AD9833 sine wave:Effect Chart of 1Hz、1KHz、100KHz、1MHz、9MHz
