High voltage adjustable pulse drive module Piezoelectric ceramic PZT drive contr

Product Description

Delivery list

Delivery list of high-voltage pulse drive module

Physical module+power adapter+user manual+after-sales technical support+electrostatic bag packaging+shockproof foam

Reminder:

(1) The module interface of our store is clear and the performance is stable. Please verify the function under the corresponding experimental conditions in combination with the user manual provided by our store.

(2) The basic parameters of this module are in the detail page, and the schematic diagram, PCB and other engineering documents are not provided. The buyer should be informed. If there is any operation problem, please consult the customer service.

(3) Before using the module, please read the details page of this module in detail to understand the power supply and use restrictions, so as to avoid damage to the module due to improper operation.

(4) All modules in our store guarantee to provide real module parameters, functions and pictures, and all modules will be delivered after inspection.

Module parameters

Parameter name；Parameter value；remarks

Module model；High voltage pulse drive module

Module Type；Pulse drive

Module supply voltage；DC9V

Module supply current；1A

Input impedance；10K

Input signal type；square wave

Input signal amplitude；3.3V-TT Or 5V-TTL

Input signal pulse width；The positive pulse width is greater than 80ns, and the negative pulse width is greater than 200nS

Input signal frequency；500K (MAX)

Output signal amplitude；25-100V adjustable

Output positive pulse width；Output pulse width=input pulse width+270ns；Regular 33033;generic 350ns (MIN) 150mS (MAX)

Pulse width resolution；1nS

Output rising and falling edge；Less than 35rs；No load

Module output current；Less than 10mA

Module protection；Reverse connection protection of power supply

Module weight；55g

Module specifications；79* 46*19mm；Length * width * height - PCB size

Module heating；No heat sink；No heat dissipation required for normal operation

Module heating factor；The chip or module is damaged due to excessive power supply voltage

Module operating temperature；-25C--+75C；Industrial grade

Module Features；Output power LED indication, adjustable voltage output

Scope of application；Photoelectric drive, piezoelectric ceramic drive, PZT drive control, etc

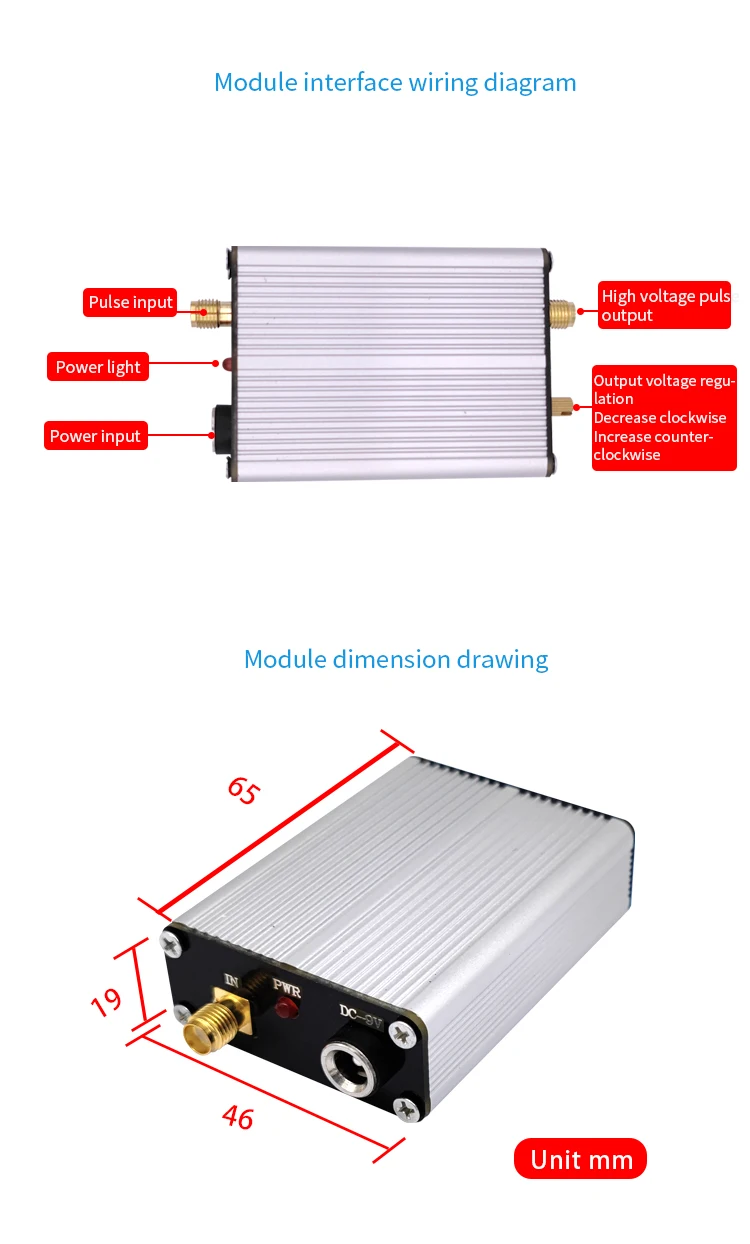

Module interface type；SMA signal input and output, DC5. 5 * 2.1 power supply base

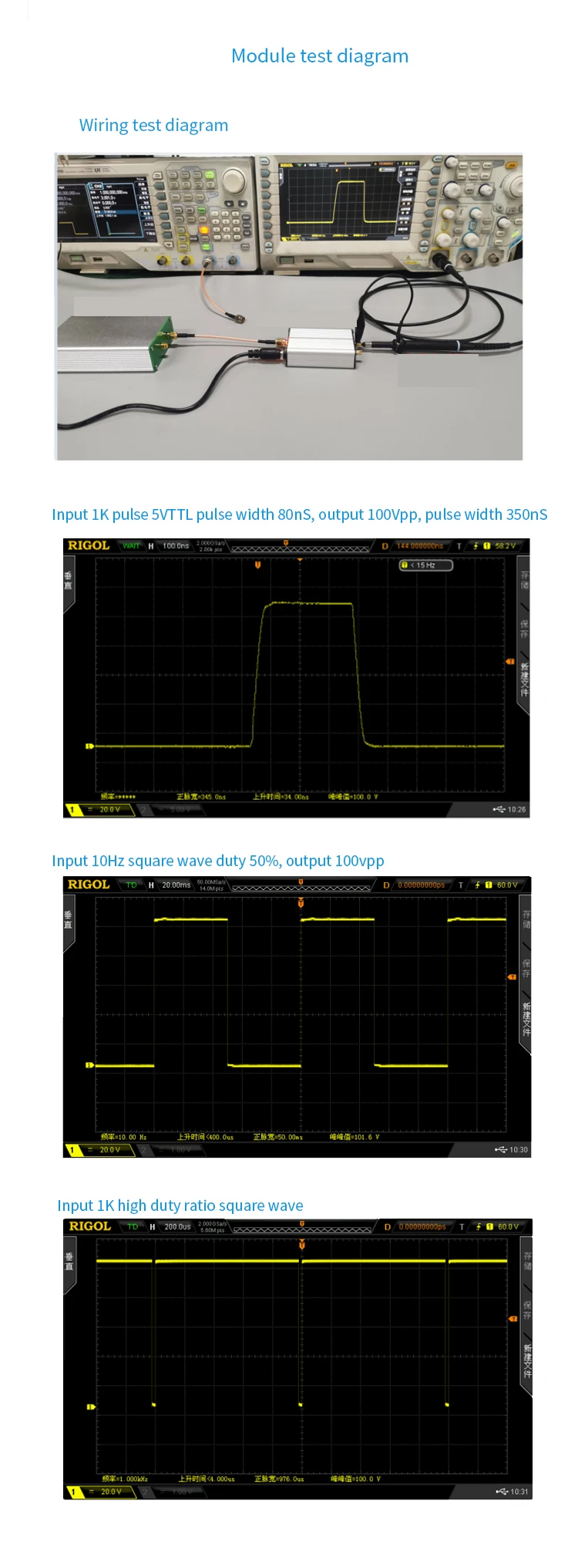

Module Description

High voltage pulse drive module is a high voltage adjustable pulse drive module. The maximum output voltage of the module can reach 100V. It is usually used in pulse light conversion and some places driven by piezoelectric ceramics. The minimum pulse width resolution of the module is 1nS, and high pulse width resolution improves the accuracy of biomedical sensor field, especially in ultrasonic imaging. The module is compatible with and adaptable to most piezoelectric ceramics. The module is also suitable for CCD imaging, avalanche photoelectric detection and other optical applications, such as high-speed photoelectric detection, light pulse detection and fluorescent material detection.

Precautions for module use

(1) The power supply of the module is 9V DC, and the voltage cannot exceed 12V.

(2) Since the module is a high-voltage output device, users need to pay attention to their own safety.

(3) It is recommended to use good wire for input and output signals to ensure good grounding. When measuring high voltage, please use a high-voltage attenuation probe. Poor contact or poor quality wire may cause signal attenuation or excessive noise.

(4) As the output voltage of the module is high, pay attention not to short circuit or over-current the load. Otherwise, the module will be damaged.

Frequently asked questions

Q: Is there a higher voltage pulse drive module?

A: All kinds of drive modules in our shop are being developed in succession, including higher voltage and smaller pulse width. In addition, we can also provide customers with customized services for function customization and size customization. For details, please consult customer service.

Q: No pulse output after signal input?

A: If the input pulse width is too small or too large, it may not output, or the signal line is not connected properly. It is generally recommended to use the SMA interface line to connect directly.

Q: Is it possible to use batteries and other devices for power supply?

A: Yes. As long as the voltage and current requirements required by the module are met, the voltage is 9V and the current is 1A.
