TPS5450/TPS5430 switching power supply module DCDC buck 3.3V5V9V12V voltage outp

Product Description

Module delivery list

Physical module+after-sales technical support+electrostatic bag packaging+shockproof foam

reminder:

(1) The interface of our module is clear and the performance is stable. Please verify the function under the corresponding experimental conditions in combination with the details of our Taobao.

(2) The basic parameters of this module are all in the detail page, and the schematic diagram and engineering documents are not provided. The buyer should be informed. If there is any operation problem, please consult customer service.

(3) Before using the module, please read the details page of the module carefully to understand the power supply and use restrictions, and avoid damaging the module due to improper operation.

(4) All modules in our store are guaranteed to provide real module parameters, functions and pictures, and all modules are delivered after detection.

Module parameters

Parameter name；Parameter value；remarks

Module model；TPS5430/TPS5450

Module type；Switching Mode Power Supply

Input voltage；5.5V - 36V；It is recommended to use<30V (our TPS54560 module can be used for high-voltage power supply)

Output voltage；varied；3.3V.5V.9V.12V.15V.24V. Development

Output current；3A or 5A；3A（TPS5430），5A（TPS5450）

Output minimum current；10mA

Input and output differential pressure；Greater than 2V

Maximum conversion efficiency；90-95%

Output ripple；30mV@+5V；The greater the output current, the greater the ripple

Module enable；Suspended enable output

Module protection；Input anti-reverse connection

PCB process；Half-hole+gold sinking process

Installation method；Lead-type, SMD dual in-line -2.54 spacing

Module features；varied；Low noise, low ripple; With output power indicator

Module application；varied；Operational amplifier power supply, data converter power supply, industrial automation control, LED lighting, industrial control equipment, communication equipment, electrical equipment, instruments and meters

Module weight；6.3g

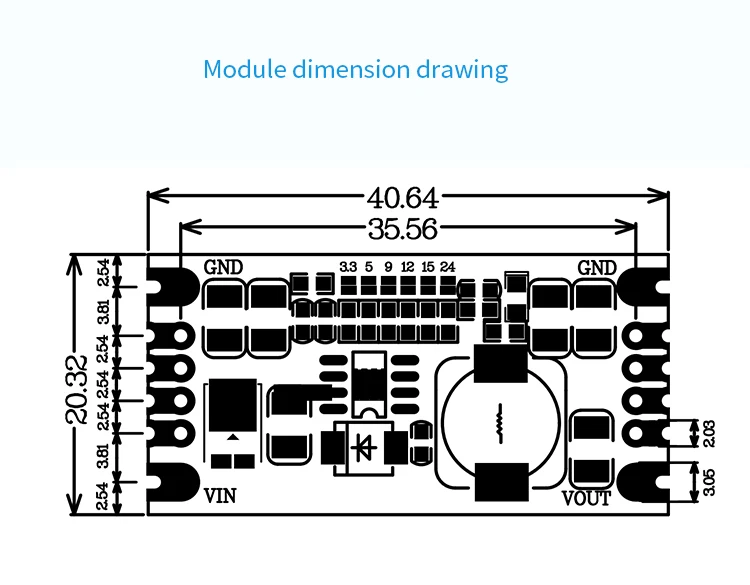

Module size；40.64×20.32×5.28；long × wide × Height (mm)

Module heating；The greater the load, the greater the heat；Pay attention to heat dissipation

Working temperature；-25℃ to 125℃

Module description

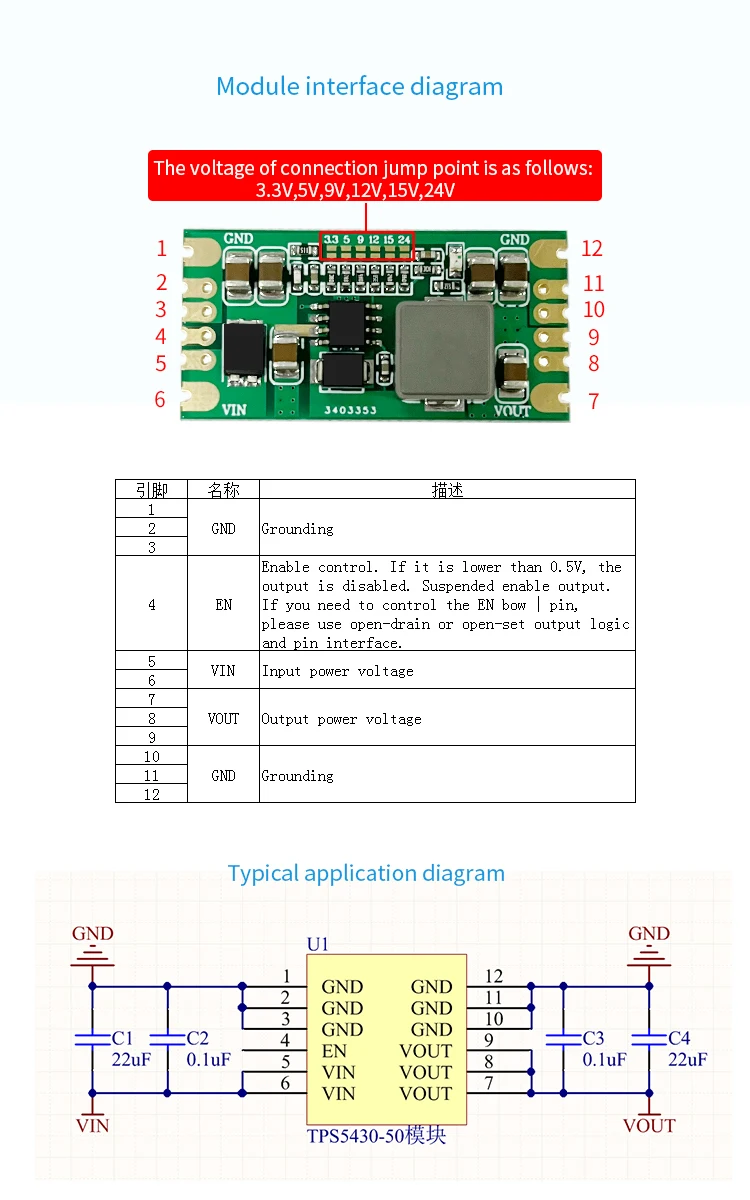

This module is a high current output: 3A (TPS5430) or 5A (TPS5450); Wide voltage input range: 5.5-36V power module. Various voltage outputs (3.3V, 5V, 9V, 12V, 15V, 24V) are configured on board by default, and can be converted to corresponding voltage output only by welding the corresponding jump point. The optimal theoretical conversion rate can reach 95%. Wide voltage output range: fixed 500kHz conversion rate, over-current protection and thermal break function, switch enable pin, off state only 18uA. The module layout is regular, and the wiring is arranged in strict accordance with the design specifications of the power circuit. The material is generous, the ripple is small, and the power output is convenient and practical. It is suitable for student competition module and individual project development.

Precautions for module use

(1) The module is a step-down module, and the input voltage needs to be more than 2V to output stably.

(2) The module heating is mainly determined by the input and output voltage difference and the load current. Please select and use the power module reasonably, and generally reserve a certain margin.

(3) The detailed description of our baby is mainly for 5V output models, especially when using high-power 10W (output 5V2A, output 15V/O.67A) or more, please add heat dissipating silicone fins to cool the chip. With better heat dissipation conditions, it is better to control it within 30W (output 15V, 2A) for a long time to avoid damaging the chip.

FAQ

Q: Why can't the maximum output of the module reach the nominal value when I use it?

A: To achieve high output power, the input power of the module must be greater than the output power.

Q: My input voltage is normal. Why can't the module output normally?

A: Switching power supply modules are all limited by starting current. The input power supply needs to have a current instantaneous output capacity greater than 300mA to start the module.

Q: The 12V output selected by the trip point, the module power supply 13V, the output 11V?

A: The module is a step-down module, and the input voltage needs to be more than 2V to output stably.
